Spatial filtering with nonlocal non-Hermitian metasurfaces

Biao Chen*, Mikael Reichler, Radoslaw Kolkowski†, and Andriy Shevchenko‡

  • Department of Applied Physics, Aalto University, P.O. Box 13500, Aalto FI-00076, Finland

  • *Contact author: biao.chen@aalto.fi
  • †Contact author: radoslaw.kolkowski@aalto.fi
  • ‡Contact author: andriy.shevchenko@aalto.fi
PDF

Phys. Rev. Applied 24, 024067 – Published 28 August, 2025

DOI: https://doi.org/10.1103/fsmd-wsnr

Abstract

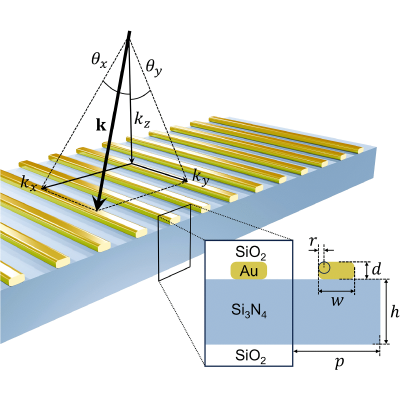

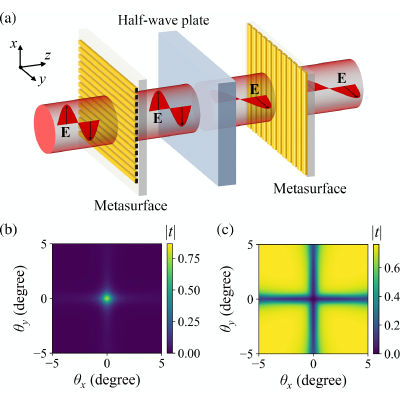

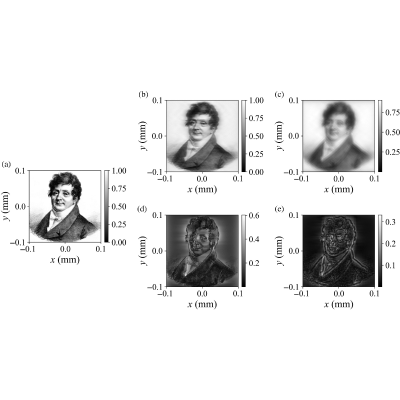

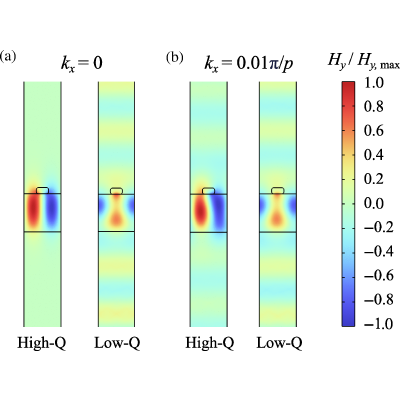

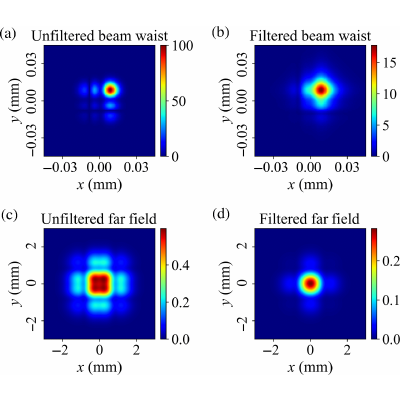

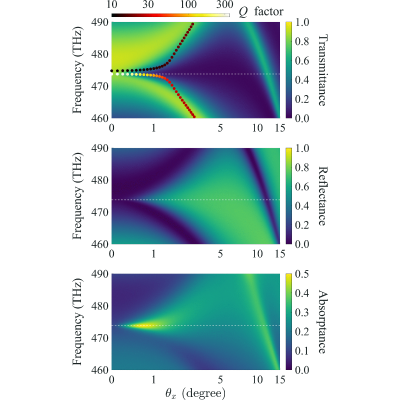

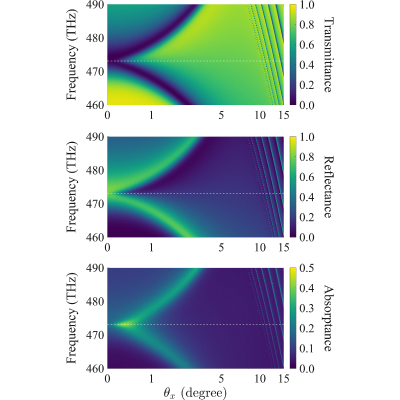

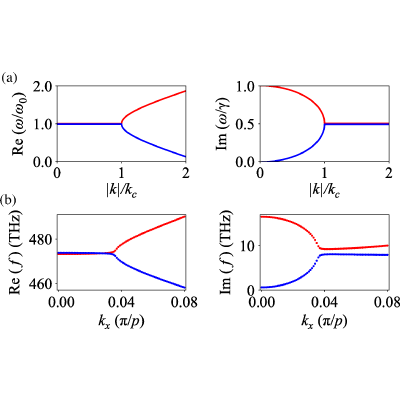

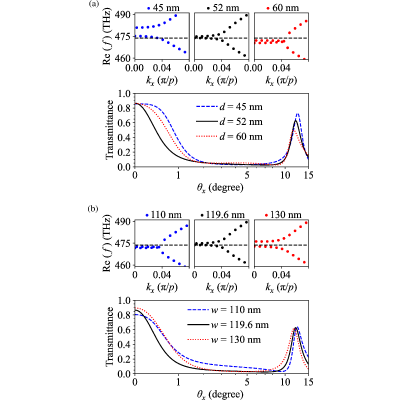

Spatial filtering of optical fields has widespread applications, ranging from beam shaping to optical information processing; however, conventional spatial filters are bulky and alignment sensitive. Here, we present nonlocal non-Hermitian metasurfaces that can act as exceptionally effective optical spatial filters while being highly compact and insensitive to both lateral and longitudinal displacements. The design of these metasurfaces is based on a resonant waveguide grating in which radiative losses of the modes are tailored to realize a symmetry-protected bound state in the continuum in the middle of a non-Hermitian flat band. Using this design, we propose a compact spatial-filtering device operating over an angular range of approximately 1∘ around normal incidence. In addition to being ultrathin and robust against translational misalignment, the proposed metasurfaces are easy to manufacture, which makes them an attractive alternative to conventional spatial filters, with the potential to become a widely used optical component.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (49)

  1. S. A. Schulz, R. Oulton, M. Kenney, A. Alù, I. Staude, A. Bashiri, Z. Fedorova, R. Kolkowski, A. F. Koenderink, X. Xiao et al., Roadmap on photonic metasurfaces, Appl. Phys. Lett. 124, 260701 (2024).
  2. R. Kolkowski, T. K. Hakala, A. Shevchenko, and M. J. Huttunen, Nonlinear nonlocal metasurfaces, Appl. Phys. Lett. 122, 160502 (2023).
  3. A. Overvig and A. Alù, Diffractive nonlocal metasurfaces, Laser Photonics Rev. 16, 2100633 (2022).
  4. K. Shastri and F. Monticone, Nonlocal flat optics, Nat. Photonics 17, 36 (2023).
  5. S. Wang and R. Magnusson, Theory and applications of guided-mode resonance filters, Appl. Opt. 32, 2606 (1993).
  6. G. Quaranta, G. Basset, O. J. Martin, and B. Gallinet, Recent advances in resonant waveguide gratings, Laser Photonics Rev. 12, 1800017 (2018).
  7. M. Ouyang, H. Yu, D. Pan, L. Wan, C. Zhang, S. Gao, T. Feng, and Z. Li, Optical encryption in spatial frequencies of light fields with metasurfaces, Optica 9, 1022 (2022).
  8. C. W. Hsu, B. Zhen, A. D. Stone, J. D. Joannopoulos, and M. Soljačić, Bound states in the continuum, Nat. Rev. Mater. 1, 16048 (2016).
  9. S. I. Azzam and A. V. Kildishev, Photonic bound states in the continuum: From basics to applications, Adv. Opt. Mater. 9, 2001469 (2021).
  10. M. Kang, T. Liu, C. Chan, and M. Xiao, Applications of bound states in the continuum in photonics, Nat. Rev. Phys. 5, 659 (2023).
  11. B. Zhen, C. W. Hsu, Y. Igarashi, L. Lu, I. Kaminer, A. Pick, S.-L. Chua, J. D. Joannopoulos, and M. Soljačić, Spawning rings of exceptional points out of Dirac cones, Nature 525, 354 (2015).
  12. A. Cerjan, A. Raman, and S. Fan, Exceptional contours and band structure design in parity-time symmetric photonic crystals, Phys. Rev. Lett. 116, 203902 (2016).
  13. R. Kolkowski, S. Kovaios, and A. F. Koenderink, Pseudochirality at exceptional rings of optical metasurfaces, Phys. Rev. Res. 3, 023185 (2021).
  14. D. Leykam and S. Flach, Perspective: Photonic flatbands, APL Photonics 3, 070901 (2018).
  15. Y. Yang, C. Roques-Carmes, S. E. Kooi, H. Tang, J. Beroz, E. Mazur, I. Kaminer, J. D. Joannopoulos, and M. Soljačić, Photonic flatband resonances for free-electron radiation, Nature 613, 42 (2023).
  16. J. Park, H. Cho, S. Lee, K. Lee, K. Lee, H. C. Park, J.-W. Ryu, N. Park, S. Jeon, and B. Min, Revealing non-Hermitian band structure of photonic Floquet media, Sci. Adv. 8, eabo6220 (2022).
  17. M. M. Asgari, P. Garg, X. Wang, M. S. Mirmoosa, C. Rockstuhl, and V. Asadchy, Theory and applications of photonic time crystals: A tutorial, Adv. Opt. Photonics 16, 958 (2024).
  18. Z.-L. Deng, F.-J. Li, H. Li, X. Li, and A. Alù, Extreme diffraction control in metagratings leveraging bound states in the continuum and exceptional points, Laser Photonics Rev. 16, 2100617 (2022).
  19. R. Kolkowski and A. Shevchenko, in Seventeenth International Congress on Artificial Materials for Novel Wave Phenomena (Metamaterials’2023) (Chania, Greece, 2023), p. X–165.
  20. J. Niu, L. Zhen, J. Liu, and B. Yang, Metasurface demonstration of exceptional points partitioned by a line of bound states in the continuum, Phys. Rev. B 109, L241302 (2024).
  21. B. Zhen, C. W. Hsu, L. Lu, A. D. Stone, and M. Soljačić, Topological nature of optical bound states in the continuum, Phys. Rev. Lett. 113, 257401 (2014).
  22. H. Bai, A. Shevchenko, and R. Kolkowski, Recovery of topologically robust merging bound states in the continuum in photonic structures with broken symmetry, Nanophotonics 14, 899 (2025).
  23. A. Silva, F. Monticone, G. Castaldi, V. Galdi, A. Alù, and N. Engheta, Performing mathematical operations with metamaterials, Science 343, 160 (2014).
  24. N. V. Golovastikov, D. A. Bykov, and L. L. Doskolovich, Resonant diffraction gratings for spatial differentiation of optical beams, Quantum Electron. 44, 984 (2014).
  25. L. Maigyte and K. Staliunas, Spatial filtering with photonic crystals, Appl. Phys. Rev. 2, 011102 (2015).
  26. A. Roberts, D. E. Gómez, and T. J. Davis, Optical image processing with metasurface dark modes, J. Opt. Soc. Am. A 35, 1575 (2018).
  27. J. Zhou, H. Qian, C.-F. Chen, J. Zhao, G. Li, Q. Wu, H. Luo, S. Wen, and Z. Liu, Optical edge detection based on high-efficiency dielectric metasurface, Proc. Natl. Acad. Sci. 116, 11137 (2019).
  28. Q. Qian, S. Ti, and C. Wang, All-dielectric ultra-thin metasurface angular filter, Opt. Lett. 44, 3984 (2019).
  29. L. Wesemann, T. J. Davis, and A. Roberts, Meta-optical and thin film devices for all-optical information processing, Appl. Phys. Rev. 8, 031309 (2021).
  30. L. Wan, D. Pan, S. Yang, W. Zhang, A. A. Potapov, X. Wu, W. Liu, T. Feng, and Z. Li, Optical analog computing of spatial differentiation and edge detection with dielectric metasurfaces, Opt. Lett. 45, 2070 (2020).
  31. A. Komar, R. A. Aoni, L. Xu, M. Rahmani, A. E. Miroshnichenko, and D. N. Neshev, Edge detection with Mie-resonant dielectric metasurfaces, ACS Photonics 8, 864 (2021).
  32. X. Bi, X. Guo, X. Wu, X. Fan, B. Wei, D. Wen, S. Liu, J. Zhao, and P. Li, Wideband optical edge detection based on dielectric metasurface, Appl. Phys. Lett. 123, 061702 (2023).
  33. M. Cotrufo, A. Arora, S. Singh, and A. Alù, Dispersion engineered metasurfaces for broadband, high-NA, high-efficiency, dual-polarization analog image processing, Nat. Commun. 14, 7078 (2023).
  34. M. Cotrufo, S. Singh, A. Arora, A. Majewski, and A. Alù, Polarization imaging and edge detection with image-processing metasurfaces, Optica 10, 1331 (2023).
  35. I. Tanriover, S. A. Dereshgi, and K. Aydin, Metasurface enabled broadband all optical edge detection in visible frequencies, Nat. Commun. 14, 6484 (2023).
  36. A. Guo, G. J. Salamo, D. Duchesne, R. Morandotti, M. Volatier-Ravat, V. Aimez, G. A. Siviloglou, and D. N. Christodoulides, Observation of PT-symmetry breaking in complex optical potentials, Phys. Rev. Lett. 103, 093902 (2009).
  37. S. Weimann, M. Kremer, Y. Plotnik, Y. Lumer, S. Nolte, K. G. Makris, M. Segev, M. C. Rechtsman, and A. Szameit, Topologically protected bound states in photonic parity–time-symmetric crystals, Nat. Mater. 16, 433 (2017).
  38. S. Longhi, Quantum interference and exceptional points, Opt. Lett. 43, 5371 (2018).
  39. S. R.-K. Rodriguez, Classical and quantum distinctions between weak and strong coupling, Eur. J. Phys. 37, 025802 (2016).
  40. R. Kolkowski and A. Shevchenko, Enabling infinite Q factors in absorbing optical systems, Nanophotonics 12, 3443 (2023).
  41. A. C. Overvig, S. C. Malek, M. J. Carter, S. Shrestha, and N. Yu, Selection rules for quasibound states in the continuum, Phys. Rev. B 102, 035434 (2020).
  42. M. N. Polyanskiy, Refractiveindex.info database of optical constants, Sci. Data 11, 94 (2024).
  43. T. W. Ebbesen, H. J. Lezec, H. Ghaemi, T. Thio, and P. A. Wolff, Extraordinary optical transmission through sub-wavelength hole arrays, Nature 391, 667 (1998).
  44. B. Soltani, B. Azarhoushang, and A. Zahedi, Laser ablation mechanism of silicon nitride with nanosecond and picosecond lasers, Opt. Laser Technol. 119, 105644 (2019).
  45. D. J. Moss, R. Morandotti, A. L. Gaeta, and M. Lipson, New CMOS-compatible platforms based on silicon nitride and Hydex for nonlinear optics, Nat. Photonics 7, 597 (2013).
  46. S. Hooker and C. Webb, Laser Physics (Oxford University Press, New York, 2010), Vol. 9, Chap. 6.
  47. S. Yao and Z. Wang, Edge states and topological invariants of non-Hermitian systems, Phys. Rev. Lett. 121, 086803 (2018).
  48. S. Longhi, Probing non-Hermitian skin effect and non-Bloch phase transitions, Phys. Rev. Res. 1, 023013 (2019).
  49. N. Okuma, K. Kawabata, K. Shiozaki, and M. Sato, Topological origin of non-Hermitian skin effects, Phys. Rev. Lett. 124, 086801 (2020).
