High-speed magnetic-field imaging via N-V ensemble and laser raster scanning

Luca Troise1,*, Nikolaj W. Hansen2, Marvin Holten3, Dhiren Kara1, Annika Pörner1, Jean-François Perrier2, Ulrik L. Andersen1, and Alexander Huck1,†

  • *Contact author: lutro@dtu.dk
  • †Contact author: alhu@dtu.dk
PDF

Phys. Rev. Applied 25, 064065 – Published 22 June, 2026

DOI: https://doi.org/10.1103/fbp5-ncpy

Abstract

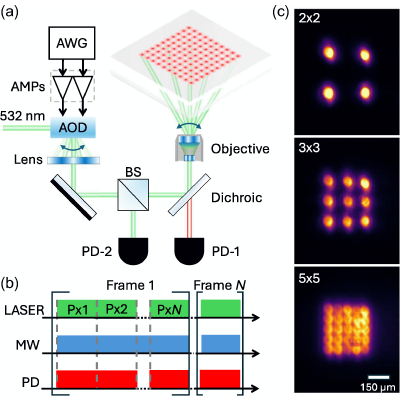

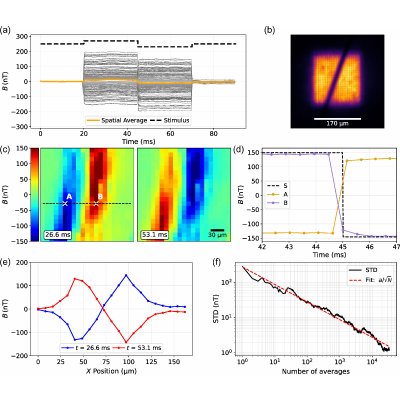

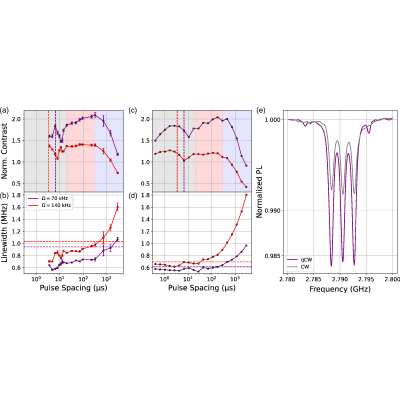

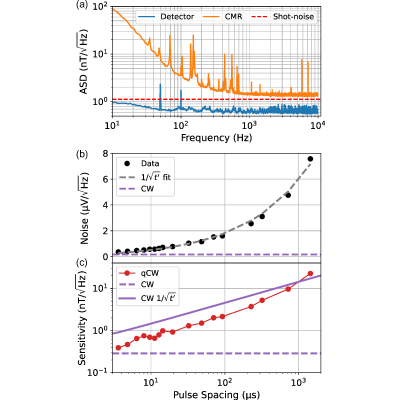

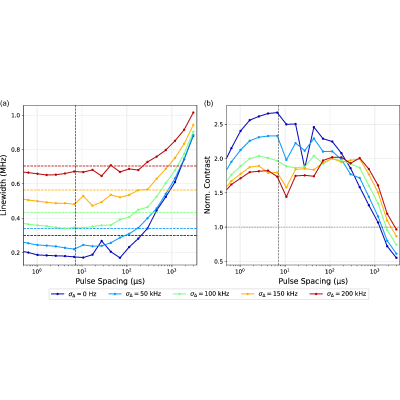

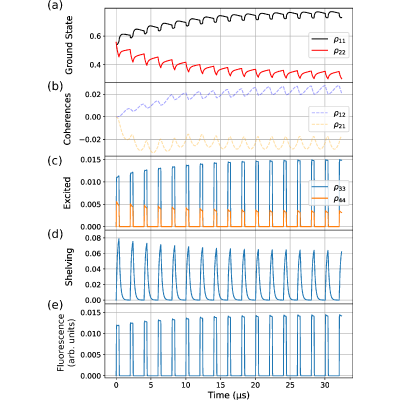

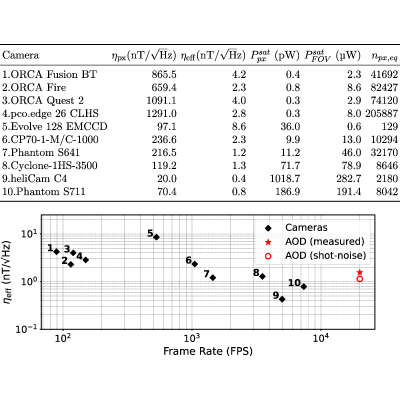

We present a technique based on an ensemble of nitrogen-vacancy (N-V) centers in diamond capable of imaging magnetic fields with high spatiotemporal resolution and sensitivity. A focused laser beam is raster scanned using an acousto-optic deflector and N-V center fluorescence is read out with a single photodetector, enabling near shot-noise-limited imaging. The method operates in what we term quasi-continuous-wave optically detected magnetic resonance (qCW-ODMR), a regime closely related to pulsed-ODMR schemes used to mitigate power broadening. In this qCW regime, N-V centers experience short optical pump pulses for spin polarization and readout while the microwave field continuously drives the spin transitions. We systematically characterize this regime and show that the spin response is governed by a tunable interplay between coherent evolution and relaxation, determined by the temporal spacing between pump laser pulses. Notably, the technique does not require precise microwave pulse control, thus simplifying experimental implementation. To demonstrate its capabilities, we image time-varying magnetic fields from a microwire with submillisecond temporal resolution. This approach enables flexible spatial sampling and, with our diamond, achieves nT/Hz-level per-pixel sensitivity, making it a promising platform for imaging weak, dynamic magnetic fields in biological and other complex systems.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (33)

  1. M. W. Doherty, N. B. Manson, P. Delaney, F. Jelezko, J. Wrachtrup, and L. C. L. Hollenberg, The nitrogen-vacancy colour centre in diamond, Phys. Rep. 528, 1 (2013).
  2. C. L. Degen, F. Reinhard, and P. Cappellaro, Quantum sensing, Rev. Mod. Phys. 89, 035002 (2017).
  3. J. F. Barry, J. M. Schloss, E. Bauch, M. J. Turner, C. A. Hart, L. M. Pham, and R. L. Walsworth, Sensitivity optimization for nv-diamond magnetometry, Rev. Mod. Phys. 92, 015004 (2020).
  4. E. Bauch, C. A. Hart, J. M. Schloss, M. J. Turner, J. F. Barry, P. Kehayias, S. Singh, and R. L. Walsworth, Ultralong dephasing times in solid-state spin ensembles via quantum control, Phys. Rev. X 8, 031025 (2018).
  5. A. Nowodzinski, M. Chipaux, L. Toraille, V. Jacques, J.-F. Roch, and T. Debuisschert, Nitrogen-vacancy centers in diamond for current imaging at the redistributive layer level of integrated circuits, Microelectron. Reliab. 55, 1549 (2015).
  6. J.-P. Tetienne, N. Dontschuk, D. A. Broadway, A. Stacey, D. A. Simpson, and L. C. Hollenberg, Quantum imaging of current flow in graphene, Sci. Adv. 3, e1602429 (2017).
  7. J. L. Webb, L. Troise, N. W. Hansen, L. F. Frellsen, C. Osterkamp, F. Jelezko, S. Jankuhn, J. Meijer, K. Berg-Sørensen, J.-F. Perrier et al., High-speed wide-field imaging of microcircuitry using nitrogen vacancies in diamond, Phys. Rev. Appl. 17, 064051 (2022).
  8. A. Horsley, P. Appel, J. Wolters, J. Achard, A. Tallaire, P. Maletinsky, and P. Treutlein, Microwave device characterization using a widefield diamond microscope, Phys. Rev. Appl. 10, 044039 (2018).
  9. Y. Schlussel, T. Lenz, D. Rohner, Y. Bar-Haim, L. Bougas, D. Groswasser, M. Kieschnick, E. Rozenberg, L. Thiel, A. Waxman et al., Wide-field imaging of superconductor vortices with electron spins in diamond, Phys. Rev. Appl. 10, 034032 (2018).
  10. S. E. Lillie, D. A. Broadway, N. Dontschuk, S. C. Scholten, B. C. Johnson, S. Wolf, S. Rachel, L. C. Hollenberg, and J.-P. Tetienne, Laser modulation of superconductivity in a cryogenic wide-field nitrogen-vacancy microscope, Nano Lett. 20, 1855 (2020).
  11. D. R. Glenn, R. R. Fu, P. Kehayias, D. Le Sage, E. A. Lima, B. P. Weiss, and R. L. Walsworth, Micrometer-scale magnetic imaging of geological samples using a quantum diamond microscope, Geochem. Geophys. Geosyst. 18, 3254 (2017).
  12. R. R. Fu, E. A. Lima, M. W. R. Volk, and R. Trubko, High-sensitivity moment magnetometry with the quantum diamond microscope, Geochem. Geophys. Geosyst. 21, e2020GC009147 (2020).
  13. D. Le Sage, K. Arai, D. R. Glenn, S. J. DeVience, L. M. Pham, L. Rahn-Lee, M. D. Lukin, A. Yacoby, A. Komeili, and R. L. Walsworth, Optical magnetic imaging of living cells, Nature 496, 486 (2013).
  14. D. R. Glenn, K. Lee, H. Park, R. Weissleder, A. Yacoby, M. D. Lukin, H. Lee, R. L. Walsworth, and C. B. Connolly, Single-cell magnetic imaging using a quantum diamond microscope, Nat. Methods 12, 736 (2015).
  15. J. F. Barry, M. J. Turner, J. M. Schloss, D. R. Glenn, Y. Song, M. D. Lukin, H. Park, and R. L. Walsworth, Optical magnetic detection of single-neuron action potentials using quantum defects in diamond, Proc. Natl. Acad. Sci. 113, 14133 (2016).
  16. J. L. Webb, L. Troise, N. W. Hansen, C. Olsson, A. M. Wojciechowski, J. Achard, O. Brinza, R. Staacke, M. Kieschnick, J. Meijer et al., Detection of biological signals from a live mammalian muscle using an early stage diamond quantum sensor, Sci. Rep. 11, 2412 (2021).
  17. L. Troise, N. W. Hansen, C. Olsson, J. L. Webb, L. Tomasevic, J. Achard, O. Brinza, R. Staacke, M. Kieschnick, J. Meijer et al., In vitro recording of muscle activity induced by high intensity laser optogenetic stimulation using a diamond quantum biosensor, AVS Quantum Sci. 4, 044402 (2022).
  18. N. W. Hansen, J. L. Webb, L. Troise, C. Olsson, L. Tomasevic, O. Brinza, J. Achard, R. Staacke, M. Kieschnick, J. Meijer, A. Thielscher, H. R. Siebner, K. Berg-Sørensen, J.-F. Perrier, A. Huck, and U. L. Andersen, Microscopic-scale magnetic recording of brain neuronal electrical activity using a diamond quantum sensor, Sci. Rep. 13, 12407 (2023).
  19. J. L. Webb, L. Troise, N. W. Hansen, J. Achard, O. Brinza, R. Staacke, M. Kieschnick, J. Meijer, J.-F. Perrier, K. Berg-Sørensen et al., Optimization of a diamond nitrogen vacancy centre magnetometer for sensing of biological signals, Front. Phys. 8, 522536 (2020).
  20. A. M. Wojciechowski, M. Karadas, A. Huck, C. Osterkamp, S. Jankuhn, J. Meijer, F. Jelezko, and U. L. Andersen, Contributed review: Camera-limits for wide-field magnetic resonance imaging with a nitrogen-vacancy spin sensor, Rev. Sci. Instrum. 89, 031501 (2018).
  21. M. A. Keppler, Z. A. Steelman, Z. N. Coker, M. Nesládek, P. R. Hemmer, V. V. Yakovlev, and J. N. Bixler, Dynamic nitrogen vacancy magnetometry by single-shot optical streaking microscopy, Photonics Res. 10, 2147 (2022).
  22. M. Endres, H. Bernien, A. Keesling, H. Levine, E. R. Anschuetz, A. Krajenbrink, C. Senko, V. Vuletic, M. Greiner, and M. D. Lukin, Atom-by-atom assembly of defect-free one-dimensional cold atom arrays, Science 354, 1024 (2016).
  23. A. M. Kaufman and K.-K. Ni, Quantum science with optical tweezer arrays of ultracold atoms and molecules, Nat. Phys. 17, 1324 (2021).
  24. M. Cambria, S. Chand, C. M. Reiter, and S. Kolkowitz, Scalable parallel measurement of individual nitrogen-vacancy centers, Phys. Rev. X 15, 031015 (2025).
  25. J. P. Leibold, N. R. von Grafenstein, X. Chen, L. Müller, K. D. Briegel, and D. B. Bucher, Time-space-encoded readout for noise suppression and scalable scanning in optically active solid-state spin systems, Phys. Rev. Appl. 23, 064018 (2025).
  26. D. G. Ang, J. Tang, and R. L. Walsworth, Design of a quantum diamond microscope with efficient scanning confocal readout, Acad. Quantum 2, 7690 (2025).
  27. J. Manin, S. A. Skeen, and L. M. Pickett, Performance comparison of state-of-the-art high-speed video cameras for scientific applications, Opt. Eng. 57, 124105 (2018).
  28. J. Pawley, Handbook of Biological Confocal Microscopy (Springer Science & Business Media, New York, 2006), Vol. 236.
  29. A. Dréau, M. Lesik, L. Rondin, P. Spinicelli, O. Arcizet, J.-F. Roch, and V. Jacques, Avoiding power broadening in optically detected magnetic resonance of single nv defects for enhanced dc magnetic field sensitivity, Phys. Rev. B 84, 195204 (2011).
  30. S. Ahmadi, H. A. R. El-Ella, J. O. B. Hansen, A. Huck, and U. L. Andersen, Pump-enhanced continuous-wave magnetometry using nitrogen-vacancy ensembles, Phys. Rev. Appl. 8, 034001 (2017).
  31. L. Robledo, H. Bernien, T. van der Sar, and R. Hanson, Spin dynamics in the optical cycle of single nitrogen-vacancy centres in diamond, New J. Phys. 13, 025013 (2011).
  32. G. Balasubramanian, P. Neumann, D. Twitchen, M. Markham, R. Kolesov, N. Mizuochi, J. Isoya, J. Achard, J. Beck, J. Tissler et al., Ultralong spin coherence time in isotopically engineered diamond, Nat. Mater. 8, 383 (2009).
  33. C. A. Hart, J. M. Schloss, M. J. Turner, P. J. Scheidegger, E. Bauch, and R. L. Walsworth, N-V–diamond magnetic microscopy using a double quantum 4-Ramsey protocol, Phys. Rev. Appl. 15, 044020 (2021).
