Establishing the magnetoelastic origin of spin-wave routing through focused-ion-beam patterning

Felix Naunheimer1,*, Johannes Greil1, Valentin Ahrens1, Levente Maucha2, Ádám Papp2, György Csaba2, and Markus Becherer1

  • *Contact author: felix.naunheimer@tum.de
PDF

Phys. Rev. Applied 26, 024028 – Published 12 August, 2026

DOI: https://doi.org/10.1103/ds1z-ry8r

Abstract

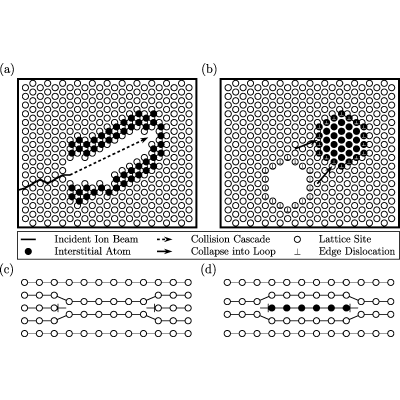

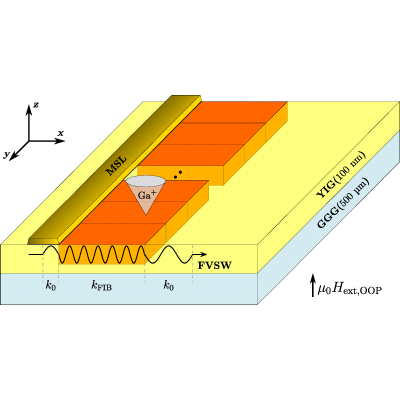

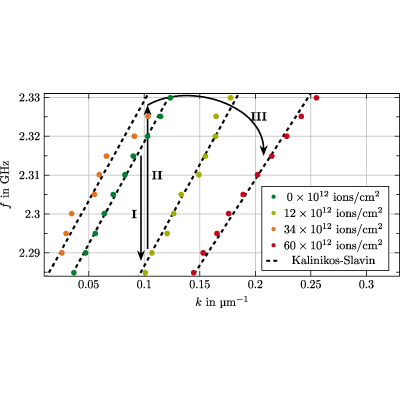

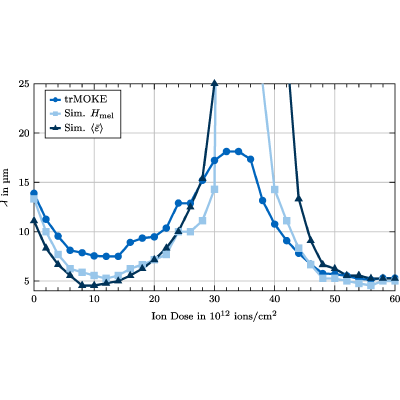

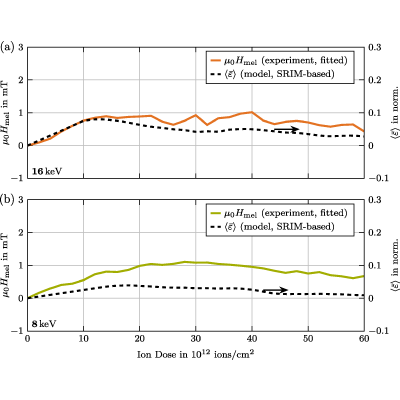

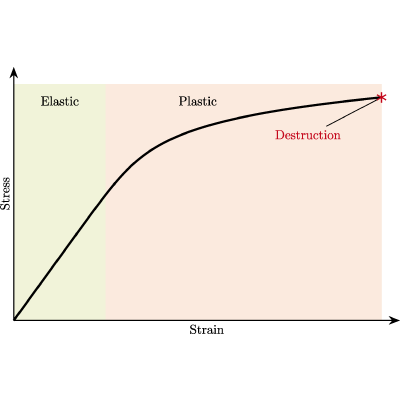

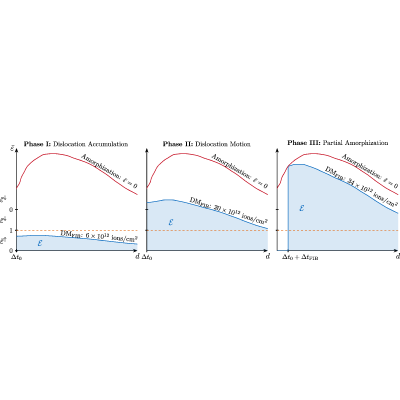

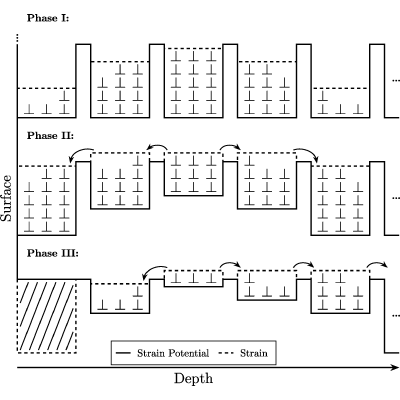

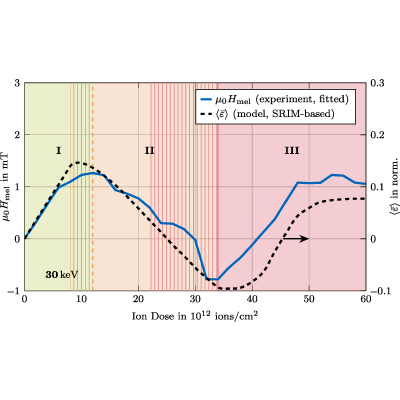

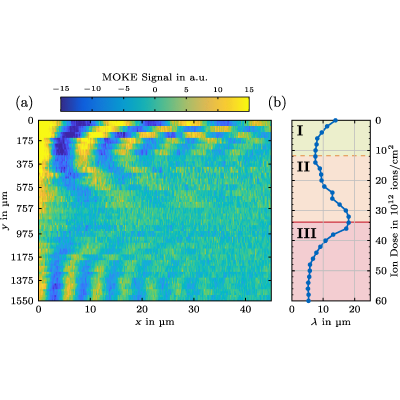

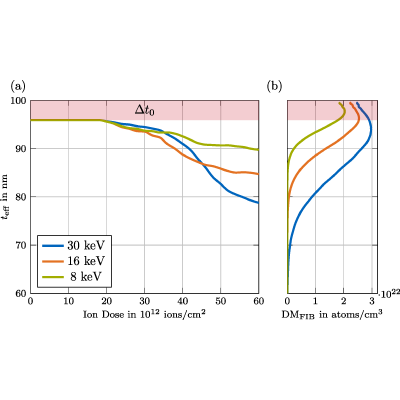

Spin waves are promising information carriers for analog and wave-based computing, where functionality relies on compact and precisely engineered scattering landscapes. Focused-ion-beam (FIB) irradiation enables such control by locally tailoring the spin-wave dispersion in yttrium iron garnet. However, a nonmonotonic dependence of the spin-wave wavelength on increasing ion dose hinders predictive landscape design. Here, we present an experimentally validated framework that explains this nonmonotonic spin-wave steering by linking phenomenological strain-induced anisotropy to its magnetoelastic origin. Irradiation-induced lattice dislocations drive elastic and plastic deformation, which evolve into partial amorphization, each stage contributing distinctly to the dispersion behavior. We combine postirradiation wet-chemical etching and atomic force microscopy to quantify thickness changes and track the dispersion in etched regions using time-resolved magneto-optical Kerr effect microscopy. Fitting the data to the Kalinikos–Slavin formalism with an added effective magnetoelastic field isolates contributions from elastic and plastic deformation. Validation is achieved by mapping the deformation evolution onto a three-phase scenario based on SRIM simulations, reproducing the extracted field trends, and consistent strain-tensor and micromagnetic analyses. These results establish a physical basis for FIB-engineered graded-index spin-wave landscapes and magnetoelastically programmable magnonic devices.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (41)

  1. G. Csaba, A. Papp, and W. Porod, Perspectives of using spin waves for computing and signal processing, Phys. Lett. A 381, 1471 (2017).
  2. A. Mahmoud, F. Ciubotaru, F. Vanderveken, A. V. Chumak, S. Hamdioui, C. Adelmann, and S. Cotofana, Introduction to spin wave computing, J. Appl. Phys. 128, 161101 (2020).
  3. G. Csaba, A. Papp, and W. Porod, Spin-wave based realization of optical computing primitives, J. Appl. Phys. 115, 17C741 (2014).
  4. C. S. Davies and V. V. Kruglyak, Graded-index magnonics, Low Temp. Phys. 41, 760 (2015).
  5. M. Kiechle, A. Papp, S. Mendisch, V. Ahrens, M. Golibrzuch, G. H. Bernstein, W. Porod, G. Csaba, and M. Becherer, Spin-wave optics in YIG realized by ion-beam irradiation, Small 19, 2207293 (2023).
  6. Q. Wang, A. V. Chumak, and P. Pirro, Inverse-design magnonic devices, Nat. Commun. 12, 2636 (2021).
  7. A. Papp, W. Porod, and G. Csaba, Nanoscale neural network using non-linear spin-wave interference, Nat. Commun. 12, 6422 (2021).
  8. S. Breitkreutz, J. Kiermaier, I. Eichwald, X. Ju, G. Csaba, D. Schmitt-Landsiedel, and M. Becherer, Majority gate for nanomagnetic logic with perpendicular magnetic anisotropy, IEEE Trans. Magn. 48, 4336 (2012).
  9. M. Becherer, S. Breitkreutz-v. Gamm, I. Eichwald, G. Žiemys, J. Kiermaier, G. Csaba, and D. Schmitt-Landsiedel, A monolithic 3D integrated nanomagnetic co-processing unit, Solid-State Electron. 115, 74 (2016).
  10. V. Ahrens, L. Gnoli, D. Giuliano, S. Mendisch, M. Kiechle, F. Riente, and M. Becherer, Skyrmion velocities in FIB irradiated W/CoFeB/MgO thin films, AIP Adv. 12, 035325 (2022).
  11. V. Ahrens, C. Kiesselbach, L. Gnoli, D. Giuliano, S. Mendisch, M. Kiechle, F. Riente, and M. Becherer, Skyrmions under control—FIB irradiation as a versatile tool for skyrmion circuits, Adv. Mater. 35, 2207321 (2023).
  12. J. Bensmann, R. Schmidt, K. O. Nikolaev, D. Raskhodchikov, S. Choudhary, R. Bhardwaj, S. Taheriniya, A. Varri, S. Niehues, A. E. Kadri et al., Dispersion-tunable low-loss implanted spin-wave waveguides for large magnonic networks, Nat. Mater. 24, 1920 (2025).
  13. M. Kiechle, L. Maucha, V. Ahrens, C. Dubs, W. Porod, G. Csaba, M. Becherer, and A. Papp, Experimental demonstration of a spin-wave lens designed with machine learning, IEEE Magn. Lett. 13, 6105305 (2022).
  14. J. Greil, M. Kiechle, A. Papp, P. Neumann, Zán Kovács, J. Volk, F. Schulz, S. Wintz, M. Weigand, Görgy Csaba, and M. Becherer, The effect of Ga-ion irradiation on sub-micron-wavelength spin waves in yttrium-iron-garnet films, Nanotechnology 36, 135301 (2025).
  15. A. H. Eschenfelder, Magnetic Bubble Technology (Springer Science & Business Media, New York, 2012).
  16. R. Wolfe, J. C. North, R. L. Barns, M. Robinson, and H. J. Levinstein, Modification of magnetic anisotropy in garnets by ion implantation, Appl. Phys. Lett. 19, 298 (1971).
  17. H. Jouve, Specific properties of ion implanted bubble circuits, J. Appl. Phys. 50, 2246 (1979).
  18. J. Mada and K. Asama, FMR study of an ion-implanted layer on bubble garnet films, J. Appl. Phys. 50, 5914 (1979).
  19. W. T. Ruane, S. P. White, J. T. Brangham, K. Y. Meng, D. V. Pelekhov, F. Y. Yang, and P. C. Hammel, Controlling and patterning the effective magnetization in Y3Fe5O12 thin films using ion irradiation, AIP Adv. 8, 056007 (2018).
  20. I. Fodchuk, A. Kotsyubynsky, A. Velychkovych, I. Hutsuliak, V. Boychuk, V. Kotsyubynsky, and L. Ropyak, The effect of Ne+ ion implantation on the crystal, magnetic, and domain structures of yttrium iron garnet films, Crystals 12, 1485 (2022).
  21. G. S. Was, Fundamentals of Radiation Materials Science: Metals and Alloys (Springer, New York, 2007).
  22. B. A. Kalinikos and A. N. Slavin, Theory of dipole-exchange spin wave spectrum for ferromagnetic films with mixed exchange boundary conditions, J. Phys. C 19, 7013 (1986).
  23. J. F. Ziegler, M. D. Ziegler, and J. P. Biersack, SRIM—The stopping and range of ions in matter (2010), Nucl. Instrum. Methods Phys. Res. Sect. B 268, 1818 (2010).
  24. A. Vansteenkiste, J. Leliaert, M. Dvornik, M. Helsen, F. Garcia-Sanchez, and B. Van Waeyenberge, The design and verification of MuMax3, AIP Adv. 4, 107133 (2014).
  25. K. Ogawa, M. Tsukamoto, Y. Mori, D. Takafuji, J. Shiogai, K. Ueda, J. Matsuno, J.-I. Ohe, K. Sasaki, and K. Kobayashi, Quantitative imaging of nonlinear spin-wave propagation using diamond quantum sensors, Phys. Rev. B 112, 224411 (2025).
  26. S. B. Ubizskii, A. O. Matkovskii, N. Mironova-Ulmane, V. Skvortsova, A. Suchocki, Y. A. Zhydachevskii, and P. Potera, Displacement defect formation in complex oxide crystals under irradiation, Phys. Status Solidi A 177, 349 (2000).
  27. A. B. Smith and R. V. Jones, Magnetostriction constants from ferromagnetic resonance, J. Appl. Phys. 34, 1283 (1963).
  28. B. Bhoi, B. Kim, Y. Kim, M.-K. Kim, J.-H. Lee, and S.-K. Kim, Stress-induced magnetic properties of PLD-grown high-quality ultrathin YIG films, J. Appl. Phys. 123, 203902 (2018).
  29. K. An, C. Kim, K.-W. Moon, R. Kohno, G. Olivetti, G. D. Loubens, N. Vukadinovic, J. B. Youssef, C. Hwang, and O. Klein, Optimizing the magnon–phonon cooperativity in planar geometries, Phys. Rev. Appl. 20, 014046 (2023).
  30. P. M. Anderson, J. P. Hirth, and J. Lothe, Theory of Dislocations (Cambridge University Press, New York, 2017).
  31. F. Vanderveken, J. Mulkers, J. Leliaert, B. V. Waeyenberge, B. Soree, O. Zografos, F. Ciubotaru, and C. Adelmann, Finite difference magnetoelastic simulator, Open Res. Eur. 1, 35 (2021).
  32. K. Höflich, G. Hobler, F. I. Allen, T. Wirtz, G. Rius, L. McElwee-White, A. V. Krasheninnikov, M. Schmidt, I. Utke, N. Klingner et al., Roadmap for focused ion beam technologies, Appl. Phys. Rev. 10, 041311 (2023).
  33. L. D. Landau, L. P. Pitaevskii, A. M. Kosevich, and E. M. Lifshitz, Theory of Elasticity (Elsevier, New York, 2012), Vol. 7.
  34. V. Levati, M. Vitali, A. D. Giacco, N. Pellizzi, R. Silvani, L. C. Mavilla, M. Madami, I. Biancardi, D. Girardi, M. Panzeri et al., Three-dimensional nanoscale control of magnetism in crystalline yttrium iron garnet, Nat. Commun. 16, 9602 (2025).
  35. A. V. Sadovnikov, A. A. Grachev, S. E. Sheshukova, Y. P. Sharaevskii, A. A. Serdobintsev, D. M. Mitin, and S. A. Nikitov, Magnon straintronics: Reconfigurable spin-wave routing in strain-controlled bilateral magnetic stripes, Phys. Rev. Lett. 120, 257203 (2018).
  36. A. A. Grachev, A. V. Sadovnikov, and S. A. Nikitov, Strain-tuned spin-wave interference in micro- and nanoscale magnonic interferometers, Nanomaterials 12, 1520 (2022).
  37. A. A. Grachev, S. E. Sheshukova, and A. V. Sadovnikov, Strain-induced multi-band spin-wave logic gate based on alligator-type magnonic crystal/PZT structure, Appl. Phys. Lett. 124, 162406 (2024).
  38. N. S. Gusev, A. V. Sadovnikov, S. A. Nikitov, M. V. Sapozhnikov, and O. G. Udalov, Manipulation of the Dzyaloshinskii–Moriya interaction in Co/Pt multilayers with strain, Phys. Rev. Lett. 124, 157202 (2020).
  39. O. G. Udalov, R. V. Gorev, N. S. Gusev, A. V. Sadovnikov, and M. V. Sapozhnikov, Electric field manipulation of the Dzyaloshinskii–Moriya interaction in hybrid multiferroic structures, IEEE Trans. Magn. 60, 2500908 (2024).
  40. S. Li, S. Zhao, D. M. F. Hartmann, W. Yang, X. Lin, W. Zhao, and R. Lavrijsen, Modulation of the Dzyaloshinskii–Moriya interaction in Pt/Co/Pt with electric field induced strain, Appl. Phys. Lett. 126, 162401 (2025).
  41. M. Kiechle, A. Papp, L. Maucha, S. Mendisch, J. Greil, V. Ahrens, G. Csaba, and M. Becherer, Frequency demultiplexing of spin waves by inverse-designed magnetization patterns, experimentally realized by FIB irradiation, in Proceedings of the IEEE International Magnetic Conference-Short Papers (INTERMAG Short Papers) (IEEE, 2023), pp. 831–832.
