Graphene-insulator-superconductor junctions as thermoelectric bolometers

Leonardo Lucchesi1,2,* and Federico Paolucci1,2

  • *Contact author: leonardo.lucchesi@unipi.it
PDF

Phys. Rev. Applied 25, 054073 – Published 28 May, 2026

DOI: https://doi.org/10.1103/dh9z-bs5h

Abstract

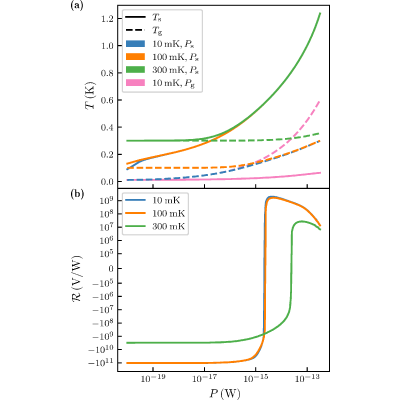

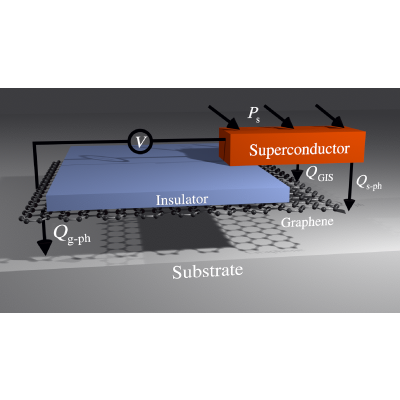

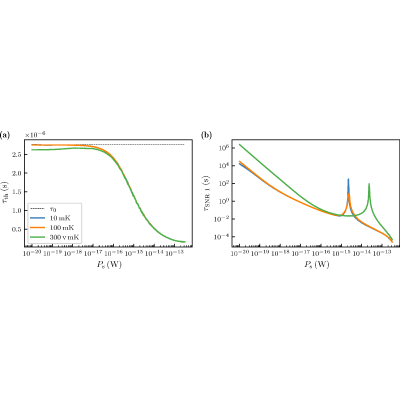

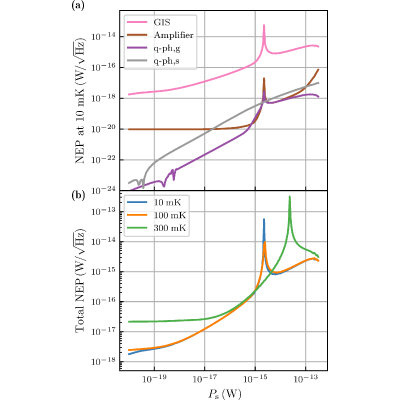

We design a superconducting thermoelectric bolometer made of a graphene-insulator-superconductor tunnel junction. Our detector has the advantage of being passive, as it directly transduces input power to a voltage without the need to modulate an external bias. We characterize the device via numerical simulation of the full nonlinear thermal dynamical model of the junction, considering heating of both sides of the junction. While estimating noise contributions, we found expressions due to the temperatures of both sides being different from the bath temperature. Numerical simulations show a noise equivalent power of approximately 4×10−17W/Hz for an input power of approximately 10−16W, a response time of approximately 200ns, and an integration time to obtain a signal-to-noise ratio of 1 of approximately 100μs for an input power of approximately 10−13W. Therefore, the device shows promise for large-array cosmological experiment applications, also considering its advantages for fabrication and heat budget.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (38)

  1. P. A. R. Ade et al. (The Polarbear Collaboration), A measurement of the cosmic microwave background B-mode polarization power spectrum at subdegree scales from two years of POLARBEAR data, Astrophys. J. 794, 171 (2014).
  2. M. Madhavacheril et al., Evidence of lensing of the cosmic microwave background by dark matter halos, Phys. Rev. Lett. 114, 151302 (2015).
  3. D. Farrah, K. E. Smith, D. Ardila, C. M. Bradford, M. Dipirro, C. Ferkinhoff, J. Glenn, P. Goldsmith, D. Leisawitz, T. Nikola, N. Rangwala, S. A. Rinehart, J. Staguhn, M. Zemcov, J. Zmuidzinas, and J. Bartlett, Review: Far-infrared instrumentation and technological development for the next decade, J. Astron. Telesc. Instrum. Syst. 5, 1 (2019).
  4. A. Luukanen, R. Appleby, M. Kemp, and N. Salmon, in Terahertz Spectroscopy and Imaging, edited by K.-E. Peiponen, A. Zeitler, and M. Kuwata-Gonokami (Springer Berlin Heidelberg, Berlin, Heidelberg, 2013), pp. 491–520.
  5. J. N. Ullom and D. A. Bennett, Review of superconducting transition-edge sensors for x-ray and gamma-ray spectroscopy, Supercond. Sci. Technol. 28, 084003 (2015).
  6. A. Rogalski, Infrared and Terahertz Detectors (Taylor & Francis Group, Boca Raton, FL, 2022), p. 55.
  7. E. A. Grace et al., Characterization and performance of a kilo-TES sub-array for ACTPol, J. Low Temp. Phys. 176, 705 (2014).
  8. D. Dutcher, S. M. Duff, J. C. Groh, E. Healy, J. Hubmayr, B. R. Johnson, D. Jones, B. Keller, L. T. Lin, M. J. Link, T. J. Lucas, S. Morgan, Y. Seino, R. F. Sonka, S. T. Staggs, Y. Wang, and K. Zheng, The Simons Observatory: Large-scale characterization of 90/150 GHz TES detector modules, J. Low Temp. Phys. 214, 247 (2024).
  9. M. De Lucia, P. Dal Bo, E. Di Giorgi, T. Lari, C. Puglia, and F. Paolucci, Transition edge sensors: Physics and applications, Instruments 8, 47 (2024).
  10. C. M. Bradford, B. Cameron, B. Moore, S. Hailey-Dunsheath, E. Amatucci, D. Bradley, J. Corsetti, D. Leisawitz, M. DiPirro, J. Tuttle, A. Brown, D. McBirney, A. Pope, L. Armus, M. Meixner, and K. Pontoppidan, Origins Survey Spectrometer: Revealing the hearts of distant galaxies and forming planetary systems with far-IR spectroscopy, J. Astron. Telesc. Instrum. Syst. 7, 011017 (2021).
  11. K. D. Irwin, An application of electrothermal feedback for high resolution cryogenic particle detection, Appl. Phys. Lett. 66, 1998 (1995).
  12. B. S. Karasik and R. Cantor, Demonstration of high optical sensitivity in far-infrared hot-electron bolometer, Appl. Phys. Lett. 98, 193503 (2011).
  13. T. T. Heikkilä, R. Ojajärvi, I. J. Maasilta, E. Strambini, F. Giazotto, and F. S. Bergeret, Thermoelectric radiation detector based on superconductor-ferromagnet systems, Phys. Rev. Appl. 10, 034053 (2018).
  14. S. Hailey-Dunsheath, R. M. J. Janssen, J. Glenn, C. M. Bradford, J. Perido, J. Redford, and J. Zmuidzinas, Kinetic inductance detectors for the origins space telescope, J. Astron. Telesc. Instrum. Syst. 7, 011015 (2021).
  15. A. Paiella, A. Coppolecchia, L. Lamagna, P. A. R. Ade, E. S. Battistelli, M. G. Castellano, I. Colantoni, F. Columbro, G. D’Alessandro, P. de Bernardis, S. Gordon, S. Masi, P. Mauskopf, G. Pettinari, F. Piacentini, G. Pisano, G. Presta, and C. Tucker, Kinetic inductance detectors for the OLIMPO experiment: Design and pre-flight characterization, J. Cosmol. Astropart. Phys. 2019, 039 (2019).
  16. A. Wandui, J. J. Bock, C. Frez, M. Hollister, L. Minutolo, H. Nguyen, B. Steinbach, A. Turner, J. Zmuidzinas, and R. O’Brient, Thermal kinetic inductance detectors for millimeter-wave detection, J. Appl. Phys. 128, 044508 (2020).
  17. D. Golubev and L. Kuzmin, Nonequilibrium theory of a hot-electron bolometer with normal metal-insulator-superconductor tunnel junction, J. Appl. Phys. 89, 6464 (2001).
  18. L. Kuzmin, in Millimeter and Submillimeter Detectors for Astronomy II, edited by J. Zmuidzinas, W. S. Holland, and S. Withington, International Society for Optics and Photonics, Vol. 5498 (SPIE, Glasgow, United Kingdom, 2004), pp. 349–361.
  19. L. S. Kuzmin, A. L. Pankratov, A. V. Gordeeva, V. O. Zbrozhek, V. A. Shamporov, L. S. Revin, A. V. Blagodatkin, S. Masi, and P. de Bernardis, Photon-noise-limited cold-electron bolometer based on strong electron self-cooling for high-performance cosmology missions, Commun. Phys. 2, 104 (2019).
  20. A. Ozaeta, P. Virtanen, F. S. Bergeret, and T. T. Heikkilä, Predicted very large thermoelectric effect in ferromagnet-superconductor junctions in the presence of a spin-splitting magnetic field, Phys. Rev. Lett. 112, 057001 (2014).
  21. G. Marchegiani, A. Braggio, and F. Giazotto, Nonlinear thermoelectricity with electron-hole symmetric systems, Phys. Rev. Lett. 124, 106801 (2020).
  22. H. Vora, P. Kumaravadivel, B. Nielsen, and X. Du, Bolometric response in graphene based superconducting tunnel junctions, Appl. Phys. Lett. 100, 153507 (2012).
  23. C. B. McKitterick, D. E. Prober, H. Vora, and X. Du, Ultrasensitive graphene far-infrared power detectors, J. Phys.: Condens. Matter 27, 164203 (2015).
  24. F. Vischi, M. Carrega, A. Braggio, F. Paolucci, F. Bianco, S. Roddaro, and F. Giazotto, Electron cooling with graphene-insulator-superconductor tunnel junctions for applications in fast bolometry, Phys. Rev. Appl. 13, 054006 (2020).
  25. L. Lucchesi and F. Paolucci, Out-of-equilibrium nonlinear model of thermoelectricity in superconducting tunnel junctions, Phys. Rev. B 112, 184509 (2025).
  26. F. Bianco, D. Zhang, and F. Paolucci, Coexistence of linear and non-linear thermoelectricity in graphene-superconductor tunnel junctions, J. Appl. Phys. 136, 154901 (2024).
  27. A. Suzuki, N. Cothard, A. T. Lee, M. D. Niemack, C. Raum, M. Renzullo, T. Sasse, J. Stevens, P. Truitt, E. Vavagiakis, J. Vivalda, B. Westrook, and D. Yohannes, Commercially fabricated antenna-coupled transition edge sensor bolometer detectors for next-generation cosmic microwave background polarimetry experiment, J. Low Temp. Phys. 199, 1158 (2020).
  28. T. Lari, E. Celasco, P. D. Bo, M. De Lucia, E. D. Giorgi, L. F. Barusso, F. Gatti, D. Grosso, F. Paolucci, C. Puglia, G. Signorelli, and A. Tartari, Characterization and modeling of a large area spiderweb bolometer for CMB observation, IEEE Trans. Appl. Supercond. 35, 1 (2025).
  29. M. Tinkham, Introduction to Superconductivity, Dover Books on Physics (Dover Publ., Mineola, NY, 2015), 2nd ed.
  30. G. De Simoni, F. Paolucci, P. Solinas, E. Strambini, and F. Giazotto, Metallic supercurrent field-effect transistor, Nat. Nanotechnol. 13, 802 (2018).
  31. F. Paolucci, G. Germanese, A. Braggio, and F. Giazotto, A highly sensitive broadband superconducting thermoelectric single-photon detector, Appl. Phys. Lett. 122, 173503 (2023).
  32. S. Golwala, J. Jochum, and B. Sadoulet, in Proceedings of the VIIth International Workshop on Low Temperature Detectors, 27 July–2 August,1997, Munich, Germany, edited by S. Cooper (Max Planck Institute, Munich, 1997), pp. 64–65.
  33. F. Giazotto, T. T. Heikkilä, A. Luukanen, A. M. Savin, and J. P. Pekola, Opportunities for mesoscopics in thermometry and refrigeration: Physics and applications, Rev. Mod. Phys. 78, 217 (2006).
  34. J. C. Mather, Bolometer noise: Nonequilibrium theory, Appl. Opt. 21, 1125 (1982).
  35. H. Nyquist, Thermal agitation of electric charge in conductors, Phys. Rev. 32, 110 (1928).
  36. F. Paolucci, V. Buccheri, G. Germanese, N. Ligato, R. Paoletti, G. Signorelli, M. Bitossi, P. Spagnolo, P. Falferi, M. Rajteri, C. Gatti, and F. Giazotto, Development of highly sensitive nanoscale transition edge sensors for gigahertz astronomy and dark matter search, J. Appl. Phys. 128, 194502 (2020).
  37. P. L. Richards, Bolometers for infrared and millimeter waves, J. Appl. Phys. 76, 1 (1994).
  38. Ya. M. Blanter and M. Büttiker, Shot noise in mesoscopic conductors, Phys. Rep. 336, 1 (2000).
