Spin-orbit-torque-enabled three-dimensional magnetic field sensor with low offset and high sensitivity

Sebastian Zeilinger*

Johannes Güttinger and Armin Satz

Klemens Prügl and Michael Kirsch

Joshua M. Salazar-Mejía

Sabri Koraltan

Philip Heinrich, Bernd Aichner, and Florian Bruckner

Sophie Zeilinger

Hubert Brückl

Dieter Suess

  • Faculty Center for Nano Structure Research, Faculty of Physics, University of Vienna, Vienna, Austria

  • *Contact author: sebastian.zeilinger@univie.ac.at
PDF

Phys. Rev. Applied 24, 064037 – Published 11 December, 2025

DOI: https://doi.org/10.1103/997y-hk7m

Abstract

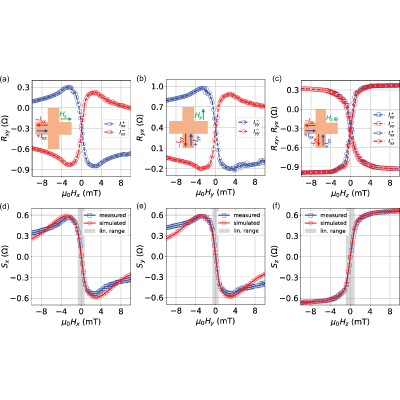

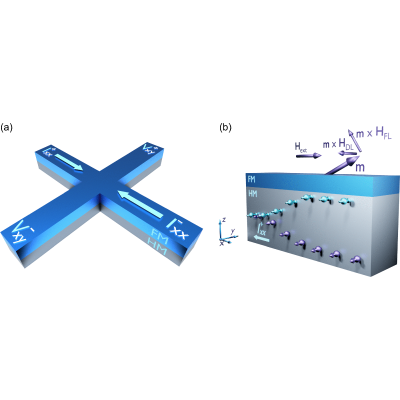

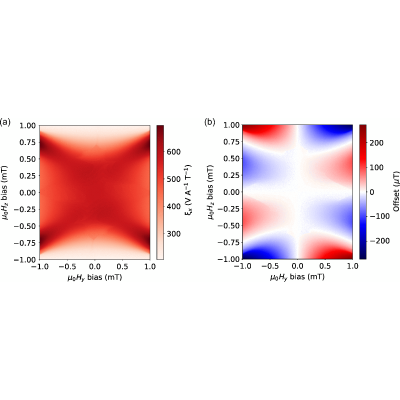

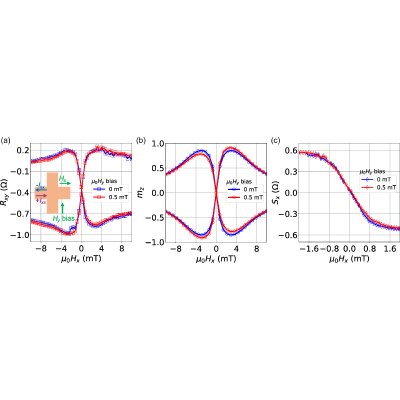

In this work we demonstrate a spin-orbit-torque (SOT) magnetic field sensor, designed as a Ta/CoFeB/MgO structure, with high sensitivity and capable of active offset compensation in all three spatial directions. This is described and verified in experiment and simulation. The measurements of magnetic fields showed an offset of 35, 42, and 3μT for x-, y-, and z-fields respectively. Furthermore, the sensitivities of these measurements had values of 590, 580, and 490VA−1T−1 in the x-, y-, and z-direction, respectively. In addition, the robustness to bias fields is demonstrated via experiments and single-spin simulations by applying bias fields in the y-direction. Cross sensitivities were further analyzed via single-spin simulations, performing a parameter sweep of different bias fields in the y- and z-direction up to ±1mT. The extraction of the SOT parameters ηDL and ηFL is shown via an optimization of a single-spin curve to the experimental measurements.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (31)

  1. X. Chen, Y. Xu, X. Xie, Y. Guo, and Y. Huang, A novel Hall dynamic offset cancellation circuit based on four-phase spinning current technique, in 2015 China Semiconductor Technology International Conference, Shanghai (IEEE, Piscataway, NJ, USA, 2015), pp. 1–3.
  2. M. Motz, U. Ausserlechner, M. Bresch, U. Fakesch, B. Schaffer, C. Reidl, W. Scherr, G. Pircher, M. Strasser, and V. Strutz, A miniature digital current sensor with differential Hall probes using enhanced chopping techniques and mechanical stress compensation, in 2012 IEEE SENSORS Conference, Taipei, Taiwan (IEEE, Piscataway, NJ, USA, 2012), pp. 1–4.
  3. S. S. P. Parkin, C. Kaiser, A. Panchula, P. M. Rice, B. Hughes, M. Samant, and S.-H. Yang, Giant tunneling magnetoresistance at room temperature with MgO(100) tunnel barriers, Nat. Mater. 3, 862 (2004).
  4. S. Yuasa, T. Nagahama, A. Fukushima, Y. Suzuki, and K. Ando, Giant room-temperature magnetoresistance in single-crystal Fe/MgO/Fe magnetic tunnel junctions, Nat. Mater. 3, 868 (2004).
  5. J. Lenz and S. Edelstein, Magnetic sensors and their applications, IEEE Sens. J. 6, 631 (2006).
  6. M. Vopalensky and A. Platil, Temperature drift of offset and sensitivity in full-bridge magnetoresistive sensors, IEEE Trans. Magn. 49, 136 (2013).
  7. R. Mishra and H. Yang, Emerging spintronics phenomena and applications, IEEE Trans. Magn. 57, 1 (2021).
  8. J. Ryu, S. Lee, K.-J. Lee, and B.-G. Park, Current-induced spin–orbit torques for spintronic applications, Adv. Mater. 32, 1907148 (2020).
  9. Q. Shao, P. Li, L. Liu, H. Yang, S. Fukami, A. Razavi, H. Wu, K. Wang, F. Freimuth, Y. Mokrousov, M. D. Stiles, S. Emori, A. Hoffmann, J. Åkerman, K. Roy, J.-P. Wang, S.-H. Yang, K. Garello, and W. Zhang, Roadmap of spin–orbit torques, IEEE Trans. Magn. 57, 1 (2021).
  10. S. Koraltan, C. Schmitt, F. Bruckner, C. Abert, K. Prügl, M. Kirsch, R. Gupta, S. Zeilinger, J. M. Salazar-Mejía, M. Agrawal, J. Güttinger, A. Satz, G. Jakob, M. Kläui, and D. Suess, Single-device offset-free magnetic field sensing with tunable sensitivity and linear range based on spin-orbit torques, Phys. Rev. Appl. 20, 044079 (2023).
  11. Z. Luo, Y. Xu, Y. Yang, and Y. Wu, Magnetic angular position sensor enabled by spin-orbit torque, Appl. Phys. Lett. 112, 262405 (2018).
  12. R. Li, S. Zhang, S. Luo, Z. Guo, Y. Xu, M. Song, Q. Zou, L. Xi, X. Yang, J. Hong, and L. You, A spin–orbit torque device for sensing three-dimensional magnetic fields, Nat. Electron. 4, 1 (2021).
  13. X. Chen, H. Xie, H. Shen, and Y. Wu, Vector magnetometer based on a single spin-orbit-torque anomalous-Hall device, Phys. Rev. Appl. 18, 024010 (2022).
  14. D. Suess, J. Guettinger, A. Satz, and S. Zeilinger, Anomalous Hall sensor and anomalous Hall sensing method, U.S. Patent Application, Publication No. 20250044376 (2025).
  15. P. J. A. Munter, A low-offset spinning-current Hall plate, Sens. Actuators A: Phys. 22, 743 (1990).
  16. A. Manchon, J. Železný, I. M. Miron, T. Jungwirth, J. Sinova, A. Thiaville, K. Garello, and P. Gambardella, Current-induced spin-orbit torques in ferromagnetic and antiferromagnetic systems, Rev. Mod. Phys. 91, 035004 (2019).
  17. Claas Abert, Micromagnetics and spintronics: Models and numerical methods, Eur. Phys. J. B 92, 120 (2019).
  18. Y. Hayashi, Y. Hibino, F. Matsukura, K. Miwa, S. Ono, T. Hirai, T. Koyama, H. Ohno, and D. Chiba, Electric-field effect on magnetic anisotropy in Pt/Co/Pd/MgO structures deposited on GaAs and Si substrates, Appl. Phys. Express 11, 013003 (2017).
  19. N. Nagaosa, J. Sinova, S. Onoda, A. H. MacDonald, and N. P. Ong, Anomalous Hall effect, Rev. Mod. Phys. 82, 1539 (2010).
  20. S. Iihama, S. Mizukami, H. Naganuma, M. Oogane, Y. Ando, and T. Miyazaki, Gilbert damping constants of Ta/CoFeB/MgO (Ta) thin films measured by optical detection of precessional magnetization dynamics, Phys. Rev. B 89, 174416 (2014).
  21. B. Rana and Y. Otani, Anisotropy of magnetic damping in Ta/CoFeB/MgO heterostructures, Sci. Rep. 13, 8532 (2023).
  22. S. Cho, S.-h. Baek, Y. Jo, and B.-G. Park, Large spin Hall magnetoresistance and its correlation to the spin-orbit torque in W/CoFeB/MgO structures, Sci. Rep. 5, 14668 (2015).
  23. F. Bruckner, S. Koraltan, C. Abert, and D. Suess, magnum.np: A PyTorch based GPU enhanced finite difference micromagnetic simulation framework for high level development and inverse design, Sci. Rep. 13, 12054 (2023).
  24. R. Lo Conte, E. Martinez, A. Hrabec, A. Lamperti, T. Schulz, L. Nasi, L. Lazzarini, R. Mantovan, F. Maccherozzi, S. S. Dhesi, B. Ocker, C. H. Marrows, T. A. Moore, and M. Kläui, Role of B diffusion in the interfacial Dzyaloshinskii-Moriya interaction in Ta/Co20Fe60B20/MgO nanowires, Phys. Rev. B 91, 014433 (2015).
  25. A. Hubert and R. Schäfer, Magnetic Domains: The Analysis of Magnetic Microstructures (Springer, Berlin, 1998).
  26. A. V. Khvalkovskiy, V. Cros, D. Apalkov, V. Nikitin, M. Krounbi, K. A. Zvezdin, A. Anane, J. Grollier, and A. Fert, Matching domain-wall configuration and spin-orbit torques for efficient domain-wall motion, Phys. Rev. B 87, 020402(R) (2013).
  27. S. Koraltan, R. Gupta, R. Peremadathil Pradeep, F. Kammerbauer, I. Kononenko, K. Prügl, M. Kirsch, B. Aichner, S. Helbig, F. Bruckner, C. Abert, A. O. Mandru, A. Satz, G. Jakob, H. J. Hug, M. Kläui, and D. Suess, Skyrmionic device for three dimensional magnetic field sensing enabled by spin-orbit torques, arXiv:2403.16725.
  28. S. B. Wu, T. Zhu, X. F. Yang, and S. Chen, The anomalous Hall effect in the perpendicular Ta/CoFeB/MgO thin films, J. Appl. Phys. 113, 17C717 (2013).
  29. Q. Hao and G. Xiao, Giant spin Hall effect and magnetotransport in a Ta/CoFeB/MgO layered structure: A temperature dependence study, Phys. Rev. B 91, 224413 (2015).
  30. D. Zhu and W. Zhao, Threshold current density for perpendicular magnetization switching through spin-orbit torque, Phys. Rev. Appl. 13, 044078 (2020).
  31. D. Suess, C. Abert, S. Zeilinger, F. Bruckner, and S. Koraltan, Field-free switching of perpendicular magnetic elements by using two orthogonal sub-nanosecond spin–orbit torque pulses, Appl. Phys. Lett. 125, 032401 (2024).
