Synthesis of broadband multilayer metamaterial absorbers based on spatially variable 3D-printed structures and MXenes

Maria-Thaleia Passia1,2,*, Yilin Zhao1, Haozhe Wang1, and Steven A. Cummer1

  • *Contact author: mariathaleia.passia@duke.edu
PDF

Phys. Rev. Applied 24, 064070 – Published 29 December, 2025

DOI: https://doi.org/10.1103/8q6s-zg6y

Abstract

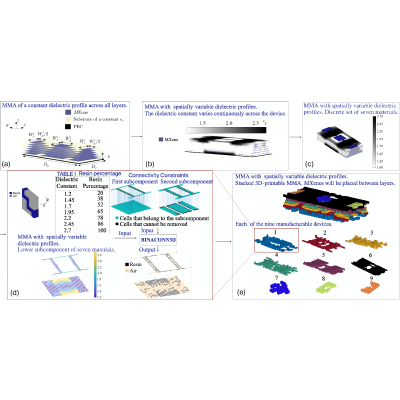

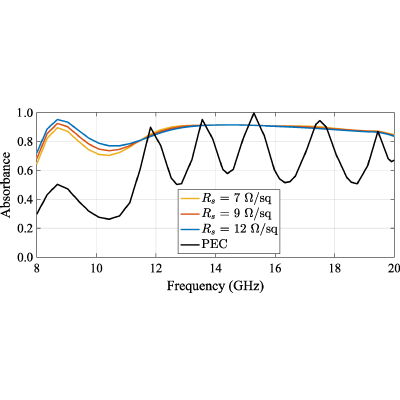

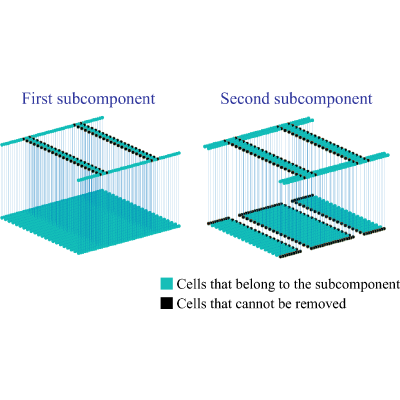

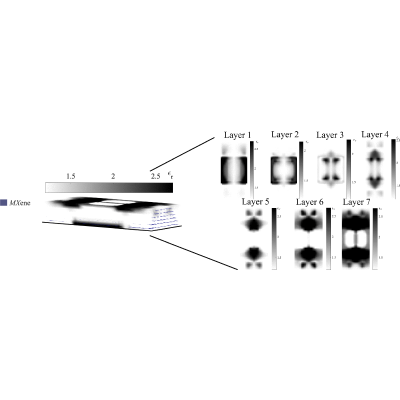

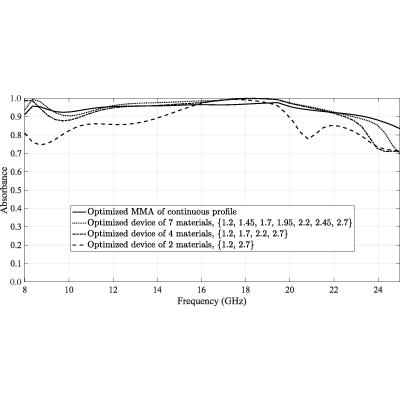

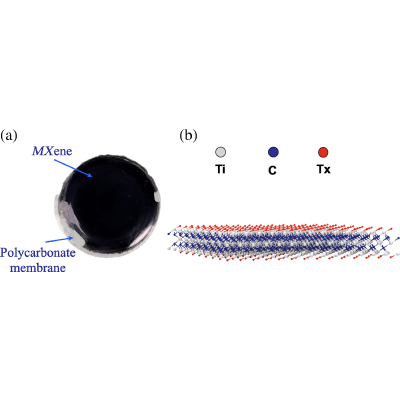

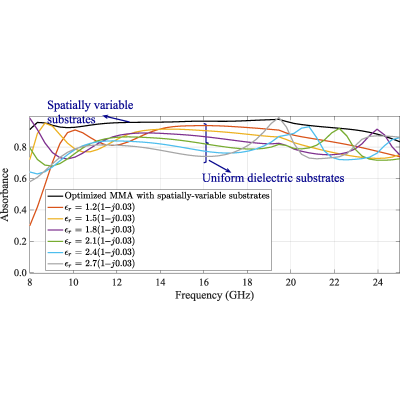

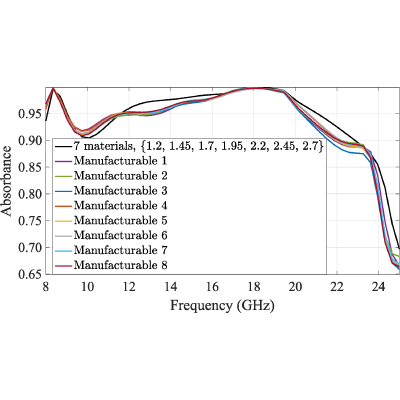

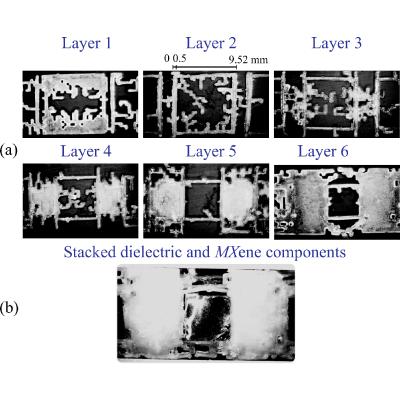

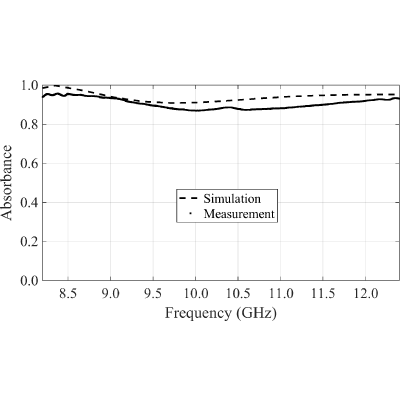

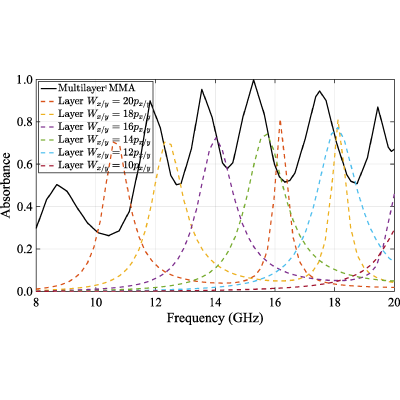

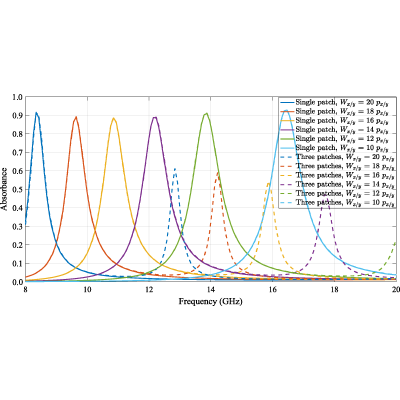

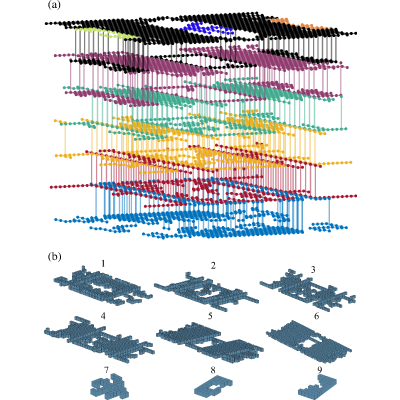

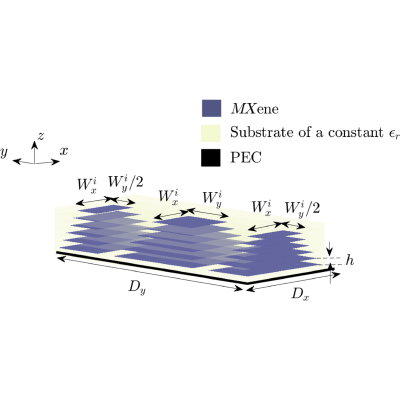

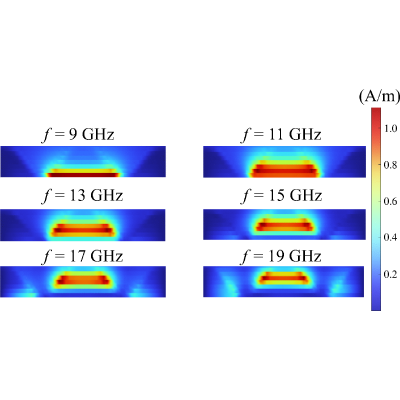

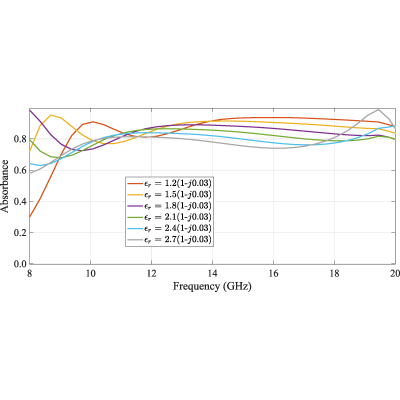

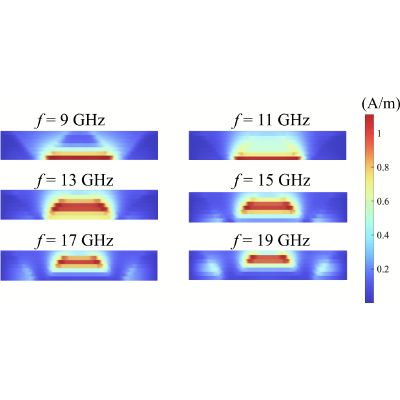

We introduce a systematic approach for enhancing the absorbance of multilayer metamaterial absorbers (MMA) by combining deep-subwavelength spatially variable dielectric substrates with the increased Ohmic losses of MXene resonators. We choose MXenes to form the MMA resonators as they are ultrathin conductive materials that offer higher Ohmic losses than copper used in PCBs, alleviate the need for the post-treatment required by metal inks, and are considerably thinner than conductive filaments. Previous multilayer MMAs in the literature typically involve structured metal layers with a uniform dielectric profile or pyramidal-shaped substrates. The simplicity of the dielectric structure limits the design freedom and operational bandwidth of MMAs. In this work, we explore an alternative route to achieving increased design flexibility and enhanced absorption, by tailoring the dielectric substrates and consequently the underlying physics on a deep subwavelength scale. Advances in stereolithography (SLA) three-dimensional (3D) printing, allow the synthesis of suitable spatially variable 3D-printable dielectric structures. We inversely design the multilayer MMA by topology optimization, with the MMA substrate cells assuming dielectric constant values in the continuous range between air and the 3D printer’s resin. We develop a simple postprocessing methodology, BINACONN3D, that transforms the optimized nonmanufacturable MMA into a manufacturable one, while preserving performance. The BINACONN3D uses manufacturable configurations of a prescribed local air and resin composition to realize each designed dielectric material and accommodates detailed connectivity constraints across consecutive layers, to allow multilayer fabrication and assembly. Our work demonstrates the advantages of combining inversely designed spatially variable dielectric structures with the increased Ohmic losses of MXene resonators. We fabricate and experimentally characterize the synthesized MMA, with measurements in good agreement with the simulations. Our approach paves the way for improving the performance of existing metamaterial devices by leveraging high-resolution spatially variable dielectric structures.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (34)

  1. N. I. Landy, S. Sajuyigbe, J. J. Mock, D. R. Smith, and W. J. Padilla, Perfect metamaterial absorber, Phys. Rev. Lett. 100, 207402 (2008).
  2. R.-H. Fan, B. Xiong, R.-W. Peng, and M. Wang, Constructing metastructures with broadband electromagnetic functionality, Adv. Mater. 32, 1 (2020).
  3. Y. Liu, S. Gu, C. Luo, and X. Zhao, Ultra-thin broadband metamaterial absorber, Appl. Phys. A 108, 19 (2012).
  4. X. Zhao and K. Song, Review article: The weak interactive characteristic of resonance cells and broadband effect of metamaterials, AIP Adv. 4, 100701 (2014).
  5. Y. Cheng, Y. Nie, and R. Gong, Metamaterial absorber and extending absorbance bandwidth based on multi-cross resonators, Appl. Phys. B 111, 483 (2013).
  6. F. Ding, Y. Cui, X. Ge, F. Zhang, Y. Jin, and S. He, Ultra-broadband microwave metamaterial absorber, Appl. Phys. Lett. 100, 1 (2012).
  7. Z. Shen, S. Li, Y. Xu, W. Yin, L. Zhang, and X. Chen, Three-dimensional printed ultrabroadband terahertz metamaterial absorbers, Phys. Rev. Appl. 16, 014066 (2021).
  8. S. Ghosh and S. Lim, Perforated lightweight broadband metamaterial absorber based on 3-d printed honeycomb, IEEE Antennas Wirel. Propag. Lett. 17, 2379 (2018).
  9. X. Lleshi, T. Q. Van Hoang, B. Loiseaux, and D. Lippens, Design and full characterization of a 3-D-printed hyperbolic pyramidal wideband microwave absorber, IEEE Antennas Wirel. Propag. Lett. 20, 28 (2021).
  10. Y. Jing, Q. Teng, J. Luo, C. Huang, Z. Sun, and Y. Lai, Ultrabroadband transparent metamaterial absorbers designed by anomalous brewster effect and gradient impedance matching optimized with deep neural network, Phys. Rev. Appl. 23, L051002 (2025).
  11. Z. Song, P. Min, L. Yang, J. Zhu, and F. H. Lin, A bilateral coding metabsorber using characteristic mode analysis, IEEE Antennas Wirel. Propag. Lett. 21, 1228 (2022).
  12. D. Silva-Quinones, X. Hu, B. Cole, A. Bethke, A. Hool, Y. Zhao, W. Collins, W. Bai, Q. Yan, J. Wei, M. D. Dickey, D. Franke, A. D. Franklin, and H. Wang, Surface termination engineering of 2D titanium carbides for light-activated soft robotics applications, Matter 8, 102264 (2025).
  13. S. Feng, L. Yang, B. Cai, W. Yang, L. Wu, Y. Cheng, F. Chen, H. Luo, and X. Li, Tri-band terahertz metamaterial absorber based on structural Ti3C2Tx MXene for enhanced sensing application, IEEE Sens. J. 24, 28889 (2024).
  14. H. Zhang and J. Yin, Inverse-designed MXene metamaterial absorber for broadband solar energy harvesting, Photonics Nanostruct.: Fundam. Appl. 63, 101362 (2025).
  15. J.-Y. Zong and M.-S. Cao, Graphene-like MXene-based microwave absorbers and shields: Latest progress and perspectives, Mater. Today Phys. 43, 101400 (2024).
  16. H. Giddens, A. S. Andy, and Y. Hao, Multimaterial 3-D printed compressed Luneburg lens for mm-wave beam steering, IEEE Antennas Wirel. Propag. Lett. 20, 2166 (2021).
  17. T. Whittaker, S. Zhang, A. Powell, C. J. Stevens, J. Y. C. Vardaxoglou, and W. Whittow, 3D printing materials and techniques for antennas and metamaterials: A survey of the latest advances, IEEE Antennas Wirel. Propag. Lett. 65, 10 (2023).
  18. J. Melendro-Jimenez, P. Sanchez-Olivares, A. Tamayo-Dominguez, X. Sun, and J. M. Fernandez-Gonzalez, 3D printed directive beam-steering antenna based on gradient index flat lens with an integrated polarizer for dual circular polarization at w-band, IEEE Trans. Antennas Propag. 71, 1059 (2023).
  19. W.-Q. Deng, H. Zhu, Y.-X. Xie, Z. Xu, and S.-Y. Zhu, Design and optimization of an ultra-wideband millimeter-wave circularly polarized metalens antenna with deep learning method, IEEE Open J. Antennas Propag. 5, 823 (2024).
  20. S. Sui, H. Ma, J. Wang, Y. Pang, and S. Qu, Topology optimization design of a lightweight ultra-broadband wide-angle resistance frequency selective surface absorber, J. Phys. D: Appl. Phys. 48, 215101 (2015).
  21. Q. Yuan, S. Qu, H. Ma, S. Sui, Y. Shen, J. Wang, M. Feng, H. Chen, Y. Jin, and X. Wang, A broadband wide-angle synthetical absorber designed by topology optimization of resistance surface and metal wires, IEEE Access 7, 142675 (2019).
  22. A. Y. Piggott, J. Lu, T. M. Babinec, K. G. Lagoudakis, J. Petykiewicz, and J. Vučković, Inverse design and implementation of a wavelength demultiplexing grating coupler, Sci. Rep. 4, 7210 (2014).
  23. R. E. Christiansen and O. Sigmund, Inverse design in photonics by topology optimization: Tutorial, J. Opt. Soc. Am. B 38, 496 (2021).
  24. M. T. Passia and S. A. Cummer, A systematic approach for synthesizing 3D-printable all-dielectric devices, J. Appl. Phys. 136, 1 (2024).
  25. V. Palazzi, P. Mezzanotte, F. Alimenti, M. Tentzeris, and L. Roselli, in Proc. IEEE MTT-S IMS, Boston, MA (IEEE, Boston, MA, USA, 2019).
  26. See Supplemental Material at http://link.aps.org/supplemental/10.1103/8q6s-zg6y for the synthesis of an optimized spatially variable symmetric MMA; the influence of increasing the resin or the MXene losses on the MMA absorbance; simulations of the manufacturable optimized MMA with frequency-dependent relative permittivity of the resin; insights into why the optimized spatially variable MMA has higher absorbance than the MMA of a constant material.
  27. Y. Xie, Y. Fu, Z. Jia, J. Li, C. Shen, Y. Xu, H. Chen, and S. A. Cummer, Acoustic imaging with metamaterial Luneburg lenses, Sci. Rep. 8, 16188 (2018).
  28. K. N. Rozanov, Ultimate thickness to bandwidth ratio of radar absorbers, IEEE Trans. Antennas Propag. 48, 1230 (2000).
  29. J. R. Piper and S. Fan, Total absorption in a graphene monolayer in the optical regime by critical coupling with a photonic crystal guided resonance, ACS Photonics 1, 347 (2014).
  30. M. T. Passia and S. Cummer, Computationally-efficient synthesis of inversely-designed 3D-printable all-dielectric devices, IEEE AP-S/URSI (2025).
  31. X. Yin, C. Long, J. Li, H. Zhu, L. Chen, J. Guan, and X. Li, Ultra-wideband microwave absorber by connecting multiple absorption bands of two different-sized hyperbolic metamaterial waveguide arrays, Sci. Rep. 5, 15367 (2015).
  32. F. Shahzad, M. Alhabeb, C. B. Hatter, B. Anasori, S. Man Hong, C. M. Koo, and Y. Gogotsi, Electromagnetic interference shielding with 2D transition metal carbides (MXenes), Science 353, 1137 (2016).
  33. S. I. Raptis, K. Ntokos, M.-T. Passia, K. Tourlouki, N. Kehagias, E. E. Kriezis, and T. V. Yioultsis, Ultra-thin and flexible microwave metasurface absorbers based on resistive patches, Int. J. Microw. Wirel. Technol. 16, 1451 (2024).
  34. M.-T. Passia, Y. Zhao, H. Wang, and S. Cummer, Data and scripts from: Synthesis of broadband multilayer metamaterial absorbers based on spatially-variable 3D-printed structures and MXenes (v1.1), Zenodo https://doi.org/10.5281/zenodo.17703121 (2025).
