Modeling and design of integrated circuits based on ionic bipolar junction transistors

Soichiro Tottori1,2,* and Rohit Karnik1

  • *Contact author: soichiro.tottori.e2@tohoku.ac.jp
PDF

Phys. Rev. Applied 24, 054080 – Published 26 November, 2025

DOI: https://doi.org/10.1103/7r6s-731v

Abstract

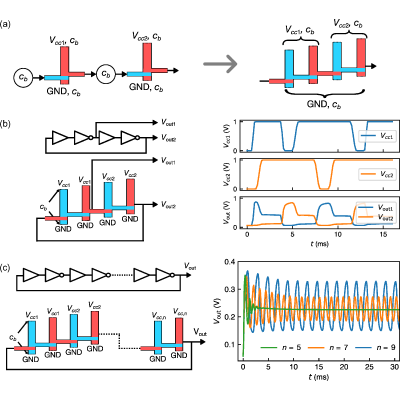

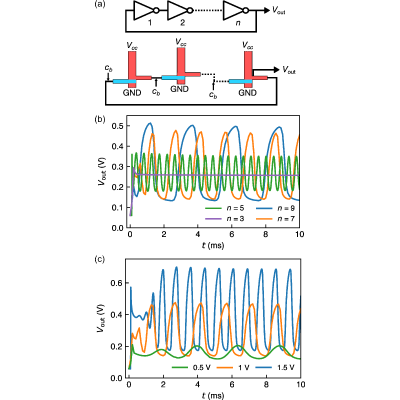

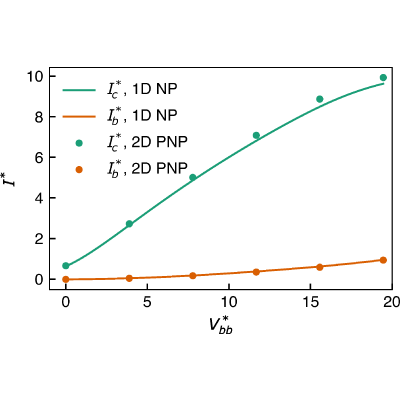

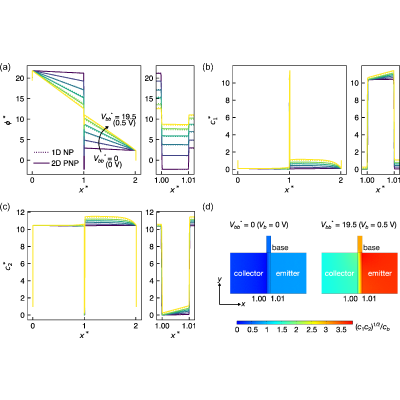

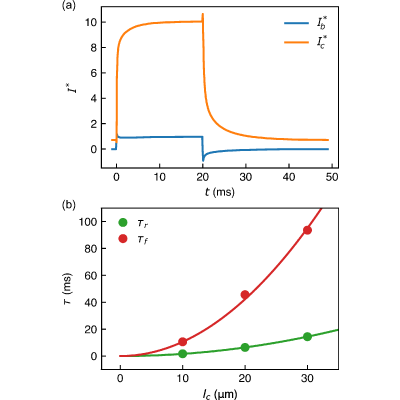

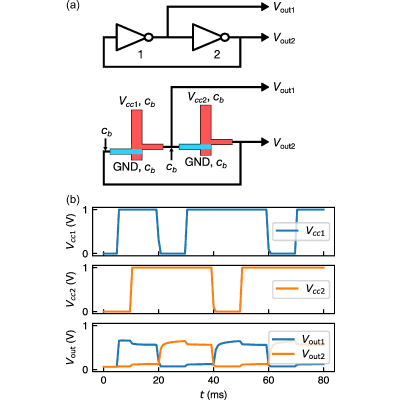

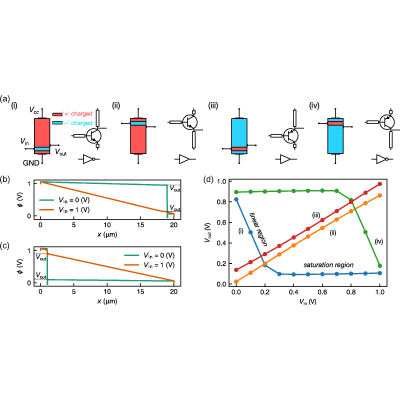

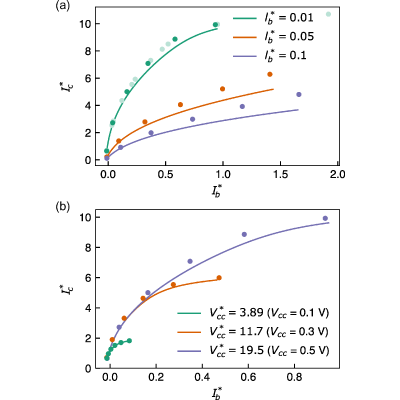

Biological systems rely on ions and molecules as information carriers rather than electrons, motivating the development of devices that interface with biochemical systems for sensing, information processing, and actuation via spatiotemporal control of ions and molecules. Iontronics aims to achieve this vision by constructing devices composed of ion-conducting materials such as polyelectrolyte hydrogels, but advancing beyond simple single-stage circuit configurations that operate under steady-state conditions is a challenge. Here, we propose and model more complex ionic circuits, namely bistable flip-flop and ring oscillators, consisting of multiple ionic bipolar junction transistors (IBJTs). We begin by modeling and characterizing single IBJTs using both a simplified one-dimensional Nernst-Planck model and a more-detailed two-dimensional Poisson-Nernst-Planck model, elucidating the effects of geometry, size, and fixed charge on the IBJT performance and response time. The one- and two-dimensional models exhibit good agreement, indicating negligible transverse inhomogeneities. In addition, these models show that reducing the base width improves current amplification, a behavior analogous to electronic bipolar junction transistors. Building on this understanding, by using the IBJTs as voltage inverters and buffers, we design and model more complex ionic circuits that dynamically change their states in response to ionic signals. Specifically, we demonstrate that the ionic flip-flop retains one-bit memory and that the ring oscillator achieves autonomous periodic self-oscillation without an external clock. Our work provides a foundation for designing dynamic iontronic circuitry using ionic conductors, enabling biochemical signal processing and logic operations based on ionic transport.

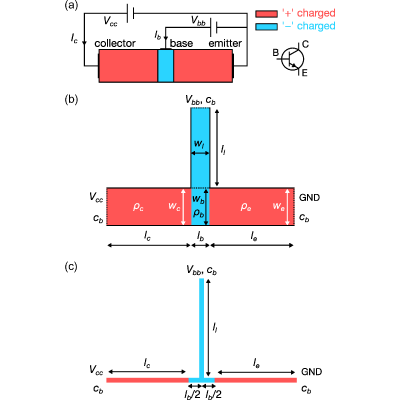

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (41)

  1. C. M. Proctor, A. Slézia, A. Kaszas, A. Ghestem, I. del Agua, A. M. Pappa, C. Bernard, A. Williamson, and G. G. Malliaras, Electrophoretic drug delivery for seizure control, Sci. Adv. 4, eaau1291 (2018).
  2. M. Berggren, E. D. Glowacki, D. T. Simon, E. Stavrinidou, and K. Tybrandt, Organic bioelectronics for neuromodulation, Chem. Rev. 122, 4826 (2022).
  3. J. Rivnay, S. Inal, A. Salleo, R. M. Owens, M. Berggren, and G. G. Malliaras, Organic electrochemical transistors, Nat. Rev. Mater. 3 (1), 17086 (2018).
  4. M. Mariello, I. Es, and C. M. Proctor, Soft and flexible bioelectronic micro-systems for electronically controlled drug delivery, Adv. Healthcare Mater. 13, 2302969 (2024).
  5. H. Yoo, S. B. Kang, J. Kim, W. Cho, H. Ha, S. Oh, S. H. Jeong, S. Lee, H. Lee, C. S. Park, D. Y. Lee, T. D. Chung, K. M. Lee, and J. Y. Sun, Ionic diode-based drug delivery system, Adv. Mater. 37, 202412377 (2025).
  6. M. Filippi, O. Yasa, R. D. Kamm, R. Raman, and R. K. Katzschmann, Will microfluidics enable functionally integrated biohybrid robots? Proc. Natl. Acad. Sci. U. S. A. 119, e2200741119 (2022).
  7. T. A. Sjöström, M. Berggren, E. O. Gabrielsson, P. Janson, D. J. Poxson, M. Seitanidou, and D. T. Simon, A decade of iontronic delivery devices, Adv. Mater. Technol. 3, 201700360 (2018).
  8. H. G. Chun and T. D. Chung, Iontronics, Annu. Rev. Anal. Chem. 8, 441 (2015).
  9. L. Bocquet, Nanofluidics coming of age, Nat. Mater. 19, 254 (2020).
  10. D. Stein, M. Kruithof, and C. Dekker, Surface-charge-governed ion transport in nanofluidic channels, Phys. Rev. Lett. 93, 035901 (2004).
  11. R. B. Schoch, J. Y. Han, and P. Renaud, Transport phenomena in nanofluidics, Rev. Mod. Phys. 80, 839 (2008).
  12. W. Sparreboom, A. van den Berg, and J. C. T. Eijkel, Principles and applications of nanofluidic transport, Nat. Nanotechnol. 4, 713 (2009).
  13. C. Keplinger, J. Y. Sun, C. C. Foo, P. Rothemund, G. M. Whitesides, and Z. G. Suo, Stretchable, transparent, ionic conductors, Science 341, 984 (2013).
  14. C. H. Yang and Z. G. Suo, Hydrogel ionotronics, Nat. Rev. Mater. 3, 125 (2018).
  15. Y. J. Zhang, C. M. J. Tan, C. N. Toepfer, X. Lu, and H. Bayley, Microscale droplet assembly enables biocompatible multifunctional modular iontronics, Science 386, 1024 (2024).
  16. H. Daiguji, Y. Oka, and K. Shirono, Nanofluidic diode and bipolar transistor, Nano Lett. 5, 2274 (2005).
  17. R. Karnik, C. H. Duan, K. Castelino, H. Daiguji, and A. Majumdar, Rectification of ionic current in a nanofluidic diode, Nano Lett. 7, 547 (2007).
  18. L. J. Cheng and L. J. Guo, Nanofluidic diodes, Chem. Soc. Rev. 39, 923 (2010).
  19. L. J. Cheng and L. J. Guo, Rectified ion transport through concentration gradient in homogeneous silica nanochannels, Nano Lett. 7, 3165 (2007).
  20. I. Vlassiouk and Z. S. Siwy, Nanofluidic diode, Nano Lett. 7, 552 (2007).
  21. R. B. M. Schasfoort, S. Schlautmann, L. Hendrikse, and A. van den Berg, Field-effect flow control for microfabricated fluidic networks, Science 286, 942 (1999).
  22. R. Karnik, R. Fan, M. Yue, D. Y. Li, P. D. Yang, and A. Majumdar, Electrostatic control of ions and molecules in nanofluidic transistors, Nano Lett. 5, 943 (2005).
  23. L. J. Cheng and L. J. Guo, Ionic current rectification, breakdown, and switching in heterogeneous oxide nanofluidic devices, ACS Nano 3, 575 (2009).
  24. K. Tybrandt, K. C. Larsson, A. Richter-Dahlfors, and M. Berggren, Ion bipolar junction transistors, Proc. Natl. Acad. Sci. U. S. A. 107, 9929 (2010).
  25. K. Tybrandt, E. O. Gabrielsson, and M. Berggren, Toward complementary ionic circuits: The npn ion bipolar junction transistor, J. Am. Chem. Soc. 133, 10141 (2011).
  26. A. V. Volkov, K. Tybrandt, M. Berggren, and I. V. Zozoulenko, Modeling of charge transport in ion bipolar junction transistors, Langmuir 30, 6999 (2014).
  27. S. M. Lim, H. Yoo, M. A. Oh, S. H. Han, H. R. Lee, T. D. Chung, Y. C. Joo, and J. Y. Sun, Ion-to-ion amplification through an open-junction ionic diode, Proc. Natl. Acad. Sci. U. S. A. 116, 13807 (2019).
  28. S. H. Han, S. R. Kwon, S. Baek, and T. D. Chung, Ionic circuits powered by reverse electrodialysis for an ultimate iontronic system, Sci. Rep. 7, 14068 (2017).
  29. T. B. H. Schroeder, A. Guha, A. Lamoureux, G. VanRenterghem, D. Sept, M. Shtein, J. Yang, and M. Mayer, An electric-eel-inspired soft power source from stacked hydrogels, Nature 552, 214 (2017).
  30. A. Guha, T. J. Kalkus, T. B. H. Schroeder, O. G. Willis, C. Rader, A. Ianiro, and M. Mayer, Powering electronic devices from salt gradients in AA-battery-sized stacks of hydrogel-infused paper, Adv. Mater. 33, 202101757 (2021).
  31. J. H. Han, K. B. Kim, H. C. Kim, and T. D. Chung, Ionic circuits based on polyelectrolyte diodes on a microchip, Angew. Chem., Int. Ed. 48, 3830 (2009).
  32. S. Mafe, J. A. Manzanares, and P. Ramirez, Gating of nanopores: Modeling and implementation of logic gates, J. Phys. Chem. C 114, 21287 (2010).
  33. K. Tybrandt, R. Forchheimer, and M. Berggren, Logic gates based on ion transistors, Nat. Commun. 3, 871 (2012).
  34. M. Ali, S. Mafe, P. Ramirez, R. Neumann, and W. Ensinger, Logic gates using nanofluidic diodes based on conical nanopores functionalized with polyprotic acid chains, Langmuir 25, 11993 (2009).
  35. B. Sabbagh, N. E. Fraiman, A. Fish, and G. Yossifon, Designing with iontronic logic gates-from a single polyelectrolyte diode to an integrated ionic circuit, ACS Appl. Mater. Interfaces 15, 23361 (2023).
  36. M. Tepermeister and M. N. Silberstein, Harnessing ionic complexity: A modeling approach for hierarchical ionic circuit design, Phys. Rev. Appl. 23, 054047 (2025).
  37. Z. Y. Zhang, B. Sabbagh, Y. F. Chen, and G. Yossifon, Geometrically scalable iontronic memristors: Employing bipolar polyelectrolyte gels for neuromorphic systems, ACS Nano 18, 15025 (2024).
  38. K. Khairulina, U. I. Chung, and T. Sakai, New design of hydrogels with tuned electro-osmosis: A potential model system to understand electro-kinetic transport in biological tissues, J. Mater. Chem. B 5, 4526 (2017).
  39. T. M. Kamsma, J. Kim, K. Kim, W. Q. Boon, C. Spitoni, J. Park, and R. van Roij, Brain-inspired computing with fluidic iontronic nanochannels, Proc. Natl. Acad. Sci. U. S. A. 121, e2320242121 (2024).
  40. S. A. Ward and R. H. Halstead, Computation Structures (MIT Press, Cambridge, MA, 1990).
  41. R. A. Lucas, C. Y. Lin, L. A. Baker, and Z. S. Siwy, Ionic amplifying circuits inspired by electronics and biology, Nat. Commun. 11, 1568 (2020).
