Triple mirror assembly in the GRACE Follow-On laser ranging interferometer

Klaus Abich1,*, Andreas Baatzsch2, Christina Bogan3,†, Claus Braxmaier1,‡, Karsten Danzmann3, Germán Fernández Barranco3, Martin Gohlke1,§, Gerhard Heinzel3, Mark Herding2 et al.

Martin Hinz4, Marina Kaufer2, Alexander Koch3,‖, Thomas Leikert4, Christoph Mahrdt3,¶, Malte Misfeldt3,**, Vitali Müller3, Kolja Nicklaus2, Jens Reiche3, Josep Sanjuan1,††, Daniel Schütze3,‡‡, Gunnar Stede3,§§, Kai Voss2, Henry Wegener3, and Marcus Zimmermann4

  • *Now at eleQtron GmbH, Hamburg, Germany.
  • †Now at Volkswagen AG, Wolfsburg, Germany.
  • ‡Now at DLR Institut für Quantentechnologien, Ulm, Germany and Universität Ulm, Institute of Microelectronics, Ulm, Germany.
  • §Now at DLR Institut für Quantentechnologien, Ulm, Germany.
  • ‖Now at DLR Institut für Satellitengeodäsie und Inertialsensorik, Hannover, Germany.
  • Now at Siemens Mobility GmbH, Braunschweig, Germany.
  • **Contact author: malte.misfeldt@aei.mpg.de
  • ††Now at Texas A&M University, USA.
  • ‡‡Now at OHB-System AG, Bremen, Germany.
  • §§Now at Schule im Allertal, Winsen (Aller), Germany.
PDF

Phys. Rev. Applied 24, 044076 – Published 24 October, 2025

DOI: https://doi.org/10.1103/7ps8-317c

Abstract

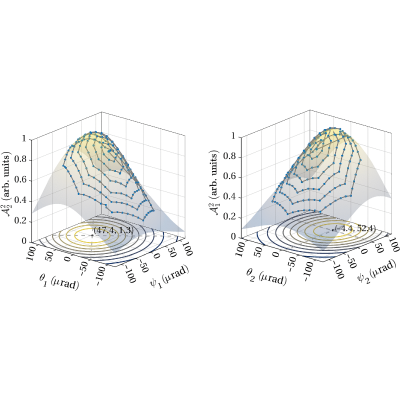

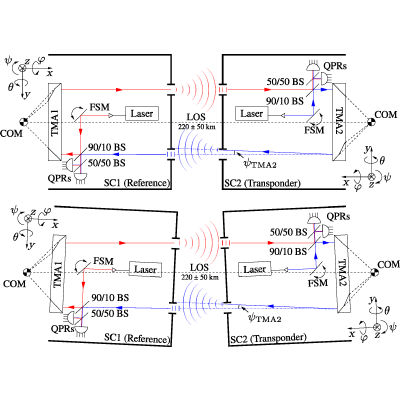

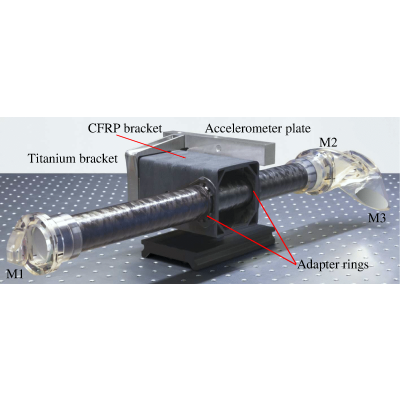

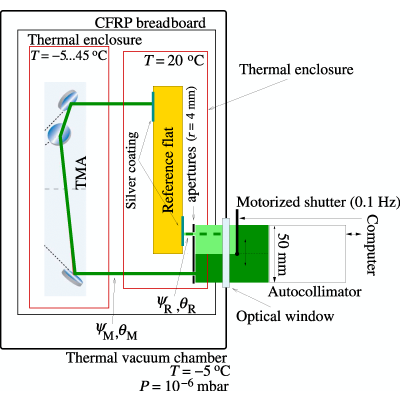

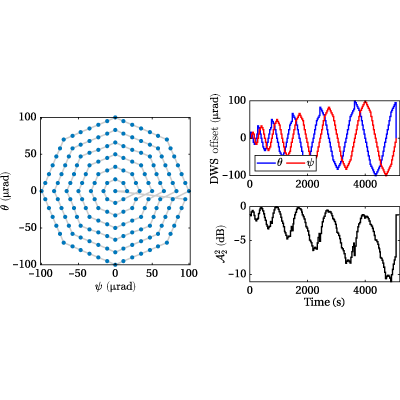

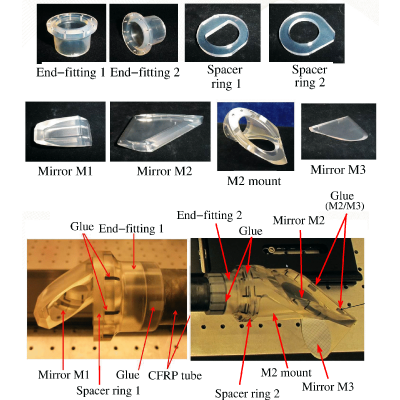

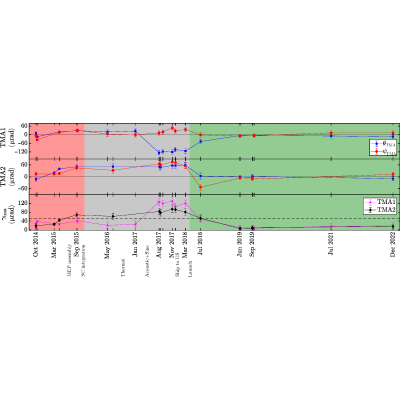

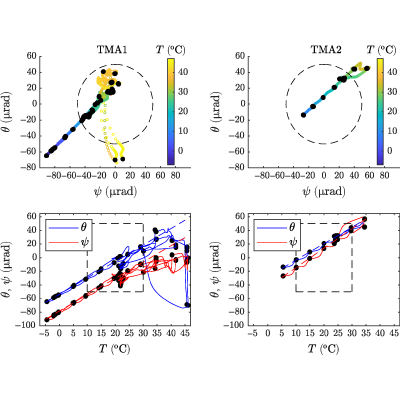

The Gravity Recovery And Climate Experiment (GRACE) Follow-On mission was launched on May 22, 2018, to continue monitoring changes in the gravity field of the Earth by measuring distance variations between two spacecraft that fly 200 km apart in a low-Earth polar orbit. The laser ranging interferometer (LRI), a technology demonstrator onboard GRACE Follow-On, is the first of its kind to perform interspacecraft ranging measurements and has shown noise levels of 1 nm/Hz at 100 mHz and 200 pm/Hz at 5 Hz. Its development was shared between parties in Germany and the United States. A key optical component for the LRI’s success is the triple mirror assembly (TMA), which acts as a corner-cube retroreflector and enables the laser link between the two spacecraft. This paper presents the TMA design and characterization from the unit level to measurements in orbit. The in-orbit measurements furthermore provide the far-field intensity distribution of the Gaussian beams exchanged between the spacecraft after traveling 200 km. We address lessons learned that have influenced the design of the next generations of the LRI.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (29)

  1. B. D. Tapley, S. Bettadpur, J. C. Ries, P. F. Thompson, and M. M. Watkins, GRACE measurements of mass variability in the Earth system, Science 305, 503 (2004).
  2. J. Wahr, S. Swenson, V. Zlotnicki, and I. Velicogna, Time-variable gravity from GRACE: First results, Geophys. Res. Lett. 31 (2004).
  3. R. P. Kornfeld, B. W. Arnold, M. A. Gross, N. T. Dahya, W. M. Klipstein, P. F. Gath, and S. Bettadpur, GRACE-FO: The Gravity Recovery and Climate Experiment Follow-On mission, J. Spacecr. Rockets 56, 931 (2019).
  4. F. W. Landerer et al., Extending the global mass change data record: GRACE Follow-On instrument and science data performance, Geophys. Res. Lett. 47, e2020GL088306 (2020).
  5. C. Dunn, W. Bertiger, Y. Bar-Sever, S. Desai, B. Haines, D. Kuang, F. Garth, I. Harris, G. Kruizinga, T. Meehan, S. Nandi, D. Nguyen, T. Brooks, J. Brooks Thomas, J. Tien, L. Romans, M. Watkins, S.-C. Wu, S. Bettadpur, and J. Kim, Instrument of GRACE: GPS augments gravity measurements (2003).
  6. F. Flechtner, P. Morton, M. Watkins, and F. Webb, in Gravity, Geoid and Height Systems, edited by U. Marti (Springer International Publishing, Cham, 2014), p. 117.
  7. B. S. Sheard, G. Heinzel, K. Danzmann, D. A. Shaddock, W. M. Klipstein, and W. M. Folkner, Intersatellite laser ranging instrument for the GRACE Follow-On mission, J. Geod. 86, 1083 (2012).
  8. K. Abich et al., In-orbit performance of the GRACE Follow-On laser ranging interferometer, Phys. Rev. Lett. 123, 031101 (2019).
  9. D. Wiese, B. Bienstock, D. Bearden, C. Boening, K. Case, J. Chrone, S. Horner, B. Loomis, S. Luthcke, M. Rodell, J. Sauber, L. Tsaoussi, F. Webb, and V. Zlotnicki, The NASA Mass Change Designated Observable Study: Progress and Future Plans, EGU General Assembly 2021, online, 19–30 Apr 2021, EGU21-8088 (2021).
  10. K. Nicklaus, K. Voss, A. Feiri, M. Kaufer, C. Dahl, M. Herding, B. A. Curzadd, A. Baatzsch, J. Flock, M. Weller, V. Müller, G. Heinzel, M. Misfeldt, and J. J. E. Delgado, Towards NGGM: Laser tracking instrument for the next generation of gravity missions, Remote Sens. 14, 4089 (2022).
  11. P. Amaro-Seoane et al., Laser interferometer space antenna, ArXiv:1702.00786.
  12. H. Wegener, V. Müller, G. Heinzel, and M. Misfeldt, Tilt-to-length coupling in the GRACE Follow-On laser ranging interferometer, J. Spacecr. Rockets 57, 1362 (2020).
  13. G. F. Barranco, O. Gerberding, T. S. Schwarze, B. S. Sheard, C. Dahl, B. Zender, and G. Heinzel, Phase stability of photoreceivers in intersatellite laser interferometers, Opt. Express 25, 7999 (2017).
  14. E. Morrison, B. J. Meers, D. I. Robertson, and H. Ward, Automatic alignment of optical interferometers, Appl. Opt. 33, 5041 (1994).
  15. H. Langenbach, and M. Schmid, in 11th European Space Mechanisms and Tribology Symposium, ESMATS 2005, ESA Special Publication, Vol. 591, edited by B. Warmbein (ESA, 2005), p. 27.
  16. D. Schütze, G. Stede, V. Müller, O. Gerberding, T. Bandikova, B. S. Sheard, G. Heinzel, and K. Danzmann, Laser beam steering for GRACE Follow-On intersatellite interferometry, Opt. Express 22, 24117 (2014).
  17. D. Schütze, V. Müller, G. Stede, B. S. Sheard, G. Heinzel, K. Danzmann, A. J. Sutton, and D. A. Shaddock, Retroreflector for GRACE Follow-On: Vertex vs. point of minimal coupling, Opt. Express 22, 9324 (2014).
  18. K. Abich, C. Bogan, C. Braxmaier, K. Danzmann, M. Dehne, M. Gohlke, A. Görth, G. Heinzel, M. Herding, C. Mahrdt, V. Müller, K. Nicklaus, J. Sanjuan, D. Schütze, B. Sheard, G. Stede, and K. Voss, GRACE-Follow On laser ranging interferometer: German contribution, J. Phys.: Conf. Ser. 610, 012010 (2015).
  19. R. L. Ward et al., The design and construction of a prototype lateral-transfer retro-reflector for inter-satellite laser ranging, Classical Quantum Gravity 31, 095015 (2014).
  20. D. Schütze, D. Farrant, D. A. Shaddock, B. S. Sheard, G. Heinzel, and K. Danzmann, Measuring coalignment of retroreflectors with large lateral incoming-outgoing beam offset, Rev. Sci. Instrum. 85, 035103 (2014).
  21. R. Fleddermann et al., Testing the GRACE Follow-On triple mirror assembly, Classical Quantum Gravity 31, 195004 (2014).
  22. C. Mahrdt, Laser link acquisition for the GRACE Follow-on laser ranging interferometer, Ph.D. thesis, Gottfried Wilhelm Leibniz Universität, Hannover, 2014.
  23. See Supplemental Material at http://link.aps.org/supplemental/10.1103/7ps8-317c for all TMA mirror coalignment measurements from the unit level to in-flight measurements for both TMA flight units.
  24. A. Koch, J. Sanjuan, M. Gohlke, C. Mahrdt, N. Brause, C. Braxmaier, and G. Heinzel, Line of sight calibration for the laser ranging interferometer on-board the GRACE Follow-On mission: on-ground experimental validation, Opt. Express 26, 25892 (2018).
  25. D. M. R. Wuchenich, C. Mahrdt, B. S. Sheard, S. P. Francis, R. E. Spero, J. Miller, C. M. Mow-Lowry, R. L. Ward, W. M. Klipstein, G. Heinzel, K. Danzmann, D. E. McClelland, and D. A. Shaddock, Laser link acquisition demonstration for the GRACE Follow-On mission, Opt. Express 22, 11351 (2014).
  26. A. Koch, Link acquisition and optimization for intersatellite laser interferometry, Ph.D. thesis, Gottfried Wilhelm Leibniz Universität, 2020.
  27. M. Misfeldt, Data Processing and Investigations for the GRACE Follow-On Laser Ranging Interferometer, Masters’ Thesis, Leibniz Universität Hannover, 2019.
  28. M. Misfeldt, In-Depth Characterization of the First Inter-Satellite Laser Ranging Interferometer on GRACE Follow-On, Ph.D. thesis, QUEST Leibniz Forschungsschule, Leibniz Universität Hannover, 2023.
  29. Information System and Data Center by the GFZ Helmholtz Centre for Geoscience, https://isdc.gfz-potsdam.de/grace-fo-isdc/ (accessed: 19.12.2024).
