Experimental demonstration of an on-axis laser ranging interferometer for future gravity missions

Daikang Wei1,2,*, Christoph Bode1,2, Kohei Yamamoto3,4,5, Yongho Lee1,2, Germán Fernández Barranco1,2, Vitali Müller1,2, Miguel Dovale Álvarez6, Juan José Esteban Delgado1,2, and Gerhard Heinzel1,2

  • *Contact author: daikang.wei@aei.mpg.de
PDF

Phys. Rev. Applied 25, 044039 – Published 15 April, 2026

DOI: https://doi.org/10.1103/5r3c-9n8z

Abstract

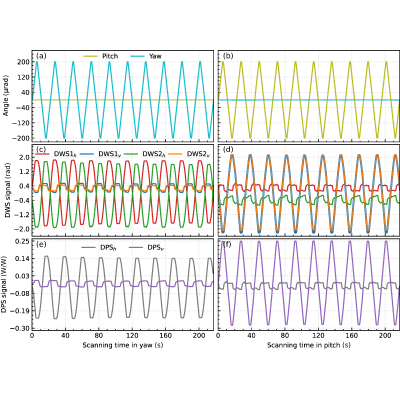

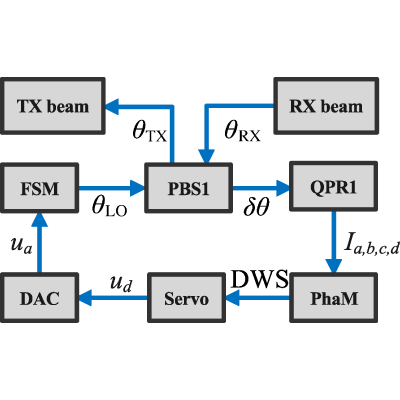

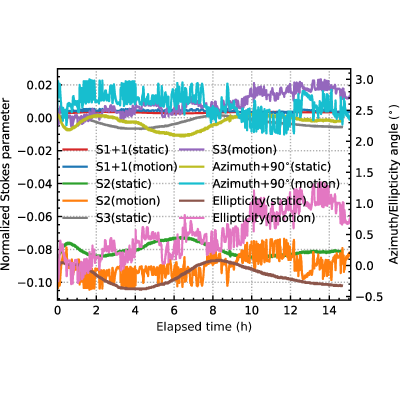

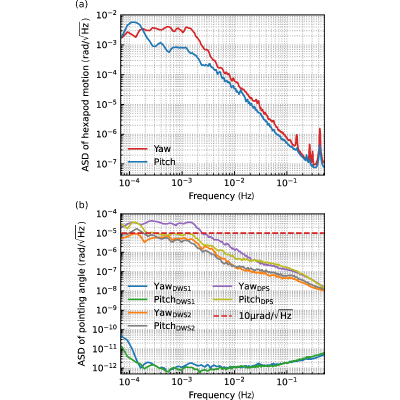

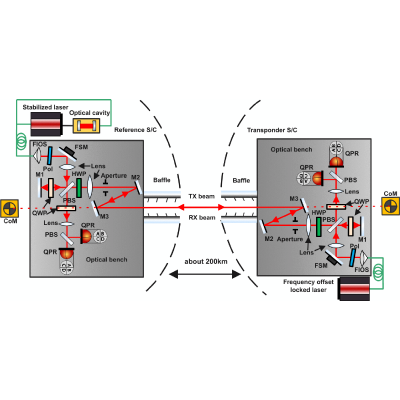

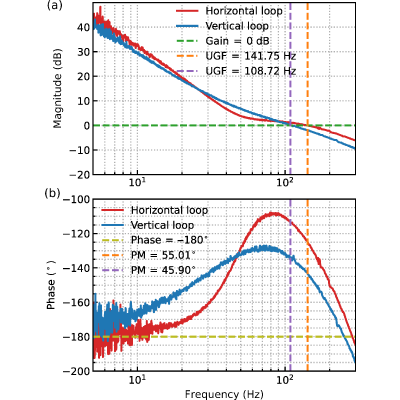

We experimentally demonstrate an interferometric architecture for next-generation gravity missions, featuring a laser ranging interferometer (LRI) that enables monoaxial transmission and reception of laser beams between two optical benches with a heterodyne frequency of 7.3 MHz. Active beam-steering loops, utilizing differential wavefront sensing signals, ensure coalignment between the receiving beam and the transmitting beam. With spacecraft attitude jitter simulated by hexapod-driven rotations, the interferometric link achieves a pointing stability below 10μrad/Hz in the frequency range between 0.2 mHz and 0.5 Hz, and the fluctuation of the transmitting beam’s polarization state results in a reduction of 0.14% in the carrier-to-noise-density ratio over a 15 h continuous measurement. Additionally, tilt-to-length coupling is experimentally investigated using the periodic scanning of the hexapod. Experimental results show that the on-axis LRI enables the interspacecraft ranging measurements with nanometer accuracy, making it a potential candidate for future GRACE-like missions.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (42)

  1. B. D. Tapley, S. Bettadpur, M. Watkins, and C. Reigber, The gravity recovery and climate experiment: Mission overview and early results, Geophys. Res. Lett. 31, L09607 (2004).
  2. B. Tapley, J. Ries, S. Bettadpur, D. Chambers, M. Cheng, F. Condi, B. Gunter, Z. Kang, P. Nagel, R. Pastor, T. Pekker, S. Poole, and F. Wang, GGM02—An improved Earth gravity field model from GRACE, J. Geod. 79, 467 (2005).
  3. B. D. Tapley, S. Bettadpur, J. C. Ries, P. F. Thompson, and M. M. Watkins, GRACE measurements of mass variability in the Earth system, Science 305, 503 (2004).
  4. R. P. Kornfeld, B. W. Arnold, M. A. Gross, N. T. Dahya, W. M. Klipstein, P. F. Gath, and S. Bettadpur, GRACE-FO: The gravity recovery and climate experiment follow-on mission, J. Spacecr. Rockets 56, 931 (2019).
  5. P. L. Bender, J. W. Conklin, and D. N. Wiese, Short-period mass variations and the next generation gravity mission, J. Geophys. Res.: Solid Earth 130, e2024JB030290 (2025).
  6. R. Haagmans, C. Siemes, L. Massotti, O. Carraz, and P. Silvestrin, ESA’s next-generation gravity mission concepts, Rend. Lincei Sci. Fis. Nat. 31, 15 (2020).
  7. K. Ghobadi-Far, S.-C. Han, C. M. McCullough, D. N. Wiese, D.-N. Yuan, F. W. Landerer, J. Sauber, and M. M. Watkins, GRACE Follow-On laser ranging interferometer measurements uniquely distinguish short-wavelength gravitational perturbations, Geophys. Res. Lett. 47, e2020GL089445 (2020).
  8. K. Abich et al., In-orbit performance of the GRACE Follow-On laser ranging interferometer, Phys. Rev. Lett. 123, 031101 (2019).
  9. B. Sheard, G. Heinzel, K. Danzmann, D. Shaddock, W. Klipstein, and W. Folkner, Intersatellite laser ranging instrument for the GRACE follow-on mission, J. Geod. 86, 1083 (2012).
  10. G. Heinzel, C. Braxmaier, K. Danzmann, P. Gath, J. Hough, O. Jennrich, U. Johann, A. Rüdiger, M. Sallusti, and H. Schulte, Lisa interferometry: Recent developments, Classical Quantum Gravity 23, S119 (2006).
  11. D. Schütze, G. Stede, V. Müller, O. Gerberding, T. Bandikova, B. S. Sheard, G. Heinzel, and K. Danzmann, Laser beam steering for GRACE Follow-On intersatellite interferometry, Opt. Express 22, 24117 (2014).
  12. F. W. Landerer, D. N. Wiese, M. Gross, F. M. Flechtner, H. Save, S. Fischer, C. M. McCullough, C. Dahle, S. V. Bettadpur, R. Gaston, and K. Snopek, in AGU Fall Meeting Abstracts (American Geophysical Union (AGU), Washington, D.C., 2024), Vol. 2024, pp. G21A–01.
  13. K. Nicklaus, K. Voss, A. Feiri, M. Kaufer, C. Dahl, M. Herding, B. A. Curzadd, A. Baatzsch, J. Flock, M. Weller, V. Müller, G. Heinzel, M. Misfeldt, and J. J. E. Delgado, Towards NGGM: Laser tracking instrument for the next generation of gravity missions, Remote Sens. 14, 4089 (2022).
  14. K. Nicklaus, S. Cesare, L. Massotti, L. Bonino, S. Mottini, M. Pisani, and P. Silvestrin, Laser metrology concept consolidation for NGGM, CEAS Space J. 12, 313 (2020).
  15. D. Schütze, V. Müller, G. Stede, B. S. Sheard, G. Heinzel, K. Danzmann, A. J. Sutton, and D. A. Shaddock, Retroreflector for GRACE follow-on: Vertex vs point of minimal coupling, Opt. Express 22, 9324 (2014).
  16. R. L. Ward et al., The design and construction of a prototype lateral-transfer retro-reflector for inter-satellite laser ranging, Classical Quantum Gravity 31, 095015 (2014).
  17. O. Mandel, A. Sell, M. Chwalla, T. Schuldt, J. Krauser, D. Weise, and C. Braxmaier, Architecture and performance analysis of an optical metrology terminal for satellite-to-satellite laser ranging, Appl. Opt. 59, 653 (2020).
  18. Y. Yang, K. Yamamoto, M. Dovale Álvarez, D. Wei, J. J. Esteban Delgado, V. Müller, J. Jia, and G. Heinzel, On-axis optical bench for laser ranging instruments in future gravity missions, Sensors 22, 2070 (2022).
  19. P. Amaro-Seoane et al., Laser interferometer space antenna, arXiv:1702.00786.
  20. Z. Luo, Z. Guo, G. Jin, Y. Wu, and W. Hu, A brief analysis to Taiji: Science and technology, Results Phys. 16, 102918 (2020).
  21. J. Luo, L.-S. Chen, H.-Z. Duan, Y.-G. Gong, S. Hu, J. Ji, Q. Liu, J. Mei, V. Milyukov, M. Sazhin, C.-G. Shao, V. T. Toth, H.-B. Tu, Y. Wang, Y. Wang, H.-C. Yeh, M.-S. Zhan, Y. Zhang, V. Zharov, and Z.-B. Zhou, TianQin: A space-borne gravitational wave detector, Classical Quantum Gravity 33, 035010 (2016).
  22. S. Kawamura, M. Ando, N. Seto, S. Sato, T. Nakamura, K. Tsubono, N. Kanda, T. Tanaka, J. Yokoyama, I. Funaki, et al., The Japanese space gravitational wave antenna: DECIGO, Classical Quantum Gravity 28, 094011 (2011).
  23. G. Vallone, D. Dequal, M. Tomasin, F. Vedovato, M. Schiavon, V. Luceri, G. Bianco, and P. Villoresi, Interference at the single photon level along satellite-ground channels, Phys. Rev. Lett. 116, 253601 (2016).
  24. H.-N. Wu, Y.-H. Li, B. Li, X. You, R.-Z. Liu, J.-G. Ren, J. Yin, C.-Y. Lu, Y. Cao, C.-Z. Peng, et al., Single-photon interference over 8.4 km urban atmosphere: Toward testing quantum effects in curved spacetime with photons, Phys. Rev. Lett. 133, 020201 (2024).
  25. C.-Y. Lu, Y. Cao, C.-Z. Peng, and J.-W. Pan, Micius quantum experiments in space, Rev. Mod. Phys. 94, 035001 (2022).
  26. R. W. P. Drever, J. L. Hall, F. V. Kowalski, J. Hough, G. M. Ford, A. J. Munley, and H. Ward, Laser phase and frequency stabilization using an optical resonator, Appl. Phys. B 31, 97 (1983).
  27. V. Müller, Design considerations for future geodesy missions and for space laser interferometry, Ph.D. thesis, Gottfried Wilhelm Leibniz Universität Hannover, Hannover, 2017.
  28. H. Gu, X. Chen, C. Zhang, H. Jiang, and S. Liu, Study of the retardance of a birefringent waveplate at tilt incidence by mueller matrix ellipsometer, J. Opt. 20, 015401 (2018).
  29. O. Gerberding, B. Sheard, I. Bykov, J. Kullmann, J. J. E. Delgado, K. Danzmann, and G. Heinzel, Phasemeter core for intersatellite laser heterodyne interferometry: Modelling, simulations and experiments, Classical Quantum Gravity 30, 235029 (2013).
  30. D. Shaddock, B. Ware, P. Halverson, R. Spero, and B. Klipstein, in AIP Conference Proceedings (American Institute of Physics, Maryland, USA, 2006), Vol. 873, pp. 654–660.
  31. T. S. Schwarze, Phase extraction for laser interferometry in space: Phase readout schemes and optical testing, Ph.D. thesis, Gottfried Wilhelm Leibniz Universität Hannover, Hannover, 2018.
  32. G. Heinzel, M. D. Álvarez, A. Pizzella, N. Brause, and J. J. E. Delgado, Tracking length and differential-wavefront-sensing signals from quadrant photodiodes in heterodyne interferometers with digital phase-locked-loop readout, Phys. Rev. Appl. 14, 054013 (2020).
  33. G. Wanner, G. Heinzel, E. Kochkina, C. Mahrdt, B. S. Sheard, S. Schuster, and K. Danzmann, Methods for simulating the readout of lengths and angles in laser interferometers with Gaussian beams, Opt. Commun. 285, 4831 (2012).
  34. E. Morrison, B. J. Meers, D. I. Robertson, and H. Ward, Automatic alignment of optical interferometers, Appl. Opt. 33, 5041 (1994).
  35. S. Daniel, Intersatellite laser interferometry Test environments for GRACE Follow-On, Ph.D. thesis, Leibniz University Hannover, Hannover, 2015.
  36. Newport Corporation, HXP Controller User’s Manual: Hexapod Motion Controller (Newport Corporation, Irvine, CA, USA, 2015).
  37. S. Goswami, S. P. Francis, T. Bandikova, and R. E. Spero, Analysis of GRACE Follow-On laser ranging interferometer derived inter-satellite pointing angles, IEEE Sens. J. 21, 19209 (2021).
  38. B. Bachman, G. De Vine, J. Dickson, S. Dubovitsky, J. Liu, W. Klipstein, K. McKenzie, R. Spero, A. Sutton, B. Ware, et al., in Journal of Physics: Conference Series (IOP Publishing, Zurich, Switzerland, 2017), Vol. 840, p. 012011.
  39. H. Wegener, V. Müller, G. Heinzel, and M. Misfeldt, Tilt-to-length coupling in the GRACE Follow-On laser ranging interferometer, J. Spacecr. Rockets 57, 1362 (2020).
  40. H. P. Wegener, Analysis of tilt-to-length coupling in the GRACE follow-on laser ranging interferometer, Ph.D. thesis, Gottfried Wilhelm Leibniz Universität Hannover, Hannover, 2022.
  41. K. Nicklaus, M. Herding, A. Baatzsch, M. Dehne, C. Diekmann, K. Voss, F. Gilles, B. Guenther, B. Zender, S. Boehme, et al., in International Conference on Space Optics—ICSO 2014 (SPIE, Tenerife, Spain, 2017), Vol. 10563, pp. 738–746.
  42. M. Tröbs and G. Heinzel, Improved spectrum estimation from digitized time series on a logarithmic frequency axis, Measurement 39, 120 (2006).
