Tunable Josephson voltage source for quantum circuits

J.-L. Smirr1, P. Manset1, and Ç.Ö. Girit1,2,*

  • *Contact author: caglar.girit@cnrs.fr
PDF

Phys. Rev. Applied 24, 054003 – Published 3 November, 2025

DOI: https://doi.org/10.1103/3xvr-ryh1

Abstract

Noisy voltage sources can be a limiting factor for both fundamental physics experiments and device applications in quantum information, mesoscopic circuits, magnetometry, and other fields. The best commercial dc voltage sources can be programmed to approximately six digits and have intrinsic noise in the microvolt range. On the other hand, the noise levels in metrological Josephson-junction-based voltage standards is subfemtovolt. Although such voltage standards can be considered “noiseless,” they are generally not designed for continuous tuning of the output voltage nor for supplying current to a load at cryogenic temperatures. We propose a Josephson-effect-based voltage source, as opposed to a voltage standard, operating in the 30−160−μV range, which can supply over 100 nA of current to loads at mK temperatures. We describe the operating principle, the sample design, and the calibration procedure to obtain continuous tunability. We show the current-voltage characteristics of the device, demonstrate how the voltage can be adjusted without dc control connections to room-temperature electronics, and showcase an experiment coupling the source to a mesoscopic load: a small Josephson junction. Finally, we characterize the performance of our source by measuring the voltage noise at the load, 50 pV rms, which is attributed to parasitic resistances in the cabling. This work establishes the use of the Josephson effect for voltage biasing of extremely sensitive quantum devices.

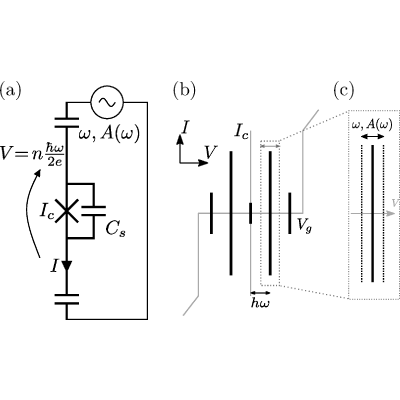

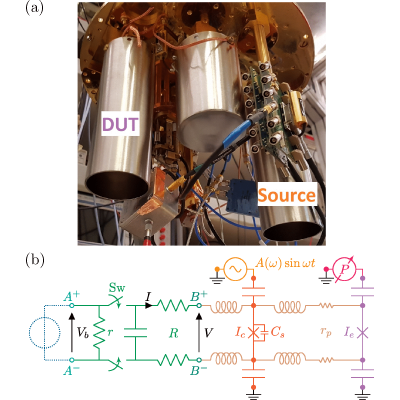

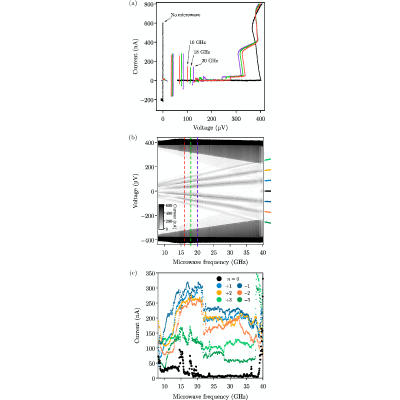

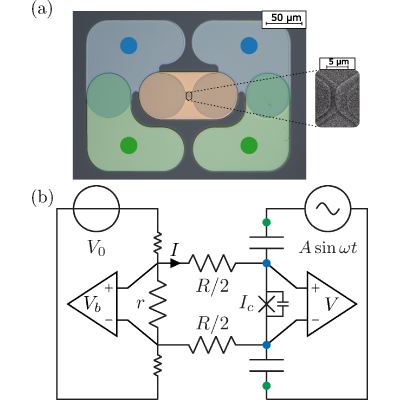

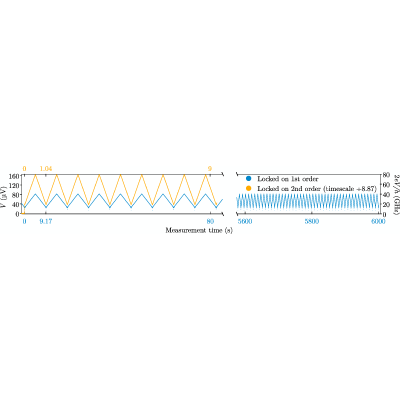

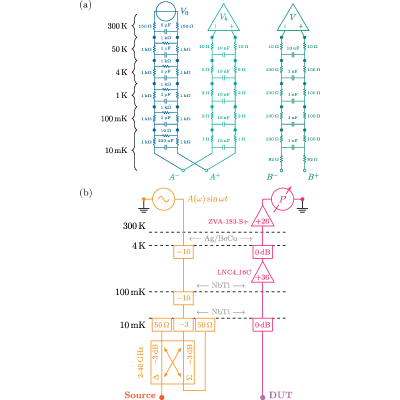

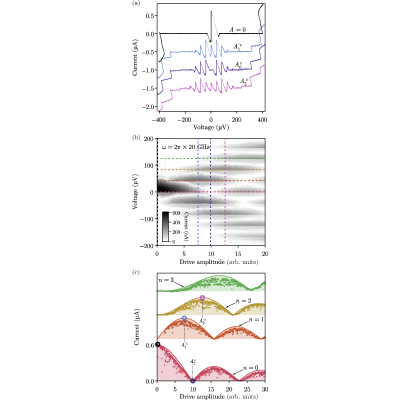

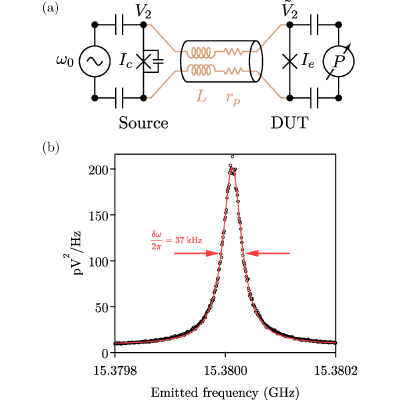

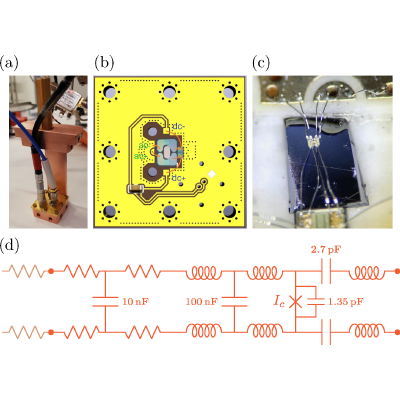

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (36)

  1. B. Jeanneret and S. P. Benz, Application of the Josephson effect in electrical metrology, Eur. Phys. J. Spec. Top. 172, 181 (2009).
  2. P. J. Mohr and B. N. Taylor, CODATA recommended values of the fundamental physical constants: 2002, Rev. Mod. Phys. 77, 107 (2002).
  3. A. Rüfenacht, N. E. Flowers-Jacobs, and S. P. Benz, Impact of the latest generation of Josephson voltage standards in ac and dc electric metrology, Metrologia 55, S152 (2018).
  4. C. J. Burroughs, P. D. Dresselhaus, A. Rufenacht, D. Olaya, M. M. Elsbury, Y.-H. Tang, and S. P. Benz, NIST 10 V programmable Josephson voltage standard system, IEEE Trans. Instrum. Meas. 60, 2482 (2011).
  5. S. P. Benz and C. A. Hamilton, A pulse-driven programmable Josephson voltage standard, Appl. Phys. Lett. 68, 3171 (1996).
  6. C. Girit and J.-L. Smirr, Voltage source and method for calibrating this voltage source (2023), FR patent FR3114171B1, US patent US20230341880A1 pend.
  7. J. Griesmar, R. H. Rodriguez, V. Benzoni, J.-D. Pillet, J.-L. Smirr, F. Lafont, and Ç. Ö. Girit, Superconducting on-chip spectrometer for mesoscopic quantum systems, Phys. Rev. Res. 3, 043078 (2021).
  8. L. Peyruchat, J. Griesmar, J.-D. Pillet, and Ç. Ö. Girit, Transconductance quantization in a topological Josephson tunnel junction circuit, Phys. Rev. Res. 3, 013289 (2021).
  9. S. Jebari, F. Blanchet, A. Grimm, D. Hazra, R. Albert, P. Joyez, D. Vion, D. Estève, F. Portier, and M. Hofheinz, Near-quantum-limited amplification from inelastic Cooper-pair tunnelling, Nat. Electron. 1, 223 (2018).
  10. U. C. Mendes, S. Jezouin, P. Joyez, B. Reulet, A. Blais, F. Portier, C. Mora, and C. Altimiras, Parametric amplification and squeezing with an ac- and dc-voltage biased superconducting junction, Phys. Rev. Appl. 11, 034035 (2019).
  11. A. Grimm, F. Blanchet, R. Albert, J. Leppäkangas, S. Jebari, D. Hazra, F. Gustavo, J.-L. Thomassin, E. Dupont-Ferrier, F. Portier, and M. Hofheinz, Bright on-demand source of antibunched microwave photons based on inelastic Cooper pair tunneling, Phys. Rev. X 9, 021016 (2019).
  12. C. Rolland, A. Peugeot, S. Dambach, M. Westig, B. Kubala, Y. Mukharsky, C. Altimiras, H. le Sueur, P. Joyez, D. Vion, P. Roche, D. Esteve, J. Ankerhold, and F. Portier, Antibunched photons emitted by a dc-biased Josephson junction, Phys. Rev. Lett. 122, 186804 (2019).
  13. A. Peugeot, G. Ménard, S. Dambach, M. Westig, B. Kubala, Y. Mukharsky, C. Altimiras, P. Joyez, D. Vion, P. Roche, D. Esteve, P. Milman, J. Leppäkangas, G. Johansson, M. Hofheinz, J. Ankerhold, and F. Portier, Generating two continuous entangled microwave beams using a dc-biased Josephson junction, Phys. Rev. X 11, 031008 (2021).
  14. S.-l. Ma, X.-K. Li, Y.-L. Ren, J.-K. Xie, and F.-L. Li, Antibunched n-photon bundles emitted by a Josephson photonic device, Phys. Rev. Res. 3, 043020 (2021).
  15. N. Lörch, C. Bruder, N. Brunner, and P. P. Hofer, Optimal work extraction from quantum states by photo-assisted Cooper pair tunneling, Quantum Sci. Technol. 3, 035014 (2018).
  16. R. L. Kautz, Noise, chaos, and the Josephson voltage standard, Rep. Prog. Phys. 59, 935 (1996).
  17. T. Orlando and K. A. Delin, Foundations of Applied Superconductivity (Addison-Wesley, Reading, Mass., 1991).
  18. S. Shapiro, A. R. Janus, and S. Holly, Effect of microwaves on Josephson currents in superconducting tunneling, Rev. Mod. Phys. 36, 223 (1964).
  19. K. K. Likharev, Dynamics of Josephson Junctions and Circuits (CRC Press, Boca Raton, FL, 1986).
  20. P. Richards, F. Auracher, and T. Van Duzer, Millimeter and submillimeter wave detection and mixing with superconducting weak links, Proc. IEEE 61, 36 (1973).
  21. J. Zmuidzinas and P. Richards, Superconducting detectors and mixers for millimeter and submillimeter astrophysics, Proc. IEEE 92, 1597 (2004).
  22. J. R. Tucker and M. J. Feldman, Quantum detection at millimeter wavelengths, Rev. Mod. Phys. 57, 1055 (1985).
  23. M. T. Levinsen, R. Y. Chiao, M. J. Feldman, and B. A. Tucker, An inverse ac Josephson effect voltage standard, Appl. Phys. Lett. 31, 776 (1977).
  24. R. L. Kautz, On a proposed Josephson-effect voltage standard at zero current bias, Appl. Phys. Lett. 36, 386 (1980).
  25. I. Yanson, V. Svistunov, and I. Dmitrenko, Experimental observation of the tunnel effect for Cooper pairs with the emission of photons, Sov. Phys. JETP 21, 650 (1965).
  26. M. Hofheinz, F. Portier, Q. Baudouin, P. Joyez, D. Vion, P. Bertet, P. Roche, and D. Esteve, Bright side of the Coulomb blockade, Phys. Rev. Lett. 106, 217005 (2011).
  27. M. C. Cassidy, A. Bruno, S. Rubbert, M. Irfan, J. Kammhuber, R. N. Schouten, A. R. Akhmerov, and L. P. Kouwenhoven, Demonstration of an ac Josephson junction laser, Science 355, 939 (2017).
  28. G.-L. Ingold and Y. V. Nazarov, in Single Charge Tunneling: Coulomb Blockade Phenomena In Nanostructures (Springer US, Boston, MA, 1992), Chap. 2, pp. 21–107.
  29. T. Holst, D. Esteve, C. Urbina, and M. H. Devoret, Effect of a transmission line resonator on a small capacitance tunnel junction, Phys. Rev. Lett. 73, 3455 (1994).
  30. J. L. Stewart, The power spectrum of a carrier frequency modulated by Gaussian noise, Proc. IRE 42, 1539 (1954).
  31. A. Peugeot, H. Riechert, S. Annabi, L. Balembois, M. Villiers, E. Flurin, J. Griesmar, E. Arrighi, J.-D. Pillet, and L. Bretheau, Two-tone spectroscopy of high-frequency quantum circuits with a Josephson emitter, Phys. Rev. Appl. 22, 064027 (2024).
  32. R. Albert, J. Griesmar, F. Blanchet, U. Martel, N. Bourlet, and M. Hofheinz, Microwave photon-number amplification, Phys. Rev. X 14, 011011 (2024).
  33. U. Martel, R. Albert, F. Blanchet, J. Griesmar, G. Ouellet, H. Therrien, N. Nehra, N. Bourlet, A. Peugeot, and M. Hofheinz, Influence of bias-voltage noise on the inelastic Cooper-pair tunneling amplifier (ICTA), Appl. Phys. Lett. 126, 074001 (2025).
  34. L. Danner, F. Höhe, C. Padurariu, J. Ankerhold, and B. Kubala, Quantum microwaves: Stabilizing squeezed light by phase locking, Phys. Rev. B 111, 184519 (2025).
  35. J.-L. Smirr, P. Manset, and Ç. Ö. Girit, Figure data for current article, https://doi.org/10.5281/zenodo.14577236 (2024).
  36. N. Beev and M. Kiviranta, Note: Cryogenic low-noise dc-coupled wideband differential amplifier based on SiGe heterojunction bipolar transistors, Rev. Sci. Instrum. 83, 066107 (2012).
