Cryogenic permanent magnet undulator by evaporative cooling of liquid nitrogen

Jui-Che Huang1,*, Hideo Kitamura2, Ping-Shun Chuang1,†, Hsing-Chieh Li1, Chih-Sheng Yang1, Chun-Yi Wu1, Chih-Yu Liao1, Huang-Hsiu Tsai1, Chih-Wei Chen1 et al.

Wun-Rong Liao1 and Chin-Kang Yang1

  • *Contact author: huang.juiche@nsrrc.org.tw
  • †Contact author: chuang.phd@nsrrc.org.tw
PDF

Phys. Rev. Accel. Beams 28, 093501 – Published 5 September, 2025

DOI: https://doi.org/10.1103/ysbx-qqsc

Abstract

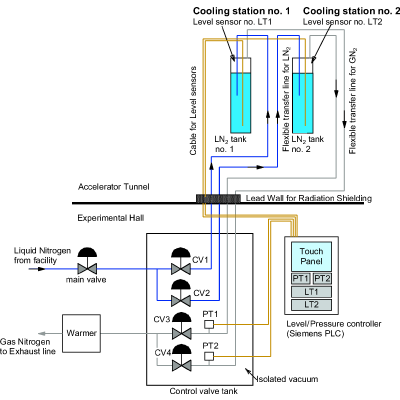

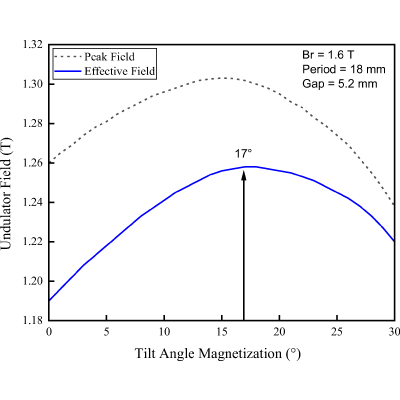

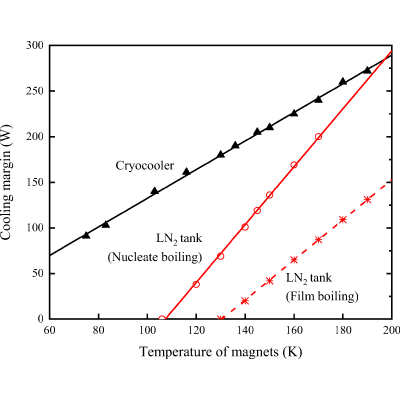

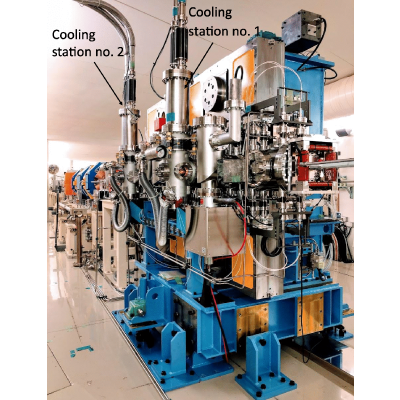

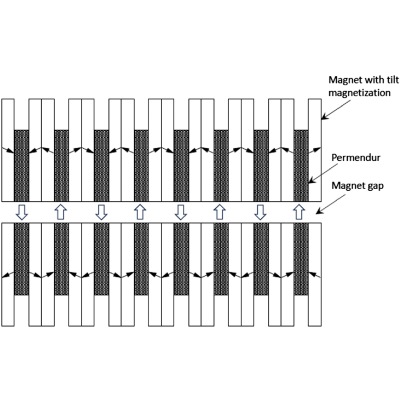

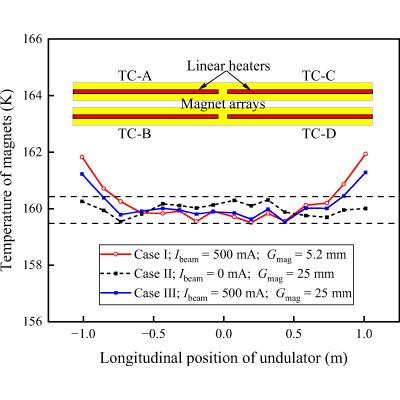

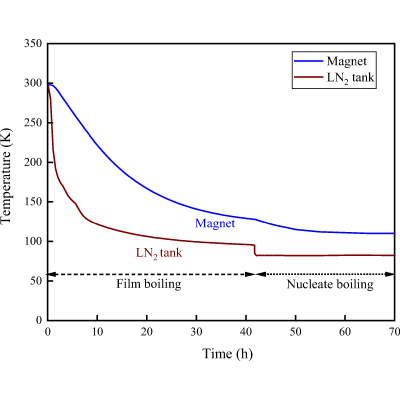

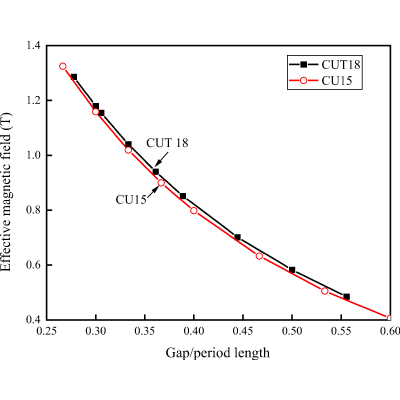

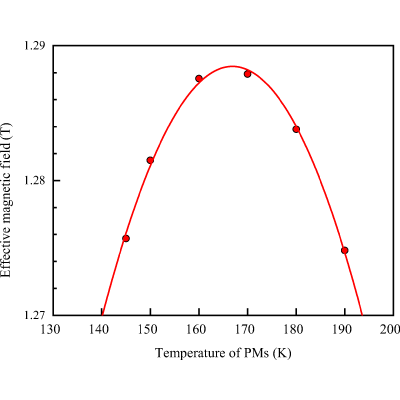

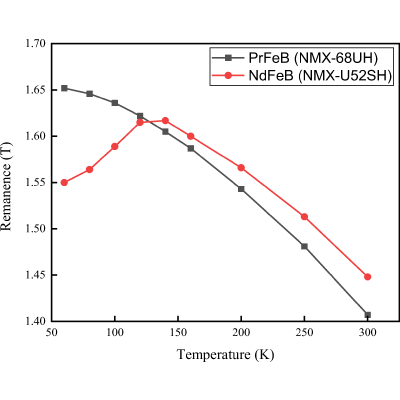

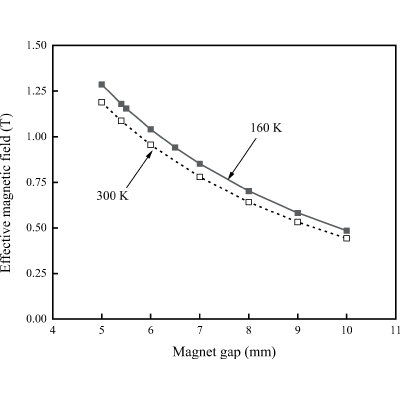

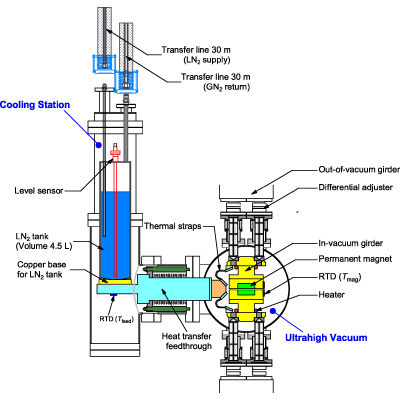

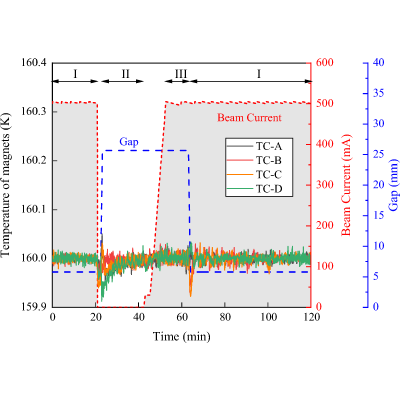

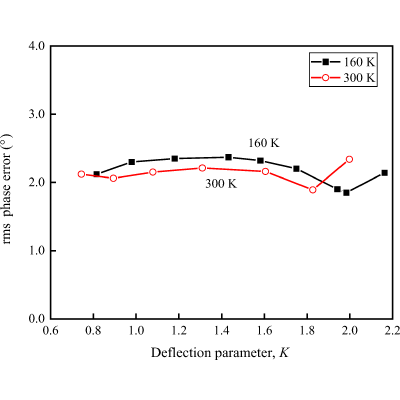

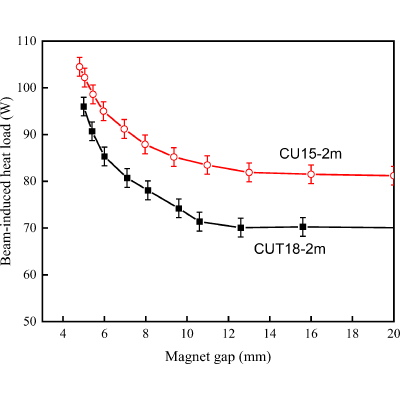

CUT18, a cryogenic permanent magnet undulator at the Taiwan Photon Source, represents a significant advancement in undulator technology, offering enhanced flexibility, sustainability, and reliability. It uses a cooling method based on the latent heat of vaporization of liquid nitrogen (LN2), utilizing the facility’s existing LN2 supply line to improve resource efficiency and reduce operational costs. The LN2 evaporative cooling system delivers exceptional thermal management, with cooling margins far exceeding the heat load at a beam current of 500 mA, ensuring stable operation even under high beam-induced heating conditions. In addition to this, the adoption of advanced NdFeB magnets, optimized with a 17° magnetization tilt, significantly enhances magnetic field performance and achieves a high deflection parameter (K>2).

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (11)

  1. T. Hara, T. Tanaka, H. Kitamura, T. Bizen, X. Maréchal, T. Seike, T. Kohda, and Y. Matsuura, Cryogenic permanent magnet undulators, Phys. Rev. ST Accel. Beams 7, 050702 (2004).
  2. C. Benabderrahmane, M. Valléau, A. Ghaith, P. Berteaud, L. Chapuis, F. Marteau, F. Briquez, O. Marcouillé, J.-L. Marlats, K. Tavakoli, A. Mary, D. Zerbib, A. Lestrade, M. Louvet, P. Brunelle, K. Medjoubi, C. Herbeaux, N. Béchu, P. Rommeluere, A. Somogyi, O. Chubar, C. Kitegi, and M.-E. Couprie, Development and operation of a Pr2Fe14B based cryogenic permanent magnet undulator for a high spatial resolution x-ray beam line, Phys. Rev. Accel. Beams 20, 033201 (2017).
  3. C. Benabderrahmane, P. Brumund, J. Chavanne, D. Coulon, G. Le Bec, B. Ogier, and R. Versteegen, Development and construction of cryogenic permanent magnet undulators for ESRF-EBS, in Proceedings of the IPAC-2022, Bangkok, Thailand (JACoW, Geneva, Switzerland, 2022).
  4. Y. He, M. Qian, H. Wang, W. Zhang, and Q. Zhou, Cryogenic permanent magnet undulator of SSRF, in Proceedings of the IPAC-2018, Vancouver, Canada (JACoW, Geneva, Switzerland, 2018), 10.18429/JACoW-IPAC2018-THPMK066.
  5. J.-C. Huang, H. Kitamura, C.-S. Yang, C.-K. Yang, C.-W. Chen, and Y.-C. Chuang, Performance investigation of conduction-cooled cryogenic permanent magnet undulator at high beam currents, Phys. Rev. Accel. Beams 27, 023501 (2024).
  6. J.-C. Huang, H. Kitamura, C.-S. Yang, P.-S. Chuang, and C.-L. Chen, Cryogenic permanent magnet undulator at high beam currents, in Proceedings of the IPAC-2024, Nashville (JACoW, Geneva, Switzerland, 2024), 10.18429/JACoW-IPAC2024-THPS26.
  7. J.-C. Huang, H. Kitamura, C.-K. Yang, C.-H. Chang, C.-H. Chang, and C.-S. Hwang, Challenges of in-vacuum and cryogenic permanent magnet undulator technologies, Phys. Rev. Accel. Beams 20, 064801 (2017).
  8. https://www.elf.co.jp/
  9. D. Hidas, T. Shaftan, and T. Tanabe, Emittance and energy spread compensation for current and future low emittance synchrotron light sources, Phys. Rev. Accel. Beams 24, 081601 (2021).
  10. J. C. Huang, H. Kitamura, C. S. Yang, T. Kohda, S. Mizumoto, C. Y. Yang, C. H. Chang, and C. S. Hwang, Force-compensating spring modules of self-contained type for small phase error performance in in-vacuum undulators, Nucl. Instrum. Methods Phys. Res., Sect. A 1013, 165650 (2021).
  11. C. Y. Liao, C. Y. Wu, Jenny Chen, Demi Lee, H. Z. Chen, Y. S. Cheng, K. H. Hu, and K. T. Hsu, Control system for a cryogenic permanent magnet undulator at the Taiwan Photon Source, IEEE Trans. Appl. Supercond. 30, 4100305 (2020).

Outline

Information

Phys. Rev. Accel. Beams 28, 093501– Published 5 September, 2025
  • Received 15 March 2025
  • Accepted 23 July 2025
