Compensation of emittance variation in a diffraction-limited storage ring

Xiaoyu Liu, Zhenghe Bai*, Gangwen Liu, and Guangyao Feng

  • *Contact author: baizhe@ustc.edu.cn
PDF

Phys. Rev. Accel. Beams 29, 093402 – Published 9 September, 2026

DOI: https://doi.org/10.1103/xf52-l8fn

Abstract

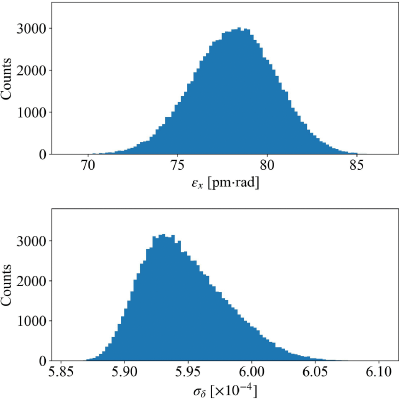

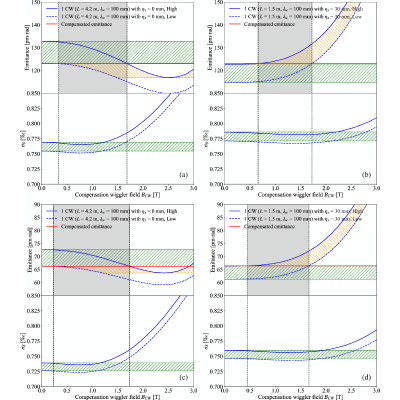

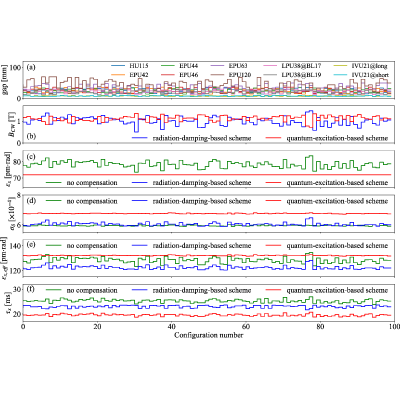

In diffraction-limited storage rings (DLSRs), due to the comparable energy loss from bending magnets to that from insertion devices (IDs), the independent adjustments of ID gaps can introduce random emittance variations, which need to be compensated. Hefei Advanced Light Facility (HALF) is a soft x-ray DLSR with both 20 long dispersion-free and 20 short dispersive straight sections. Its original emittance compensation scheme is based on the radiation damping effect, achieved by adjusting the gaps of two damping wigglers (DWs) located in long straight sections. This paper proposes a novel emittance compensation scheme for HALF based on the quantum excitation effect. In this new scheme, a short variable-gap wiggler is installed in a dispersive straight section, with the two DWs operating at their minimum gaps. The proposed scheme achieves emittance compensation comparable to the original scheme in both cases with and without intrabeam scattering, even though the wiggler is significantly shorter. It also yields significantly smaller energy spread variations and consequently, very small effective emittance variations at short dispersive straight sections, with the effective emittance considered basically compensated. Moreover, fixing the minimum gaps of the two DWs can provide additional beamlines for users as well as enhanced radiation damping, which not only compensates for the emittance growth caused by the short wiggler due to quantum excitation but also reduces the damping times to suppress intrabeam scattering. For DLSRs without dispersive straight sections, the proposed quantum-excitation-based emittance compensation scheme can be applied by converting a dispersion-free straight section into a dispersive one simply using a dipole chicane.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (27)

  1. R. Hettel, DLSR design and plans: An international overview, J. Synchrotron Radiat. 21, 843 (2014).
  2. D. Einfeld, M. Plesko, and J. Schaper, First multi-bend achromat lattice consideration, J. Synchrotron Radiat. 21, 856 (2014).
  3. P. F. Tavares, S. C. Leemann, M. Sjöström, and Å. Andersson, The MAX IV storage ring project, J. Synchrotron Radiat. 21, 862 (2014).
  4. J. C. Biasci et al., A low-emittance lattice for the ESRF, Synchrotron Radiat. News 27, 8 (2014).
  5. L. Liu, F. H. de Sá, and X. R. Resende, A new optics for Sirius, in Proc. IPAC2016 (JACoW, Busan, Korea, 2016), Vol. 21, pp. 3143–3146.
  6. M. Borland, T. Berenc, R. Lindberg, V. Sajaev, and Y. Sun, Lower emittance lattice for the advanced photon source upgrade using reverse bending magnets, in Proc. NAPAC2016 (JACoW, Geneva, 2016), pp. 877–880.
  7. C. Sun, H. Nishimura, D. Robin, F. Sannibale, C. Steier, M. Venturini, W. Wan, J. Y. Jung, and C. A. Swenson, Design of the ALS-U storage ring lattice, in Proc. IPAC2017 (JACoW, Copenhagen, Denmark, 2017), pp. 2827–2829.
  8. Y. Jiao et al., The HEPS project, J. Synchrotron Radiat. 25, 1611 (2018).
  9. Z. Bai, G. Liu, T. He, T. Zhang, W Li, P. Yang, Z. Ren, S. Zhang, W. Li, G. Feng, and L. Wang, A modified hybrid 6BA lattice for the HALF storage ring, in Proc. IPAC2021 (JACoW, Campinas, SP, Brazil, 2021), pp. 407–409.
  10. A. Streun, M. Aiba, M. Böge, C. Calzolaio, M. Ehrlichman, M. Negrazus, B. Riemann, and V. Vrankovic, Swiss light source upgrade lattice design, Phys. Rev. Accel. Beams 26, 091601 (2023).
  11. H. Tanaka et al., Green upgrading of SPring-8 to produce stable, ultrabrilliant hard X-ray beams, J. Synchrotron Radiat. 31, 1420 (2024).
  12. F. Sannibale, Compensation of emittance and beam size variations induced by insertion devices, in BES Light Sources Beam Stability Workshop conference (Lawrence Berkeley National Laboratory, Berkeley, 2018), https://www.aps.anl.gov/BES-Light-Sources-Beam-Stability-Workshop/Presentations.
  13. F. Sannibale, S. C. Leemann, H. Nishimura, D. Robin, C. Steier, C. Sun, M. Venturini, and Lawrence, Compensation of insertion device induced emittance variations In ultralow emittance storage rings, in Proc. IPAC2018 (JACoW, Vancouver, BC, Canada, 2018), pp. 1751–1754.
  14. F. Sannibale, M. Ehrlichman, T. Hellert, S. C. Leemann, D. S. Robin, C. A. Steier, C. Sun, and M. Venturini, Compensation of insertion device induced emittance variations in ultralow emittance storage rings by a dispersion bump in a Wiggler, in Proc. IPAC2019 (JACoW, Melbourne, Australia, 2019), pp. 1627–1630.
  15. D. Hidas, T. Shaftan, and T. Tanabe, Emittance and energy spread compensation for current and future low emittance synchrotron light sources, Phys. Rev. Accel. Beams 24, 081601 (2021).
  16. T. Hiraiwa, K. Soutome, and H. Tanaka, Suppression of emittance variation in extremely low emittance light source storage rings, Phys. Rev. Accel. Beams 25, 040703 (2022).
  17. K. Soutome, T. Hiraiwa, and H. Tanaka, A novel method to suppress the emittance variation in extremely low emittance light source storage rings, in Proc. IPAC2023 (JACoW, Venice, Italy, 2023), pp. 1299–1302.
  18. L. Tan, S. Tian, X. Liu, W. Zhang, X. Wu, and Y. Gong Emittance and energy spread compensation in future synchrotron light sources, Nuclear Inst. Methods Phys. Res. A 1052, 168278 (2023).
  19. I. Agapov, S. A. Antipov, R. Bartolini, R. Brinkmann, Y.-C. Chae, E. C. Cortes-Garcia, D. Einfeld, T. Hellert, M. Huening, M. A. Jebramcik, J. Keil, C. Li, L. Malina, and R. Wanzenberg, Beam dynamics performance of the proposed PETRA IV storage ring, arXiv:2408.07995.
  20. Z. H. Bai, G. Y. Feng, T. L. He, W. Li, W. Li, G. Liu, J. Tang, L. Wang, P. Yang, and S. Zhang, Progress on the storage ring physics design of Hefei Advanced Light Facility (HALF), in Proc. IPAC2023 (JACoW, Venice, Italy, 2023), pp. 1075–1078.
  21. S. Y. Lee, Accelerator Physics, 4th ed. (World Scientific Publishing Co. Pte. Ltd., Singapore, 2019).
  22. X. Deng, J. Li, and Y. Lu, Contribution of wiggler to radiation integral in an electron storage ring, arXiv:2410.12863.
  23. V. Ziemann and A. Streun, Equilibrium parameters in coupled storage ring lattices and practical applications, Phys. Rev. Accel. Beams 25, 050703 (2022).
  24. H. Tanaka and A. Ando, Minimum effective emittance in synchrotron radiation sources composed of modified Chasman Green lattice, Nucl. Instrum. Methods Phys. Res., Sect. A 369, 312 (1996).
  25. H. Ghasem, N. B. Kraljevic, B. Singh, and I. P. S. Martin, Lattice design for the Diamond-II light source storage ring, Phys. Rev. Accel. Beams 27, 110704 (2024).
  26. E. Karantzoulis et al., Design strategies and technology of Elettra 2.0 for a versatile offer to the user community, Nucl. Instrum. Methods Phys. Res., Sect. A 1060, 169007 (2024).
  27. Z. Zhao, Y. Xu, and H. Li, Preliminary design of insertion devices at Hefei Advanced Light Facility, in Proc. of IPAC2023 (JACoW, Venice, Italy, 2023), pp. 1247–1249.
