Beam instability induced by the rf cavity accelerating modes and its suppression in the Super Tau-Charm Facility

Wenshu Liang1, Tianlong He1,*, Weiwei Li1,†, Yelong Wei1,‡, Ye Zou2, Qing Luo2, and Jingyu Tang1,2

  • *Contact author: htlong@ustc.edu.cn
  • †Contact author: liwe@ustc.edu.cn
  • ‡Contact author: wylong@ustc.edu.cn
PDF

Phys. Rev. Accel. Beams 29, 074902 – Published 30 July, 2026

DOI: https://doi.org/10.1103/v8mq-6nh6

Abstract

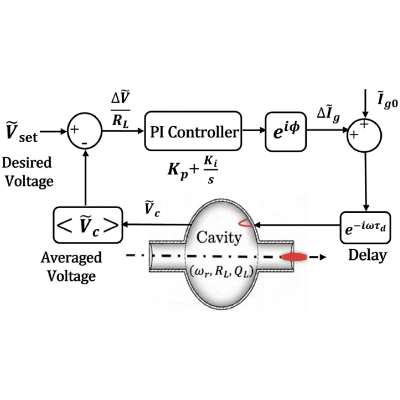

The Super Tau-Charm Facility (STCF), a proposed high-luminosity electron-positron collider in China, requires a beam current of 2 A to achieve its design luminosity. Such intense current induces severe coupled-bunch instability driven by the rf cavity accelerating modes. This paper presents a systematic analysis of these instabilities across the STCF operational energy range of 1–3.5 GeV. Without active control, the low-order coupled-bunch modes, particularly the mode −1, exhibit growth rates significantly exceeding the radiation-damping rate. We demonstrate that the instability can be effectively suppressed using only the proportional-integral feedback loop of the baseline low-level rf system. The key lies in setting a unit proportional gain and a loop delay of approximately half the revolution period. This configuration creates a notch-filter response that attenuates the most dangerous mode −1. By combining analytical calculations with particle-tracking simulations, we show that this simple and robust approach maintains beam stability for the baseline design parameters across all design energies, thereby enabling reliable high-current operation without requiring additional dedicated feedback measures, such as direct or one-turn-delay feedback. A stability assessment based on the Nyquist criterion confirms the closed-loop stability of the system and indicates sufficient gain margins. These results provide a reliable foundation for the STCF rf and feedback system design, enabling stable high-current operation under realistic constraints. The proposed approach and the associated analysis framework also offer a practical reference for other high-current storage rings facing similar instability challenges.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (39)

  1. X.-C. Ai, L.-P. An, S.-Z. An et al., Conceptual design report of the Super Tau-Charm Facility: The accelerator, Nucl. Sci. Tech. 36, 242 (2025).
  2. K. W. Robinson, Stability of beam in radiofrequency system, Cambridge Electron Accelerator, Cambridge, MA Technical Report No. CEAL-1010, 1964.
  3. A. W. Chao, Physics of Collective Beam Instabilities in High Energy Accelerators (Wiley, New York, 1993), https://www.slac.stanford.edu/achao/wileybook.html.
  4. S. Obara, K. Ueshima, T. Asaka, Y. Hosaka, K. Kan, N. Nishimori, T. Aoki, H. Asano, K. Haga, Y. Iba, A. Ihara, K. Ito, T. Iwashita, M. Kadowaki, R. Kanahama, T. Aoki, H. Dewa, T. Fujita, M. Kawase, A. Kiyomichi et al., Commissioning of a compact multibend achromat lattice NanoTerasu: A new 3 GeV synchrotron radiation facility, Phys. Rev. Accel. Beams 28, 020701 (2025).
  5. Y. Wei, Z. Huang, Z. Cao, L. Sun, Y. Zhang, C. Wang, and Y. Xie, Preliminary design of a 500 MHz normal-conducting cavity for main rings of Super Tau-Charm Facility, in Proc. IPAC’24, Nashville, TN, USA (JACoW Publishing, Geneva, Switzerland, 2024), pp. 1467–1469, Paper TUPR23.
  6. D. Teytelman, D. Van Winkle, and J. Fox, Operating performance of the low group delay woofer channel in PEP-II, in Proc. PAC’05, Knoxville, TN, USA (IEEE, Piscataway, NJ, 2005), Paper MPPP007, https://proceedings.jacow.org/p05/PAPERS/MPPP007.PDF.
  7. M. Tobiyama, J. W. Flanagan, T. Kobayashi, S. Terui, and J. D. Fox, Longitudinal bunch-by-bunch feedback systems for SuperKEKB LER, in Proc. IBIC’19, Malmö, Sweden (JACoW Publishing, Geneva, Switzerland, 2019), pp. 159–162, Paper MOPP028.
  8. P. Baudrenghien and T. Mastoridis, Fundamental cavity impedance and longitudinal coupled-bunch instabilities at the High Luminosity Large Hadron Collider, Phys. Rev. Accel. Beams 20, 011004 (2017).
  9. O. Brunner, E. Jensen, I. Karpov, E. Montesinos, F. Peauger, and I. Syratchev, RF system challenges for future e+e− circular colliders, Eur. Phys. J. Plus 137, 73 (2022).
  10. D. Boussard, Control of cavities with high beam loading, IEEE Trans. Nucl. Sci 32, 1852 (1985).
  11. F. Pedersen, RF cavity feedback, in Proc. Workshop on B Factories: The State of the Art in Accelerators, Detectors and Physics( CERN Report No. CERN-PS-92-59-RF, 1992), pp. 192–207, https://cds.cern.ch/record/244817.
  12. H. Zhu, T. Xin, J. Zhai, and J. Dai, Suppression of longitudinal coupled-bunch instabilities with RF feedback systems in CEPC main ring, Radiat. Detect. Technol. Methods 7, 210 (2023).
  13. P. Corredoura, Architecture and performance of the PEP-II low-level RF system, in Proceedings of PAC’99, New York, NY, USA (IEEE, Piscataway, NJ, 1999), pp. 435–439.
  14. K. Hirosawa, K. Akai, E. Ezura, T. Kobayashi, K. Nakanishi, and S.-I. Yoshimoto, Advanced damper system with a flexible and fine-tunable filter for longitudinal coupled-bunch instabilities caused by the accelerating mode in SuperKEKB, Nucl. Instrum. Methods Phys. Res., Sect. A 953, 163007 (2020).
  15. T. He, W. Li, Z. Bai, and W. Li, Analytic formulas for the D-mode Robinson instability, Phys. Rev. Accel. Beams 27, 064402 (2024).
  16. F. J. Sacherer, A longitudinal stability criterion for bunched beams, IEEE Trans. Nucl. Sci 20, 825 (1973).
  17. M. Sands, The physics of electron storage rings: An introduction, Stanford Linear Accelerator Center, Menlo Park, CA SLAC Report No. SLAC-R-121, 1970.
  18. N. Wang, Y. Zhang, C. Yu, G. Xu, and J. Dai, Synchrotron tune shift due to the fundamental mode of the RF cavities, Nucl. Instrum. Methods Phys. Res., Sect. A 1014, 165725 (2021).
  19. T. He and Z. Bai, Graphics-processing-unit-accelerated simulation for longitudinal beam dynamics of arbitrary bunch trains in electron storage rings, Phys. Rev. Accel. Beams 24, 104401 (2021).
  20. T. He, STABLE (GitHub repository), https://github.com/hetianlong-afk/STABLE.
  21. T. He, W. Liang, J. Xiao, and X. Huang, A realistic proportional-integral RF feedback model for longitudinal beam dynamics simulation, arXiv:2601.05541.
  22. T. Schilcher, RF applications in digital signal processing, in CERN Accelerator School: Digital Signal Processing (CERN, Geneva) ( Technical Report No. CERN-2008-003, 2008).
  23. G. Russo, G. Franchetti, M. Giovannozzi, and E. H. Maclean, Harmonic analysis of nonstationary signals with application to LHC beam measurements, Phys. Rev. Accel. Beams 27, 094001 (2024).
  24. S. Prabhakar. New diagnostics and cures for coupled-bunch instabilities, Ph.D. thesis [Stanford University, Stanford, CA SLAC Report No. SLAC-R-554, 2001], https://www.slac.stanford.edu/pubs/slacreports/reports03/slac-r-554.pdf.
  25. K. Zhang, C.-F. Wu, F. Wu, Y. Tang, S. Zhang, G. Feng, J. Pang, and D. Jia, Project progress of LLRF for the superconducting RF system of Hefei Advanced Light Facility (HALF), in Proc. IPAC’23, Venice, Italy (JACoW Publishing, Geneva, Switzerland, 2023), pp. 4229–4231, Paper THPA115.
  26. Z. Yu-Bin, Y. Cheng-Ke, Z. Tong-Xuan, F. Ze-Chuan, Z. Zhen-Tang, D. Zhi-Min, L. Jian-Fei, and W. Fang, Digital prototype of LLRF system for SSRF, Chin. Phys. C 32, 758 (2008).
  27. M. B. Alves and F. H. de Sá, Equilibrium of longitudinal bunch distributions in electron storage rings with arbitrary impedance sources and generic filling patterns, Phys. Rev. Accel. Beams 26, 094402 (2023).
  28. A. Salom, B. Bravo, M. Broseta, E. Morales, J. R. Ocampo, F. Pérez, and P. Solans, Latest development of the ALBA DLLRF, in Proc. IPAC’17, Copenhagen, Denmark (JACoW Publishing, Geneva, Switzerland, 2017), pp. 4034–4036, Paper THPAB134.
  29. Xilinx, Using look-up tables as shift registers (SRL16) in spartan-3 generation FPGAs, Application Note XAPP465, Version 1.1 (2005), https://docs.amd.com/api/khub/documents/HmSzkHw_GO4e9YntHpj2fA/content.
  30. D. Daminelli, A. P. B. Lima, F. K. G. Hoshino, V. Freire, M. B. Alves, and M. Souza, Improvements of longitudinal stability with LLRF optimization at SIRIUS, in Proc. IPAC’24, Nashville, TN, USA (JACoW Publishing, Geneva, Switzerland, 2024), pp. 3435–3438, Paper THPG69.
  31. P. Corredoura, S. Allison, R. Claus, W. Ross, L. Sapozhnikov, H. D. Schwarz, R. Tighe, C. Yee, and C. Ziomek, Commissioning experience with the PEP-II low-level RF system, in Proc. PAC’97, Vancouver, BC, Canada (IEEE, Piscataway, NJ, 1997), pp. 2359–2361, Paper 6P052, https://accelconf.web.cern.ch/pac97/papers/pdf/6P052.PDF.
  32. M. E. Angoletta, Digital low level RF, CERN Report No. CERN-AB-2006-037, 2006, https://cds.cern.ch/record/971791/files/ab-2006-037.pdf.
  33. D. Teytelman, Beam-loading compensation for super B-factories, in Proc. PAC’05, Knoxville, TN, USA (IEEE, Piscataway, NJ, 2005), TOAC002, https://proceedings.jacow.org/p05/PAPERS/TOAC002.PDF.
  34. P. B. Wilson, Transient beam loading in electron-positron storage rings, CERN Report No. CERN-ISR-TH/78-23, 1978.
  35. R. Garoby, Beam loading in RF cavities, Technical Report No. CERN-PS-91-33-RF, 1991, https://cds.cern.ch/record/2843933/files/CERN-PS-91-33-RF.pdf.
  36. K. Akai, Stability analysis of RF accelerating mode with feedback loops under heavy beam loading in SuperKEKB, Phys. Rev. Accel. Beams 25, 102002 (2022).
  37. H. Nyquist, Regeneration theory, Bell Syst. Tech. J 11, 126 (1932).
  38. H. W. Bode, Network Analysis and Feedback Amplifier Design (D. Van Nostrand Company, Inc., New York, 1945), https://books.google.com/books?id=kSYhAAAAMAAJ.
  39. M. M. Peet, Systems analysis and control: Lecture 21—Stability margins and closing the loop, Arizona state university course lecture notes, https://control.asu.edu/Classes/MAE318/318Lecture21.pdf.
