Controlling the transverse multipole components in rf cavity modes using the azimuthal modulation method

L. M. Wroe* and W. Wuensch

R. J. Apsimon

  • CERN, CH-1211 Geneva-23, Switzerland

  • *Contact author: laurence.wroe@cern.ch
PDF

Phys. Rev. Accel. Beams 28, 082002 – Published 19 August, 2025

DOI: https://doi.org/10.1103/tjgp-gjq7

Abstract

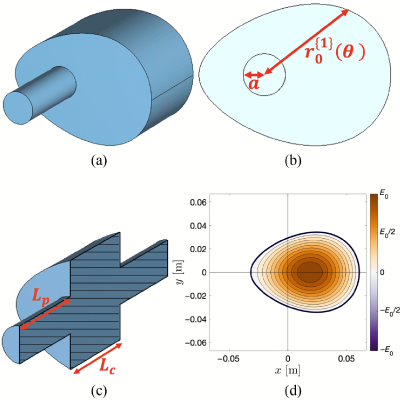

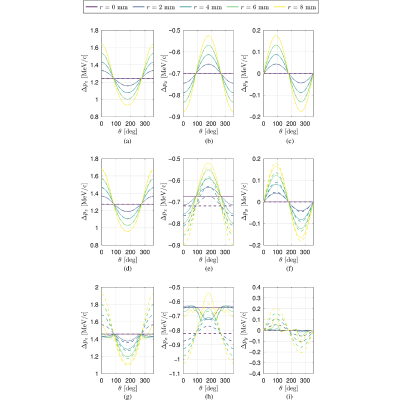

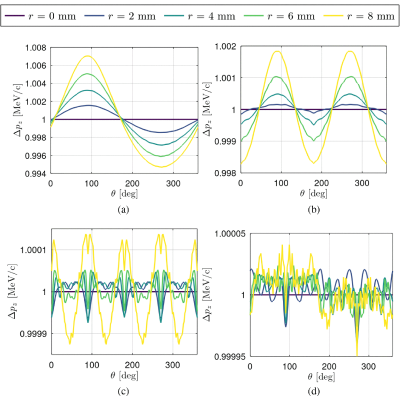

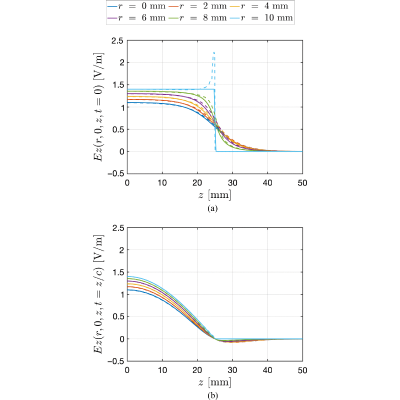

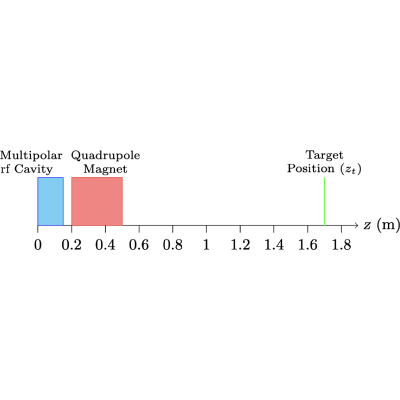

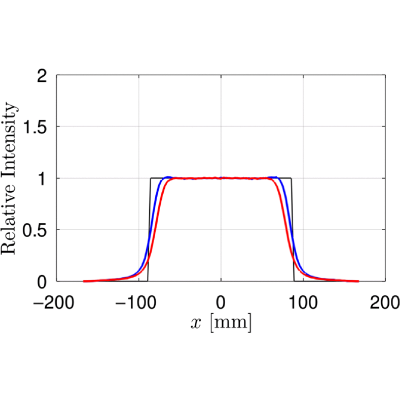

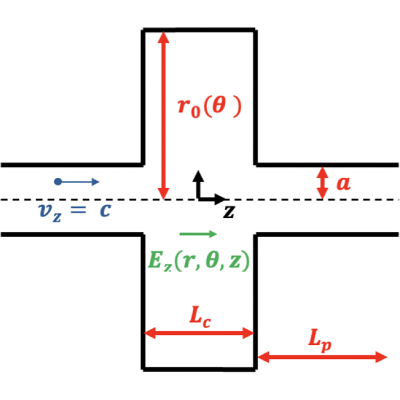

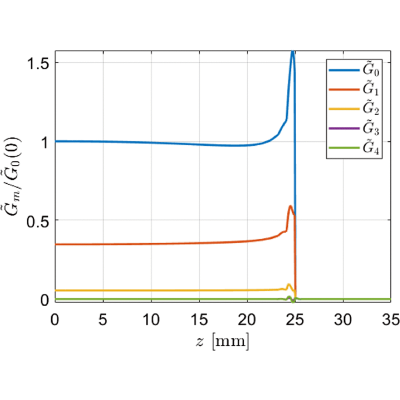

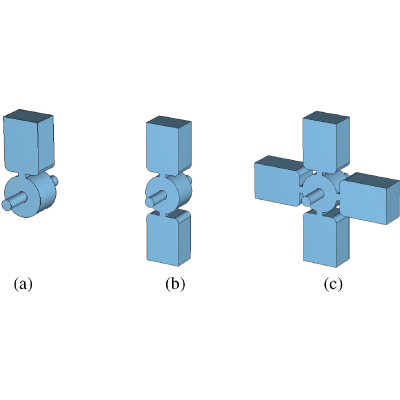

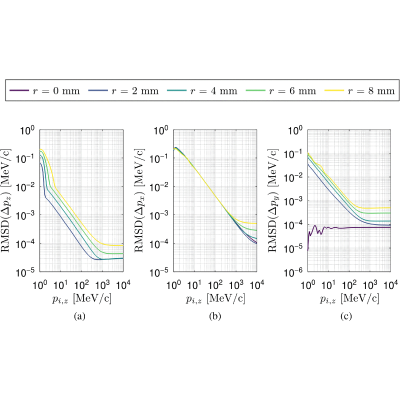

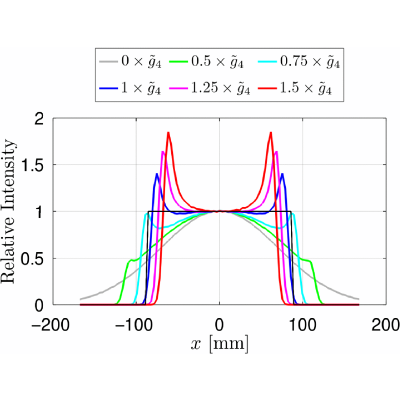

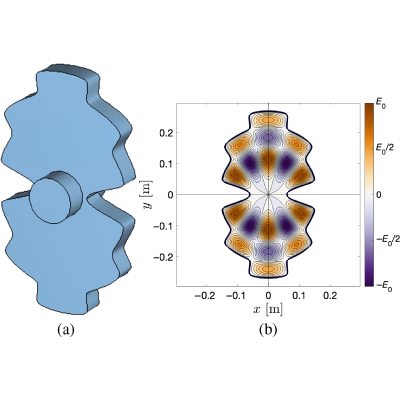

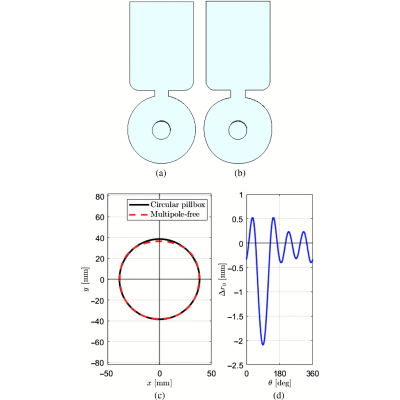

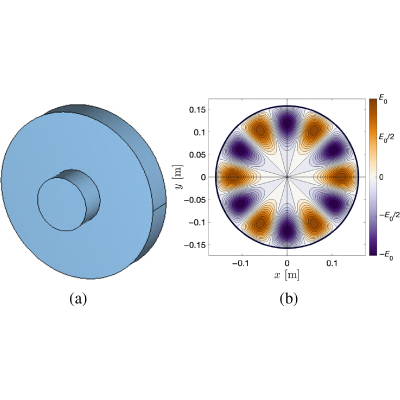

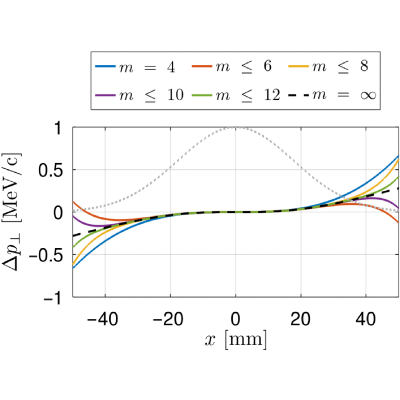

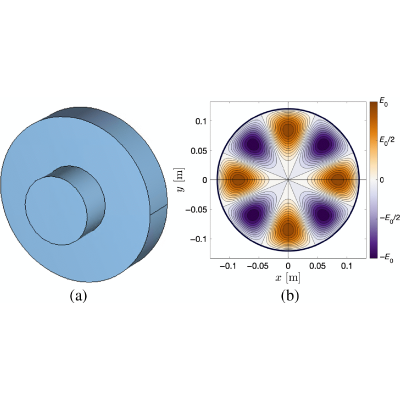

Recent work introduced a systematic method for designing so-called azimuthally modulated rf cavities that support transverse magnetic modes composed of user-desired multipoles, enabling precision control of the magnitude and orientation of multipolar components in rf cavity design. This paper extends this method to practical implementation by deriving the multipolar expansion of the longitudinal electric field in such rf cavities with beam pipes, as well as the momentum change of ultrarelativistic particles traversing these modes. The derived equations explicitly show the radial variation of the change in longitudinal and transverse momentum follows a polynomial rather than Bessel-function relationship. The expression for the longitudinal electric field is then compared to a field map obtained from the 3D electromagnetic simulation of an azimuthally modulated cavity designed to support a mode composed of monopole, dipole, and quadrupole components. Beam dynamics studies are presented to assess the derived expressions for the change in momentum, including the effects of relaxing the ultrarelativistic assumption. Finally, two example applications are presented: the first demonstrates the removal of unwanted transverse multipoles to create a multipole-free accelerating structure with a single-port coupler, whereas the second illustrates the synthesis of desired multipoles to create an rf cavity that transforms the transverse distribution of a beam from Gaussian to uniform.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (41)

  1. E. Adli, R. Ruber, V. Ziemann, R. Corsini, A. Dubrovskiy, and I. Syratchev, X-band rf power production and deceleration in the two-beam test stand of the compact linear collider test facility, Phys. Rev. ST Accel. Beams 14, 081001 (2011).
  2. I. V. Konoplev, A. Bulygin Ya. Shashkov, M. A. Gusarova, and F. Marhauser, Ultimate energy recovery from spent relativistic electron beam in energy recovery linear accelerators, Phys. Rev. Accel. Beams 23, 071601 (2020).
  3. B. H. Schaap and P. Musumeci, Tomography of longitudinal phase space linearization for the generation of attosecond electron bunches, Phys. Rev. Accel. Beams 28, 012802 (2025).
  4. A. Castilla, R. Apsimon, G. Burt, X. Wu, A. Latina, X. Liu, I. Syratchev, W. Wuensch, B. Spataro, and A. W. Cross, Ka-band linearizer structfure studies for a compact light source, Phys. Rev. Accel. Beams 25, 112001 (2022).
  5. S. G. Anderson, P. Musumeci, J. B. Rosenzweig, W. J. Brown, R. J. England, M. Ferrario, J. S. Jacob, M. C. Thompson, G. Travish, A. M. Tremaine, and R. Yoder, Velocity bunching of high-brightness electron beams, Phys. Rev. ST Accel. Beams 8, 014401 (2005).
  6. Simone Di Mitri, Bunch-length compressors, CERN Yellow Rep. Sch. Proc. 1, 363 (2018).
  7. M. Ikegami, S. Nakamura, Y. Iwashita, T. Shirai, H. Souda, Y. Tajima, M. Tanabe, H. Tongu, H. Itoh, H. Shintaku et al., Radial focusing and energy compression of a laser-produced proton beam by a synchronous rf field, Phys. Rev. ST Accel. Beams 12, 063501 (2009).
  8. H. Hahn and H. J. Halama, Design of the deflector for the rf beam separator at the Brookhaven AGS, Rev. Sci. Instrum. 36, 1788 (1965).
  9. M. McAshan and R. Wanzenberg, RF design of a transverse mode cavity for kaon separation, Technical Report No. FERMILAB-TM-2144, Fermi National Accelerator Laboratory, 2001.
  10. P. Emma, Z. Huang, K.-J. Kim, and P. Piot, Transverse-to-longitudinal emittance exchange to improve performance of high-gain free-electron lasers, Phys. Rev. ST Accel. Beams 9, 100702 (2006).
  11. N. Majernik, G. Andonian, W. Lynn, S. Kim, C. Lorch, R. Roussel, S. Doran, E. Wisniewski, C. Whiteford, P. Piot, J. Power, and J. B. Rosenzweig, Beam shaping using an ultrahigh vacuum multileaf collimator and emittance exchange beamline, Phys. Rev. Accel. Beams 26, 022801 (2023).
  12. M. Borland, Simulation and analysis of using deflecting cavities to produce short x-ray pulses with the advanced photon source, Phys. Rev. ST Accel. Beams 8, 074001 (2005).
  13. H. Ghasem, G. H. Luo, and A. Mohammadzadeh, Utilization of transverse deflecting rf cavities in the designed QBA lattice of 3 GeV Taiwan Photon Source, J. Instrum. 5, T01001 (2010).
  14. X.-C. Lin, H. Zha, J. Shi, L.-Y. Zhou, S. Liu, J. Gao, and H.-B. Chen, Development of a seven-cell S-band standing-wave rf-deflecting cavity for Tsinghua Thomson scattering x-ray source, Nuclear Science and Techniques 32, 36 (2021).
  15. P. Craievich, M. Bopp, H.-H. Braun, A. Citterio, R. Fortunati, R. Ganter, T. Kleeb, F. Marcellini, M. Pedrozzi, E. Prat et al., Novel X-band transverse deflection structure with variable polarization, Phys. Rev. Accel. Beams 23, 112001 (2020).
  16. R. B. Palmer, Energy scaling, crab crossing and the pair problem, Stanford Linear Accelerator Center Report No. SLAC-PUB-4707, 1988.
  17. X. Huang, Coupled beam motion in a storage ring with crab cavities, Phys. Rev. Accel. Beams 19, 024001 (2016).
  18. A. Grudiev, Radio frequency quadrupole for Landau damping in accelerators, Phys. Rev. ST Accel. Beams 17, 011001 (2014).
  19. M. Schenk, A. Grudiev, K. Li, and K. Papke, Analysis of transverse beam stabilization with radio frequency quadrupoles, Phys. Rev. Accel. Beams 20, 104402 (2017).
  20. L. M. Wroe, S. L. Sheehy, and R. J. Apsimon, Creating exact multipolar fields with azimuthally modulated rf cavities, Phys. Rev. Accel. Beams 25, 062001 (2022).
  21. M. S. Chae, J. H. Hong, Y. W. Parc, S. J. Park In Soo Ko, H. J. Qian, W. H. Huang, and C. X. Tang, Emittance growth due to multipole transverse magnetic modes in an rf gun, Phys. Rev. ST Accel. Beams 14, 104203 (2011).
  22. R. Akre, D. Dowell, P. Emma, J. Frisch, S. Gilevich, G. Hays, R. Iverson Ph. Hering, C. Limborg-Deprey, H. Loos, A. Miahnahri, J. Schmerge, J. Turner, J. Welch, W. White, and J. WuCommissioning the linac coherent light source injector, Phys. Rev. ST Accel. Beams 11, 030703 (2008).
  23. S. Moon, J. Hong, Y. Parc, M. Cho, W. Namkung, I. S. Ko, and S.-J. Park, Reduction of multipole fields in photocathode rf gun, Jpn. J. Appl. Phys. 49, 086401 (2010).
  24. J. B. Rosenzweig, A. Cahill, B. Carlsten, G. Castorina, M. Croia, C. Emma, A. Fukusawa, B. Spataro, D. Alesini, V. Dolgashev, M. Ferrario, G. Lawler, R. Li, C. Limborg, J. Maxson, P. Musumeci, R. Pompili, S. Tantawi, and O. Williams, Ultra-high brightness electron beams from very-high field cryogenic radiofrequency photocathode sources, Nucl. Instrum. Methods Phys. Res., Sect. A 909, 224 (2018).
  25. Z. Zhou, K. Sheng, Z. Zhang, M. Xiong, H. Li, and J. Huang, Tunable and compact permanent magnet uniform spreading beamline for electron irradiation accelerators, Phys. Rev. Accel. Beams 26, 092402 (2023).
  26. Q. T. Zhao, S. C. Cao, R. Cheng, Y. C. Du, X. K. Shen, Y. R. Wang, J. H. Xiao, Y. Zong, Y. L. Zhu, Y. W. Zhou et al., Generation of uniform transverse beam distributions for high-energy electron radiography, Laser Part. Beams 36, 313 (2018).
  27. Y. Zhao, A. Latina, and S. Doebert, Update of the CLIC positron source, in Proceedings of the International Workshop on Future Linear Colliders (LCWS2023) (2024), https://agenda.linearcollider.org/event/10134/contributions/54773/.
  28. C. Rossi, A. Malyzhenkov, A. Grudiev, A. Latina, B. Frisch, E. Granados, I. Syratchev, J. Cravero, J. Bauche, M. Angoletta, O. Brunner, P. Wang, R. Corsini, S. Doebert, and W. Wuensch, The deep electron FLASH therapy facility, in Proceedings of 32nd Linear Accelerator Conference (LINAC2024) (CERN, Geneva, Switzerland, 2024), pp. 551–556, 10.18429/JACoW-LINAC2024-WEYA002.
  29. Y. Yuri, N. Miyawaki, T. Kamiya, W. Yokota, K. Arakawa, and M. Fukuda, Uniformization of the transverse beam profile by means of nonlinear focusing method, Phys. Rev. ST Accel. Beams 10, 104001 (2007).
  30. W. K. H. Panofsky and W. A. Wenzel, Some considerations concerning the transverse deflection of charged particles in radio-frequency fields, Rev. Sci. Instrum. 27, 967 (1956).
  31. T. Wangler, RF Linear Accelerators (Wiley, New York, 2008).
  32. S. Y. Lee, Accelerator Physics, 4th ed. (World Scientific, Singapore, 2018).
  33. L. M. Wroe. Novel hybrid multipolar rf cavities for transverse beam manipulations, Ph.D. thesis, University of Oxford, 2022.
  34. D. T. Abell, Numerical computation of high-order transfer maps for rf cavities, Phys. Rev. ST Accel. Beams 9, 052001 (2006).
  35. P. B. Wilson, Introduction to wake fields and wake potentials, AIP Conf. Proc. 184, 525 (1989).
  36. H. Henke and S. Vaganian, The Panofsky-Wenzel theorem and general relations for the wake potential, Part. Accel. 48, 239 (1995), https://inspirehep.net/files/264e8d17071f38def3484b4bdcf438ae.
  37. M. Dohlus and W. Wanzenberg, An introduction to wake fields and impedances, CERN Yellow Rep. Sch. Proc. 3, 15 (2017).
  38. CST Studio Suite, cst microwave studio, version 2022, https://www.cst.com (2025).
  39. Wolfram Research, Inc., Mathematica, version 14.2, Champaign, IL, 2024.
  40. A. Latina, rf-track reference manual (2024), 10.5281/zenodo.4580369.
  41. Linear Accelerators, edited by P. M. Lapostolle and A. L. Septier (North Holland Publishing Company, Amsterdam, Netherlands, 1970).
