Laser wakefield acceleration driven by a discrete flying focus

Jacob R. Pierce1,*, Kyle G. Miller2, Fei Li3, John P. Palastro2,†, and Warren B. Mori1

  • *Contact author: jacobpierce@physics.ucla.edu
  • †Contact author: jpal@lle.rochester.edu
PDF

Phys. Rev. Accel. Beams 28, 101303 – Published 24 October, 2025

DOI: https://doi.org/10.1103/qts4-8kgf

Abstract

Laser wakefield acceleration (LWFA) may enable the next generation of TeV-scale lepton colliders. Reaching such energies will likely require multiple LWFA stages to overcome limitations on the energy gain achievable in a single stage. The use of stages, however, introduces challenges such as alignment, adiabatic matching between stages, and a lower average accelerating gradient. Here, we propose a discrete flying focus that can deliver higher energy gain in a single stage, thereby reducing the number of stages required for a target energy. A sequence of laser pulses with staggered focal points and delays drives a plasma wave in which an electron beam experiences a near-constant accelerating gradient over distances beyond those attainable with a conventional pulse. Simulations demonstrate that a discrete flying focus with a total energy of 150 J can transfer 40 GeV per electron to a 50-pC beam in a single 30-cm stage, corresponding to 50 dephasing lengths.

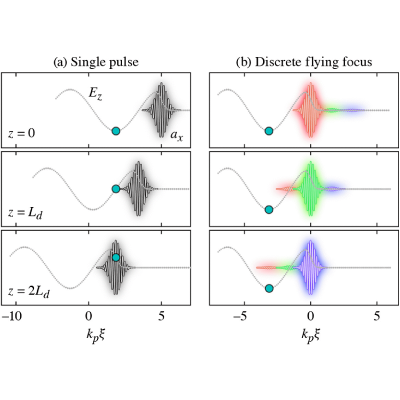

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (41)

  1. T. Tajima and J. M. Dawson, Laser electron accelerator, Phys. Rev. Lett. 43, 267 (1979).
  2. C. B. Schroeder, E. Esarey, C. Geddes, C. Benedetti, and W. P. Leemans, Physics considerations for laser-plasma linear colliders, Phys. Rev. ST Accel. Beams 13, 101301 (2010).
  3. C. Schroeder, F. Albert, C. Benedetti, J. Bromage, D. Bruhwiler, S. Bulanov, E. Campbell, N. Cook, B. Cros, M. Downer et al., Linear colliders based on laser-plasma accelerators, J. Instrum. 18, T06001 (2023).
  4. E. Esarey, C. B. Schroeder, and W. P. Leemans, Physics of laser-driven plasma-based electron accelerators, Rev. Mod. Phys. 81, 1229 (2009).
  5. T. Mehrling, J. Grebenyuk, F. Tsung, K. Floettmann, and J. Osterhoff, Transverse emittance growth in staged laser-wakefield acceleration, Phys. Rev. ST Accel. Beams 15, 111303 (2012).
  6. S. Steinke, J. Van Tilborg, C. Benedetti, C. Geddes, C. Schroeder, J. Daniels, K. Swanson, A. Gonsalves, K. Nakamura, N. Matlis et al., Multistage coupling of independent laser-plasma accelerators, Nature (London) 530, 190 (2016).
  7. Y. Zhao, W. An, X. Xu, F. Li, L. Hildebrand, M. J. Hogan, V. Yakimenko, C. Joshi, and W. B. Mori, Emittance preservation through density ramp matching sections in a plasma wakefield accelerator, Phys. Rev. Accel. Beams 23, 011302 (2020).
  8. A. Debus, R. Pausch, A. Huebl, K. Steiniger, R. Widera, T. E. Cowan, U. Schramm, and M. Bussmann, Circumventing the dephasing and depletion limits of laser-wakefield acceleration, Phys. Rev. X 9, 031044 (2019).
  9. J. Palastro, J. Shaw, P. Franke, D. Ramsey, T. Simpson, and D. Froula, Dephasingless laser wakefield acceleration, Phys. Rev. Lett. 124, 134802 (2020).
  10. C. Caizergues, S. Smartsev, V. Malka, and C. Thaury, Phase-locked laser-wakefield electron acceleration, Nat. Photonics 14, 475 (2020).
  11. K. G. Miller, J. R. Pierce, M. V. Ambat, J. L. Shaw, K. Weichman, W. B. Mori, D. H. Froula, and J. P. Palastro, Dephasingless laser wakefield acceleration in the bubble regime, Sci. Rep. 13, 21306 (2023).
  12. T. Nutting, N. Ernst, A. G. Thomas, and K. Krushelnick, Transversely pumped laser driven particle accelerator, arXiv:2501.11825.
  13. A. Liberman, A. Golovanov, S. Smartsev, S. Tata, I. A. Andriyash, S. Benracassa, E. Y. Levine, E. Kroupp, and V. Malka, First direct observation of a wakefield generated with structured light, arXiv:2503.01516.
  14. D. H. Froula, D. Turnbull, A. S. Davies, T. J. Kessler, D. Haberberger, J. P. Palastro, S.-W. Bahk, I. A. Begishev, R. Boni, S. Bucht et al., Spatiotemporal control of laser intensity, Nat. Photonics 12, 262 (2018).
  15. S. W. Jolly, O. Gobert, A. Jeandet, and F. Quéré, Controlling the velocity of a femtosecond laser pulse using refractive lenses, Opt. Express 28, 4888 (2020).
  16. J. J. Pigeon, P. Franke, M. L. P. Chong, J. Katz, R. Boni, C. Dorrer, J. P. Palastro, and D. H. Froula, Ultrabroadband flying-focus using an axiparabola-echelon pair, Opt. Express 32, 576 (2024).
  17. J. Zuegel, A. Aprahamian, E. Zurek, F. Dollar, and A. D. Piazza, Research infrastructure: Midscale RI-1 (M1:DP): OMEGA-EP-Pumped Optical Parametric Amplifier Line (EP-OPAL) facility design, Award Number: 2329970, 2024, available at https://www.nsf.gov/awardsearch/showAward?AWD_ID=2329970 [accessed February 17, 2025]
  18. J. L. Shaw, M. V. Ambat, K. G. Miller, R. Boni, I. LaBelle, W. B. Mori, J. J. Pigeon, A. Rigatti, I. Settle, L. Mack, J. P. Palastro, and D. H. Froula, Path to a single-stage, 100-GeV electron beam via a flying-focus-driven laser-plasma accelerator, arXiv:2505.00157.
  19. J. R. Pierce, J. P. Palastro, F. Li, B. Malaca, D. Ramsey, J. Vieira, K. Weichman, and W. B. Mori, Arbitrarily structured laser pulses, Phys. Rev. Res. 5, 013085 (2023).
  20. F. Li, W. An, V. K. Decyk, X. Xu, M. J. Hogan, and W. B. Mori, A quasi-static particle-in-cell algorithm based on an azimuthal Fourier decomposition for highly efficient simulations of plasma-based acceleration: qpad, Comput. Phys. Commun. 261, 107784 (2021).
  21. F. Li, W. An, F. S. Tsung, V. K. Decyk, and W. B. Mori, Integrating a ponderomotive guiding center algorithm into a quasi-static particle-in-cell code based on azimuthal mode decomposition, J. Comput. Phys. 470, 111599 (2022).
  22. L. Gorbunov and V. Kirsanov, Excitation of plasma waves by an electromagnetic wave packet, J. Exp. Theor. Phys. 66, 290 (1987).
  23. W. Lu, M. Tzoufras, C. Joshi, F. Tsung, W. Mori, J. Vieira, R. Fonseca, and L. Silva, Generating multi-Gev electron bunches using single stage laser wakefield acceleration in a 3D nonlinear regime, Phys. Rev. ST Accel. Beams 10, 061301 (2007).
  24. T. Katsouleas, Physical mechanisms in the plasma wake-field accelerator, Phys. Rev. A 33, 2056 (1986).
  25. M. Tzoufras, W. Lu, F. S. Tsung, C. Huang, W. B. Mori, T. Katsouleas, J. Vieira, R. Fonseca, and L. O. Silva, Beam loading in the nonlinear regime of plasma-based acceleration, Phys. Rev. Lett. 101, 145002 (2008).
  26. T. N. Dalichaouch, X. L. Xu, A. Tableman, F. Li, F. S. Tsung, and W. B. Mori, A multi-sheath model for highly nonlinear plasma wakefields, Phys. Plasmas 28, 063103 (2021).
  27. R. A. Fonseca, L. O. Silva, F. S. Tsung, V. K. Decyk, W. Lu, C. Ren, W. B. Mori, S. Deng, S. Lee, T. Katsouleas, and J. C. Adam, osiris: A three-dimensional, fully relativistic particle in cell code for modeling plasma based accelerators, in Lecture Notes in Computer Science (Springer, Berlin, Heidelberg, 2002), pp. 342–351.
  28. A. Khachatryan, A. Irman, F. Van Goor, and K.-J. Boller, Femtosecond electron-bunch dynamics in laser wakefields and vacuum, Phys. Rev. ST Accel. Beams 10, 121301 (2007).
  29. A. Pak, K. Marsh, S. Martins, W. Lu, W. Mori, and C. Joshi, Injection and trapping of tunnel-ionized electrons into laser-produced wakes, Phys. Rev. Lett. 104, 025003 (2010).
  30. Q. Su, J. Larson, T. N. Dalichaouch, F. Li, W. An, L. Hildebrand, Y. Zhao, V. Decyk, P. Alves, S. M. Wild et al., Optimization of transformer ratio and beam loading in a plasma wakefield accelerator with a structure-exploiting algorithm, Phys. Plasmas 30, 053108 (2023).
  31. B. S. Nunes, S. P. d. Santos, R. P. Nunes, C. Bonţoiu, M. Alva-Sánchez, R. E. Samad, N. D. Vieira, Jr., G. Xia, J. Resta-López, and A. Bonatto, Bayesian optimization of laser wakefield acceleration in the self-modulated regime (SM-LWFA) aiming to produce molybdenum-99 via photonuclear reactions, Phys. Plasmas 32, 033101 (2025).
  32. P.-F. Geng, M. Chen, and Z.-M. Sheng, Efficient muon acceleration in laser wakefields driven by single or combined laser pulses, Phys. Plasmas 31, 023109 (2024).
  33. J. P. Palastro, B. Malaca, J. Vieira, D. Ramsey, T. T. Simpson, P. Franke, J. L. Shaw, and D. H. Froula, Laser-plasma acceleration beyond wave breaking, Phys. Plasmas 28, 013109 (2021).
  34. J. Vieira and J. Mendonça, Nonlinear laser driven donut wakefields for positron and electron acceleration, Phys. Rev. Lett. 112, 215001 (2014).
  35. A. Rainville, M. Whittlesey, C. Pasquale, Y. Jing, M. Chen, S. Chen, H. Pei, J. Ruppe, T. Zhou, Q. Du, Z. Zhang, G. Chang, F. X. Kärtner, and A. Galvanauskas, Near-complete extraction of maximum stored energy from large-core fibers using coherent pulse stacking amplification of femtosecond pulses, Optica 11, 1540 (2024).
  36. P. Mora and T. M. Antonsen , Kinetic modeling of intense, short laser pulses propagating in tenuous plasmas, Phys. Plasmas 4, 217 (1997).
  37. S. Morshed, T. M. Antonsen, and J. P. Palastro, Efficient simulation of electron trapping in laser and plasma wakefield acceleration, Phys. Plasmas 17, 063106 (2010).
  38. A. Pukhov, Z.-M. Sheng, and J. M. ter Vehn, Particle acceleration in relativistic laser channels, Phys. Plasmas 6, 2847 (1999), this is the main paper that derives the betatron motion equation.
  39. K. G. Miller, J. P. Palastro, J. L. Shaw, F. Li, F. S. Tsung, V. K. Decyk, C. Joshi, and W. B. Mori, Accurate simulation of direct laser acceleration in a laser wakefield accelerator, Phys. Plasmas 30, 073902 (2023).
  40. A. Davidson, A. Tableman, W. An, F. Tsung, W. Lu, J. Vieira, R. Fonseca, L. Silva, and W. Mori, Implementation of a hybrid particle code with a PIC description in r–z and a gridless description in ϕ into osiris, J. Comput. Phys. 281, 1063 (2015).
  41. F. Li, K. G. Miller, X. Xu, F. S. Tsung, V. K. Decyk, W. An, R. A. Fonseca, and W. B. Mori, A new field solver for modeling of relativistic particle-laser interactions using the particle-in-cell algorithm, Comput. Phys. Commun. 258, 107580 (2021).
