Quantitative evaluation of a longitudinal rms emittance decrease using nonlinear space charge force in an intense deuteron linac

J. Hyun1,* and A. Mizuno1,2

  • *Contact author: hyun.jibong@qst.go.jp
PDF

Phys. Rev. Accel. Beams 28, 094202 – Published 22 September, 2025

DOI: https://doi.org/10.1103/kx6r-1d8r

Abstract

Radio frequency (rf) bunchers are often utilized to control a longitudinal bunch length in low- and medium-energy transport lines. However, nonlinear rf fields in the bunchers deform a longitudinal phase space distribution, which causes emittance growth leading to beam quality degradation and unexpected beam losses. This paper describes a decrease in the longitudinal rms emittance in a high-intensity deuteron linac, where the longitudinal phase space deformed by a nonlinear rf field in the buncher is self-linearized by a longitudinal nonlinear space charge force. To quantitatively explain this phenomenon, we develop two formulas to express deformations of phase space and forces acting on the beam. We perform particle tracking simulations with the tracewin code using a 125 mA, 5 MeV deuteron beam at the Linear IFMIF Prototype Accelerator (LIPAc) and validate the two formulas by applying them to LIPAc. The quantitative evaluations of the deformations with the formulas lead to a deeper understanding of beam physics and are also expected to be useful in mitigating phase space deformation.

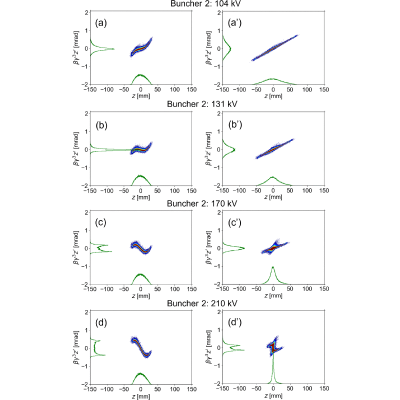

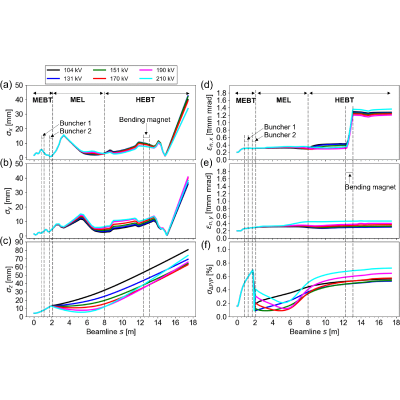

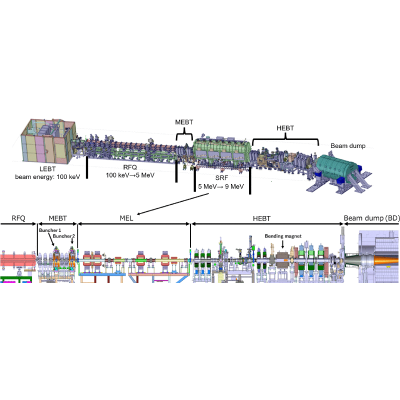

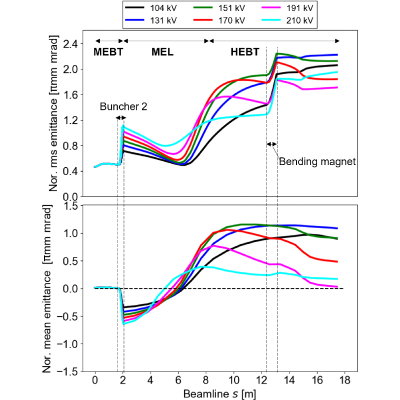

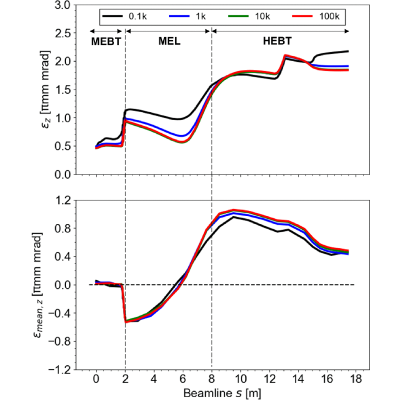

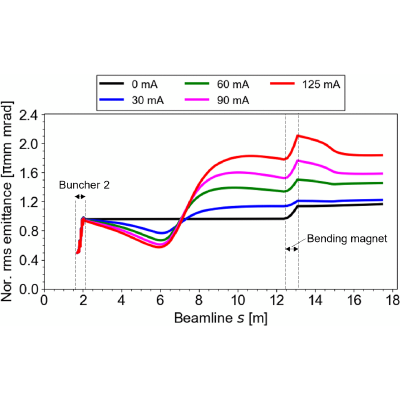

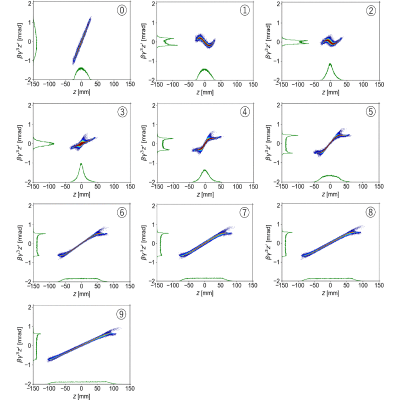

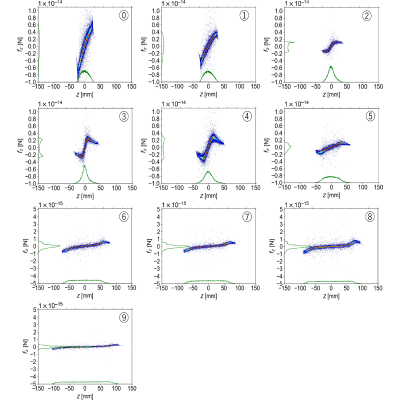

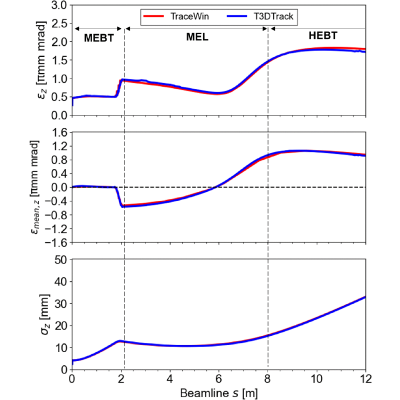

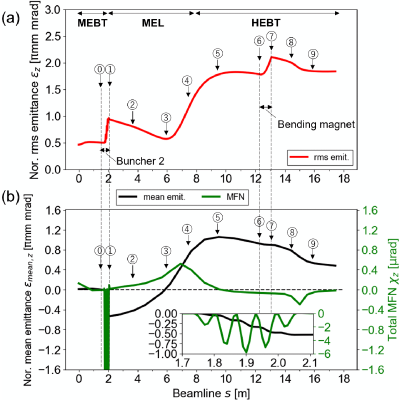

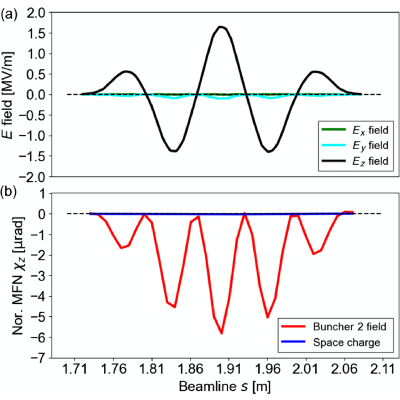

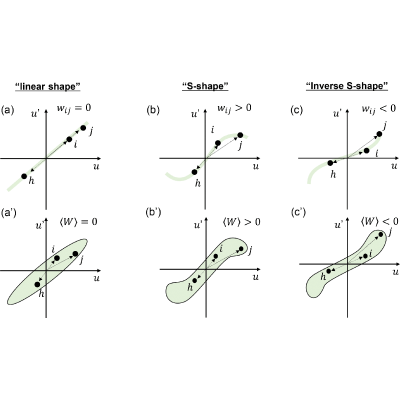

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (35)

  1. M. Reiser, Theory and Design of Charged Particle Beams (John Wiley & Sons, New York, 2008).
  2. A. W. Chao, Physics of Collective Beam Instabilities in High Energy Accelerators (Wiley-VCH, 1993), ISBN [Amazon][WorldCat].
  3. R. Baartman, Form factor g in longitudinal space charge impedance, arXiv:1508.00153.
  4. Y. Lau, S. S. Yu, J. J. Barnard, and P. A. Seidl, Longitudinal emittance growth due to nonlinear space charge effect, Phys. Rev. ST Accel. Beams 15, 033501 (2012).
  5. M. Chimura, H. Harada, and M. Kinsho, Beam emittance growth due to the strong space-charge field at low energy of a high-intensity ion linac and its mitigation using an octupole magnetic field, Prog. Theor. Exp. Phys. 2022, 063G01 (2022).
  6. B. Zeitler, K. Floettmann, and F. Grüner, Linearization of the longitudinal phase space without higher harmonic field, Phys. Rev. ST Accel. Beams 18, 120102 (2015).
  7. F. Fu, R. Wang, P. Zhu, L. Zhao, T. Jiang, C. Lu, S. Liu, L. Shi, L. Yan, H. Deng et al., Demonstration of nonlinear-energy-spread compensation in relativistic electron bunches with corrugated structures, Phys. Rev. Lett. 114, 114801 (2015).
  8. A. Mizuno, K. Masuda, and M. Yamamoto, Reduction of transverse emittance in electron injectors caused by space charge effects, Nucl. Instrum. Methods Phys. Res., Sect. A 774, 51 (2015).
  9. A. Mizuno and K. Masuda, Quantitative expressions for reduction in rms emittance, Nucl. Instrum. Methods Phys. Res., Sect. A 1033, 166733 (2022).
  10. H. Dzitko, P. Cara, Y. Carin, S. Chel, A. Facco, D. Gex, K. Hasegawa, A. Kasugai, K. Kondo, V. Massaut et al., Status and future developments of the linear IFMIF prototype accelerator (LIPAc), Fusion Eng. Des. 168, 112621 (2021).
  11. tracewin, https://www.dacm-logiciels.fr/tracewin.
  12. J. Knaster, P. Garin, H. Matsumoto, Y. Okumura, M. Sugimoto, F. Arbeiter, P. Cara, S. Chel, A. Facco, P. Favuzza et al., Overview of the IFMIF/EVEDA projecta, Nucl. Fusion 57, 102016 (2017).
  13. K. Masuda, T. Akagi, A. De Franco, T. Ebisawa, K. Hasegawa, K. Hirosawa, J. Hyun, T. Itagaki, A. Kasugai, K. Kondo et al., Commissioning of IFMIF prototype accelerator towards CW operation, in Proceedings of the 31st International Linear Accelerator Conference (LINAC2022), Liverpool, United kingdom (JACoW, Geneva, Switzerland, 2022), TU2AA04, https://proceedings.jacow.org/linac2022/papers/tu2aa04.pdf.
  14. K. Hirosawa, L. Bellan, F. Benedetti, Y. Carin, M. Comunian, A. De Franco, H. Dzitko, D. Gex, K. Hasegawa, K. Kondo et al., Measurements of momentum halo due to the reduced RFQ voltage during the LIPAc beam commissioning, J. Instrum. 19, T05002 (2024).
  15. S. Kwon, P. Abbon, T. Akagi, F. Benedetti, B. Bolzon, Y. Carin, T. Chaminade, N. Chauvin, F. Cismondi, A. De Franco et al., High beam current operation with beam diagnostics at LIPAc, J. Instrum. 19, T05013 (2024).
  16. J. Hyun, A. Mizuno, K. Masuda, K. Kondo, K. Takayama, C. Oliver, B. Branas, N. Chauvin, and I. Integrated Project Team, Importance of quadrupole magnet fringing fields in low energy beam transport: Example in the LIPAc 5 MeV D+ beamline, in Proceedings of the 15th International Particle Accelerator Conference, IPAC-2024, Nashville, TN (JACoW, Geneva, Switzerland, 2024), THPR14.
  17. T. Akagi, A. De Franco, T. Ebisawa, K. Hasegawa, K. Hirosawa, J. Hyun, N. Kaneko, A. Kasugai, K. Kondo, K. Kumagai et al., Completion of phase B+ beam commissioning of linear IFMIF prototype accelerator (LIPAc), in Proceedings of the 32nd International Linear Accelerator Conference (LINAC2024), Chicago (JACoW, Geneva, Switzerland, 2024), pp. 705–708.
  18. R. Gobin, D. Bogard, N. Chauvin, O. Delferrière, P. Girardot, F. Harrault, J. Jannin, D. Loiseau, C. Marolles, P. Mattei et al., Final design of the IFMIF injector at CEA/Saclay, in Proceedings of the 4th International Particle Accelerator Conference, IPAC-2013, Shanghai, China (JACoW, Geneva, Switzerland, 2013), THPWO003.
  19. T. Akagi, B. Bolzon, Y. Carin, N. Chauvin, F. Cismondi, H. Dzitko, K. Hasegawa, T. Itagaki, A. Kasugai, T. Kitano et al., Achievement of high-current continuous-wave deuteron injector for linear IFMIF prototype accelerator (LIPAc), Nucl. Fusion 64, 066005 (2024).
  20. A. Pisent, M. Comunian, A. Palmieri, C. Roncolato, F. Grespan, A. Pepato, E. Fagotti, and P. A. Posocco, IFMIF-EVEDA RFQ design, in Proceedings of the 11th European Particle Accelerator Conference, Genoa, Italy, 2008 (EPSAG, Geneva, 2008), pp. 7542–3544, https://proceedings.jacow.org/e08/papers/thpp078.pdf.
  21. I. Podadera, J. Calvo, J. Carmona, A. Ibarra, D. Iglesias, A. Lara, C. Oliver, and F. Toral, The medium energy beam transport line (MEBT) of IFMIF/EVEDA LIPAc, in Proceedings of the 2nd International Particle Accelerator Conference (IPAC-2011), San Sebastian, Spain (JACoW, Geneva, Switzerland, 2011), Vol. 110904, pp. 2628–2630.
  22. D. Gavela, I. Podadera, and F. Toral, Calculation and design of the re-buncher cavities for the LIPAc deuteron accelerator, in Proceedings of the 5th International Particle Accelerator Conference (IPAC-2014), Dresden, Germany (JACoW, Geneva, Switzerland, 2014), pp. 3881–3883.
  23. D. Gavela, I. Podadera, F. Toral, I. Moya, and F. Scantamburlo, Validation of two re-buncher cavities under high beam loading for LIPAc, in Proceedings of the 12th International Particle Accelerator Conference(IPAC-2021), Campinas, Brazil (JACoW, Geneva, Siwtzerland, 2021), pp. 4343–4345.
  24. F. Orsini, N. Bazin, P. Brédy, P. Carbonnier, G. Devanz, G. Disset, N. Grouas, P. Hardy, V. Hennion, H. Jenhani et al., Progress on the SRF linac developments for the IFMIF-LIPAC project, in Proceedings of the 4th International Particle Accelerator Conference (IPAC-2013), Shanghai, China (JACoW, Geneva, Switzerland, 2013), pp. 3294–3296.
  25. B. Brañas, J. Castellanos, O. Nomen, C. Oliver, F. Aragon, F. Arranz, M. Chamorro, D. Duglue, J. Ferreira, R. Garcia et al., Design, manufacturing and tests of the LIPAc high energy beam transport line, Nucl. Fusion 61, 015001 (2020).
  26. E. Tanke, R. de Prisco, M. Eshraqi, A. Ponton, E. Sargsyan, and R. Miyamoto, Benchmark of beam dynamics code dynac using the ESS proton linac, in Proceedings of the LINAC-2014 (JACoW, Geneva, Switzerland, 2014), pp. 945–947.
  27. C. Jin, Z. Wang, X. Qi, Y. He, Z. Li, K. Sun, X. Chen, C. Feng, X. Zhao, Y. Hu et al., Advanced virtual accelerator software: A linear accelerator simulation code, Phys. Rev. Accel. Beams 28, 044602 (2025).
  28. A. Pires, V. Le Flanchec, A.-S. Chauchat, and N. Delerue, Comparison of the simulation of electron beam transport in the double alpha magnet compressor of a 17-MeV electron accelerator using CST, PS, tracewin and rf-track, Nucl. Instrum. Methods Phys. Res., Sect. A 1077, 170541 (2025).
  29. J. D. Jackson, Classical Electrodynamics (John Wiley & Sons, New York, 1999).
  30. G. Stupakov, Lecture Notes on Classical Mechanics and Electromagnetism in Accelerator Physics (The US Particle Accelerator School, 2011), https://drive.google.com/file/d/1F4M_u2wR2nVH-KIs3gw1QdXHaeVjk20U/view?pli=1.
  31. G. Stupakov and Z. Huang, Space charge effect in an accelerated beam, Phys. Rev. ST Accel. Beams 11, 014401 (2008).
  32. G. Wang, M. Blaskiewicz, and V. Litvinenko, Influence of longitudinal space charge fields on the modulation process of coherent electron cooling, Phys. Rev. ST Accel. Beams 17, 101004 (2014).
  33. T. Toyama and K. Satou (private communication).
  34. J. Hyun (to be published).
  35. A. Mizuno, T. Asaka, H. Dewa, T. Kobayashi, S. Suzuki, T. Taniuchi, H. Tomizawa, K. Yanagida, H. Hanaki, and M. Uesaka, Three-dimensional simulation code for SPring-8 RF gun system, Nucl. Instrum. Methods Phys. Res., Sect. A 528, 387 (2004).
