Modeling of arbitrarily shaped resistive objects with a finite-difference time-domain electromagnetic field solver

C. Thoma, R. E. Clark, T. C. Genoni, D. R. Welch, C. B. Mostrom, and E. D. Watson

D. V. Rose

  • Pacific Fusion, Fremont, California 94538, USA

PDF

Phys. Rev. Accel. Beams 28, 114601 – Published 4 November, 2025

DOI: https://doi.org/10.1103/hz7j-gflq

Abstract

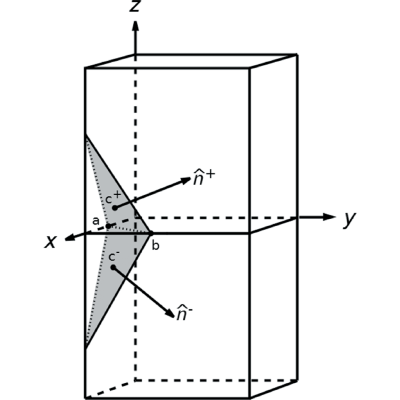

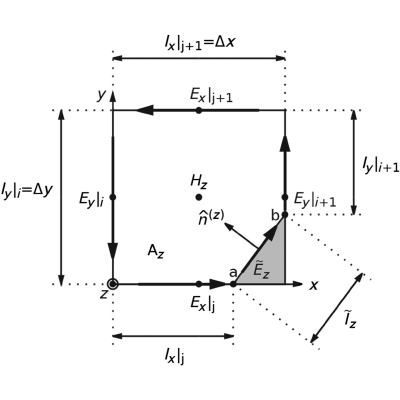

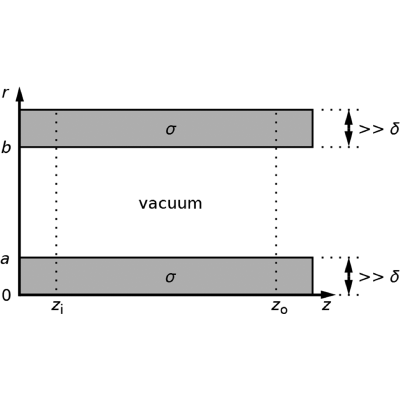

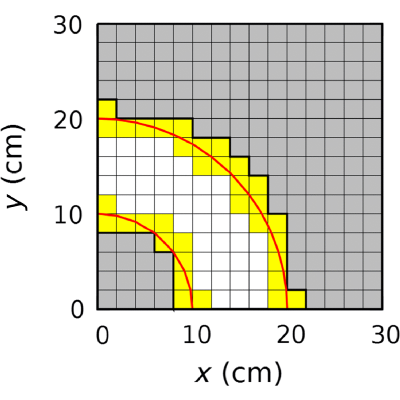

An implementation of surface-impedance boundary conditions in finite-difference time-domain electromagnetic field solvers was described by Oh and Schutt-Aine. This algorithm allows for modeling of the effects of objects with finite conductivity which lie along grid-conformal surfaces. Here we describe the extension of the algorithm to allow for modeling of arbitrarily shaped objects. This is accomplished by combining the model of Oh and Schutt-Aine with the locally conformal method for modeling of perfectly conducting objects developed by Dey and Mittra. The resulting hybrid algorithm yields a second-order accurate implicit field solution, in which the standard orthogonal grid is deformed only locally at the conductor-vacuum interface, which is modeled by partially filled grid cells. Field solutions inside the conductor are not sought and the approximate boundary condition is used to set the nonzero tangential electric fields along interfaces. This method obviates the need to resolve skin depths on the grid. We briefly review the Oh and Schutt-Aine algorithm and describe its implementation in the Dey-Mittra partial-cell treatment. The use of the model is then demonstrated by performing several test problems involving objects with finite conductivity in both relatively simple and more complex geometries.

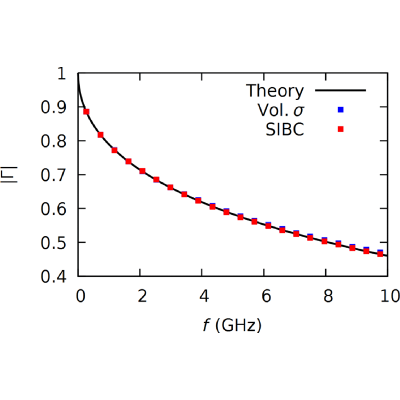

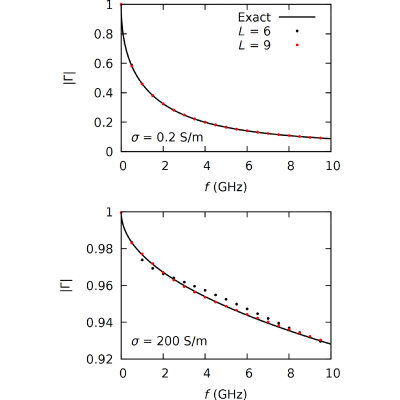

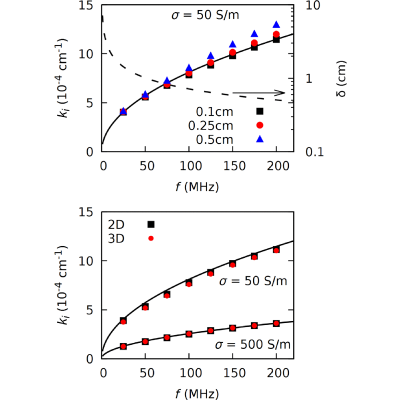

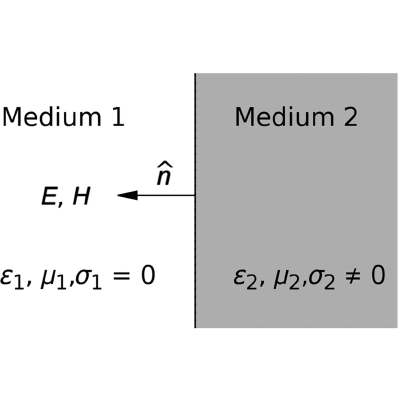

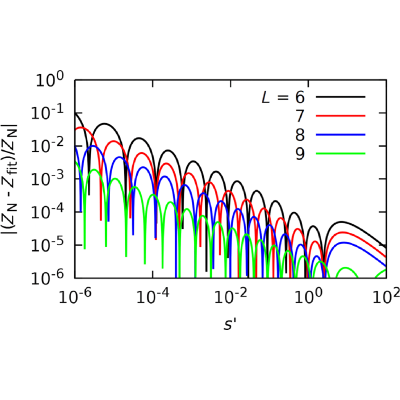

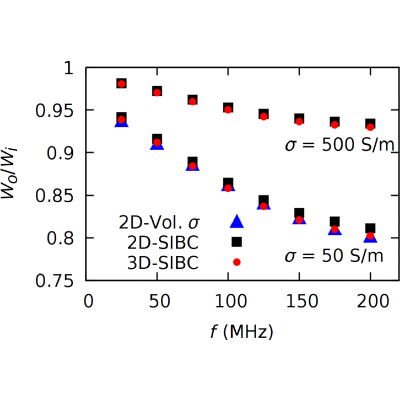

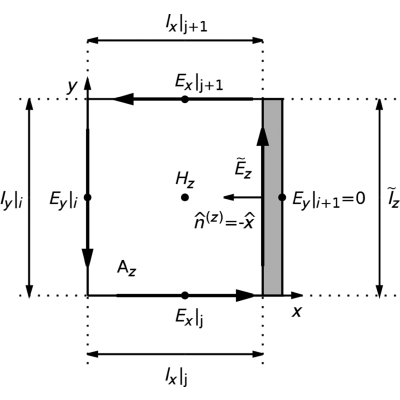

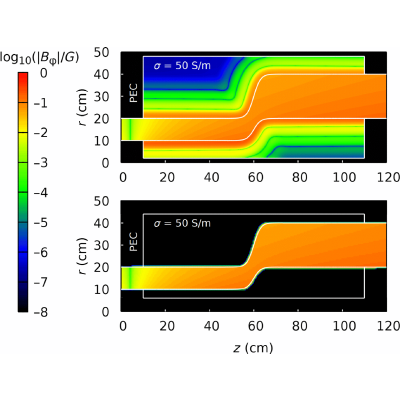

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (28)

  1. R. B. Spielman, C. Deeney, G. A. Chandler, M. R. Douglas et al., Tungsten wire-array Z-pinch experiments at 200 TW and 2 MJ, Phys. Plasmas 5, 2105 (1998).
  2. W. A. Stygar, T. J. Awe, J. E. Bailey, N. L. Bennett et al., Conceptual designs of two petawatt-class pulsed-power accelerators for high-energy-density-physics experiments, Phys. Rev. ST Accel. Beams 18, 110401 (2015).
  3. W. A. Stygar, K. R. LeChien, M. G. Mazarakis, M. E. Savage et al., Impedance-matched Marx generators, Phys. Rev. Accel. Beams 20, 040402 (2017).
  4. D. V. Rose, W. A. Stygar, D. T. Offermann, K. R. LeChien et al., 0D, 1D, 2D, and 3D simulations of an idealized coaxial impedance-matched Marx generator, Phys. Rev. Accel. Beams 27, 120401 (2004).
  5. A. Alexander, L. Robin Benedetti, I. Bhattacharyya, J. Bowen et al., Affordable, manageable, practical, and scalable (AMPS) high-yield and high-gain inertial fusion, Phys. Plasmas 32, 092703 (2025).
  6. W. A. Stygar, P. A. Corcoran, H. C. Ives, R. B. Spielman et al., 55-TW magnetically insulated transmission-line system: Design, simulations, and performance, Phys. Rev. ST Accel. Beams 12, 120401 (2009).
  7. N. Bennett, D. R. Welch, C. A. Jennings, and E. Yu et al., Current transport and loss mechanisms in the z accelerator, Phys. Rev. ST Accel. Beams 11, 120401 (2019).
  8. W. A. Stygar, S. E. Rosenthal, H. C. Ives, and T. C. et al., Energy loss to conductors operated at lineal current densities ≤10  MA/cm: Semianalytic model, magnetohydrodynamic simulations, and experiment, Phys. Rev. ST Accel. Beams 11, 120401 (2008).
  9. B. T. Hutsel, P. A. Corcoran, M. E. Cuneo, M. R. Gomez et al., Transmission-line-circuit model of an 85-TW, 25-MA pulsed-power accelerator, Phys. Rev. Accel. Beams 21, 030401 (2018).
  10. A. C. Cangellaris and D. B. Wright, Analysis of the numerical error caused by the stair-stepped approximation of a conducting boundary in FDTD simulations of electromagnetic phenomena, IEEE Trans. Antennas Propag. 39, 1518 (1991).
  11. S. Dey and R. Mittra, A locally conformal finite-difference time-domain (FDTD) algorithm for modeling three-dimensional perfectly conducting objects, IEEE Microwave Guided Wave Lett. 7, 273 (1997).
  12. J. D. Jackson, Classical Electrodynamics, 2nd ed. (Wiley, New York, 1975).
  13. T. Senior, Approximate boundary conditions, IEEE Trans. Antennas Propag. 29, 826 (1981).
  14. B. A. Vvedensky, Chapter on the approximate boundary conditions for electromagnetic fields on the surface of well-conducting boundaries, in Investigations of Propagation of Radio Waves (Academy of Sciences, USSR, Moscow, 1948), pp. 5–20.
  15. T. B. A. Senior, Impedance boundary conditions for imperfectly conducting surfaces, Appl. Sci. Res., Sect. B 8, 418 (1960).
  16. K. M. Mitzner, An integral equation approach to scattering from a body of finite conductivity, Radio Sci. 2, 1459 (1967).
  17. K. Mitzner, Effective boundary conditions for reflection and transmission by an absorbing shell of arbitrary shape, IEEE Trans. Antennas Propag. 16, 706 (1968).
  18. F. M. Tesche, On the inclusion of loss in time-domain solutions of electromagnetic interaction problems, IEEE Trans. Electromagn. Compat. 32, 1 (1990).
  19. J. G. Maloney and G. S. Smith, The use of surface impedance concepts in the finite-difference time-domain method, IEEE Trans Antennas Propag. 40, 38 (1992).
  20. J. H. Beggs, R. J. Luebbers, K. S. Yee, and K. S. Kunz, Finite-difference time-domain implementation of surface impedance boundary conditions, IEEE Trans. Antennas Propag. 40, 49 (1992).
  21. K. S. Oh and J. E. Schutt-Aine, An efficient implementation of surface impedance boundary conditions for the finite-difference time-domain method, IEEE Trans. Antennas Propag. 43, 660 (1995).
  22. S. Dey and R. Mittra, A modified locally conformal finite-difference time-domain algorithm for modeling three-dimensional perfectly conducting objects, Microwave Opt. Technol. Lett. 17, 349 (1998).
  23. D. R. Welch, N. Bennett, T. C. Genoni, C. Thoma et al., Fast hybrid particle-in-cell technique for pulsed power accelerators, Phys. Rev. Accel. Beams 23, 110401 (2020).
  24. T. Xiao and Q. H. Liu, A 3D enlarged cell technique (ECT) for the conformal FDTD method, IEEE Trans. Antennas Propag. 56, 765 (2008).
  25. T. Xiao and Q. H. Liu, Enlarged cells for the conformal FDTD method to avoid the time step reduction, IEEE Microwave Wireless Compon. Lett. 14, 551 (2004)..
  26. R. E. Clark, D. R. Welch, W. R. Zimmerman, C. L. Miller et al., Locally conformal finite-difference time-domain techniques for particle-in-cell plasma simulation, J. Comput. Phys. 230, 695 (2011).
  27. K. S. Yee, Numerical solution of initial value boundary problems involving Maxwell’s equations in isotropic media, IEEE Trans. Antennas Propag. AP-14, 302 (1966).
  28. J. A. Stratton, Electromagnetic Theory (McGraw-Hill Book Company, Inc., York, PA, 1941).
