Numerical quality factor statistics for superconducting rf cavities with spatially inhomogeneous multilayer coatings modeled by Gaussian random fields

Aaron Gobeyn*, Wolfgang Ackermann, and Herbert De Gersem

  • *Contact author: aaron.gobeyn@tu-darmstadt.de
PDF

Phys. Rev. Accel. Beams 29, 103802 – Published 30 October, 2026

DOI: https://doi.org/10.1103/hjqj-v5yc

Abstract

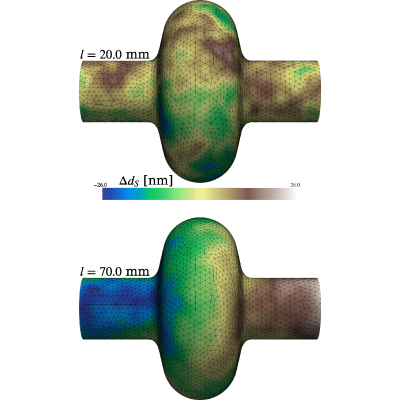

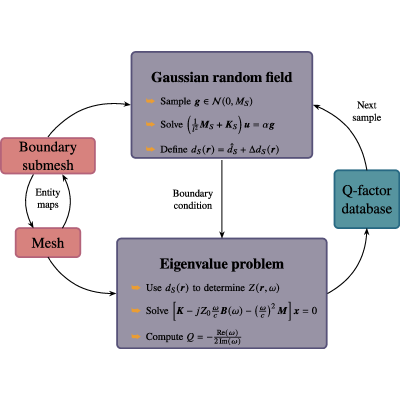

Bulk niobium has long been the material of choice for superconducting radio-frequency applications. An alternative approach is the superconductor-insulator-superconductor (SIS) multilayer structure, which enables the use of brittle high-Tc materials, such as NbTiN. At present, SIS coatings are limited to flat samples, with the single-cell TESLA cavity representing a key milestone. Extending coating processes to nonflat geometries is expected to introduce macroscopic inhomogeneities in coating thickness. We model these variations using Gaussian random fields parameterized by a spatial correlation length and generated by solving a stochastic partial differential equation. The resulting field is incorporated into the boundary condition of the cavity eigenvalue problem, from which quantities of interest—such as the quality factor—are computed. This procedure is repeated for eight correlation lengths, with 2048 samples per correlation length, where the resulting quality factors are recorded. Our results show that the quality factors follow a normal distribution. The standard deviation increases with the correlation length and can be statistically distinguished. In contrast, the mean values remain largely unchanged, with only a few significant differences. In extreme cases, depending on the correlation length, the quality factor may differ from the uniform case by 2%–6%.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (59)

  1. H. Padamsee, RF Superconductivity: Science, Technology and Applications (Wiley-VCH, Berlin, 2009).
  2. P. Dhakal, Nitrogen doping and infusion in SRF cavities: A review, Phys. Open 5, 100034 (2020).
  3. A. Grassellino et al., Accelerating fields up to 49  mv/m in TESLA-shape superconducting rf niobium cavities via 75 c vacuum bake, arXiv:1806.09824.
  4. M. Wenskat et al., Vacancy-hydrogen interaction in niobium during low-temperature baking, Sci. Rep. 10, 8300 (2020).
  5. A.-M. Valente-Feliciano, Superconducting RF materials other than bulk niobium: A review, Supercond. Sci. Technol. 29, 113002 (2016).
  6. S. Calatroni, 20 years of experience with the Nb/Cu technology for superconducting cavities and perspectives for future developments, Phys. C Supercond. 441, 95 (2006).
  7. A. Gurevich, Enhancement of rf breakdown field of superconductors by multilayer coating, Appl. Phys. Lett. 88, 01511 (2006).
  8. T. Kubo, Multilayer coating for higher accelerating fields in superconducting radio-frequency cavities: A review of theoretical aspects, Supercond. Sci. Technol. 30, 023001 (2016).
  9. M. C. Burton et al., Superconducting NbTiN thin films for superconducting radio frequency accelerator cavity applications, J. Vac. Sci. Technol. A 34, 021518 (2016).
  10. I. G. Díaz-Palacio et al., Thermal annealing of superconducting niobium titanium nitride thin films deposited by plasma-enhanced atomic layer deposition, J. Appl. Phys. 134, 035301 (2023).
  11. M. Asaduzzaman et al., Superconducting properties of thin film Nb1−xTixN studied via the NMR of implanted Li8, J. Phys. Condens. Matter 37, 395701 (2025).
  12. N. Schäfer et al., Kinetically induced low-temperature synthesis of Nb3Sn thin films, J. Appl. Phys. 128, 133902 (2020).
  13. M. N. Sayeed, U. Pudasaini, G. V. Eremeev, and H. E. Elsayed-Ali, Fabrication of superconducting Nb3Sn film by co-sputtering, Vacuum 212, 112019 (2023).
  14. D. Fonnesu et al., Recipe optimization and SRF test of cu-compatible Nb3Sn films by DC magnetron sputtering from a stoichiometric target, Sci. Rep. 16, 3539 (2026).
  15. D. Tikhonov et al., Investigation of SIS multilayer films at HZB, in Proceedings of the 20th Int. Conf. on RF Superconductivity (JaCoW Publishing, East Lansing, MI, 2021), pp. 72–76.
  16. R. J. Adler and J. Taylor, Random Fields and Geometry (Springer, New York, 2007).
  17. I. A. Baratta et al., DOLFINx: The next generation FEniCS problem solving environment, preprint (2023).
  18. M. W. Scroggs, J. S. Dokken, C. N. Richardson, and G. N. Wells, Construction of arbitrary order finite element degree-of-freedom maps on polygonal and polyhedral cell meshes, ACM Trans. Math. Soft. 48, 1 (2022).
  19. M. W. Scroggs, I. A. Baratta, C. N. Richardson, and G. N. Wells, Basix: A runtime finite element basis evaluation library, J. Open Source Softw. 7, 3982 (2022).
  20. M. S. Alnaes et al., Unified form language: A domain-specific language for weak formulations of partial differential equations, ACM Trans. Math. Softw. 40, 1 (2014).
  21. S. V. Yuferev and N. Ida, Surface Impedance Boundary Conditions: A Comprehensive Approach (CRC Press, Boca Raton, FL, 2018).
  22. P. Monk, Finite Element Methods for Maxwell’s Equations (Oxford University Press, Oxford, 2003).
  23. S. C. Brenner and L. R. Scott, The Mathematical Theory of Finite Element Methods (Springer, New York, 2008).
  24. J. C. Nedelec, Mixed finite elements in R3, Numer. Math. 35, 315 (1980).
  25. T. Kubo, Y. Iwashita, and T. Saeki, RF field-attenuation formulae for the multilayer coating model, in Proceedings of the 4th International Particle Accelerator Conference (JaCoW Publishing,Shanghai, 2013), pp. 2343–2345.
  26. T. Kubo, Y. Iwashita, and T. Saeki, Radio-frequency electromagnetic field and vortex penetration in multilayered superconductors, Appl. Phys. Lett. 104, 032603 (2014).
  27. J. D. Jackson, Classical Electrodynamics (Wiley, New York, 1999).
  28. H. London, The high-frequency resistance of superconducting tin, Proc. R. Soc. Lond. A 176, 522 (1940).
  29. K. J. Koh and F. Cirak, Stochastic PDE representation of random fields for large-scale Gaussian process regression and statistical finite element analysis, Comput. Methods Appl. Mech. Eng. 417, 116358 (2023).
  30. C. Geuzaine and J.-F. Remacle, Gmsh: A 3-D finite element mesh generator with built-in pre- and post-processing facilities, Int. J. Number. Methods Eng. 79, 1309 (2009).
  31. L. D. Dalcin, R. R. Paz, P. A. Kler, and A. Cosimo, Parallel distributed computing using Python, Adv. Water Resour. 34, 1124 (2011).
  32. V. Hernandez, J. E. Roman, and V. Vidal, SLEPc: A scalable and flexible toolkit for the solution of eigenvalue problems, ACM Trans. Math. Softw. 31, 351 (2005).
  33. A.-M. Valente-Feliciano et al., Next-generation superconducting RF technology based on advanced thin film technologies and innovative materials for accelerator enhanced performance and energy reach, arXiv:2204.02536.
  34. R. Wanzenberg, Monopole, Dipole and Quadrupole Passbands of the TESLA-Cell Cavity (DESY, Hamburg, 2001).
  35. C. J. Gorter and H. Casimir, On supraconductivity i, Physica 1, 306 (1934).
  36. R. Di Leo, A. Nigro, G. Nobile, and R. Vaglio, Niobium-titanium nitride thin films for superconducting rf accelerator cavities, J. Low Temp. Phys. 78, 41 (1990).
  37. T. Junginger et al., Critical field of SRF materials, in Proceedings of the 9th Int. Particle Accelerator Conf. (JaCoW Publishing, Vancouver, BC, 2018), pp. 3921–3924.
  38. J. Rumble et al., CRC Handbook of Chemistry and Physics (CRC Press, Boca Raton, FL, 2017), Vol. 102.
  39. M. Altarelli et al., The European X-ray free-electron laser: Technical design report, Tech. Rep., European XFEL, Hamburg, Germany, 2007.
  40. B. W. Maxfield and W. L. McLean, Superconducting penetration depth of niobium, Phys. Rev. 139, A1515 (1965).
  41. B. Aune et al., Superconducting TESLA cavities, Phys. Rev. ST Accel. Beams 3, 092001 (2000).
  42. D. Longuevergne, Geometrical corrections for accurate fitting of the field dependent surface resistance for superconducting accelerating cavities, Nuclear Instrum. Methods Phys. Res. Sec. A 910, 41 (2018).
  43. J. R. Delayen, H. Park, S. U. De Silva, G. Ciovati, and Z. Li, Determination of the magnetic field dependence of the surface resistance of superconductors from cavity tests, Phys. Rev. Accel. Beams 21, 122001 (2018).
  44. M. B. Brown and A. B. Forsythe, Robust tests for the equality of variances, J. Am. Stat. Assoc. 69, 364 (1974).
  45. S. Holm, A simple sequentially rejective multiple test procedure, Scand. J. Stat. 2, 65 (1979).
  46. B. L. Welch, On the comparison of several mean values: An alternative approach, Biometrika 38, 330 (1951).
  47. P. A. Games and J. F. Howell, Pairwise multiple comparison procedures with unequal n’s and/or variances: A Monte Carlo study, J. Educ. Stat. 1, 113 (1976).
  48. M. Arzeo, F. Avino, S. Pfeiffer, G. Rosaz, M. Taborelli, L. Vega-Cid, and W. Venturini-Delsolaro, Enhanced radio-frequency performance of niobium films on copper substrates deposited by high power impulse magnetron sputtering, Supercond. Sci. Technol. 35, 054008 (2022).
  49. R. G. Ghanem and P. D. Spanos, Stochastic Finite Elements: A Spectral Approach (Springer-Verlag, Berlin, 1991).
  50. A. Gurevich and T. Kubo, Surface impedance and optimum surface resistance of a superconductor with an imperfect surface, Phys. Rev. B 96, 184515 (2017).
  51. H. Ueki, M. Zarea, and J. A. Sauls, The frequency shift and Q of disordered superconducting rf cavities, Prog. Theor. Exp. Phys. 2025, 053I02 (2025).
  52. D. C. Mattis and J. Bardeen, Theory of the anomalous skin effect in normal and superconducting metals, Phys. Rev. 111, 412 (1958).
  53. W. Zimmermann, E. H. Brandt, M. Bauer, E. Seider, and L. Genzel, Optical conductivity of BCS superconductors with arbitrary purity, Physica C 183, 99 (1991).
  54. G. M. Eliashberg, Interactions between electrons and lattice vibrations in a superconductor, J. Exptl. Theoret. Phys. (U.S.S.R.) 38, 966 (1960).
  55. F. Marsiglio, Eliashberg theory: A short review, Ann. Phys. (New York) 417, 168102 (2020).
  56. F. Herman and R. Hlubina, Microwave response of superconductors that obey local electrodynamics, Phys. Rev. B 104, 094519 (2021).
  57. Z. Wu and L. E. Davis, Surface roughness effect on surface impedance of superconductors, J. Appl. Phys. 76, 3669 (1994).
  58. T. B. A. Senior, Impedance boundary conditions for statistically rough surfaces, Appl. Sci. Res., Sect. B 8, 437 (1960).
  59. A. Gobeyn, W. Ackermann, and H. De Gersem, Result data for manuscript: Numerical quality factor statistics for srf cavities with spatially inhomogeneous multilayer coatings modeled by Gaussian random fields (2026).https://doi.org/10.5281/zenodo.21474212
