Convexity of the longitudinal variation of third-order resonance driving terms and its application in dynamic aperture optimization

Wanbin Li, Zihan Wang, Yuejing Huang, Bingfeng Wei*, and Zhenghe Bai†

  • *Contact author: weibf@ustc.edu.cn
  • †Contact author: baizhe@ustc.edu.cn
PDF

Phys. Rev. Accel. Beams 29, 083401 – Published 7 August, 2026

DOI: https://doi.org/10.1103/8w2l-psz3

Abstract

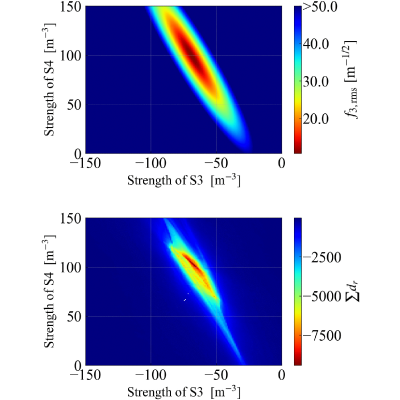

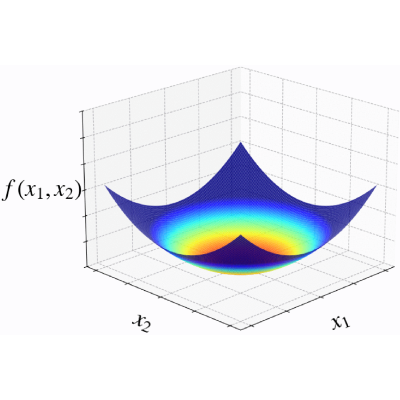

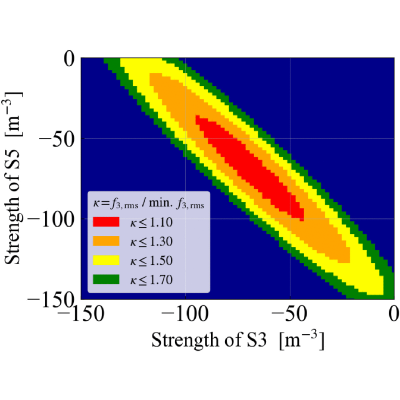

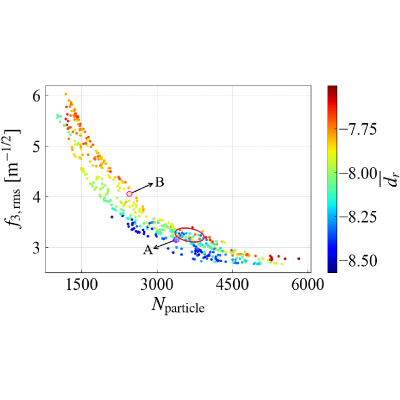

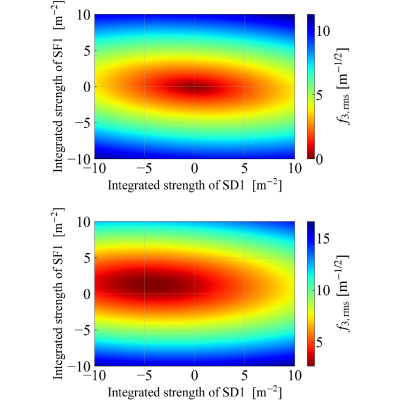

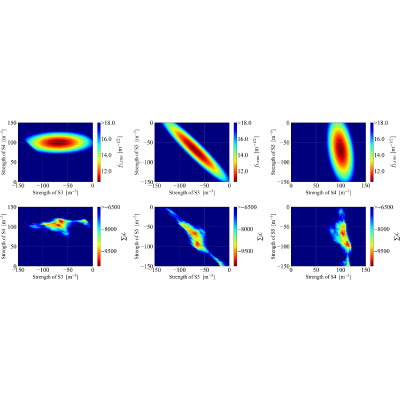

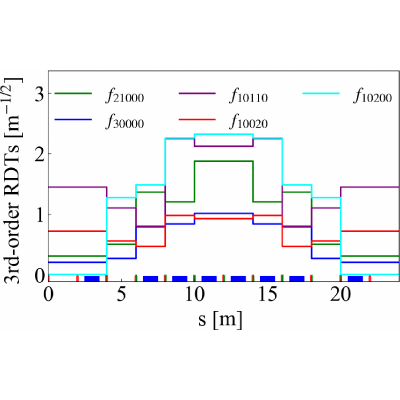

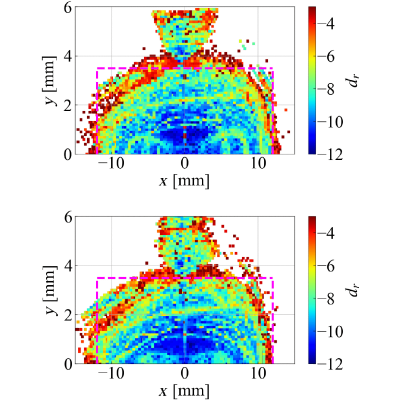

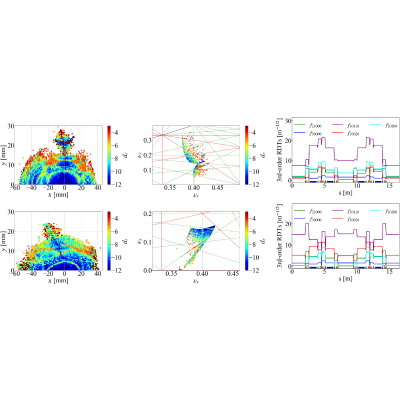

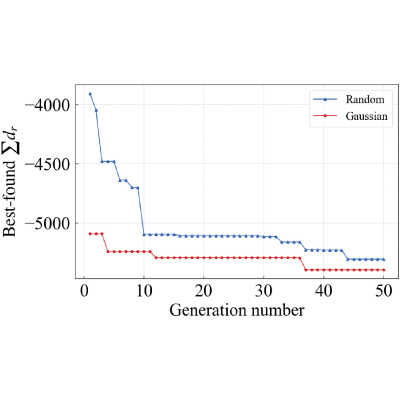

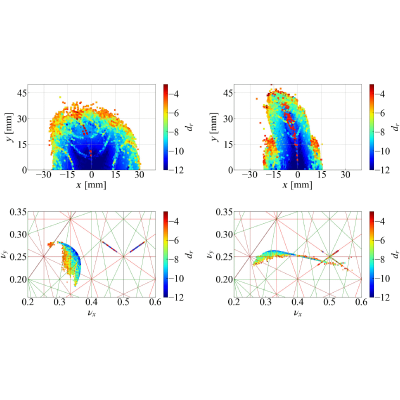

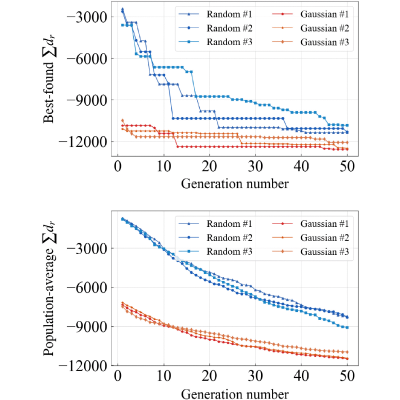

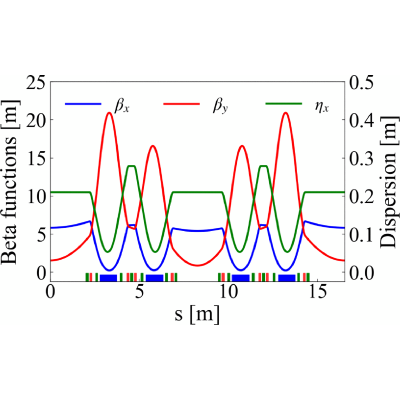

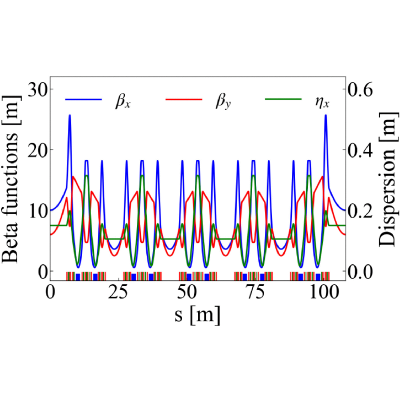

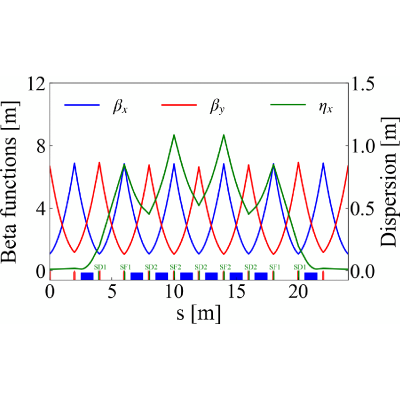

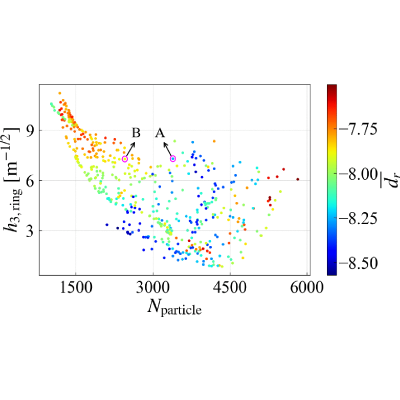

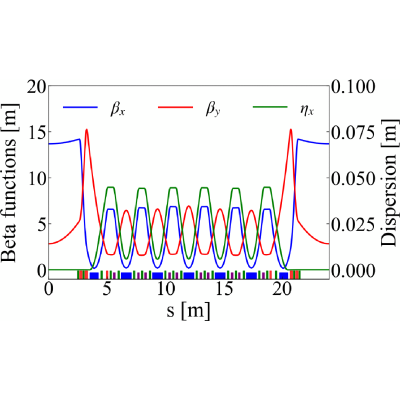

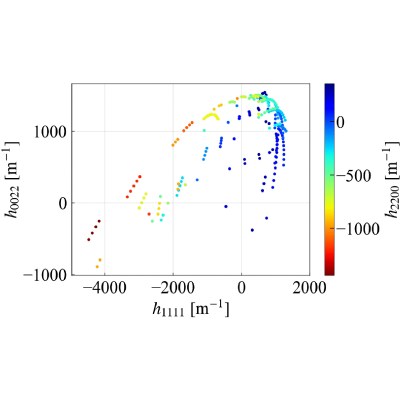

The optimization of the dynamic aperture (DA) of a storage ring is typically a nonconvex problem with multiple local optima. Recent studies showed that reducing the variation of resonance driving terms (RDTs) along the longitudinal position improves DA very effectively, as the reduction in the longitudinal variation of lower-order RDTs suppresses higher-order nonlinear terms. Therefore, minimizing the longitudinal variation of third-order RDTs is crucial for DA optimization. In this paper, we prove that the longitudinal variation of third-order RDTs, quantified using their rms value f3,rms at sextupole locations, is a special convex function. In the space of sextupole strengths, the isosurfaces of f3,rms are a series of concentric and coaxial ellipsoidal surfaces, with the central position possessing minimum f3,rms. The scanning results of a storage ring lattice show a strong consistency between the distributions of f3,rms and DA, indicating that the optimization of DA can be regarded as a roughly approximate convex optimization problem. Based on this, a fast DA optimization method based on particle tracking is developed, where a high-quality initial population for an intelligent algorithm is generated with a Gaussian distribution based on the geometric structure of f3,rms.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (30)

  1. M. Borland, G. Decker, L. Emery, V. Sajaev, Y. Sun, and A. Xiao, Lattice design challenges for fourth-generation storage-ring light sources, Synchrotron Radiat. 21, 912 (2014).
  2. R. Bartolini, Design and optimisation strategies of nonlinear dynamics for diffraction limited synchrotron light source, in Proceedings of IPAC2016, Busan, Korea (2016).
  3. M. Borland, V. Sajaev, L. Emery, and A. Xiao, Direct methods of optimization of storage ring dynamic and momentum aperture, in Proceedings of PAC09, Vancouver, BC, Canada (2009).
  4. L. Yang, Y. Li, W. Guo, and S. Krinsky, Multiobjective optimization of dynamic aperture, Phys. Rev. ST Accel. Beams 14, 054001 (2011).
  5. Z. Bai, L. Wang, and W. Li, Enlarging dynamic and momentum aperture by particle swarm optimization, in Proceedings of IPAC2011, San Sebastian, Spain (2011).
  6. M. P. Ehrlichman, Genetic algorithm for chromaticity correction in diffraction limited storage rings, Phys. Rev. Accel. Beams 19, 044001 (2016).
  7. R. Husain and A. Ghodke, Constrained multi-objective optimization of storage ring lattices, Nucl. Instrum Methods Phys. Res., Sect. A 883, 151 (2018).
  8. Y. Li, W. Cheng, L. H. Yu, and R. Rainer, Genetic algorithm enhanced by machine learning in dynamic aperture optimization, Phys. Rev. Accel. Beams 21, 054601 (2018).
  9. J. Bengtsson, The sextupole scheme for the swiss light source (SLS): an analytic approach, SLS-Note 9, 97 (1997).
  10. A. Franchi, L. Farvacque, F. Ewald, G. Le Bec, and K. B. Scheidt, First simultaneous measurement of sextupolar and octupolar resonance driving terms in a circular accelerator from turn-by-turn beam position monitor data, Phys. Rev. ST Accel. Beams 17, 074001 (2014).
  11. J. Laskar, Introduction to frequency map analysis, in Hamiltonian Systems with Three or More Degrees of Freedom (Springer, New York, 1999), pp. 134–150.
  12. L. Nadolski and J. Laskar, Review of single particle dynamics for third generation light sources through frequency map analysis, Phys. Rev. ST Accel. Beams 6, 114801 (2003).
  13. S. L. Smith, Optimisation of modern light source lattices., in Proceedings of the 8th European Particle Accelerator Conference (EPAC 2002) (2002), pp. 44–48.
  14. S. Tian, G. Liu, J. Hou, G. Chen, and S. Chen, Improved nonlinear optimization in the storage ring of the modern synchrotron radiation light source, Chin. Phys. C 33, 65 (2009).
  15. Y. Cai, K. Bane, R. Hettel, Y. Nosochkov, M.-H. Wang, and M. Borland, Ultimate storage ring based on fourth-order geometric achromats, Phys. Rev. ST Accel. Beams 15, 054002 (2012).
  16. J. Bengtsson and A. Streun, Robust design strategy for SLS-2Paul Scherrer Institut, Villigen, Switzerland, Rep. SLS2-BJ84-001, 2017.
  17. A. Streun, M. Aiba, M. Böge, C. Calzolaio, M. Ehrlichman, M. Negrazus, B. Riemann, and V. Vrankovic, Swiss light source upgrade lattice design, Phys. Rev. Accel. Beams 26, 091601 (2023).
  18. B. Wei, Z. Bai, J. Tan, L. Wang, and G. Feng, Minimizing the fluctuation of resonance driving terms in dynamic aperture optimization, Phys. Rev. Accel. Beams 26, 084001 (2023).
  19. B. Wei, Z. Bai, G. Feng, A. Loulergue, L. S. Nadolski, and R. Nagaoka, Analysis of off-momentum nonlinear driving terms for enlarging off-momentum dynamic apertures, Phys. Rev. Accel. Beams 27, 104001 (2024).
  20. A. W. Chao, Special Topics in Accelerator Physics (World Scientific, Singapore, 2022).
  21. B. Wei, Z. Bai, G. Feng, and J. Tan, Analyzing and optimizing dynamic aperture based on minimizing the fluctuation of resonance driving terms, in Proceedings of the 14th International Particle Accelerator Conference, IPAC-2023, Venice, Italy, (JACoW, Geneva, Switzerland, 2023), pp. 3288–3291.
  22. Z. Bai, A. Loulergue, L. Nadolski, R. Nagaoka, and B. Wei, Minimizing the fluctuation of resonance driving terms for analyzing and optimizing the storage ring dynamic aperture, in Proc. FLS’23, ICFA Advanced Beam Dynamics Workshop No. 67 (JACoW Publishing, Geneva, Switzerland, 2024), pp. 66–69.
  23. B. Wei. Analysis and optimization of storage ring nonlinear dynamics based on minimizing the fluctuation of resonance driving terms, Ph.D. thesis, University of Science and Technology of China, 2025.
  24. M. Borland, Elegant: a flexible SDDS-compliant code for accelerator simulation, in Proceedings of the 6th International Computational Accelerator Physics Conference (ICAP 2000) (2000).
  25. S. Boyd and L. Vandenberghe, Convex Optimization (Cambridge University Press, Cambridge, England, 2004).
  26. R. A. Horn and C. R. Johnson, Matrix Analysis (Cambridge University Press, Cambridge, England, 2012).
  27. W. Li et al., Symmetric double-double bend lattice for a potential EUV diffraction limited upgrade of the HLS, in Proc. IPAC’25, IPAC’25—16th International Particle Accelerator Conference No. 16 (JACoW Publishing, Geneva, Switzerland, 2025), pp. 2113–2116.
  28. C. Sun, D. S. Robin, H. Nishimura, C. Steier, and W. Wan, Small-emittance and low-beta lattice designs and optimizations, Phys. Rev. ST Accel. Beams 15, 054001 (2012).
  29. Y. Li, M. Song, Y. Hidaka, V. Smaluk, and T. Shaftan, Sextupole reduction via chaos suppression at the national synchrotron light source ii, Phys. Rev. Accel. Beams 29, 034001 (2026).
  30. G. Liu, Z. Dai, H. Li, Y. Liao, Y. Xu, B. Jiang, J. Hou, and Z. Zhao, Lattice design for SSRF storage ring, Chin Phys C 30, 144 (2006).
