Observation and simulation study on bunch fill pattern dependence of absorbed power in cavity HOM dampers

Takaaki Yamaguchi*, Takafumi Okada, Michiru Nishiwaki, and Tetsuya Kobayashi

  • *Contact author: yamaguc@post.kek.jp
PDF

Phys. Rev. Accel. Beams 29, 103803 – Published 21 October, 2026

DOI: https://doi.org/10.1103/84l3-xsvr

Abstract

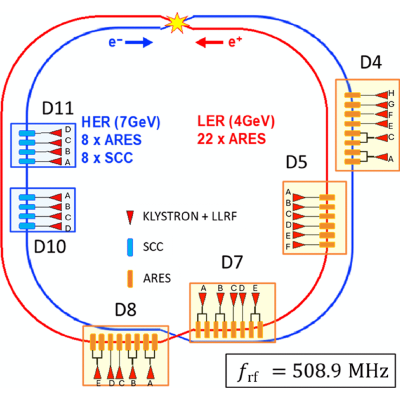

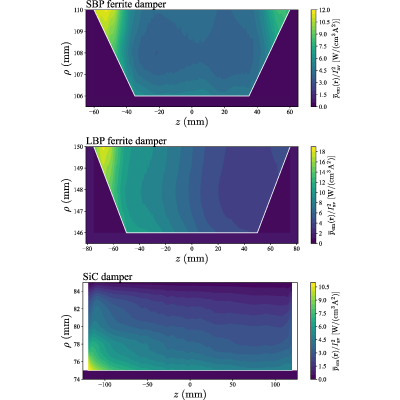

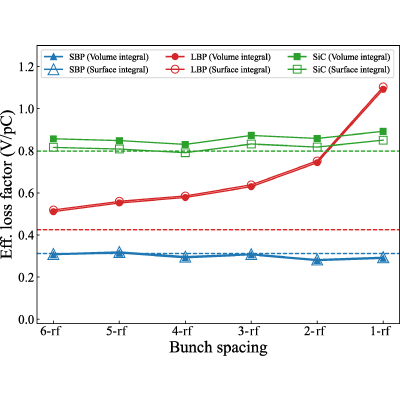

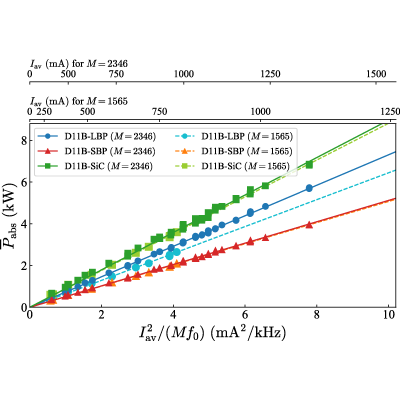

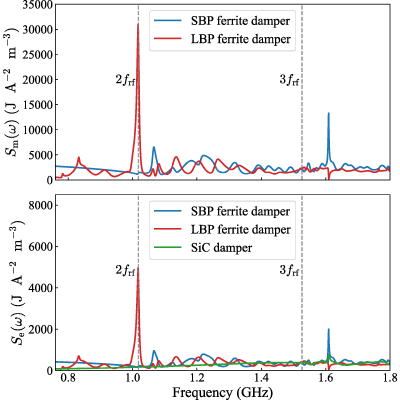

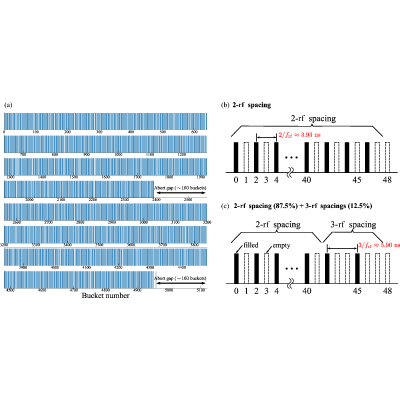

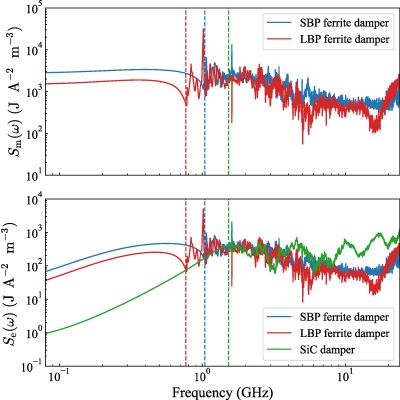

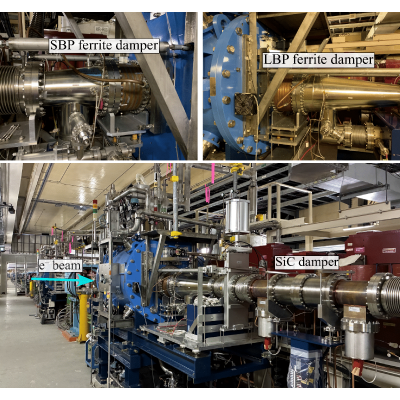

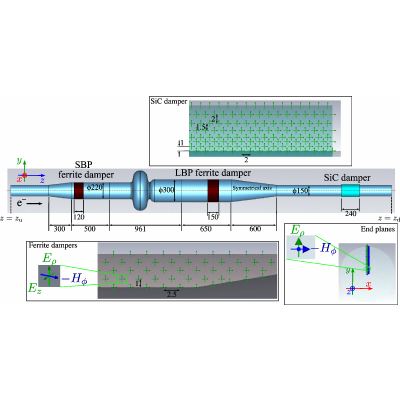

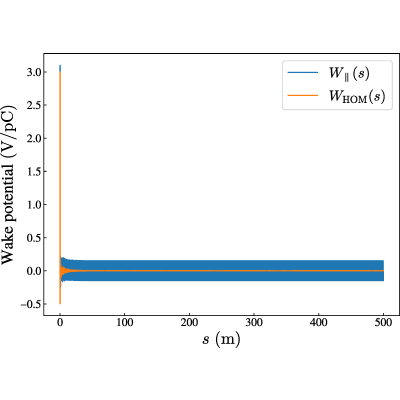

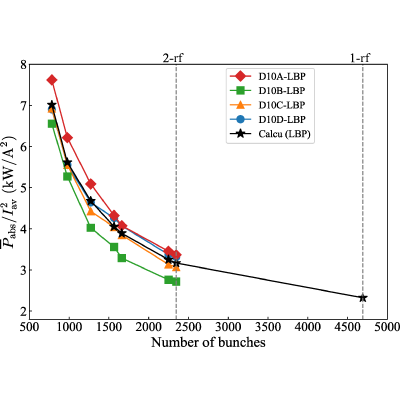

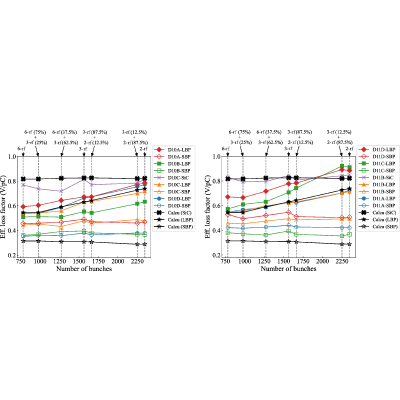

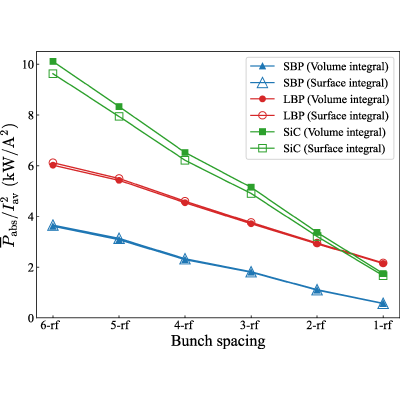

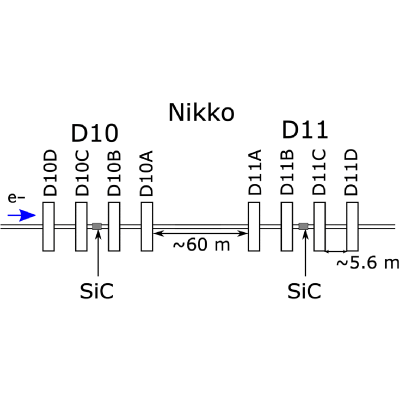

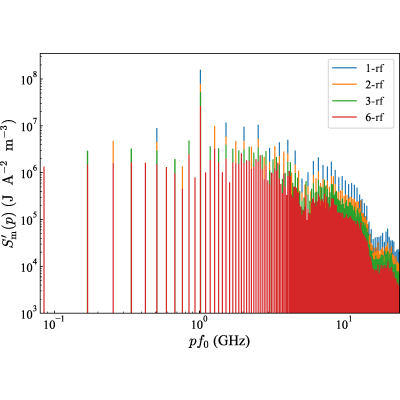

In the SuperKEKB accelerator, higher-order-mode (HOM) power absorbed by the HOM dampers of the superconducting (SC) cavities limits the attainment of the design electron beam current of the High Energy Ring. As regards cylindrical ferrite dampers installed in the SC cavities, we observed that their effective loss factors considerably depended on the bunch fill pattern. To investigate this behavior in detail, wakefield simulations were conducted. HOM power is generally evaluated from the numerically calculated coupling impedance, which provides only the total beam power loss within the structure. However, when multiple absorbers are present, the absorbed power of each absorber remains unknown. To address this limitation, we introduce calculation methods that utilize the local electromagnetic fields to evaluate the absorbed power. In this study, the theoretical basis of the methods is presented and applied to the SuperKEKB SC cavity.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (29)

  1. H. Padamsee, P. Barnes, C. Chen, W. Hartung, J. Hiller, D. Moffat, R. Ringrose, D. Rubin, Y. Samed, D. Saraniti, J. Sears, Q. S. Shu, and M. Tigner, Accelerating cavity development for the Cornell B-factor, CESR-B, in Proceedings of the fourteenth Particle Accelerator Conference (JACoW Publishing, San Francisco, CA, 1991), pp. 786–788, https://proceedings.jacow.org/p91/PDF/PAC1991_0786.PDF.
  2. T. Furuya, K. Asano, Y. Ishi, Y. Kijima, S. Mitsunobu, Y. Murai, K. Sennyu, T. Tajima, and T. Takahashi, Superconducting accelerating cavity for KEK B-factory, in Proceedings of the seventh Workshop on RF Superconductivity (SRF95) (JACoW Publishing, Gif-sur-Yvette, France, 1995), pp. 729–733, https://proceedings.jacow.org/SRF95/papers/srf95f35.pdf.
  3. T. Kageyama, Y. Takeuchi, N. Akasaka, F. Naito, H. Sakai, H. Mizuno, K. Akai, E. Ezura, H. Nakanishi, Y. Yamazaki, S. Miura, A. Takahashi, and M. Hamaoka, The ARES cavity for KEKB, in Proceedings of the first Asian Particle Accelerator Conference (APAC98) (JACoW Publishing, Tsukuba, Japan, 1998), pp. 773–775, https://proceedings.jacow.org/a98/APAC98/6D039PDF.
  4. F. Marhauser, E. Weihreter, and C. C. Yang, Impedance measurements of a HOM-damped low power prototype cavity for 3rd generation SR sources, in Proceedings of the eighth European Particle Accelerator Conference (EPAC02) (JACoW Publishing, Paris, France, 2002), pp. 2172–2174, https://proceedings.jacow.org/e02/PAPERS/TUPLE084.pdf.
  5. T. Koseki, M. Izawa, and Y. Kamiya, Damped-structure cavity for a high-brilliant vacuum ultraviolet and soft X-ray storage ring, Rev. Sci. Instrum. 66, 1926 (1995).
  6. H. Ego, H. Tanaka, T. Inagaki, T. Ohshima, H. Yamaguchi, T. Tomai, T. Asaka, and N. Nishimori, Compact HOM-damping structure of a beam-accelerating TM020 mode rf cavity, Nucl. Instrum. Methods Phys. Res., Sect. A 1064, 169418 (2024).
  7. T. Tajima, Development of higher-order-mode (HOM) absorbers for KEKB superconducting cavities, Ph.D. thesis, The Graduate University for Advanced Studies, 1999, https://ir.soken.ac.jp/records/606.
  8. E. Weihreter, V. Duerr, and F. Marhauser, A ridged circular waveguide ferrite load for cavity HOM damping, in Proceedings of the tenth European Particle Accelerator Conference (EPAC06) (JACoW Publishing, Edinburgh, Scotland, 2006), pp. 1280–1282, https://proceedings.jacow.org/e06/PAPERS/TUPCH114.pdf.
  9. H. Hahn, E. M. Choi, and L. Hammons, Ferrite-damped higher-order mode study in the Brookhaven energy-recovery linac cavity, Phys. Rev. ST Accel. Beams 12, 021002 (2009).
  10. Y. Takeuchi, T. Abe, T. Kageyama, and H. Sakai, RF dielectric properties of SiC ceramics and their application to design of HOM absorbers, in Proceedings of the 2005 Particle Accelerator Conference (PAC05) (JACoW Publishing, Knoxville, TN, 2005), pp. 1195–1197.
  11. A. Novokhatski, J. Seeman, and S. Weathersby, High-efficiency absorber for damping transverse wakefields, Phys. Rev. ST Accel. Beams 10, 042003 (2007).
  12. K. Akai, K. Furukawa, and H. Koiso, SuperKEKB collider, Nucl. Instrum. Methods Phys. Res., Sect. A 907, 188 (2018).
  13. A. W. Chao, Physics of Collective Beam Instabilities in High Energy Accelerators (John Wiley & Sons, Inc., New York, 1993).
  14. I. Karpov, R. Calaga, and E. Shaposhnikova, High order mode power loss evaluation in future circular electron-positron collider cavities, Phys. Rev. Accel. Beams 21, 071001 (2018).
  15. K. Bane, C. Nantista, C. Adolphsen, T. Raubenheimer, A. Saini, N. Solyak, and V. Yakovlev, Distribution of heating from untrapped HOM radiation in the LCLS-II cryomodules, Phys. Procedia 79, 13 (2015). iCFA mini Workshop on High Order Modes in Superconducting Cavities, HOMSC14.
  16. https://www.3ds.com/products/simulia/cst-studio-suite.
  17. M. Nishiwaki, K. Akai, T. Furuya, A. Kabe, S. Mitsunobu, and Y. Morita, Developments of SiC damper for SuperKEKB superconducting cavity, in Proceedings of International Conference on RF Superconductivity (SRF2015) (JACoW Publishing, Whistler, BC, Canada, 2015), pp. 1289–1292, https://proceedings.jacow.org/SRF2015/papers/thpb071.pdf.
  18. T. Flisgen, H.-W. Glock, and A. Tsakanian, Estimation of dielectric losses in the Bessy VSR warm beam pipe absorbers, in Proceedings of the 9th International Particle Accelerator Conference (IPAC’18) (JACoW Publishing, Vancouver, BC, Canada, 2018), pp. 3185–3188.
  19. M. Nishiwaki, K. Akai, T. Furuya, A. Kabe, S. Mitsunobu, and Y. Morita, Development of HOM dampers for SuperKEKB superconducting cavity, in Proceedings of the 16th International Conference on RF Supercondcutivity (JACoW Publishing, Paris, France, 2013), pp. 1058–1060, https://proceedings.jacow.org/SRF2013/papers/thp061.pdf.
  20. M. Nishiwaki, K. Akai, T. Furuya, S. Mitsunobu, Y. Morita, and T. Okada, Operating experience of SRF system at high beam current in SuperKEKB, in Proceedings of the 21th International Conference of RF Superconductivity (SRF’23) (JACoW Publishing, Grand Rapids, MI, USA, 2023), pp. 38–42, https://jacow.org/srf2023/papers/moixa05.pdf.
  21. T. Okada, K. Akai, T. Furuya, S. Mitsunobu, Y. Morita, and M. Nishiwaki, Loading test of HOM dampers for superconducting cavities for high current at SuperKEKB, in Proceedings of the 21th International Conference of RF Superconductivity (SRF’23) (JACoW Publishing, Grand Rapids, MI, USA, 2023), pp. 271–274, https://jacow.org/srf2023/papers/mopmb068.pdf.
  22. T. Okada, K. Akai, M. Nishiwaki, S. Mitsunobu, T. Furuya, T. Yamaguchi, and Y. Morita, Higher order mode power in superconducting cavities of SuperKEKB with high current operation, in Proceedings of the 16th International Particle Accelerator Conference (IPAC’25) (JACoW Publishing, Taipei, Taiwan, 2025), pp. 1734–1737, https://proceedings.jacow.org/ipac2025/pdf/WEPB008.pdf.
  23. T. Tajima, K. Akai, E. Ezura, T. Furuya, K. Hosoyama, and S. Mitsunobu, The superconducting cavity system for KEKB, in Proceedings of the 1999 Particle Accelerator Conference (JACoW Publishing, New York, NY, USA, 1999), pp. 440–444, https://proceedings.jacow.org/p99/PAPERS/THBL2.PDF.
  24. P. B. Wilson, Introduction to wakefields and wake potentials, AIP Conf. Proc. 184, 525 (1989).
  25. R. Loudon, The propagation of electromagnetic energy through an absorbing dielectric, J. Phys. A:Gen. Phys. 3, 233 (1970).
  26. R. Ruppin, Electromagnetic energy density in a dispersive and absorptive material, Phys. Lett. A 299, 309 (2002).
  27. P.-G. Luan, Power loss and electromagnetic energy density in a dispersive metamaterial medium, Phys. Rev. E 80, 046601 (2009).
  28. K.-M. Huang and Y.-H. Liao, Transient power loss density of electromagnetic pulse in Debye media, IEEE Trans. Microwave. Theory Tech. 63, 135 (2015).
  29. J. D. Jackson, Classical Electrodynamics, 3rd ed. (John Wiley & Sons, New York, 1999).
