Resonance gaps, discrepancies, and lines

Rogelio Tomás García

  • CERN, Esplanade des Particules, Meyrin, Switzerland

PDF

Phys. Rev. Accel. Beams 28, 114001 – Published 24 November, 2025

DOI: https://doi.org/10.1103/2gfw-xckn

Abstract

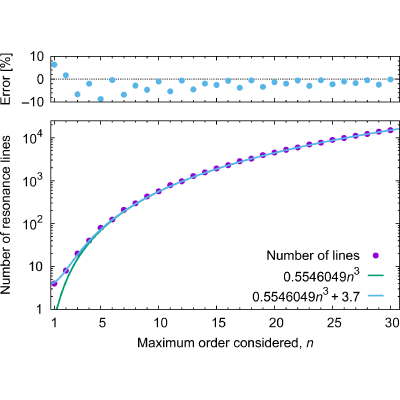

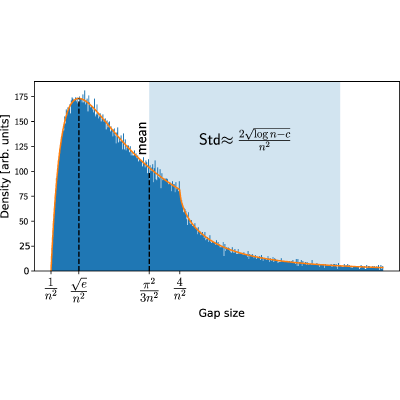

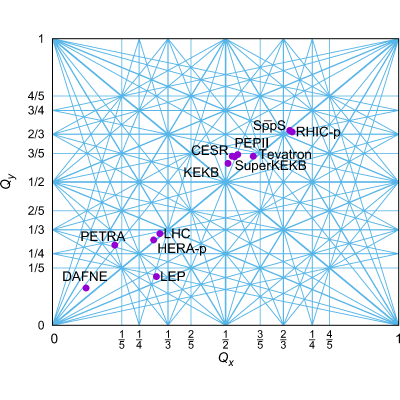

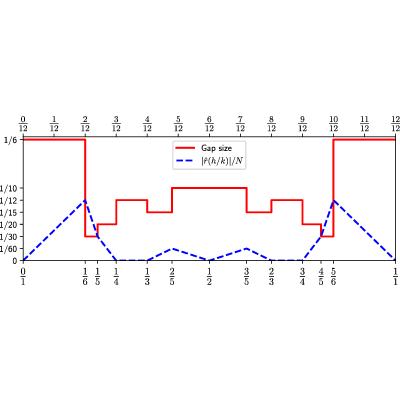

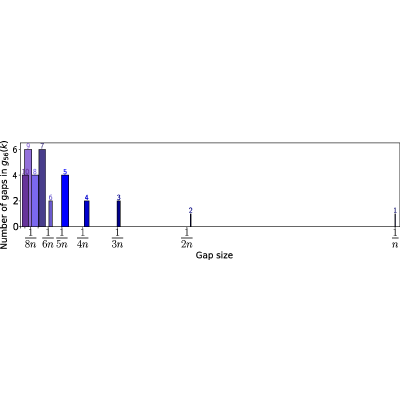

The sequence formed by the fractional tune resonances up to order n exactly coincides with the Farey sequence, Fn. In circular accelerators, it is important to place the tunes in regions free of resonances. From numerical evaluations, it is well known that the largest resonance-free gaps happen next to low order resonances. In this report, we provide a mathematical demonstration of this statement for any order n∈N showing that the resonance gaps are strictly ordered according to the order of the adjacent lowest order resonance up to some given value. We present a connection between the resonance sequence and one of the most important unsolved problems in mathematics, the Riemann hypothesis (RH). If RH is true, it implies that the resonance sequence is significantly more regularly spaced than if it were built at random; however, this has not yet been demonstrated. A new analytical estimate of the number of resonance lines up to order n in the two-dimensional tune diagram is also derived and compared to previous estimates.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (42)

  1. G. H. Hardy and E. M. Wright, An Introduction to the Theory of Numbers, 5th ed. (Oxford Science Publications, Oxford, 1996), https://ia801401.us.archive.org/11/items/in.ernet.dli.2015.147898/2015.147898.An-Introduction-To-The-Theory-Of-Numbers-Fourth-Edition.pdf.
  2. C. Cobeli and A. Zaharescu, The Haros-Farey sequence at two hundred years. A survey, Acta Univ. Apulensis. Math. Inform. 5, 1 (2003).
  3. S. Kanemitsu and M. Yoshimoto, Farey series and the Riemann hypothesis, Acta Arithmetica 75, 351 (1996).
  4. A. O. Matveev, Farey Sequences: Duality and Maps Between Subsequences, 1st ed. (De Gruyter, Berlin, Boston, 2017), ISBN [Amazon][WorldCat].
  5. D. Khoshnoudirad, Farey lines defining Farey diagrams and application to some discrete structures, Appl. Anal. Discrete Math. 9, 73 (2015).
  6. R. R. Hall, A note on Farey series, J. Lond. Math. Soc. S2–2, 139 (1970).
  7. J. D. Meiss and E. Ott, Markov tree model of transport in area-preserving maps, Physica (Amsterdam) 20D, 387 (1986).
  8. R. S. MacKay, Introduction to the dynamics of area-preserving maps, AIP Conf. Proc. 153, 534 (1987).
  9. J. D. Meiss, Symplectic maps, variational principles, and transport, Rev. Mod. Phys. 64, 795 (1992).
  10. C. Polymilis, G. Servizi, and C. Skokos, A quantitative bifurcation analysis of Hénon-like 2D maps, Celest. Mech. Dyn. Astron. 66, 365 (1996).
  11. C. Skokos, G. Contopoulos, and C. Polymilis, Structures in the phase space of a four dimensional symplectic map, Celest. Mech. Dyn. Astron. 65, 223 (1996).
  12. C. Polymilis, C. Skokos, G. Kollias, G. Servizi, and G. Turchetti, Bifurcations of beam-beam like maps, J. Phys. A 33, 1055 (2000).
  13. Y. Papaphilippou and J. Laskar, Frequency map analysis and global dynamics in a galactic potential with two degrees of freedom, Astron. Astrophys. 307, 427 (1996).
  14. R. Tomás, companion paper, From Farey sequences to resonance diagrams, Phys. Rev. ST Accel. Beams 17, 014001 (2014).
  15. Md. Raf E. Ul Shougat, X. Li, and E. Perkins, Dynamic effects on reservoir computing with a Hopf oscillator, Phys. Rev. E 105, 044212 (2022).
  16. M. Belyakov and K. Batygin, The perturbation theory approach to stability in the scattered disk, Icarus 443, 116773 (2025).
  17. C. G. Palau, W. Wang, and J. Han, Constraining the potential of the Milky Way using stellar streams and the inverse time integration method, Mon. Not. R. Astron. Soc. 539, 2718 (2025).
  18. O. Diab, C. Circi, H. Yang, and S. Li, Unsupervised approach to detect interconnections between unstable resonant orbits, Acta Astronaut. 233, 369 (2025).
  19. R. Tomás et al., Towards a High Luminosity LHC with even higher performance, in Proceedings of International Particle Accelerator Conference, IPAC, Taipei, Taiwan (JACoW, Geneva, Switzerland, 2025), pp. 278–281, 10.18429/JACoW-IPAC25-MOPM008.
  20. K. Onishi, Summary of 2024 runs, in 28th KEKB Accelerator Review Committee, https://www-kekb.kek.jp/MAC/2025/Report/Ohnishi.pdf.
  21. R. Tomás, M. Bai, W. Fischer, V. Ptitsyn, T. Satogata, and T. Roser, Quest for a new working point in RHIC, in Proceedings of European Particle Accelerator Conference, EPAC 2004, Lucerne, Switzerland (2004), pp. 929–931, https://proceedings.jacow.org/e04/PAPERS/MOPLT172.PDF.
  22. S. Kostoglou, H. Bartosik, R. De Maria, G. Iadarola, G. Sterbini, and R. Tomás García, Dynamic aperture studies for the first run of High Luminosity LHC, in Proceedings of 14th International Particle Accelerator Conference, Venice, Italy (2023), pp. 3344–3347, https://cds.cern.ch/record/2883815/files/document.pdf.
  23. Tian Shun-Qiang, Liu Gui-Min, Li Hao-Hu, Hou Jie, and Zhang Wen-Zhi, Tune optimization of the third generation light source storage ring based on frequency map analysis, Chin. Phys. C 33, 224 (2009).
  24. G. H. Hoffstätter, HERA accelerator studies 2000, Report No. DESY-HERA-2000-07, DESY, Hamburg, Germany, 2000.
  25. M. Zobov, Overview of beam dynamics studies at DAFNE, in Proceedings of 40th ICFA ABDW, Novosibirsk, Russia (2008), pp. 29–33, arXiv:0806.1105.
  26. D. Brandt, H. Burkhardt, M. Lamont, S.Myers, and J.Wenninger, Accelerator physics at LEP, Report No. CERN-SL-2000-037 DI, CERN, Geneva, Switzerland, 2000.
  27. Y. Cai et al., Luminosity improvement at PEP-II based on optics model and beam-beam simulation, in Proceedings of European Particle Accelerator Conference, EPAC, Edinburgh, Scotland (2006), pp. 661–663, https://proceedings.jacow.org/e06/PAPERS/MOPLS052.pdf.
  28. V. Shiltsev, Overview of beam-beam effects in the Tevatron, CERN Yellow Report No. FERMILAB-CONF-13-107-APC, https://doi.org/10.5170/CERN-2014-004.11.
  29. R. Schmidt, Beam-beam observations in the SPS proton antiproton collider, Part. Accel. 50, 47 (1995).
  30. A. Piwinski, Observations of beam-beam effects in PETRA, IEEE Trans. Nucl. Sci. 26, 4268 (1979), Proceedings of the 8th Particle Accelerator Conference.
  31. V. Shiltsev and F. Zimmermann, Modern and future colliders, Rev. Mod. Phys. 93, 015006 (2021).
  32. H. Niederreiter, The distribution of Farey points, Math. Ann. 201, 341 (1973).
  33. P. Codecà, Alcune proprietà della discrepanza locale delle sequenze di Farey, in Atti della accademia delle scienze dell’istituto di Bologna. Classe di scienze fisiche, Anno 269 rendiconti serie XIII (Tipografia Compositori, Bologna, 1980–1981), Vol. VIII, pp. 163–173, fasc.I/II.
  34. R. Tomás García, New analytical formulas for the rank of Farey fractions and estimates of the local discrepancy, Mathematics 13, 140 (2025).
  35. R. Tomás, Number of Farey fractions with equal numerators and the rank of unit fractions, Integers 26, 014001 (2024).
  36. J. Franel, Les suites de farey et le problème des nombres premiers, Gött. Nachr. 1924, 198 (1924).
  37. E. Landau, Bemerkungen zu der vorstehenden Abhandlung von Herrn Franel, Nachr. Von Der Ges. Der Wiss. Zu Gött. Math.-Phys. Kl. 1924, 202 (1924).
  38. F. Dress, Discrépance des suites de Farey, J. Théor. Nombres Bordeaux 11, 345 (1999).
  39. G. Panti, The weighted Farey sequence and a sliding section for the horocycle flow, arXiv:1503.02539.
  40. S. Bockting-Conrad, Y. Kashina, T. K. Petersen, and B. E. Tenner, Sòs permutations, Am. Math. Mon. 128, 407 (2021).
  41. R. Tomás, Partial Franel sums, J. Integer Seq. 25, 22.1.5 (2022), https://cs.uwaterloo.ca/journals/JIS/VOL25/Tomas/tomas5.html.
  42. I. Kiuchi, and Y. Tsuruta, Sums involving the Euler totient function, Bull. Austral. Math. Soc. 109, 486 (2024).
