Intrabeam scattering studies with large-emittance-ratio ion beams in the relativistic heavy ion collider and implications for the electron-ion collider

Y. Luo*, B. Lepore, K. Mernick, W. Bergan, and S. Nagaitsev

  • *Contact author: yluo@bnl.gov
PDF

Phys. Rev. Accel. Beams 29, 103501 – Published 8 October, 2026

DOI: https://doi.org/10.1103/1hf6-p4b8

Abstract

The electron-ion collider (EIC), to be constructed at Brookhaven National Laboratory, will collide polarized, high-energy electron beams with hadron beams, achieving peak luminosities of up to 1.0×1034  cm−2 s−1. To reach such high luminosity, the EIC will employ flat-beam collisions at the interaction point. The design transverse emittance ratio will be about 10∶1 in the hadron storage ring. Thanks to stochastic cooling and precise decoupling, we successfully generated and accelerated gold ion beams with a large emittance ratio of 11∶1 in the relativistic heavy ion collider. In this article, we present results of intrabeam scattering (IBS) measurements and modeling for large-emittance-ratio gold ion beams, both without and with controlled betatron coupling. To model the IBS growth, we use the formulas developed by Lebedev and Nagaitsev.

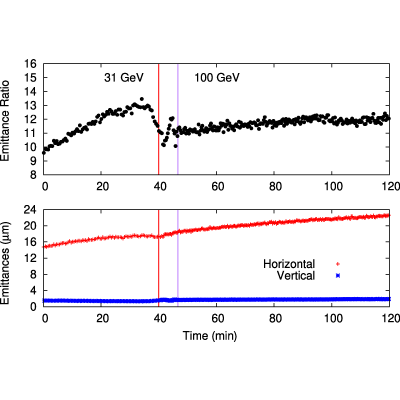

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (44)

  1. F. Willeke et al., Electron ion collider conceptual design report 2021. Technical report, Brookhaven National Lab. (BNL), Upton, NY (United States); Thomas Jefferson National Accelerator Facility (TJNAF), Newport News, VA (United States), 2021, https://www.osti.gov/biblio/1765663.
  2. M. Harrison, T. Ludlam, and S. Ozaki, Rhic project overview, Nucl. Instrum. Methods Phys. Res., Sect. A 499, 235 (2003).
  3. Y. Luo, D. Xu, M. Blaskiewicz, and C. Montag, Experimental demonstration of a large transverse emittance ratio 11: 1 in the relativistic heavy ion collider for the electron-ion collider, Phys. Rev. Lett. 132, 205001 (2024).
  4. Y. Luo, D. Xu, I. Blackler, M. Blaskiewicz, A. Marusic, K. Mernick, C. Montag, and T. Shrey, Achieving a large transverse emittance ratio in the relativistic heavy ion collider: Beam experiments, analytical estimates, and implications for the electron-ion collider, Phys. Rev. Accel. Beams 28, 041002 (2025).
  5. Y. Luo, B. Lepore, K. Mernick, T. Shrey, M. Blaskiewicz, C. Montag, G. Robert-Demolaize, and D. Xu, Experimental demonstration of accelerating a beam with a large transverse emittance ratio in the relativistic heavy ion collider for the electron-ion collider, Phys. Rev. Accel. Beams 29, L021001 (2026).
  6. A. Piwinski, Intrabeam scattering Technical report no. HEAC 74, Standford Linear Accelerator Laboratory (SLAC), 1974.
  7. M. Martini, Intrabeam scattering. Technical report no CERN-PS-AA-84-9, CERN, 1984.
  8. J. D. Bjorken and S. K. Mtingwa, Intrabeam scattering, Part. Accel. 13, 115 (1983). https://cds.cern.ch/record/140304/?ln=en
  9. G. Parzen, Intrabeam scattering at high energies, Nucl. Instrum. Methods Phys. Res., Sect. A 256, 231 (1987).
  10. J. Wei, Evolution of hadron beams under intrabeam scattering, in Proc. PAC’93 (JACoW Publishing, Geneva, Switzerland, 1993), pp. 3651–3654.
  11. K. Bane, A Simplified Model of Intrabeam Scattering, in Proc. EPAC’02, number 8 in European Particle Accelerator Conference (JACoW Publishing, Geneva, Switzerland, 2007), Vol. 8, pp. 1443–1445, https://jacow.org/e02/papers/WEPRI120.pdf.
  12. K. Kubo, S. K. Mtingwa, and A. Wolski, Intrabeam scattering formulas for high energy beams, Phys. Rev. ST Accel. Beams 8, 081001 (2005).
  13. S. Nagaitsev, Intrabeam scattering formulas for fast numerical evaluation, Phys. Rev. ST Accel. Beams 8, 064403 (2005).
  14. A. Piwinski, J. D. Bjorken, and S. K. Mtingwa, Wilson prize article: Reflections on our experiences with developing the theory of intrabeam scattering, Phys. Rev. Accel. Beams 21, 114801 (2018).
  15. V. Lebedev and S. Nagaitsev, Multiple intrabeam scattering in x−y coupled focusing systems, arXiv:1812.09275.
  16. V. A. Lebedev and S. A. Bogacz, Betatron motion with coupling of horizontal and vertical degrees of freedom, J. Instrum. 5, P10010 (2010).
  17. B. C. Carlson, Computing elliptic integrals by duplication, Numer. Math. 33, 1 (1979).
  18. W. H. Press, S. A. Teukolsky, W. T. Vetterling, and B. P. Flannery, Numerical Recipes in C: The Art of Scientific Computing, 2nd ed. (Cambridge University Press, Cambridge, UK, 1992). ISBN 978-0521431088.
  19. A. Piwinski, Intrabeam scattering. Technical Report CERN Yellow Report CERN-92-01, CERN, 1992, https://cds.cern.ch/record/212880/files/CERN-92-01.pdf.
  20. K. Kubo and K. Oide, Intrabeam scattering in electron storage rings, Phys. Rev. ST Accel. Beams 4, 124401 (2001).
  21. Y. N. Rao and L. Hermansson, Intra-beam scattering at CELSIUS, in Proc. EPAC’2000 (JACoW Publishing, Geneva, Switzerland, 2000), pp. 1549–1551.
  22. W. Fischer et al., Measurements of intra-beam scattering growth times with gold beam below transition in RHIC, in Proc. PAC’01 (JACoW Publishing, Geneva, Switzerland, 2001), pp. 2857–2859, https://jacow.org/p01/papers/RPAH007.pdf.
  23. A. V. Fedotov, W. Fischer, S. Tepikian, and J. Wei, Experimental studies of IBS in RHIC and comparison with theory, in Proc. HB’06 (JACoW Publishing, Geneva, Switzerland, 2006), pp. 259–261, https://jacow.org/abdwhb06/papers/WEBY03.pdf.
  24. M. Hu and S. Nagaitsev, Observation of longitudinal diffusion and cooling due to intrabeam scattering at the fermilab recycler ring, in Proc. PAC’05, number 21 in Particle Accelerator Conference (JACoW Publishing, Geneva, Switzerland, 2005), pp. 1560–1562, https://jacow.org/p05/papers/FPAE017.pdf.
  25. D. A. Edwards and L. C. Teng, Parametrization of linear coupled motion in periodic systems, IEEE Trans. Nucl. Sci. 20, 885 (1973).
  26. G. Guignard, Betatron coupling and related impact of radiation, Phys. Rev. E 51, 6104 (1995).
  27. Y. Luo, Linear coupling parametrization in the action-angle frame, Phys. Rev. ST Accel. Beams 7, 124001 (2004).
  28. Y. Luo, Transverse beam sizes and quasi emittances for linearly coupled optics, Nucl. Instrum. Methods Phys. Res., Sect. A 562, 57 (2006).
  29. R. Connolly, P. Cameron, W. Ryan, T. J. Shea, R. Sikora, and N. Tsoupas, A prototype ionization profile monitor for RHIC, in Proc. PAC’97 (JACoW Publishing, Geneva, Switzerland, 1997), pp. 2152–2154.
  30. P. Cameron et al., The RHIC ionization beam profile monitor, in Proc. PAC’99 (JACoW Publishing, Geneva, Switzerland, 1999), pp. 2114–2116, https://jacow.org/p99/papers/WEA101.pdf.
  31. Y. Luo, P. Cameron, A. Dellapenna, L. Hoff, A. Marusic, S. Peggs, C. Schultheiss, and R. Jones, Continuous measurement of global difference coupling using a phase-locked-loop tune meter in the relativistic heavy ion collider, Phys. Rev. ST Accel. Beams 9, 124001 (2006).
  32. P. Cameron, A. DellaPenna, L. Hoff, Y. Luo, A. Marusic, C. Schultheiss, S. Tepikian, M. Gasior, R. Jones, and C. Y. Tan, Simultaneous tune and coupling feedback in the relativistic heavy ion collider, and possible implications for the large hadron collider commissioning, Phys. Rev. ST Accel. Beams 9, 122801 (2006).
  33. M. Blaskiewicz, J. M. Brennan, and F. Severino, Operational stochastic cooling in the relativistic heavy-ion collider, Phys. Rev. Lett. 100, 174802 (2008).
  34. M. Blaskiewicz, J. M. Brennan, and K. Mernick, Three-dimensional stochastic cooling in the relativistic heavy ion collider, Phys. Rev. Lett. 105, 094801 (2010).
  35. Y. Luo, W. Fischer, and S. White, Analysis and modeling of proton beam loss and emittance growth in the relativistic heavy ion collider, Phys. Rev. Accel. Beams 19, 021001 (2016).
  36. J. Wei and A. G. Ruggiero, Beam life-time with intrabeam scattering and stochastic cooling, in Proc. PAC’91 (JACoW Publishing, Geneva, Switzerland, 1991), pp. 1869–1872.
  37. R. E. Williamson, S. J. Payne, B. G. Pine, and C. M. Warsop, Analysis of measurement errors in residual gas ionisation profile monitors in a high intensity proton beam, in Proc. EPAC’08, number 11 in European Particle Accelerator Conference (JACoW Publishing, Geneva, Switzerland, 2008), pp. 1317–1319, https://jacow.org/e08/papers/TUPC109.pdf.
  38. A. Piwinski, Handbook of Accelerator Physics and Engineering (World Scientific, Singapore, 1999).
  39. A. Wolski, Intrabeam scattering, arXiv:2602.11952.
  40. J. Wei and G. Parzen, Intra-beam scattering scaling for very large hadron colliders, in Proc. PAC’01 (JACoW Publishing, Geneva, Switzerland, 2001), pp. 42–44, https://jacow.org/p01/papers/MOPA009.pdf.
  41. S. Peggs, F. Pilat, and M. Syphers, Flat beams in a 50 TeV hadron collider, in Proc. PAC’97 (JACoW Publishing, Geneva, Switzerland, 1997), pp. 95–97.
  42. A. V. Fedotov et al., Experimental demonstration of hadron beam cooling using radio-frequency accelerated electron bunches, Phys. Rev. Lett. 124, 084801 (2020).
  43. M. P. Ehrlichman, W. Hartung, B. Heltsley, D. P. Peterson, N. Rider, D. Rubin, D. Sagan, J. Shanks, S. T. Wang, R. Campbell, and R. Holtzapple, Intrabeam scattering studies at the cornell electron storage ring test accelerator, Phys. Rev. ST Accel. Beams 16, 104401 (2013).
  44. T. O. Raubenheimer, The core emittance with intrabeam scattering in e+/e− rings, Part. Accel. 45, 111 (1994).
