Light-induced localized vortices in multicomponent Bose-Einstein condensates

Y. Braver1, D. Burba1, S. S. Nair2, G. Žlabys2, E. Anisimovas1, Th. Busch2, and G. Juzeliūnas1

PDF

Phys. Rev. A 112, 033301 – Published 2 September, 2025

DOI: https://doi.org/10.1103/qlbm-9sps

Abstract

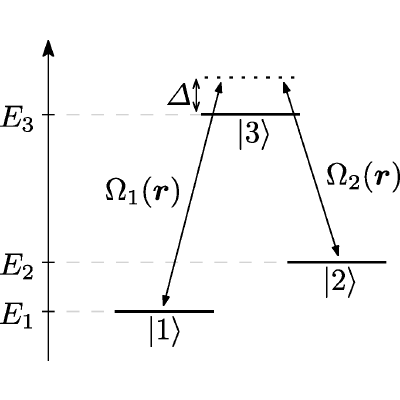

We study continuous interaction of a trapped two-component Bose-Einstein condensate with light fields in a Λ-type configuration. Using light beams with orbital angular momentum, we theoretically show how to create a stable, pinned vortex configuration, where the rotating component is confined to the region surrounded by the second, nonrotating component. The atoms constituting this vortex can be localized in volumes much smaller than the volume occupied by the second component. We also show that the vortex position can be changed dynamically by moving the laser beams, provided the beams' movement speed remains below the speed of sound. This allows us to use the localized vortex to stir the second component, and to determine the superfluid flow's critical velocity.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (52)

  1. A. L. Fetter and A. A. Svidzinsky, Vortices in a trapped dilute Bose-Einstein condensate, J. Phys.: Condens. Matter 13, R135 (2001).
  2. M. Tsubota, M. Kobayashi, and H. Takeuchi, Quantum hydrodynamics, Phys. Rep. 522, 191 (2013).
  3. M. T. Reeves, K. Goddard-Lee, G. Gauthier, O. R. Stockdale, H. Salman, T. Edmonds, X. Yu, A. S. Bradley, M. Baker, H. Rubinsztein-Dunlop, M. J. Davis, and T. W. Neely, Turbulent relaxation to equilibrium in a two-dimensional quantum vortex gas, Phys. Rev. X 12, 011031 (2022).
  4. K. Harada, T. Matsuda, J. Bonevich, M. Igarashi, S. Kondo, G. Pozzi, U. Kawabe, and A. Tonomura, Real-time observation of vortex lattices in a superconductor by electron microscopy, Nature (London) 360, 51 (1992).
  5. P. Magierski, A. Barresi, A. Makowski, D. Pęcak, and G. Wlazłowski, Quantum vortices in fermionic superfluids: From ultracold atoms to neutron stars., Eur. Phys. J. A 60, 186 (2024).
  6. Ł. Dobrek, M. Gajda, M. Lewenstein, K. Sengstock, G. Birkl, and W. Ertmer, Optical generation of vortices in trapped Bose-Einstein condensates, Phys. Rev. A 60, R3381 (1999).
  7. K. W. Madison, F. Chevy, W. Wohlleben, and J. Dalibard, Vortex formation in a stirred Bose-Einstein condensate, Phys. Rev. Lett. 84, 806 (2000).
  8. J. R. Abo-Shaeer, C. Raman, J. M. Vogels, and W. Ketterle, Observation of vortex lattices in Bose-Einstein condensates, Science 292, 476 (2001).
  9. K.-P. Marzlin, W. Zhang, and E. M. Wright, Vortex coupler for atomic Bose-Einstein condensates, Phys. Rev. Lett. 79, 4728 (1997).
  10. R. Dum, J. I. Cirac, M. Lewenstein, and P. Zoller, Creation of dark solitons and vortices in Bose-Einstein condensates, Phys. Rev. Lett. 80, 2972 (1998).
  11. G. Nandi, R. Walser, and W. P. Schleich, Vortex creation in a trapped Bose-Einstein condensate by stimulated Raman adiabatic passage, Phys. Rev. A 69, 063606 (2004).
  12. K. T. Kapale and J. P. Dowling, Vortex phase qubit: Generating arbitrary, counterrotating, coherent superpositions in Bose-Einstein condensates via optical angular momentum beams, Phys. Rev. Lett. 95, 173601 (2005).
  13. G. Juzeliūnas and P. Öhberg, Creation of an effective magnetic field in ultracold atomic gases using electromagnetically induced transparency, Opt. Spectrosc. 99, 357 (2005).
  14. M. F. Andersen, C. Ryu, P. Cladé, V. Natarajan, A. Vaziri, K. Helmerson, and W. D. Phillips, Quantized rotation of atoms from photons with orbital angular momentum, Phys. Rev. Lett. 97, 170406 (2006).
  15. K. C. Wright, L. S. Leslie, and N. P. Bigelow, Optical control of the internal and external angular momentum of a Bose-Einstein condensate, Phys. Rev. A 77, 041601(R) (2008).
  16. K. C. Wright, L. S. Leslie, A. Hansen, and N. P. Bigelow, Sculpting the vortex state of a spinor BEC, Phys. Rev. Lett. 102, 030405 (2009).
  17. K. Mukherjee, S. Bandyopadhyay, D. Angom, A. M. Martin, and S. Majumder, Dynamics of the creation of a rotating Bose–Einstein condensation by two photon Raman transition using a Laguerre–Gaussian laser pulse, Atoms 9, 14 (2021).
  18. G. Juzeliūnas, J. Ruseckas, P. Öhberg, and M. Fleischhauer, Formation of solitons in atomic Bose–Einstein condensates by dark-state adiabatic passage, Lith. J. Phys. 47, 351 (2007).
  19. A. V. Gorshkov, L. Jiang, M. Greiner, P. Zoller, and M. D. Lukin, Coherent quantum optical control with subwavelength resolution, Phys. Rev. Lett. 100, 093005 (2008).
  20. M. Łącki, M. A. Baranov, H. Pichler, and P. Zoller, Nanoscale “dark state” optical potentials for cold atoms, Phys. Rev. Lett. 117, 233001 (2016).
  21. E. Gvozdiovas, I. B. Spielman, and G. Juzeliūnas, Interference-induced anisotropy in a two-dimensional dark-state optical lattice, Phys. Rev. A 107, 033328 (2023).
  22. H. R. Hamedi, G. Žlabys, V. Ahufinger, T. Halfmann, J. Mompart, and G. Juzeliūnas, Spatially strongly confined atomic excitation via a two dimensional stimulated Raman adiabatic passage, Opt. Express 30, 13915 (2022).
  23. Z. Dutton and J. Ruostekoski, Transfer and storage of vortex states in light and matter waves, Phys. Rev. Lett. 93, 193602 (2004).
  24. S. Thanvanthri, K. T. Kapale, and J. P. Dowling, Arbitrary coherent superpositions of quantized vortices in Bose-Einstein condensates via orbital angular momentum of light, Phys. Rev. A 77, 053825 (2008).
  25. R. Dum and M. Olshanii, Gauge structures in atom-laser interaction: Bloch oscillations in a dark lattice, Phys. Rev. Lett. 76, 1788 (1996).
  26. G. Juzeliūnas and P. Öhberg, Slow light in degenerate Fermi gases, Phys. Rev. Lett. 93, 033602 (2004).
  27. G. Juzeliūnas, P. Öhberg, J. Ruseckas, and A. Klein, Effective magnetic fields in degenerate atomic gases induced by light beams with orbital angular momenta, Phys. Rev. A 71, 053614 (2005).
  28. G. Juzeliūnas, J. Ruseckas, and P. Öhberg, Effective magnetic fields induced by EIT in ultra-cold atomic gases, J. Phys. B: At. Mol. Opt. Phys. 38, 4171 (2005).
  29. F. Jendrzejewski, S. Eckel, T. G. Tiecke, G. Juzeliūnas, G. K. Campbell, L. Jiang, and A. V. Gorshkov, Subwavelength-width optical tunnel junctions for ultracold atoms, Phys. Rev. A 94, 063422 (2016).
  30. M. O. Scully and M. S. Zubairy, Quantum Optics (Cambridge University Press, Cambridge, 1997).
  31. L. P. Pitaevskii and S. Stringari, Bose-Einstein Condensation and Superfluidity (Oxford University Press, Oxford, 2016).
  32. A. L. Gaunt, T. F. Schmidutz, I. Gotlibovych, R. P. Smith, and Z. Hadzibabic, Bose-Einstein condensation of atoms in a uniform potential, Phys. Rev. Lett. 110, 200406 (2013).
  33. R. F. Gutterres, C. Amiot, A. Fioretti, C. Gabbanini, M. Mazzoni, and O. Dulieu, Determination of the Rb875p state dipole matrix element and radiative lifetime from the photoassociation spectroscopy of the Rb20g−(P3/2) long-range state, Phys. Rev. A 66, 024502 (2002).
  34. M. Egorov, B. Opanchuk, P. Drummond, B. V. Hall, P. Hannaford, and A. I. Sidorov, Measurement of s-wave scattering lengths in a two-component Bose-Einstein condensate, Phys. Rev. A 87, 053614 (2013).
  35. S. Patrick, A. Gupta, R. Gregory, and C. F. Barenghi, Stability of quantized vortices in two-component condensates, Phys. Rev. Res. 5, 033201 (2023).
  36. A. Richaud, G. Lamporesi, M. Capone, and A. Recati, Mass-driven vortex collisions in flat superfluids, Phys. Rev. A 107, 053317 (2023).
  37. P. Ao and S. T. Chui, Binary Bose-Einstein condensate mixtures in weakly and strongly segregated phases, Phys. Rev. A 58, 4836 (1998).
  38. E. Timmermans, Phase separation of Bose-Einstein condensates, Phys. Rev. Lett. 81, 5718 (1998).
  39. L. Wen, W. M. Liu, Y. Cai, J. M. Zhang, and J. Hu, Controlling phase separation of a two-component Bose-Einstein condensate by confinement, Phys. Rev. A 85, 043602 (2012).
  40. X. Di, Y.-H. Nie, and T. Yang, Manipulating vortices with a rotating laser beam in Bose–Einstein condensates, Laser Phys. 33, 085501 (2023).
  41. C. J. Pethick and H. Smith, Bose-Einstein Condensation in Dilute Gases, 2nd ed. (Cambridge University Press, Cambridge, 2008).
  42. C. Raman, M. Köhl, R. Onofrio, D. S. Durfee, C. E. Kuklewicz, Z. Hadzibabic, and W. Ketterle, Evidence for a critical velocity in a Bose-Einstein condensed gas, Phys. Rev. Lett. 83, 2502 (1999).
  43. R. Onofrio, C. Raman, J. M. Vogels, J. R. Abo-Shaeer, A. P. Chikkatur, and W. Ketterle, Observation of superfluid flow in a Bose-Einstein condensed gas, Phys. Rev. Lett. 85, 2228 (2000).
  44. R. Desbuquois, L. Chomaz, T. Yefsah, J. Léonard, J. Beugnon, C. Weitenberg, and J. Dalibard, Superfluid behaviour of a two-dimensional Bose gas, Nat. Phys. 8, 645 (2012).
  45. W. Weimer, K. Morgener, V. P. Singh, J. Siegl, K. Hueck, N. Luick, L. Mathey, and H. Moritz, Critical velocity in the BEC-BCS crossover, Phys. Rev. Lett. 114, 095301 (2015).
  46. V. P. Singh, W. Weimer, K. Morgener, J. Siegl, K. Hueck, N. Luick, H. Moritz, and L. Mathey, Probing superfluidity of Bose-Einstein condensates via laser stirring, Phys. Rev. A 93, 023634 (2016).
  47. V. P. Singh, C. Weitenberg, J. Dalibard, and L. Mathey, Superfluidity and relaxation dynamics of a laser-stirred two-dimensional Bose gas, Phys. Rev. A 95, 043631 (2017).
  48. H. Kiehn, V. P. Singh, and L. Mathey, Superfluidity of a laser-stirred Bose-Einstein condensate, Phys. Rev. A 105, 043317 (2022).
  49. G. E. Astrakharchik and L. P. Pitaevskii, Motion of a heavy impurity through a Bose-Einstein condensate, Phys. Rev. A 70, 013608 (2004).
  50. X. Antoine and R. Duboscq, GPELab, a Matlab toolbox to solve Gross–Pitaevskii equations I: Computation of stationary solutions, Comput. Phys. Commun. 185, 2969 (2014).
  51. X. Antoine and R. Duboscq, GPELab, a Matlab toolbox to solve Gross–Pitaevskii equations II: Dynamics and stochastic simulations, Comput. Phys. Commun. 193, 95 (2015).
  52. S. Danisch and J. Krumbiegel, Makie.jl: Flexible high-performance data visualization for Julia, J. Open Source Soft. 6, 3349 (2021).
