Sparse anisotropic positive maps for qutrit entanglement: Exact indecomposability and positive-partial-transpose geometry

Massimiliano F. Sacchi*

  • *Contact author: massimiliano.sacchi@cnr.it
PDF

Phys. Rev. A 114, 042455 – Published 26 October, 2026

DOI: https://doi.org/10.1103/lbj6-bts5

Abstract

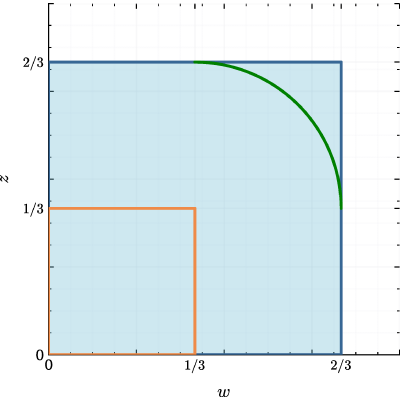

Positive but not completely positive maps provide one of the most direct ways to detect entanglement beyond the positive-partial-transpose (PPT) criterion. We introduce and analyze an exactly solvable two-parameter family of sparse bistochastic positive maps on qutrits, in which two coherence channels are independently tuned by parameters w and z. The sparse structure makes the full phase diagram analytic: positivity holds exactly on the square 0≤w,z≤2/3, complete positivity holds on the smaller square 0≤w,z≤1/3, and decomposability is lost precisely outside a quarter circle in the corner w,z≥1/3. The indecomposable region is certified by explicit PPT entangled states adapted to the same witness geometry. At the end point W*=W(2/3,2/3) we construct a four-parameter family of PPT edge states of rank type (5,5), derive their analytic detection region, and show that the corresponding rays are exposed faces of the PPT cone. Finally, although W* is not optimal, we give an explicit optimal refinement whose detection region on this family is strictly larger. The result is an analytically tractable qutrit setting in which positivity, indecomposability, PPT entanglement, optimality, and exposed convex geometry can be studied in a single framework.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (42)

  1. M. Horodecki, P. Horodecki, and R. Horodecki, Separability of mixed states: Necessary and sufficient conditions, Phys. Lett. A 223, 1 (1996).
  2. R. Horodecki, P. Horodecki, M. Horodecki, and K. Horodecki, Quantum entanglement, Rev. Mod. Phys. 81, 865 (2009).
  3. A. Jamiołkowski, Linear transformations which preserve trace and positive semidefiniteness of operators, Rep. Math. Phys. 3, 275 (1972).
  4. M.-D. Choi, Completely positive linear maps on complex matrices, Linear Algebra Appl. 10, 285 (1975).
  5. A. Peres, Separability criterion for density matrices, Phys. Rev. Lett. 77, 1413 (1996).
  6. B. M. Terhal, Bell inequalities and the separability criterion, Phys. Lett. A 271, 319 (2000).
  7. M. Lewenstein, B. Kraus, J. I. Cirac, and P. Horodecki, Optimization of entanglement witnesses, Phys. Rev. A 62, 052310 (2000).
  8. S. L. Woronowicz, Positive maps of low dimensional matrix algebras, Rep. Math. Phys. 10, 165 (1976).
  9. E. Størmer, Positive Linear Maps of Operator Algebras (Springer-Verlag, Berlin, 2013).
  10. S.-J. Cho, S.-H. Kye, and S. G. Lee, Generalized Choi maps in three-dimensional matrix algebra, Linear Algebra Appl. 171, 213 (1992).
  11. K.-C. Ha and S.-H. Kye, Construction of entangled states with positive partial transposes based on indecomposable positive linear maps, Phys. Lett. A 325, 315 (2004).
  12. K.-C. Ha and S.-H. Kye, Construction of 3⊗3 entangled edge states with positive partial transposes, J. Phys. A: Math. Gen. 38, 9039 (2005).
  13. K.-C. Ha and S.-H. Kye, Entanglement witnesses arising from exposed positive linear maps, Open Syst. Inf. Dyn. 18, 323 (2011).
  14. K.-C. Ha and S.-H. Kye, Entanglement witnesses arising from Choi type positive linear maps, J. Phys. A: Math. Theor. 45, 415305 (2012).
  15. D. Chruściński and G. Sarbicki, Entanglement witnesses: Construction, analysis and classification, J. Phys. A: Math. Theor. 47, 483001 (2014).
  16. W. A. Majewski and M. Marciniak, On a characterization of positive maps, J. Phys. A: Math. Gen. 34, 5863 (2001).
  17. A. Kossakowski, A class of linear positive maps in matrix algebras, Open Syst. Inf. Dyn. 10, 213 (2003).
  18. D. Chruściński and A. Kossakowski, On the structure of entanglement witnesses and new class of positive indecomposable maps, Open Syst. Inf. Dyn. 14, 275 (2007).
  19. D. Chruściński and A. Kossakowski, Geometry of quantum states: New construction of positive maps, Phys. Lett. A 373, 2301 (2009).
  20. Ł. Skowronek and K. Życzkowski, Positive maps, positive polynomials and entanglement witnesses, J. Phys. A: Math. Theor. 42, 325302 (2009).
  21. J. Hou, A characterization of positive linear maps and criteria of entanglement for quantum states, J. Phys. A: Math. Theor. 43, 385201 (2010).
  22. M. Marciniak and A. Rutkowski, Merging of positive maps: A construction of various classes of positive maps on matrix algebras, Linear Algebra Appl. 529, 215 (2017).
  23. A. Müller-Hermes, Decomposability of linear maps under tensor powers, J. Math. Phys. 59, 102203 (2018).
  24. J. Li, H. Yao, S.-M. Fei, Z. Fan, and H. Ma, Quantum entanglement estimation via symmetric-measurement-based positive maps, Phys. Rev. A 109, 052426 (2024).
  25. B. Mallick, A. G. Maity, N. Ganguly, and A. S. Majumdar, Higher-dimensional-entanglement detection and quantum-channel characterization using moments of generalized positive maps, Phys. Rev. A 112, 012416 (2025).
  26. A. Rico, Entanglement and distillation from symmetric positive maps, Phys. Rev. A 113, 022405 (2026).
  27. V. Jannesary, V. Karimipour, and D. Chruściński, A class of entanglement witnesses and a realignment-like criterion, Sci. Rep. 15, 5718 (2025).
  28. D. Poderini, A. R. Morgillo, F. Benatti, F. Anselmi, C. Macchiavello, and M. F. Sacchi, Sparse positive maps on qutrits with exact nondecomposability thresholds and PPT-entanglement transitions, arXiv:2606.19765.
  29. A. Sanpera, D. Bruß, and M. Lewenstein, Schmidt-number witnesses and bound entanglement, Phys. Rev. A 63, 050301(R) (2001).
  30. A. R. Morgillo, D. Poderini, F. Anselmi, F. Benatti, M. F. Sacchi, and C. Macchiavello, Generating non-decomposable maps with differentiable semidefinite programming, arXiv:2605.14644.
  31. P. Horodecki, Separability criterion and inseparable mixed states with positive partial transposition, Phys. Lett. A 232, 333 (1997).
  32. P. Horodecki, M. Lewenstein, G. Vidal, and I. Cirac, Operational criterion and constructive checks for the separability of low-rank density matrices, Phys. Rev. A 62, 032310 (2000).
  33. L. Clarisse, Construction of bound entangled edge states with special ranks, Phys. Lett. A 359, 603 (2006).
  34. S.-H. Kye, Facial structures of separable and PPT states, Banach Center Publication 96, 257 (2011).
  35. H.-S. Choi and S.-H. Kye, Facial structures for separable states, J. Korean Math. Soc. 49, 623 (2012).
  36. K.-C. Ha, S.-H. Kye, and Y. S. Park, Entangled states with positive partial transposes arising from indecomposable positive linear maps, Phys. Lett. A 313, 163 (2003).
  37. R. Augusiak, J. Bae, Ł. Czekaj, and M. Lewenstein, On structural physical approximations and entanglement breaking maps, J. Phys. A: Math. Theor. 44, 185308 (2011).
  38. K.-C. Ha and S.-H. Kye, The structural physical approximations and optimal entanglement witnesses, J. Math. Phys. 53, 102204 (2012).
  39. D. Chruściński and G. Sarbicki, Exposed positive maps: A sufficient condition, J. Phys. A: Math. Theor. 45, 115304 (2012).
  40. M. Horodecki, P. W. Shor, and M. B. Ruskai, Entanglement breaking channels, Rev. Math. Phys. 15, 629 (2003).
  41. S. Singh and I. Nechita, Diagonal unitary and orthogonal symmetries in quantum theory, Quantum 5, 519 (2021).
  42. A. Gulati, I. Nechita, and S.-J. Park, Positive maps and extendibility hierarchies from copositive matrices, arXiv:2509.15201.
