Einstein ring fingerprint around supermassive black holes illuminated by broad line region spectral lines

Konstantinos Kostaros1,*, George Pappas1,†, Padelis Papadopoulos1,2,‡, and Wing-Fai Thi3,§

  • *Contact author: kkostaro@auth.gr
  • †Contact author: gpappas@auth.gr
  • ‡Contact author: padelis@auth.gr
  • §Currently an independent researcher.
PDF

APS Open Sci. 1, L000161 – Published 5 October, 2026

DOI: https://doi.org/10.1103/7h39-dk84

Abstract

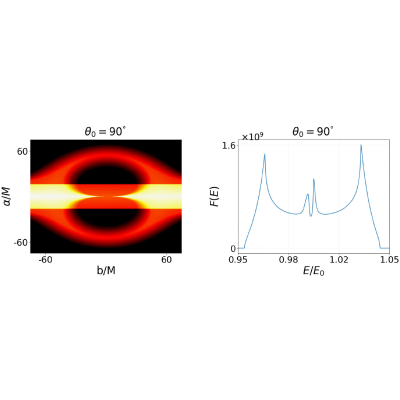

The continuum emission from the hot and ionized inner regions of accretion disks around supermassive black holes (SMBHs), which is strongly lensed by the light ring (i.e., the unstable photon orbit), is always superimposed on that from the locally emitting plasma near the innermost stable circular orbit, masking strong-gravity effects and making their study difficult. Cleaner images of (strong-lensing)-generated brightness distributions set against a nonluminous background would thus be preferable. An SMBH illumination source that allows for this could be the more distant, cooler, neutral gas reservoir, underlying the so-called broad line region. Such a far-field illumination is ideal for producing the aforementioned images, and thus better suited for strong-gravity tests. In such an illumination scenario, however, two prominent first-order effects stand out, whichwill be the focus of this Letter: an hourglasslike brightness distribution around the SMBH and an associated double-peaked inner feature imprinted on the disk's global double-horned line profile, for lines of sight near the accretion disk plane. The latter effect can be discerned even in unresolved sources where only the total line profile is accessible. Interferometers operating in spectral line mode can reveal this hourglass image and the inner double peak spectral feature it imprints on the global line profile, and yield SMBH mass estimates for edge-on systems.

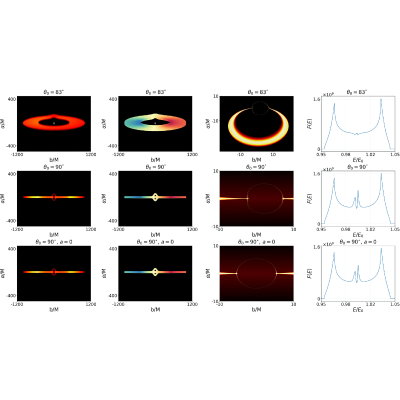

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (45)

  1. K. Akiyama et al. (The Event Horizon Telescope Collaboration), First M87 Event Horizon Telescope results. I. The shadow of the supermassive black hole, Astrophys. J. Lett. 875, L1 (2019).
  2. K. Akiyama et al. (The Event Horizon Telescope Collaboration), First M87 Event Horizon Telescope results. II. Array and instrumentation, Astrophys. J. Lett. 875, L2 (2019).
  3. K. Akiyama et al. (The Event Horizon Telescope Collaboration), First M87 Event Horizon Telescope results. III. Data processing and calibration, Astrophys. J. Lett. 875, L3 (2019).
  4. K. Akiyama et al. (The Event Horizon Telescope Collaboration), First M87 Event Horizon Telescope results. IV. Imaging the central supermassive black hole, Astrophys. J. Lett. 875, L4 (2019).
  5. K. Akiyama et al. (The Event Horizon Telescope Collaboration), First M87 Event Horizon Telescope results. V. Physical origin of the asymmetric ring, Astrophys. J. Lett. 875, L5 (2019).
  6. K. Akiyama et al. (The Event Horizon Telescope Collaboration), First M87 Event Horizon Telescope results. VI. The shadow and mass of the central black hole, Astrophys. J. Lett. 875, L6 (2019).
  7. K. Akiyama et al. (The Event Horizon Telescope Collaboration), First Sagittarius A* Event Horizon Telescope results. I. The shadow of the supermassive black hole in the center of the Milky Way, Astrophys. J. Lett. 930, L12 (2022).
  8. K. Akiyama et al. (The Event Horizon Telescope Collaboration), First Sagittarius A* Event Horizon Telescope results. II. EHT and multiwavelength observations, data processing, and calibration, Astrophys. J. Lett. 930, L13 (2022).
  9. K. Akiyama et al. (The Event Horizon Telescope Collaboration), First Sagittarius A* Event Horizon Telescope results. III. Imaging of the Galactic Center supermassive black hole, Astrophys. J. Lett. 930, L14 (2022).
  10. K. Akiyama et al. (The Event Horizon Telescope Collaboration), First Sagittarius A* Event Horizon Telescope results. IV. Variability, morphology, and black hole mass, Astrophys. J. Lett. 930, L15 (2022).
  11. K. Akiyama et al. (The Event Horizon Telescope Collaboration), First Sagittarius A* Event Horizon Telescope results. V. Testing astrophysical models of the Galactic Center black hole, Astrophys. J. Lett. 930, L16 (2022).
  12. K. Akiyama et al. (The Event Horizon Telescope Collaboration), First Sagittarius A* Event Horizon Telescope results. VI. Testing the black hole metric, Astrophys. J. Lett. 930, L17 (2022).
  13. K. Akiyama et al. (The Event Horizon Telescope Collaboration), The persistent shadow of the supermassive black hole of M 87. I. Observations, calibration, imaging, and analysis, Astron. Astrophys. 681, A79 (2024).
  14. S. H. Völkel, E. Barausse, N. Franchini, and A. E. Broderick, EHT tests of the strong-field regime of general relativity, Class. Quantum Grav. 38, 21LT01 (2021).
  15. K. Glampedakis and G. Pappas, Can supermassive black hole shadows test the Kerr metric? Phys. Rev. D 104, L081503 (2021).
  16. K. Glampedakis and G. Pappas, Is a black hole shadow a reliable test of the no-hair theorem? Phys. Rev. D 107, 064001 (2023).
  17. S. E. Gralla, A. Lupsasca, and D. P. Marrone, The shape of the black hole photon ring: A precise test of strong-field general relativity, Phys. Rev. D 102, 124004 (2020).
  18. Z. Younsi, D. Psaltis, and F. Özel, Black hole images as tests of general relativity: Effects of spacetime geometry, Astrophys. J. 942, 47 (2023).
  19. A. M. Bauer, A. Cárdenas-Avendaño, C. F. Gammie, and N. Yunes, Spherical accretion in alternative theories of gravity, Astrophys. J. 925, 119 (2022).
  20. S. E. Gralla, Measuring the shape of a black hole photon ring, Phys. Rev. D 102, 044017 (2020).
  21. H. C. D. Lima Jr., L. C. B. Crispino, P. V. P. Cunha, and C. A. R. Herdeiro, Can different black holes cast the same shadow? Phys. Rev. D 103, 096019 (2021).
  22. L. Medeiros, D. Psaltis, and F. Özel, A parametric model for the shapes of black-hole shadows in non-Kerr spacetimes, Astrophys. J. 896, 7 (2020).
  23. S. E. Gralla, D. E. Holz, and R. M. Wald, Black hole shadows, photon rings, and lensing rings, Phys. Rev. D 100, 024018 (2019).
  24. T. Johannsen and D. Psaltis, Testing the no-hair theorem with observations in the electromagnetic spectrum: II. Black-hole images, Astrophys. J. 718, 446 (2010).
  25. G. J. Olmo, J. L. Rosa, D. Rubiera-Garcia, and D. Saez-Chillon Gomez, Shadows and photon rings of regular black holes and geonic horizonless compact objects, Class. Quantum Grav. 40, 174002 (2023).
  26. F. Özel, D. Psaltis, and Z. Younsi, Black hole images as tests of general relativity: Effects of plasma physics, Astrophys. J. 941, 88 (2022).
  27. G. Lara, S. H. Völkel, and E. Barausse, Separating astrophysics and geometry in black hole images, Phys. Rev. D 104, 124041 (2021).
  28. I. Urso, F. H. Vincent, M. Wielgus, T. Paumard, and G. Perrin, Gravity versus astrophysics in black hole images and photon rings: Equatorial emissions and spherically symmetric spacetimes, Astron. Astrophys. 700, A193 (2025).
  29. P. G. S. Fernandes, C. Burrage, A. Eichhorn, and T. P. Sotiriou, Shadows and properties of spin-induced scalarized black holes with and without a Ricci coupling, Phys. Rev. D 109, 104033 (2024).
  30. G. N. Gyulchev, A. Roy, L. G. Collodel, P. G. Nedkova, S. S. Yazadjiev, and D. D. Doneva, Shadows of rotating hairy Kerr black holes coupled to time periodic scalar fields with a nonflat target space, Phys. Rev. D 109, 104051 (2024).
  31. V. Deliyski, G. Gyulchev, P. Nedkova, and S. Yazadjiev, Observing naked singularities with the present and next-generation Event Horizon Telescope, Phys. Rev. D 111, 064068 (2025).
  32. J. B. Achour, E. Gourgoulhon, and H. Roussille, Black hole photon ring beyond general relativity: An integrable parametrization, J. Cosmol. Astropart. Phys. 10 (2025) 012.
  33. K. Kostaros and G. Pappas, Chaotic photon orbits and shadows of a non-Kerr object described by the Hartle–Thorne spacetime, Class. Quantum Grav. 39, 134001 (2022).
  34. K. Kostaros, P. Papadopoulos, and G. Pappas, Fractal signatures of non-Kerr spacetimes in the shadow of light-ring bifurcations, Phys. Rev. D 110, 024001 (2024).
  35. P. Papadopoulos, K. Kostaros, G. Pappas, and W.-F. Thi, Spectral line illumination of black holes: A new class of observational tests for Kerr spacetime signatures (unpublished).
  36. W.-F. Thi and P. Papadopoulos, The neutral gas phase nearest to supermassive black holes—Massive neutral-atom- and molecule-rich broad line regions in active galactic nuclei, Astron. Astrophys. 688, L20 (2024).
  37. K. Kostaros, P. Papadopoulos, W.-F. Thi, and G. Pappas, SMBH shadows: Gravity fingerprints revealed by spectral line background radiation, arXiv:2509.08728.
  38. Z. Younsi, K. Wu, and S. V. Fuerst, General relativistic radiative transfer: Formulation and emission from structured tori around black holes, Astron. Astrophys. 545, A13 (2012).
  39. S. V. Fuerst and K. Wu, Radiation transfer of emission lines in curved space-time, Astron. Astrophys. 424, 733 (2004).
  40. S. V. Fuerst and K. Wu, Line emission from optically thick relativistic accretion tori, Astron. Astrophys. 474, 55 (2007).
  41. T. Storchi-Bergmann, J. S. Schimoia, B. M. Peterson, M. Elvis, K. D. Denney, M. Eracleous, and R. S. Nemmen, Double-peaked profiles: Ubiquitous signatures of disks in the broad emission lines of active galactic nuclei, Astrophys. J. 835, 236 (2017).
  42. K. S. Thorne, Disk-accretion onto a black hole. II. Evolution of the hole, Astrophys. J. 191, 507 (1974).
  43. To name it an Einstein ring would be a misnomer, as the horizontally extended illumination source, unlike a starlike point source, creates something more complicated than a ring [37].
  44. A. B. Congdon and C. R. Keeton, Principles of Gravitational Lensing: Light Deflection as a Probe of Astrophysics and Cosmology (Springer Praxis Books, Cham, Switzerland, 2018).
  45. K. Kostaros and G. Pappas, Spectral_BH_shadows_BLR, 2025, GitHub repository, 2025, https://github.com/GPappasGR/Spectral_BH_shadows_BLR.
