Attractors are Less Stable than their Basins: Canalization Creates a Coherence Gap in Gene Regulatory Networks

Venkata Sai Narayana Bavisetty* and Matthew Wheeler†

Claus Kadelka‡

  • *Contact author: sbavisetty@ucla.edu
  • †Contact author: matthew.wheeler@medicine.ufl.edu
  • ‡Contact author: ckadelka@iastate.edu
PDF

PRX Life 4, 023019 – Published 26 May, 2026

DOI: https://doi.org/10.1103/v7kd-n9xh

Abstract

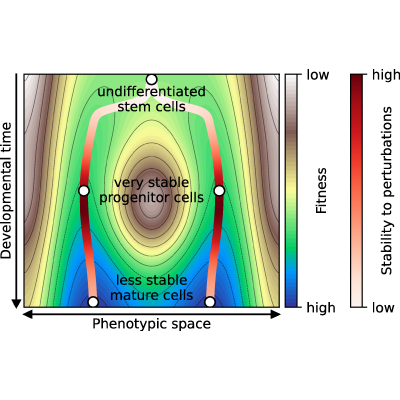

Waddington's epigenetic landscape has served as biology's central metaphor for cellular differentiation for over half a century, depicting mature cell types as balls resting in stable valley floors. Boolean networks—introduced by Kauffman in 1969 to model gene regulatory dynamics—provide a mathematical formalization of this landscape, where attractors represent phenotypes, and basins of attraction correspond to developmental valleys. Traditional stability measures quantify robustness by perturbing arbitrary states, yet biological systems typically reside at attractors rather than in transient states. Here we formalize and systematically analyze attractor coherence, a stability measure Kauffman originally envisioned but never rigorously developed, which quantifies how likely it is that a perturbation of an attractor state causes phenotype switching. Analyzing 95 expert-curated biological Boolean models, we reveal a striking paradox: attractors representing mature cell types are consistently less stable than the developmental trajectories approaching them. Large-scale simulations of random networks demonstrate that this coherence gap arises from canalization—a hallmark of biological regulation where individual genes can override other genes. While canalization increases overall network stability, it disproportionately stabilizes transient states, positioning attractors near basin boundaries. The gap's magnitude is almost perfectly predicted by network bias (Spearman's ρ = –0.997), itself modulated by canalization. These findings revise Waddington's landscape: canalization carves deep protective valleys ensuring developmental robustness, yet simultaneously flattens ridges near valley floors, facilitating phenotypic plasticity when multiple fates coexist. This explains how biological systems achieve both reliable development and plasticity, with implications for understanding development, disease-related transitions, and designing robust yet controllable synthetic gene circuits.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (49)

  1. C. H. Waddington, The Strategy of the Genes, 1st ed. (Routledge, London, UK, 1957).
  2. S. Huang, G. Eichler, Y. Bar-Yam, and D. E. Ingber, Cell fates as high-dimensional attractor states of a complex gene regulatory network, Phys. Rev. Lett. 94, 128701 (2005).
  3. S. Huang, The molecular and mathematical basis of Waddington's epigenetic landscape: A framework for post-Darwinian biology? BioEssays 34, 149 (2012).
  4. S. Kauffman, Metabolic stability and epigenesis in randomly constructed genetic nets, J. Theor. Biol. 22, 437 (1969).
  5. J. D. Schwab, S. D. Kühlwein, N. Ikonomi, M. Kühl, and H. A. Kestler, Concepts in Boolean network modeling: What do they all mean? Comput. Struct. Biotechnol. J. 18, 571 (2020).
  6. B. Derrida and Y. Pomeau, Random networks of automata: A simple annealed approximation, Europhys. Lett. 1, 45 (1986).
  7. E. Balleza, E. R. Alvarez-Buylla, A. Chaos, S. Kauffman, I. Shmulevich, and M. Aldana, Critical dynamics in genetic regulatory networks: Examples from four kingdoms, PLoS One 3, e2456 (2008).
  8. B. C. Daniels, H. Kim, D. Moore, S. Zhou, H. B. Smith, B. Karas, S. A. Kauffman, and S. I. Walker, Criticality distinguishes the ensemble of biological regulatory networks, Phys. Rev. Lett. 121, 138102 (2018).
  9. A. Roli, M. Villani, A. Filisetti, and R. Serra, Dynamical criticality: Overview and open questions, J. Syst. Sci. Complex. 31, 647 (2018).
  10. C. Kadelka, T.-M. Butrie, E. Hilton, J. Kinseth, A. Schmidt, and H. Serdarevic, A meta-analysis of Boolean network models reveals design principles of gene regulatory networks, Sci. Adv. 10, eadj0822 (2024).
  11. S. Squires, A. Pomerance, M. Girvan, and E. Ott, Stability of Boolean networks: The joint effects of topology and update rules, Phys. Rev. E 90, 022814 (2014).
  12. C. Kadelka, J. Kuipers, and R. Laubenbacher, The influence of canalization on the robustness of Boolean networks, Physica D 353-354, 39 (2017).
  13. C. Kadelka, Y. Li, J. Kuipers, J. O. Adeyeye, and R. Laubenbacher, Multistate nested canalizing functions and their networks, Theor. Comput. Sci. 675, 1 (2017).
  14. K. Willadsen, J. Triesch, and J. Wiles, Understanding robustness in random Boolean networks, in Proceedings of the Eleventh International Conference on the Simulation and Synthesis of Living Systems (ALife XI) (MIT Press, Winchester, UK, 2008).
  15. C. Kadelka, D. Murrugarra, and R. Laubenbacher, Stabilizing gene regulatory networks through feedforward loops, Chaos 23, 025107 (2013).
  16. K. H. Park, F. X. Costa, L. M. Rocha, R. Albert, and J. C. Rozum, Models of cell processes are far from the edge of chaos, PRX Life 1, 023009 (2023).
  17. C. Kadelka, M. Wheeler, A. Veliz-Cuba, D. Murrugarra, and R. Laubenbacher, Modularity of biological systems: A link between structure and function, J. R. Soc. Interface 20, 20230505 (2023).
  18. S. E. Harris, B. K. Sawhill, A. Wuensche, and S. Kauffman, A model of transcriptional regulatory networks based on biases in the observed regulation rules, Complexity 7, 23 (2002).
  19. C. Kadelka, Canalization as a stabilizing principle of gene regulatory networks: A discrete dynamical systems perspective, npj Syst. Biol. Appl. 12, 30 (2026).
  20. I. Shmulevich, H. Lähdesmäki, E. R. Dougherty, J. Astola, and W. Zhang, The role of certain Post classes in Boolean network models of genetic networks, Proc. Natl. Acad. Sci. USA 100, 10734 (2003).
  21. J. Davila-Velderrain, J. C. Martinez-Garcia, and E. R. Alvarez-Buylla, Modeling the epigenetic attractors landscape: Toward a post-genomic mechanistic understanding of development, Front. Genet. 6, 160 (2015).
  22. S. Huang and D. E. Ingber, A non-genetic basis for cancer progression and metastasis: Self-organizing attractors in cell regulatory networks, Breast Disease 26, 27 (2007).
  23. C. Campbell and R. Albert, Stabilization of perturbed Boolean network attractors through compensatory interactions, BMC Syst. Biol. 8, 53 (2014).
  24. V. S. N. Bavisetty, M. Wheeler, R. Laubenbacher, and C. Kadelka, Upper bound for the stability of Boolean networks, Phys. Rev. E 112, 044310 (2025).
  25. B. Min, J. Choi, and R. Laubenbacher, Dynamics of attractor transitions in Boolean networks under noise, Chaos 36, 023142 (2026).
  26. B. Derrida and H. Flyvbjerg, The random map model: A disordered model with deterministic dynamics, J. Phys. 48, 971 (1987).
  27. S. Kauffman, C. Peterson, B. Samuelsson, and C. Troein, Genetic networks with canalyzing Boolean rules are always stable, Proc. Natl. Acad. Sci. USA 101, 17102 (2004).
  28. S. Cook, C. Dwork, and R. Reischuk, Upper and lower time bounds for parallel random access machines without simultaneous writes, SIAM J. Comput. 15, 87 (1986).
  29. I. Shmulevich and S. A. Kauffman, Activities and sensitivities in Boolean network models, Phys. Rev. Lett. 93, 048701 (2004).
  30. S. A. Kauffman, The Origins of Order: Self-organization and Selection in Evolution (Oxford University Press, New York, USA, 1993).
  31. S. Kauffman, The large scale structure and dynamics of gene control circuits: An ensemble approach, J. Theor. Biol. 44, 167 (1974).
  32. Q. He and M. Macauley, Stratification and enumeration of Boolean functions by canalizing depth, Physica D 314, 1 (2016).
  33. E. Dimitrova, B. Stigler, C. Kadelka, and D. Murrugarra, Revealing the canalizing structure of Boolean functions: Algorithms and applications, Automatica 146, 110630 (2022).
  34. C. O. Reichhardt and K. E. Bassler, Canalization and symmetry in Boolean models for genetic regulatory networks, J. Phys. A 40, 4339 (2007).
  35. M. Marques-Pita and L. M. Rocha, Canalization and control in automata networks: Body segmentation in Drosophila melanogaster, PLoS One 8, e55946 (2013).
  36. C. Kadelka, B. Keilty, and R. Laubenbacher, Collectively canalizing Boolean functions, Adv. Appl. Math. 145, 102475 (2023).
  37. A. J. Gates, R. Brattig Correia, X. Wang, and L. M. Rocha, The effective graph reveals redundancy, canalization, and control pathways in biochemical regulation and signaling, Proc. Natl. Acad. Sci. USA 118, e2022598118 (2021).
  38. C. Kadelka and B. Coberly, Boolforge Controlled generation and analysis of Boolean functions and networks, arXiv:2509.02496.
  39. C. Kadelka and K. Hari, Critical assessment of the ability of Boolean threshold models to describe gene regulatory network dynamics, PNAS Nexus 4, pgaf228 (2025).
  40. S. Manicka, M. Marques-Pita, and L. M. Rocha, Effective connectivity determines the critical dynamics of biochemical networks, J. R. Soc. Interface 19, 20210659 (2022).
  41. J. E. S. Socolar and S. A. Kauffman, Scaling in ordered and critical random Boolean networks, Phys. Rev. Lett. 90, 068702 (2003).
  42. M. Möller and B. Drossel, The formation of the frozen core in critical Boolean networks, New J. Phys. 14, 023051 (2012).
  43. U. Bastolla and G. Parisi, Relevant elements, magnetization and dynamical properties in Kauffman networks: A numerical study, Physica D 115, 203 (1998).
  44. C. Kadelka and D. Murrugarra, Canalization reduces the nonlinearity of regulation in biological networks, npj Syst. Biol. Appl. 10, 67 (2024).
  45. H. Kitano, Towards a theory of biological robustness, Mol. Syst. Biol. 3, 137 (2007).
  46. H. Wang, Y. Yang, J. Liu, and L. Qian, Direct cell reprogramming: Approaches, mechanisms and progress, Nat. Rev. Mol. Cell Biol. 22, 410 (2021).
  47. J. Cerneckis, H. Cai, and Y. Shi, Induced pluripotent stem cells (iPSCs): Molecular mechanisms of induction and applications, Sign. Transduct. Target. Ther. 9, 112 (2024).
  48. A. Saadatpour, I. Albert, and R. Albert, Attractor analysis of asynchronous Boolean models of signal transduction networks, J. Theor. Biol. 266, 641 (2010).
  49. V. S. N. Bavisetty, M. Wheeler, and C. Kadelka, Code repository, Zenodo (2026), https://doi.org/10.5281/zenodo.19700792.
