Beginner’s Guide to Interpreting Defect and Defect Level Diagrams

Prashun Gorai*

  • *Contact author: goraip@rpi.edu
PDF

PRX Energy 4, 032001 – Published 22 August, 2025

DOI: https://doi.org/10.1103/jtyg-xry3

Abstract

Point defects are ubiquitous in materials and play a critical role in determining their electrical, optical, ion-transport, and other properties, making them key to the performance of materials in energy applications. First-principles defect calculations, particularly those based on density functional theory, are powerful tools for predicting defect energetics and associated electronic properties. However, the results are often communicated through defect formation energy diagrams and defect level diagrams, which can be challenging to interpret for researchers who do not specialize in defect physics. This Tutorial provides a practical accessible guide for understanding and interpreting these diagrams, with a focus on materials with a band gap—semiconductors and insulators. Aimed at experimentalists and computationalists new to defect analysis, the Tutorial explains how to extract key physical insights from defect diagrams, such as defect and carrier concentrations, dopability, midgap states, and charge localization. By demystifying the language and visuals of defect calculations, this guide seeks to bridge the gap between theory and experiments, enabling broader use of defect data in the rational design of functional materials for energy applications and beyond.

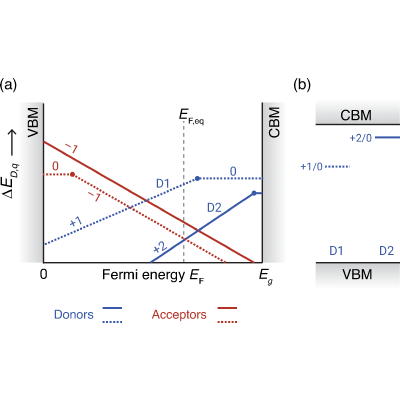

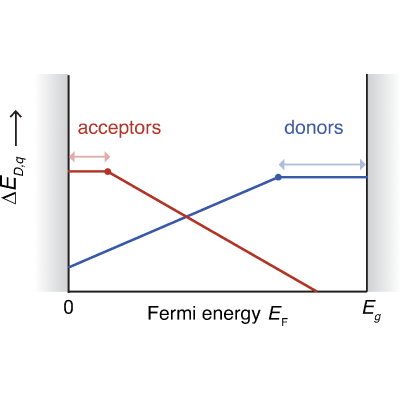

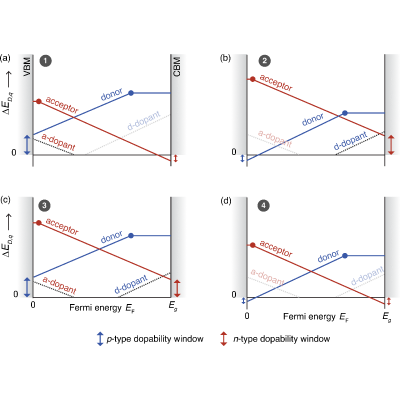

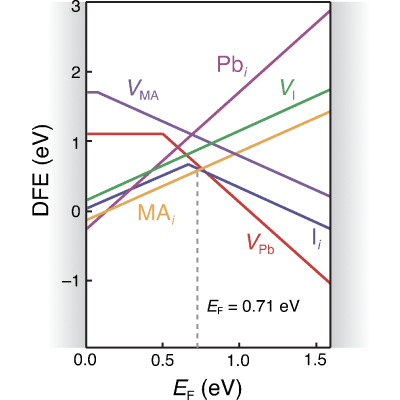

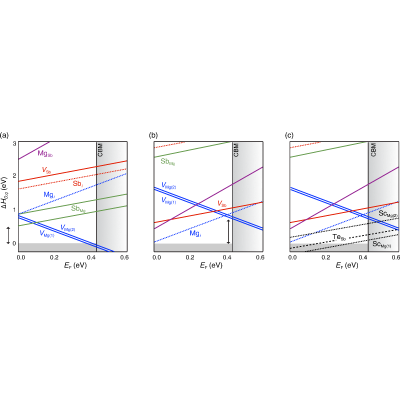

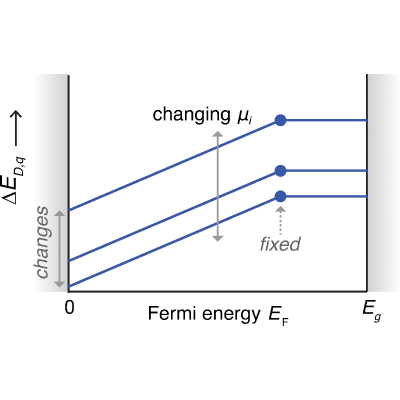

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

Point defects are imperfections in a material's crystal structure that can dramatically impact its electrical, optical, and transport properties. These defects are central to the performance of semiconductors and energy materials yet understanding them often requires specialized knowledge. This Tutorial addresses a common barrier: the difficulty in interpreting defect formation energy and level diagrams, which are widely used in computational studies of materials. Designed for both experimentalists and newcomers to defect calculations, this guide explains how to read these diagrams and extract physical insights about dopability, defect and carrier concentrations, midgap states, and charge localization. It also highlights common misconceptions and points to important methodological considerations. By bridging the gap between complex computational outputs and practical interpretation, this Tutorial enables a broader community of researchers to use defect calculations in designing advanced materials. The goal is to make defect physics more accessible and its applications more impactful across the energy field and beyond.

Article Text

References (46)

  1. A. Walsh and A. Zunger, Instilling defect tolerance in new compounds, Nat. Mater. 16, 964 (2017).
  2. J. S. Park, S. Kim, Z. Xie, and A. Walsh, Point defect engineering in thin-film solar cells, Nat. Rev. Mater. 3, 194 (2018).
  3. S. Nakamura, T. Mukai, and M. Senoh, Candela-class high-brightness InGaN/AlGaN double-heterostructure blue-light-emitting diodes, Appl. Phys. Lett. 64, 1687 (1994).
  4. H. L. Tuller, Defect engineering: Design tools for solid state electrochemical devices, Electrochim. Acta 48, 2879 (2003).
  5. P. Gorai, T. Famprikis, B. Singh, V. Stevanović, and P. Canepa, Devil is in the defects: Electronic conductivity in solid electrolytes, Chem. Mater. 33, 7484 (2021).
  6. Y. Murakami, Material defects as the basis of fatigue design, Int. J. Fatigue 41, 2 (2012).
  7. S. Lany and A. Zunger, Assessment of correction methods for the band-gap problem and for finite-size effects in supercell defect calculations: Case studies for ZnO and GaAs, Phys. Rev. B 78, 235104 (2008).
  8. H. Peng, D. O. Scanlon, V. Stevanovic, J. Vidal, G. W. Watson, and S. Lany, Convergence of density and hybrid functional defect calculations for compound semiconductors, Phys. Rev. B 88, 115201 (2013).
  9. C. Freysoldt, B. Grabowski, T. Hickel, J. Neugebauer, G. Kresse, A. Janotti, and C. G. Van de Walle, First-principles calculations for point defects in solids, Rev. Mod. Phys. 86, 253 (2014).
  10. H.-P. Komsa, T. T. Rantala, and A. Pasquarello, Finite-size supercell correction schemes for charged defect calculations, Phys. Rev. B 86, 045112 (2012).
  11. Y. Kumagai and F. Oba, Electrostatics-based finite-size corrections for first-principles point defect calculations, Phys. Rev. B 89, 195205 (2014).
  12. S. Kim, S. N. Hood, J.-S. Park, L. D. Whalley, and A. Walsh, Quick-start guide for first-principles modelling of point defects in crystalline materials, J. Phys.: Energy 2, 036001 (2020).
  13. A. Goyal, P. Gorai, H. Peng, S. Lany, and V. Stevanović, A computational framework for automation of point defect calculations, Comput. Mater. Sci. 130, 1 (2017).
  14. M. H. Naik and M. Jain, CoFFEE: Corrections for formation energy and eigenvalues for charged defect simulations, Comput. Phys. Commun. 226, 114 (2018).
  15. E. Péan, J. Vidal, S. Jobic, and C. Latouche, Presentation of the PyDEF post-treatment python software to compute publishable charts for defect energy formation, Chem. Phys. Lett. 671, 124 (2017).
  16. D. Broberg, B. Medasani, N. E. R. Zimmermann, G. Yu, A. Canning, M. Haranczyk, M. Asta, and G. Hautier, PyCDT: A ppython toolkit for modeling point defects in semiconductors and insulators, Comput. Phys. Commun. 226, 165 (2018).
  17. N. M. Johnson, D. J. Bartelink, R. B. Gold, and J. F. Gibbons, Constant-capacitance DLTS measurement of defect-density profiles in semiconductors, J. Appl. Phys. 50, 4828 (1979).
  18. M. Zhou, W. Wang, J. Lu, and Z. Ni, How defects influence the photoluminescence of TMDCs, Nano Res. 14, 29 (2021).
  19. R. Sauer and J. Weber, Photoluminescence characterization of deep defects in silicon, Physica B+C 116, 195 (1983).
  20. H. Nan, Z. Wang, W. Wang, Z. Liang, Y. Lu, Q. Chen, D. He, P. Tan, F. Miao, X. Wang, et al., Strong photoluminescence enhancement of MoS2 through defect engineering and oxygen bonding, ACS Nano 8, 5738 (2014).
  21. G. D. Watkins and J. W. Corbett, Defects in irradiated silicon: Electron paramagnetic resonance of the divacancy, Phys. Rev. 138, A543 (1965).
  22. L. S. Vlasenko and G. D. Watkins, Optical detection of electron paramagnetic resonance for intrinsic defects produced in ZnO by 2.5-MeV electron irradiation in situ at 4.2 K, Phys. Rev. B 72, 035203 (2005).
  23. M. Fanciulli and T. D. Moustakas, Study of defects in wide band gap semiconductors by electron paramagnetic resonance, Phys. B: Condens. Matter 185, 228 (1993).
  24. S. W. S. McKeever, Thermoluminescence of Solids (Cambridge University Press, 1985), Vol. 3.
  25. E. T. Rodine and P. L. Land, Electronic defect structure of single-crystal ThO2 by thermoluminescence, Phys. Rev. B 4, 2701 (1971).
  26. F. Aryasetiawan and O. Gunnarsson, The GW method, Rep. Prog. Phys. 61, 237 (1998).
  27. A. F. Kohan, G. Ceder, D. Morgan, and C. G. Van de Walle, First-principles study of native point defects in ZnO, Phys. Rev. B 61, 15019 (2000).
  28. P. Gorai, D. Krasikov, S. Grover, G. Xiong, W. K. Metzger, and V. Stevanović, A search for new back contacts for CdTe solar cells, Sci. Adv. 9, eade3761 (2023).
  29. M. Y. Toriyama, J. Qu, G. Jeffrey Snyder, and P. Gorai, Defect chemistry and doping of BiCuSeO, J. Mater. Chem. A 9, 20685 (2021).
  30. A. G. Squires, D. O. Scanlon, and B. J. Morgan, py-sc-fermi: Self-consistent Fermi energies and defect concentrations from electronic structure calculations, J. Open Source Software 8 (2023).
  31. A. Alkauskas, P. Broqvist, and A. Pasquarello, Defect energy levels in density functional calculations: Alignment and band gap problem, Phys. Rev. Lett. 101, 046405 (2008).
  32. W. Chen and A. Pasquarello, Accuracy of GW for calculating defect energy levels in solids, Phys. Rev. B 96, 020101 (2017).
  33. D. Meggiolaro, S. G. Motti, E. Mosconi, A. J. Barker, J. Ball, C. A. R. Perini, F. Deschler, A. Petrozza, and F. De Angelis, Iodine chemistry determines the defect tolerance of lead-halide perovskites, Energy & Environ. Sci. 11, 702 (2018).
  34. P. Gorai, E. S. Toberer, and V. Stevanović, Effective n-type doping of Mg3Sb2 with group-3 elements, J. Appl. Phys. 125, 025105 (2019).
  35. C.-W. Lee, M. Maegawa, H. Akamatsu, K. Hayashi, S. Ohno, and P. Gorai, Local and global structural effects of doping on ionic conductivity in the Na3SbS4 solid electrolyte, ACS Mater. Lett. 7, 620 (2025).
  36. J. B. Varley, J. R. Weber, A. Janotti, and C. G. Van de Walle, Oxygen vacancies and donor impurities in β-Ga2O3, Appl. Phys. Lett. 97, 142106 (2010).
  37. J.-X. Shen and J. Varley, pymatgen-analysis-defects: A python package for analyzing point defects in crystalline materials, J. Open Source Software 9, 5941 (2024).
  38. S. R. Kavanagh, A. G. Squires, A. Nicolson, I. Mosquera-Lois, A. M. Ganose, B. Zhu, K. Brlec, A. Walsh, and D. O. Scanlon, doped: python toolkit for robust and repeatable charged defect supercell calculations, J. Open Source Software 9 (2024).
  39. M. Y. Toriyama, J. Qu, L. C. Gomes, and E. Ertekin, VTAnDeM: A python toolkit for simultaneously visualizing phase stability, defect energetics, and carrier concentrations of materials, Comput. Phys. Commun. 287, 108691 (2023).
  40. S. Falletta and A. Pasquarello, Polarons free from many-body self-interaction in density functional theory, Phys. Rev. B 106, 125119 (2022).
  41. C. Franchini, M. Reticcioli, M. Setvin, and U. Diebold, Polarons in materials, Nat. Rev. Mater. 6, 560 (2021).
  42. W. Hong Sio, C. Verdi, S. Poncé, and F. Giustino, Ab initio theory of polarons: Formalism and applications, Phys. Rev. B 99, 235139 (2019).
  43. S. Qiao, Y.-N. Wu, X. Yan, B. Monserrat, S.-H. Wei, and B. Huang, Temperature effect on charge-state transition levels of defects in semiconductors, Phys. Rev. B 105, 115201 (2022).
  44. I. Mosquera-Lois, J. Klarbring, and A. Walsh, Point defect formation at finite temperatures with machine learning force fields, Chem. Sci. 16, 8878 (2025).
  45. B. Grabowski, T. Hickel, and J. Neugebauer, Formation energies of point defects at finite temperatures, Phys. Status Solidi (b) 248, 1295 (2011).
  46. K. Aaditta Arnab, M. Stephens, I. Maxfield, C. Lee, E. Ertekin, Y. K. Frodason, J. B. Varley, and M. A. Scarpulla, Quantitative modeling of point defects in β-Ga2O3 combining hybrid functional energetics with semiconductor and processes thermodynamics, Phys. Chem. Chem. Phys. 27, 11129 (2025).
