Zero-Vacuum-Gap Thermophotonics

Mohammad Habibi1 and Longji Cui1,2,*

  • *Contact author: longji.cui@colorado.edu
PDF

PRX Energy 5, 013005 – Published 29 January, 2026

DOI: https://doi.org/10.1103/ff2l-d85y

Abstract

Thermophotonic (TPX) devices offer a promising pathway to overcome the power density and efficiency trade-offs of thermophotovoltaics (TPVs) by using biased light-emitting diodes (LEDs) as active infrared photon emitters. However, practical implementation of TPXs has been limited by stringent demands requiring the LED to operate at high temperatures, as well as the need for near-perfect external quantum efficiency (EQE) to enable self-sustaining (i.e., no external power supply) operation. Here, we introduce a zero-vacuum-gap thermophotonic (zTPX) architecture that integrates a high-refractive-index solid-state spacer between the LED and the photovoltaic cells, which forms an optical cavity that minimizes index mismatch and enables high photon concentration. This design enhances both power density and efficiency, over 40-fold power improvement, and up to doubled efficiency enhancement compared to conventional far-field TPX, allowing the operation of TPXs at relatively lower temperatures, at which high-performance LEDs are available. Furthermore, we show that the zTPX structure achieves a record-breaking EQE of approximately 98%, which enables a self-sustaining TPX circuit with a sizable power output. These combined performance gains position zTPX as a highly practical thermophotonic solution for thermal energy conversion and utilization at low to moderate temperatures (<1000 °C), including industrial waste-heat recovery, distributed power generation, and portable heat-to-electricity converters.

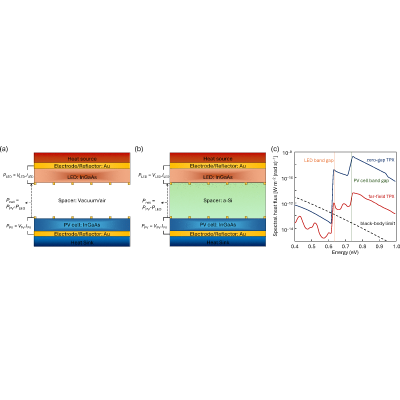

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

Up to two-thirds of conventionally generated electricity ends up as waste heat, and much of this waste heat is at low to moderate temperatures below 1000 ∘C. Capturing and converting this lost heat into usable power is a key opportunity to boost energy efficiency and mitigate carbon emissions. Emerging solid-state technologies that directly turn heat into electricity must operate efficiently at these moderate temperatures to compete with traditional energy technologies. However, thermophotovoltaic (TPV) systems mostly work at extremely high temperatures, and thermophotonic (TPX) systems, which offer great promise at moderate temperatures, exhibit poor efficiency and power density. Here, the authors present a new zero-vacuum-gap TPX (zTPX) design that swaps the gap in conventional TPX devices for an infrared transparent, high-index solid material placed between a light-emitting diode and a photovoltaic cell. This scalable and compact device architecture dramatically improves energy conversion, resulting in near-perfect external quantum efficiency, over 40 times higher power output, and lower working temperature for thermal emitters. This approach offers a viable route to harness untapped heat sources for power generation in numerous industrial applications.

Article Text

Supplemental Material

References (49)

  1. A. LaPotin, K. L. Schulte, M. A. Steiner, K. Buznitsky, C. C. Kelsall, D. J. Friedman, E. J. Tervo, R. M. France, M. R. Young, A. Rohskopf, S. Verma, E. N. Wang, and A. Henry, Thermophotovoltaic efficiency of 40%, Nature 604, 287 (2022).
  2. E. López, I. Artacho, and A. Datas, Thermophotovoltaic conversion efficiency measurement at high view factors, Sol. Energy Mater. Sol. Cells 250, 112069 (2023).
  3. D. Fan, T. Burger, S. McSherry, B. Lee, A. Lenert, and S. R. Forrest, Near-perfect photon utilization in an air-bridge thermophotovoltaic cell, Nature 586, 237 (2020).
  4. E. J. Tervo, R. M. France, D. J. Friedman, M. K. Arulanandam, R. R. King, T. C. Narayan, C. Luciano, D. P. Nizamian, B. A. Johnson, A. R. Young, L. Y. Kuritzky, E. E. Perl, M. Limpinsel, B. M. Kayes, A. J. Ponec, D. M. Bierman, J. A. Briggs, and M. A. Steiner, Efficient and scalable GaInAs thermophotovoltaic devices, Joule 6, 2566 (2022).
  5. Z. Omair, G. Scranton, L. M. Pazos-Outón, T. P. Xiao, M. A. Steiner, V. Ganapati, P. F. Peterson, J. Holzrichter, H. Atwater, and E. Yablonovitch, Ultraefficient thermophotovoltaic power conversion by band-edge spectral filtering, Proc. Natl. Acad. Sci. U. S. A. 116, 15356 (2019).
  6. B. Roy-Layinde, J. Lim, C. Arneson, S. R. Forrest, and A. Lenert, High-efficiency air-bridge thermophotovoltaic cells, Joule 8, 2135 (2024).
  7. T. Burger, C. Sempere, B. Roy-Layinde, and A. Lenert, Present efficiencies and future opportunities in thermophotovoltaics, Joule 4, 1660 (2020).
  8. A. Datas, P. Bondavalli, and A. M. Pantaleo, Embracing thermophotovoltaic electricity: Pathways to market adoption, Sol. Energy Mater. Sol. Cells 283, 113419 (2025).
  9. M. A. Green, Third generation photovoltaics: Ultra-high conversion efficiency at low cost, Prog. Photovolt.: Res. Appl. 9, 123 (2001).
  10. B. D. Buckner and B. Heeg, Power generation by thermally assisted electroluminescence: Like optical cooling, but different, Proc. SPIE 6907, 97 (2008).
  11. G. Cohn, J. Wang, N.-P. Harder, and M. A. Green, Thermophotonics, Semicond. Sci. Technol. 18, S270 (2003).
  12. T. Sadi, I. Radevici, and J. Oksanen, Thermophotonic cooling with light-emitting diodes, Nat. Photonics 14, 205 (2020).
  13. D. J. Farrell, H. Sodabanlu, Y. Wang, M. Sugiyama, and Y. Okada, A hot-electron thermophotonic solar cell demonstrated by thermal up-conversion of sub-bandgap photons, Nat. Commun. 6, 8685 (2015).
  14. B. Zhao, S. Buddhiraju, P. Santhanam, K. Chen, and S. Fan, Self-sustaining thermophotonic circuits, Proc. Natl. Acad. Sci. U. S. A. 116, 11596 (2019).
  15. W. Chan, R. Huang, C. Wang, J. Kassakian, J. Joannopoulos, and I. Celanovic, Modeling low-bandgap thermophotovoltaic diodes for high-efficiency portable power generators, Sol. Energy Mater. Sol. Cells 94, 509 (2010).
  16. K. R. Catchpole, K. L. Lin, P. Campbell, M. A. Green, A. W. Bett, and F. Dimroth, High external quantum efficiency of planar semiconductor structures, Semicond. Sci. Technol. 19, 1232 (2004).
  17. K. L. Lin, K. R. Catchpole, P. Campbell, and M. A. Green, High external quantum efficiency from double heterostructure InGaP/GaAs layers as selective emitters for thermophotonic systems, Semicond. Sci. Technol. 19, 1268 (2004).
  18. M. Habibi, A. Beardo, and L. Cui, Near-field thermal radiation as a probe of nanoscale hot electron and phonon transport, ACS Nano 19, 6033 (2025).
  19. R. Mittapally, A. Majumder, P. Reddy, and E. Meyhofer, Near-field thermophotovoltaic energy conversion: Progress and opportunities, Phys. Rev. Appl. 19, 037002 (2023).
  20. A. Fiorino, L. Zhu, D. Thompson, R. Mittapally, P. Reddy, and E. Meyhofer, Nanogap near-field thermophotovoltaics, Nat. Nanotechnol. 13, 806 (2018).
  21. G. T. Papadakis, S. Buddhiraju, Z. Zhao, B. Zhao, and S. Fan, Broadening near-field emission for performance enhancement in thermophotovoltaics, Nano Lett. 20, 1654 (2020).
  22. M. Laroche, R. Carminati, and J. J. Greffet, Near-field thermophotovoltaic energy conversion, J. Appl. Phys. 100, 63704 (2006).
  23. A. Narayanaswamy and G. Chen, Surface modes for near field thermophotovoltaics, Appl. Phys. Lett. 82, 3544 (2003).
  24. J. Song, J. Han, M. Choi, and B. J. Lee, Modeling and experiments of near-field thermophotovoltaic conversion: A review, Sol. Energy Mater. Sol. Cells 238, 111556 (2022).
  25. G. R. Bhatt, B. Zhao, S. Roberts, I. Datta, A. Mohanty, T. Lin, J. M. Hartmann, R. St-Gelais, S. Fan, and M. Lipson, Integrated near-field thermo-photovoltaics for heat recycling, Nat. Commun. 11 (1), 2545 (2020).
  26. C. Lucchesi, D. Cakiroglu, J.-P. Perez, T. Taliercio, E. Tournié, P.-O. Chapuis, and R. Vaillon, Near-field thermophotovoltaic conversion with high electrical power density and cell efficiency above 14%, Nano Lett. 21, 4524 (2021).
  27. T. Inoue, T. Koyama, D. D. Kang, K. Ikeda, T. Asano, and S. Noda, One-chip near-field thermophotovoltaic device integrating a thin-film thermal emitter and photovoltaic cell, Nano Lett. 19, 3948 (2019).
  28. L. Cui, W. Jeong, V. Fernández-Hurtado, J. Feist, F. J. García-Vidal, J. C. Cuevas, E. Meyhofer, and P. Reddy, Study of radiative heat transfer in Ångström- and nanometre-sized gaps, Nat. Commun. 8, 1 (2017).
  29. K. Kim, B. Song, V. Fernández-Hurtado, W. Lee, W. Jeong, L. Cui, D. Thompson, J. Feist, M. T. H. Reid, F. J. García-Vidal, J. C. Cuevas, E. Meyhofer, and P. Reddy, Radiative heat transfer in the extreme near field, Nature 528 (7582), 387 (2015).
  30. B. Zhao, P. Santhanam, K. Chen, S. Buddhiraju, and S. Fan, Near-field thermophotonic systems for low-grade waste-heat recovery, Nano Lett. 18, 5224 (2018).
  31. R. Mittapally, B. Lee, L. Zhu, A. Reihani, J. W. Lim, D. Fan, S. R. Forrest, P. Reddy, and E. Meyhofer, Near-field thermophotovoltaics for efficient heat to electricity conversion at high power density, Nat. Commun. 12, 4364 (2021).
  32. M. Habibi and L. Cui, Modelling and performance analysis of a novel thermophotovoltaic system with enhanced radiative heat transfer for combined heat and power generation, Appl. Energy 343, 121221 (2023).
  33. M. Habibi, S. C. Yelishala, Y. Zhu, E. J. Tervo, M. A. Steiner, and L. Cui, Enhanced power density in zero-vacuum-gap thermophotovoltaic devices, Energy Environ. Sci. 18, 1514 (2025).
  34. S. Fan, Thermal photonics and energy applications, Joule 1, 264 (2017).
  35. K. Chen, T. P. Xiao, P. Santhanam, E. Yablonovitch, and S. Fan, High-performance near-field electroluminescent refrigeration device consisting of a GaAs light emitting diode and a Si photovoltaic cell, J. Appl. Phys. 122, 1 (2017).
  36. D. Feng, E. J. Tervo, D. Vasileska, S. K. Yee, A. Rohatgi, and Z. M. Zhang, Spatial profiles of photon chemical potential in near-field thermophotovoltaic cells, J. Appl. Phys. 129, 213101 (2021).
  37. P. Wurfel, The chemical potential of radiation, J. Phys. C: Solid State Phys. 15, 3967 (1982).
  38. See the Supplemental Material at http://link.aps.org/supplemental/10.1103/ff2l-d85y for details of the multilayer radiative transfer model, the recombination losses, the self-sustaining TPX circuit analysis, and additional figures. The Supplemental Material includes the following references: [[3, 4, 14, 31, 43, 44, 45]].
  39. D. T. Pierce and W. E. Spicer, Electronic structure of amorphous Si from photoemission and optical studies, Phys. Rev. B 5, 3017 (1972).
  40. J. M. Larkin and A. J. H. McGaughey, Thermal conductivity accumulation in amorphous silica and amorphous silicon, Phys. Rev. B 89, 144303 (2014).
  41. M. Habibi and L. Cui, Achieving simultaneously high efficiency and power density in zero-vacuum-gap thermophotovoltaic devices, ACS Photonics 12, 5623 (2025).
  42. A. I. Zhmakin, Enhancement of light extraction from light emitting diodes, Phys. Rep. 498, 189 (2011).
  43. M. Francoeur, M. Pinar Mengüç, and R. Vaillon, Solution of near-field thermal radiation in one-dimensional layered media using dyadic Green’s functions and the scattering matrix method, J. Quant. Spectrosc. Radiat. Transfer 110, 2002 (2009).
  44. S. Paul, J. B. Roy, and P. K. Basu, Empirical expressions for the alloy composition and temperature dependence of the band gap and intrinsic carrier density in GaxIn1−xAs, J. Appl. Phys. 69, 827 (1991).
  45. NSM Archive—Gallium Indium Arsenide GaInAs)—Band Structure, https://www.ioffe.ru/SVA/NSM/Semicond/GaInAs/bandstr.html.
  46. D. N. Woolf, E. A. Kadlec, J. G. Cederberg, E. A. Shaner, J. M. Hensley, A. D. Grine, D. Bethke, T. S. Luk, D. Bruce Burckel, and J. J. Nogan, High-efficiency thermophotovoltaic energy conversion enabled by a metamaterial selective emitter, Optica 5 (2), 213 (2018).
  47. T. C. Narayan, L. Y. Kuritzky, D. P. Nizamian, B. A. Johnson, E. J. Tervo, A. R. Young, C. Luciano, M. K. Arulanandam, B. M. Kayes, E. E. Perl, M. Limpinsel et al., World record demonstration of > 30% thermophotovoltaic conversion efficiency, in 2020 47th IEEE Photovoltaic Specialists Conference (PVSC) (2020), pp. 1792–1795.
  48. B. Lee, R. Lentz, T. Burger, B. Roy-Layinde, J. Lim, R. M. Zhu, D. Fan, A. Lenert, and S. R. Forrest, Air-bridge Si thermophotovoltaic cell with high photon utilization, ACS Energy Lett. 7, 2388 (2022).
  49. J. Lim, B. Roy-Layinde, B. Liu, A. Lenert, and S. R. Forrest, Enhanced photon utilization in single cavity mode air-bridge thermophotovoltaic cells, ACS Energy Lett. 8, 2935 (2023).
