Spatially Resolved Vibronic Excitations of an Isolated Adsorbed Organometallic Complex via Multiple Tunneling Channels

Xiangzhi Meng1,*, Kai Uwe Clausen2, Marie-Laure Bocquet3, Alexander Weismann1, Niklas Ide1, Felix Tuczek2, and Richard Berndt1

  • *Contact author: meng@physik.uni-kiel.de
PDF

Phys. Rev. Lett. 135, 136202 – Published 24 September, 2025

DOI: https://doi.org/10.1103/xxtf-98vs

Abstract

Vibronic excitations of molecules at nanoscale interfaces are important for molecular electronics and spintronics and have therefore attracted considerable attention. For single molecules in mechanically controlled break junctions or in a scanning tunneling microscope (STM), vibronic excitations are typically described by a double-barrier tunneling junction model. In this model, a homogeneous electric field is considered and the atomic structure of the metal contacts is neglected. Here, we report experimental STM data of a new nonplanar organometallic complex, [Mo(CO)3(Pyridine3S3)], on Ag(111). Spatially resolved maps of the vibronic excitations show several features related to the reordering of the occupied molecular orbitals due to the rapidly decaying potential of the tip apex. Such rearrangement leads to a significant shift in the vibronic levels as the tip position is changed. These observations, together with our modelling results, demonstrate that the molecular orbitals can be controlled by the field of the STM tip, whose atomic-scale variation deserves more attention in studies of nonplanar molecules.

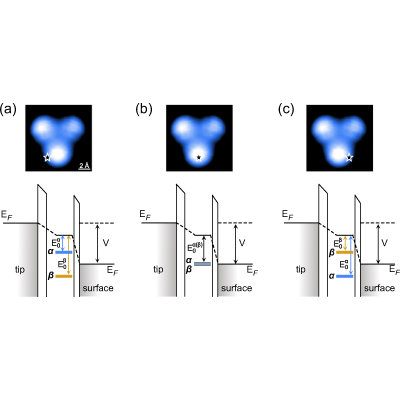

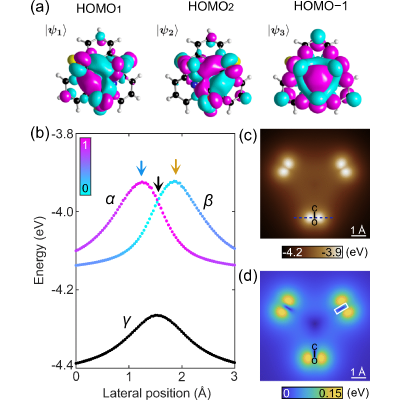

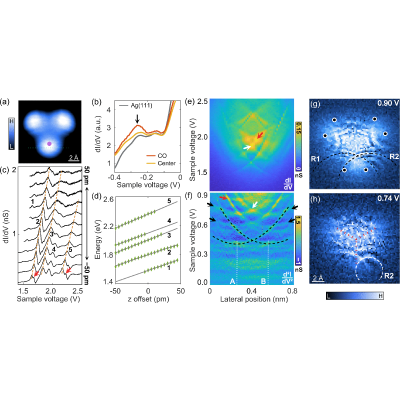

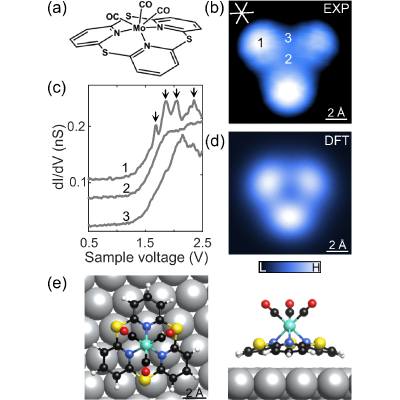

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (45)

  1. J. Franck and E. G. Dymond, Elementary processes of photochemical reactions, Trans. Faraday Soc. 21, 536 (1926).
  2. E. Condon, A theory of intensity distribution in band systems, Phys. Rev. 28, 1182 (1926).
  3. J. K. Viljas, J. C. Cuevas, F. Pauly, and M. Häfner, Electron-vibration interaction in transport through atomic gold wires, Phys. Rev. B 72, 245415 (2005).
  4. J. Koch, F. von Oppen, and A. V. Andreev, Theory of the Franck-Condon blockade regime, Phys. Rev. B 74, 205438 (2006).
  5. M. Galperin, M. A. Ratner, and A. Nitzan, Molecular transport junctions: Vibrational effects, J. Phys. Condens. Matter 19, 103201 (2007).
  6. R. Härtle and M. Thoss, Resonant electron transport in single-molecule junctions: Vibrational excitation, rectification, negative differential resistance, and local cooling, Phys. Rev. B 83, 115414 (2011).
  7. K. J. Franke and J. I. Pascual, Effects of electron–vibration coupling in transport through single molecules, J. Phys. Condens. Matter 24, 394002 (2012).
  8. J. Sukegawa, C. Schubert, X. Zhu, H. Tsuji, D. M. Guldi, and E. Nakamura, Electron transfer through rigid organic molecular wires enhanced by electronic and electron–vibration coupling, Nat. Chem. 6, 899 (2014).
  9. X. H. Qiu, G. V. Nazin, and W. Ho, Vibronic states in single molecule electron transport, Phys. Rev. Lett. 92, 206102 (2004).
  10. S. W. Wu, G. V. Nazin, X. Chen, X. H. Qiu, and W. Ho, Control of relative tunneling rates in single molecule bipolar electron transport, Phys. Rev. Lett. 93, 236802 (2004).
  11. N. A. Pradhan, N. Liu, and W. Ho, Vibronic spectroscopy of single C60 molecules and monolayers with the STM, J. Phys. Chem. B 109, 8513 (2005).
  12. G. V. Nazin, S. W. Wu, and W. Ho, Tunneling rates in electron transport through double-barrier molecular junctions in a scanning tunneling microscope, Proc. Natl. Acad. Sci. U.S.A. 102, 8832 (2005).
  13. T. Frederiksen, K. J. Franke, A. Arnau, G. Schulze, J. I. Pascual, and N. Lorente, Dynamic Jahn-Teller effect in electronic transport through single C60 molecules, Phys. Rev. B 78, 233401 (2008).
  14. F. Matino, G. Schull, F. Köhler, S. Gabutti, M. Mayor, and R. Berndt, Electronic decoupling of a cyclophane from a metal surface, Proc. Natl. Acad. Sci. U.S.A. 108, 961 (2011).
  15. F. Schulz, R. Drost, S. K. Hämäläinen, and P. Liljeroth, Templated self-assembly and local doping of molecules on epitaxial hexagonal boron nitride, ACS Nano 7, 11121 (2013).
  16. S. Wickenburg, J. Lu, J. Lischner, H.-Z. Tsai, A. A. Omrani, A. Riss, C. Karrasch, A. Bradley, H. S. Jung, R. Khajeh, D. Wong, K. Watanabe, T. Taniguchi, A. Zettl, A. C. Neto, S. G. Louie, and M. F. Crommie, Tuning charge and correlation effects for a single molecule on a graphene device, Nat. Commun. 7, 13553 (2016).
  17. N. Krane, C. Lotze, G. Reecht, L. Zhang, A. L. Briseno, and K. J. Franke, High-resolution vibronic spectra of molecules on molybdenum disulfide allow for rotamer identification, ACS Nano 12, 11698 (2018).
  18. G. Reecht, N. Krane, C. Lotze, L. Zhang, A. L. Briseno, and K. J. Franke, Vibrational excitation mechanism in tunneling spectroscopy beyond the Franck-Condon model, Phys. Rev. Lett. 124, 116804 (2020).
  19. C. Li, C. Kaspar, P. Zhou, J.-C. Liu, O. Chahib, T. Glatzel, R. Häner, U. Aschauer, S. Decurtins, S.-X. Liu, M. Thoss, E. Meyer, and R. Pawlak, Strong signature of electron-vibration coupling in molecules on Ag(111) triggered by tip-gated discharging, Nat. Commun. 14, 5956 (2023).
  20. S. W. Wu, N. Ogawa, and W. Ho, Atomic-scale coupling of photons to single-molecule junctions, Science 312, 1362 (2006).
  21. K. Teichmann, M. Wenderoth, S. Loth, R. G. Ulbrich, J. K. Garleff, A. P. Wijnheijmer, and P. M. Koenraad, Controlled charge switching on a single donor with a scanning tunneling microscope, Phys. Rev. Lett. 101, 076103 (2008).
  22. I. Fernández-Torrente, D. Kreikemeyer-Lorenzo, A. Stróżecka, K. J. Franke, and J. I. Pascual, Gating the charge state of single molecules by local electric fields, Phys. Rev. Lett. 108, 036801 (2012).
  23. S. Ulstrup, T. Frederiksen, and M. Brandbyge, Nonequilibrium electron-vibration coupling and conductance fluctuations in a C60 junction, Phys. Rev. B 86, 245417 (2012).
  24. N. Néel, J. Kröger, and R. Berndt, Two-level conductance fluctuations of a single-molecule junction, Nano Lett. 11, 3593 (2011).
  25. C. Girard, C. Joachim, C. Chavy, and P. Sautet, The electric field under a STM tip apex: Implications for adsorbate manipulation, Surf. Sci. 282, 400 (1993).
  26. M. Devel, C. Girard, and C. Joachim, Computation of electrostatic fields in low-symmetry systems: Application to STM configurations, Phys. Rev. B 53, 13159 (1996).
  27. R. Berndt, R. Gaisch, W. D. Schneider, J. K. Gimzewski, B. Reihl, R. R. Schlittler, and M. Tschudy, Atomic resolution in photon emission induced by a scanning tunneling microscope, Phys. Rev. Lett. 74, 102 (1995).
  28. R. Zhang, Y. Zhang, Z. C. Dong, S. Jiang, C. Zhang, L. G. Chen, L. Zhang, Y. Liao, J. Aizpurua, Y. Luo, J. L. Yang, and J. G. Hou, Chemical mapping of a single molecule by plasmon-enhanced Raman scattering, Nature (London) 498, 82 (2013).
  29. M. Imai-Imada, H. Imada, K. Miwa, Y. Tanaka, K. Kimura, I. Zoh, R. B. Jaculbia, H. Yoshino, A. Muranaka, M. Uchiyama, and Y. Kim, Orbital-resolved visualization of single-molecule photocurrent channels, Nature (London) 603, 829 (2022).
  30. A. Rosławska, T. Neuman, B. Doppagne, A. G. Borisov, M. Romeo, F. Scheurer, J. Aizpurua, and G. Schull, Mapping Lamb, Stark, and Purcell effects at a Chromophore-Picocavity junction with hyper-resolved fluorescence microscopy, Phys. Rev. X 12, 011012 (2022).
  31. D. Mateos, O. Jover, M. Varea, K. Lauwaet, D. Granados, R. Miranda, A. I. Fernandez-Dominguez, A. Martin-Jimenez, and R. Otero, Directional picoantenna behavior of tunnel junctions formed by an atomic-scale surface defect, Sci. Adv. 10, eadn2295 (2024).
  32. N. Krane, C. Lotze, N. Bogdanoff, G. Reecht, L. Zhang, A. L. Briseno, and K. J. Franke, Mapping the perturbation potential of metallic and dipolar tips in tunneling spectroscopy on MoS2, Phys. Rev. B 100, 035410 (2019).
  33. See Supplemental Material at http://link.aps.org/supplemental/10.1103/xxtf-98vs for additional experimental details, computational methods, and supporting data, including Refs. [34–39].
  34. G. Kresse and J. Furthmüller, Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set, Phys. Rev. B 54, 11169 (1996).
  35. J. P. Perdew, K. Burke, and M. Ernzerhof, Generalized gradient approximation made simple, Phys. Rev. Lett. 77, 3865 (1996).
  36. S. Grimme, J. Antony, S. Ehrlich, and H. Krieg, A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu, J. Chem. Phys. 132, 154104 (2010).
  37. P. E. Blöchl, Projector augmented-wave method, Phys. Rev. B 50, 17953 (1994).
  38. M.-L. Bocquet, H. Lesnard, S. Monturet, and N. Lorente, Theory of elastic and inelastic electron tunneling, in Computational Methods in Catalysis and Materials Science, edited by R. van Santen and P. Sautet (John Wiley & Sons, Ltd, Oxford, 2009), Chap. 11, pp. 199–219.
  39. M. J. Frisch et al., Gaussian 16∼ Revision C.01, (2016), gaussian Inc., Wallingford, CT.
  40. K. U. Clausen, X. Meng, K. Reisig, C. Näther, T. Strunskus, R. Berndt, and F. Tuczek, Monolayers of a thiacalix[3]pyridine-supported molybdenum(0) tricarbonyl complex on Au(111): Characterisation with surface spectroscopy and scanning tunneling microscopy, Dalton Trans. 53, 18304 (2024).
  41. N. Kocić, S. Decurtins, S.-X. Liu, and J. Repp, Forces from periodic charging of adsorbed molecules, J. Chem. Phys. 146, 092327 (2017).
  42. M. Bai, C. S. Cucinotta, Z. Jiang, H. Wang, Y. Wang, I. Rungger, S. Sanvito, and S. Hou, Current-induced phonon renormalization in molecular junctions, Phys. Rev. B 94, 035411 (2016).
  43. H. Zheng, A. Weismann, and R. Berndt, Manipulation of subsurface donors in ZnO, Phys. Rev. Lett. 110, 226101 (2013).
  44. N. Kocić, P. Weiderer, S. Keller, S. Decurtins, S.-X. Liu, and J. Repp, Periodic charging of individual molecules coupled to the motion of an atomic force microscopy tip, Nano Lett. 15, 4406 (2015).
  45. C. Girard, J. Vigoureux, D. V. Labeke, and P. Grossel, Effective polarizability of two interacting adsorbed atoms, Chem. Phys. 114, 209 (1987).
