Algebraic Loop Liquid in the Pyrochlore CsNiCrF6

A. Hemmatzade1,*, C. Balz2,†, J. Ollivier3, E. Lhotel4, N. Colonna5, A. dos Santos Rufino6, G. J. Nilsen2, Ø. S. Fjellvåg1,7, M. Medarde1 et al.

S. T. Bramwell8, M. J. Harris9, P. M. Derlet5,‡, and T. Fennell1,§

  • *Present Address: Pasargad Institute for Advanced Innovative Solutions (PIAIS), Tehran, 19395-5531, Iran.
  • †Present address: European Spallation Source ERIC, SE 21100 Lund, Sweden.
  • ‡Contact author: peter.derlet@psi.ch
  • §Contact author: tom.fennell@psi.ch
PDF

Phys. Rev. Lett. 136, 106701 – Published 13 March, 2026

DOI: https://doi.org/10.1103/xvxt-whns

Abstract

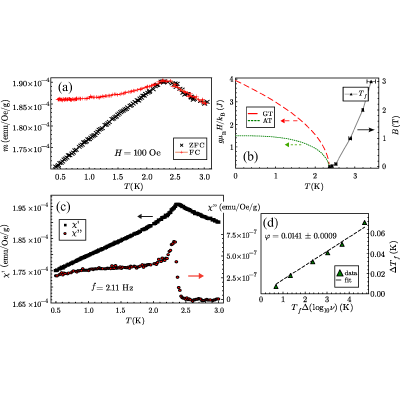

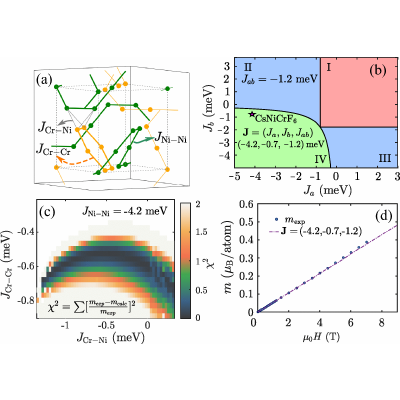

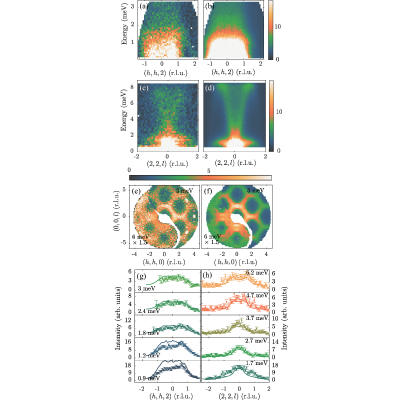

The β-pyrochlore CsNiCrF6 is a charge ice—each tetrahedron of the pyrochlore lattice is occupied by two Ni2+ and two Cr3+ according to an ice rule, resulting in fully packed same-species loops with power-law length distribution. Using inelastic neutron scattering and numerical simulations, we show that the spin dynamics can be well described by a model with three antiferromagnetic interaction strengths, one for Ni–Ni, Cr–Ni, and Cr–Cr interactions. Because the strengths of the two intraloop interactions are quite different, the fluctuations of each type of loop can be identified in the spectrum. CsNiCrF6 therefore forms an algebraic loop liquid in which power-law cation correlations control the spin dynamics. Our parameters predict a transition to spin nematic order with associated arrest of dynamics at Tn≈0.55  K, while we observe a freezing transition at Tf=2.3  K. Measurements of magnetization, ac, and nonlinear susceptibility show that this is not a canonical spin glass transition so we associate it with the development of slow dynamics due to interloop nematic correlations.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (64)

  1. P. W. Anderson, Phys. Rev. 102, 1008 (1956).
  2. Y. Okamoto, H. Amano, N. Katayama, H. Sawa, K. Niki, R. Mitoka, H. Harima, T. Hasegawa, N. Ogita, Y. Tanaka, M. Takigawa, Y. Yokoyama, K. Takehana, Y. Imanaka, Y. Nakamura, H. Kishida, and K. Takenaka, Nat. Commun. 11, 3144 (2020).
  3. P. A. McClarty, A. O’Brien, and F. Pollmann, Phys. Rev. B 89, 195123 (2014).
  4. C. L. Henley, Annu. Rev. Condens. Matter Phys. 1, 179 (2010).
  5. L. D. C. Jaubert, M. Haque, and R. Moessner, Phys. Rev. Lett. 107, 177202 (2011).
  6. S. T. Banks and S. T. Bramwell, Europhys. Lett. 97, 27005 (2012).
  7. M. E. Brooks-Bartlett, S. T. Banks, L. D. C. Jaubert, A. Harman-Clark, and P. C. W. Holdsworth, Phys. Rev. X 4, 011007 (2014).
  8. E. Lhotel, L. D. C. Jaubert, and P. C. W. Holdsworth, J. Low Temp. Phys. 201, 710 (2020).
  9. A. Hemmatzade, K. Essafi, M. Taillefumier, M. Müller, T. Fennell, and P. M. Derlet, Phys. Rev. B 109, 224423 (2024).
  10. M. J. Harris, M. P. Zinkin, and T. Zeiske, Phys. Rev. B 52, R707 (1995).
  11. M. P. Zinkin, M. J. Harris, and T. Zeiske, Phys. Rev. B 56, 11786 (1997).
  12. T. Fennell, M. J. Harris, S. Calder, M. Ruminy, M. Boehm, P. Steffens, M. H. Lemée-Cailleau, O. Zaharko, A. Cervellino, and S. T. Bramwell, Nat. Phys. 15, 60 (2019).
  13. P. H. Conlon and J. T. Chalker, Phys. Rev. Lett. 102, 237206 (2009).
  14. P. H. Conlon, Aspects of frustrated magnetism, Ph.D. thesis, University of Oxford, 2010, 10.5287/ora-qzn6gj58q.
  15. R. I. Bewley, J. W. Taylor, and S. M. Bennington, Nucl. Instrum. Methods Phys. Res., Sect. A 637, 128 (2011).
  16. J. Ollivier and M. Zanotti, Collect. SFN 10, 379 (2010).
  17. A. Hemmatzade, T. Fennell, and C. Balz, Magnetic and structural dynamics in the multiple Coulomb phase CsNiCrF6, STFC ISIS Neutron and Muon Source, 10.5286/ISIS.E.RB1920209 (2020).
  18. A. Hemmatzade, T. Fennell, and J. Ollivier, Studying the universal properties of pyrochlore Heisenberg antiferromaget in the presence of correlated disorder, Institut Laue-Langevin (ILL), 10.5291/ILL-DATA.4-05-865 (2023).
  19. C. Paulsen, Introduction to Physical Techniques in Molecular Magnetism: Structural and Macroscopic Techniques–Yesa 1999, edited by F. Palacio, E. Ressouche, and J. Schweizer (Servico de Publicaciones de la Universidad de Zaragoza, Zaragoza, 2001), p. 1.
  20. See Supplemental Material at http://link.aps.org/supplemental/10.1103/xvxt-whns for further details of DFT calculations, fitting of magnetization, Monte Carlo simulations of susceptibility, simulations of spin dynamics, further discussion of the role of JNi−Cr on the form of the spectrum, calculation of the Curie-Weiss temperature, numerical investigation of charge ice defects, simulations of spin relaxation, relationship of the dynamics with those of the PHAFM, extraction of experimental spin relaxation rate, measurement of the heat capacity, and attempts to measure the nonlinear susceptibility, which includes Refs. [21–37].
  21. P. Giannozzi et al., J. Phys. Condens. Matter 21, 395502 (2009).
  22. P. Giannozzi et al., J. Phys. Condens. Matter 29, 465901 (2017).
  23. J. P. Perdew, K. Burke, and M. Ernzerhof, Phys. Rev. Lett. 77, 3865 (1996).
  24. A. I. Liechtenstein, V. I. Anisimov, and J. Zaanen, Phys. Rev. B 52, R5467(R) (1995).
  25. G. Prandini, A. Marrazzo, I. E. Castelli, N. Mounet, and N. Marzari, npj Comput. Mater. 4, 72 (2018).
  26. G. Prandini, A. Marrazzo, I. Castelli, N. Mounet, and N. Marzari, https://archive.materialscloud.org/record/2018.0001/v3 (2018).
  27. K. F. Garrity, J. W. Bennett, K. M. Rabe, and D. Vanderbilt, Comput. Mater. Sci. 81, 446 (2014).
  28. M. Cococcioni and S. de Gironcoli, Phys. Rev. B 71, 035105 (2005).
  29. I. Timrov, N. Marzari, and M. Cococcioni, Phys. Rev. B 98, 085127 (2018).
  30. I. Timrov, N. Marzari, and M. Cococcioni, Phys. Rev. B 103, 045141 (2021).
  31. S. Baroni, S. de Gironcoli, A. D. Corso, and P. Giannozzi, Rev. Mod. Phys. 73, 515 (2001).
  32. I. Timrov, N. Marzari, and M. Cococcioni, Comput. Phys. Commun. 279, 108455 (2022).
  33. Y. Miyatake, M. Yamamoto, J. J. Kim, M. Toyonaga, and O. Nagai, J. Phys. C 19, 2539 (1986).
  34. B. Canals and D. A. Garanin, Can. J. Phys. 79, 1323 (2001).
  35. N. Shannon, Eur. Phys. J. B 27, 527 (2002).
  36. J. H. van Vleck, The Theory of Electric and Magnetic Susceptibilities (Oxford, 1932).
  37. P. Schiffer and I. Daruka, Phys. Rev. B 56, 13712 (1997).
  38. D. Dahlbohm, C. Miles, H. Zhang, C. D. Batista, and K. Barros, Phys. Rev. B 106, 235154 (2022).
  39. R. Moessner and J. Chalker, Phys. Rev. Lett. 80, 2929 (1998).
  40. R. Moessner and J. T. Chalker, Phys. Rev. B 58, 12049 (1998).
  41. K. Binder and A. P. Young, Rev. Mod. Phys. 58, 801 (1986).
  42. J. A. Mydosh, Rep. Prog. Phys. 78, 052501 (2015).
  43. J. A. Mydosh, Spin Glasses: An Experimental Introduction (Taylor & Francis, London, 1993).
  44. C. A. M. Mulder, A. J. v. Duyneveldt, and J. A. Mydosh, Phys. Rev. B 25, 515 (1982).
  45. G. Toulouse and M. Gabay, J. Phys. (Paris), Lett. 42, 103 (1981).
  46. M. Gabay and G. Toulouse, Phys. Rev. Lett. 47, 201 (1981).
  47. J. R. L. de Almeida and D. J. Thouless, J. Phys. A 11, 983 (1978).
  48. K. H. Fischer, Z. Phys. B 55, 317 (1984).
  49. J. J. Prejean, E. Carré, P. Beauvillain, and J. P. Renard, J. Phys. (Paris), Colloq. 49, C8-995 (1988).
  50. M. J. P. Gingras, C. V. Stager, N. P. Raju, B. D. Gaulin, and J. E. Greedan, Phys. Rev. Lett. 78, 947 (1997).
  51. H. Shinaoka, Y. Tomita, and Y. Motome, Phys. Rev. B 90, 165119 (2014).
  52. M. J. Harris, M. Zinkin, Z. Tun, B. M. Wanklyn, and I. P. Swainson, Phys. Rev. Lett. 73, 189 (1994).
  53. L. Bellier-Castella, M. J. P. Gingras, P. C. W. Holdsworth, and R. Moessner, Can. J. Phys. 79, 1365 (2011).
  54. T. E. Saunders and J. T. Chalker, Phys. Rev. Lett. 98, 157201 (2007).
  55. H. Shinaoka, Y. Tomita, and Y. Motome, Phys. Rev. Lett. 107, 047204 (2010).
  56. E. Baum, P. Dahlke, V. Kaiser, M. Molinier, R. E. Schmidt, J. Pebler, W. Massa, and D. Babel, Z. Anorg. Allg. Chem. 632, 2244 (2006).
  57. S. W. Kim, S.-H. Kim, P. S. Halasyamani, M. Green, K. P. Bhatti, C. Leighton, H. Das, and C. Fennie, Chem. Sci. 3, 741 (2011).
  58. L. W. Masachchi, N. Keerthisinghe, G. Morrison, A. A. Berseneva, M. D. Smith, and H.-C. z. Loye, Inorg. Chem. 62, 13793 (2023).
  59. R. J. Lindsay, Tuning frustrated pyrochlores, Ph.D. thesis, University of Kent, 2019, https://kar.kent.ac.uk/73058/.
  60. C. Pappa, J. Hammann, and C. Jacoboni, J. Phys. (Paris) 46, 637 (1985).
  61. Z. Zhang and H. S. Røising, J. Phys. A 56, 194001 (2023).
  62. R. Pohle and N. Shannon, arXiv:2503.12776.
  63. K. W. Plumb, H. J. Changlani, A. Scheie, S. Zhang, J. W. Krizan, J. A. Rodriguez-Rivera, Y. Qiu, B. Winn, R. J. Cava, and C. L. Broholm, Nat. Phys. 15, 54 (2019).
  64. T. Fennell, Supporting data for the paper “Algebraic loop liquid in the pyrochlore CsNiCrF6”, Materials Cloud Archive (2026), 10.24435/materialscloud:b1-hk.
