Multiscale Explanation of the Missing Gallium Vacancy in Gallium Arsenide
Phys. Rev. Lett. 135, 267001 – Published 26 December, 2025
DOI: https://doi.org/10.1103/scn4-2wmv
Abstract

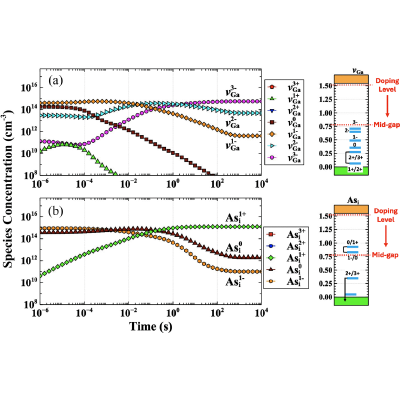

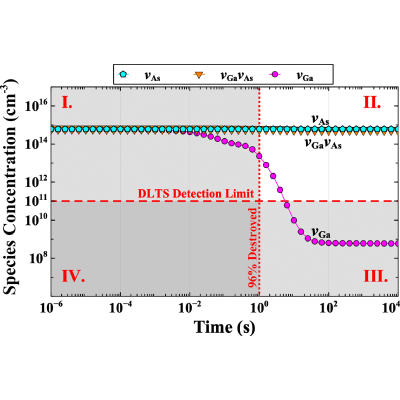

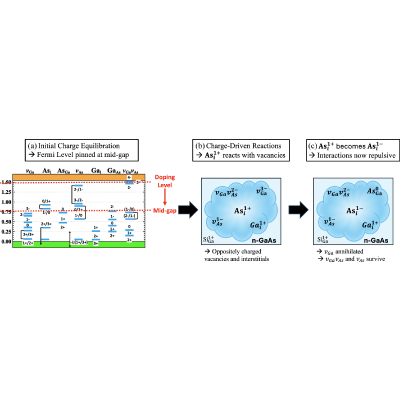

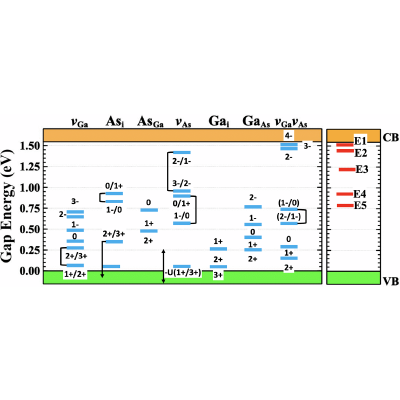

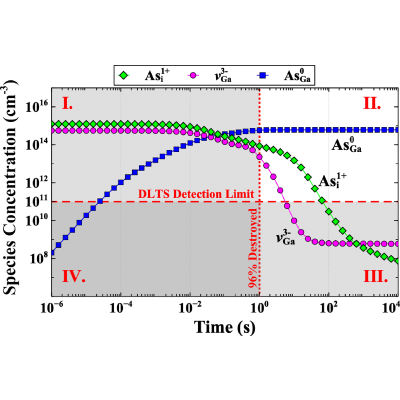

Irradiation of gallium arsenide (GaAs) produces immobile vacancies and mobile interstitials. Yet, after decades of experimental investigation, the immobile Ga vacancy continues to evade detection, raising the question: where is the Ga vacancy? Static first-principles calculations predict a Ga vacancy should be readily observed. We find that short-time dynamical evolution of primary defects is the key to explaining this conundrum. Using a dynamical multiscale atomistically informed device engineering (AIDE) method, we discover that during the initial displacement damage, the Ga vacancy (3-/2-) defect level pins the Fermi level near the midgap, producing oppositely charged vacancies and interstitials. Driven by Coulomb attraction, fast As interstitials preferentially annihilate Ga vacancies. The Ga vacancy population plummets below detectable limits—and the now unpinned Fermi level recovers—before being experimentally observed. This dynamical model solves the mystery of the missing Ga vacancy and reveals the importance of a multiscale approach to explore the dynamical chemical behavior in experimentally inaccessible short-time regimes.
Physics Subject Headings (PhySH)
Article Text
Supplemental Material
References (47)
- Y. Zhang, R. Sachan, O. H. Pakarinen, M. F. Chisholm, P. Liu, H. Xue, and W. J. Weber, Ionization-induced annealing of pre-existing defects in silicon carbide, Nat. Commun. 6, 8049 (2015).
- E. Mitterreiter, B. Schuler, A. Micevic et al., The role of chalcogen vacancies for atomic defect emission in , Nat. Commun. 12, 3822 (2021).
- T. Ogawa, A. Taguchi, and A. Kuwabara, An extended computational approach for point-defect equilibria in semiconductor materials, npj Comput. Mater. 8, 79 (2022).
- N. Na, Y.-C. Lu, Y.-H. Liu, P.-W. Chen, Y.-C. Lai, Y.-R. Lin, C.-C. Lin, T. Shia, C.-H. Cheng, and S.-L. Chen, Room temperature operation of germanium–silicon single-photon avalanche diode, Nature (London) 627, 295 (2024).
- D. Pons, A. Mircea, and J. Bourgoin, An annealing study of electron irradiation-induced defects in GaAs, J. Appl. Phys. 51, 4150 (1980).
- D. Pons and J. C. Bourgoin, Irradiation-induced defects in GaAs, J. Phys. C 18, 3839 (1985).
- J. C. Bourgoin, H. J. von Bardeleben, and D. Stiévenard, Native defects in gallium arsenide, J. Appl. Phys. 64, R65 (1988).
- P. A. Schultz and O. A. von Lilienfeld, Simple intrinsic defects in gallium arsenide, Model. Simul. Mater. Sci. Eng. 17, 084007 (2009).
- D. M. Fleetwood, A. O’Hara, T. S. Mayer, M. R. Melloch, and S. T. Pantelidas, Defect and impurity-complex depassivation during electron-beam irradiation of GaAs, IEEE Trans. Nucl. Sci. 68, 1548 (2021).
- J. Dabrowski and M. Scheffler, Theoretical evidence for an optically inducible structural transition of the isolated as antisite in GaAs: Identification & explanation of EL2?, Phys. Rev. Lett. 60, 2183 (1988).
- D. J. Chadi and K. J. Chang, Metastability of the isolated arsenic-antisite defect in GaAs, Phys. Rev. Lett. 60, 2187 (1988).
- S. Loualiche, A. Nouailhat, G. Guillot, and M. Lannoo, Interpretation of deep-level optical spectroscopy & deep-level transient spectroscopy data: Application to irradiation defects in GaAs, Phys. Rev. B 30, 5822 (1984).
- C. Corbel, M. Stucky, P. Hautojärvi, K. Saarinen, and P. Moser, Positron-annihilation spectroscopy of native vacancies in as-grown GaAs, Phys. Rev. B 38, 8192 (1988).
- S. T. Lai and B. D. Nener, Annealing behavior of deep-level defects in 1 MeV electron irradiated GaAs, J. Appl. Phys. 75, 2354 (1994).
- P. A. Schultz, The E1–E2 center in gallium arsenide is the divacancy, J. Phys. Condens. Matter 27, 075801 (2015).
- J. P. Perdew and A. Zunger, Self-interaction correction to density-functional approximations for many-electron systems, Phys. Rev. B 23, 5048 (1981).
- P. A. Schultz, Local electrostatic moments & periodic boundary conditions, Phys. Rev. B 60, 1551 (1999).
- P. A. Schultz, Charged local defects in extended systems, Phys. Rev. Lett. 84, 1942 (2000).
- F. Taghizadeh, F. Ostvar, F. D. Auret, and W. E. Meyer, Laplace DLTS study of the fine structure & metastability of the radiation-induced E3 defect level in GaAs, Semicond. Sci. Technol. 33, 125011 (2018).
- P. A. Schultz and H. P. Hjalmarson, Theory of the metastable injection-bleached center in GaAs, Phys. Rev. B 105, 224111 (2022).
- G. A. Baraff and M. Schlüter, Electronic structure, total energies, & abundances of the elementary point defects in GaAs, Phys. Rev. Lett. 55, 1327 (1985).
- F. El-Mellouhi and N. Mousseau, Self-vacancies in gallium arsenide: An ab initio calculation, Phys. Rev. B 71, 125207 (2005).
- J. E. Northrup and S. B. Zhang, Dopant and defect energetics: Si in GaAs, Phys. Rev. B 47, 6791(R) (1993).
- J. T. Schick, C. G. Morgan, and P. Papoulias, First-principles study of As interstitials in GaAs: Convergence, relaxation, and formation energy, Phys. Rev. B 66, 195302 (2002).
- F. El-Mellouhi and N. Mousseau, Charge-dependent migration pathways for the Ga vacancy in GaAs, Phys. Rev. B 74, 205207 (2006).
- J. C. Bourgoin and J. W. Corbett, A new mechanism for interstistitial migration, Phys. Lett. 38A, 135 (1972).
- H. P. Hjalmarson, R. L. Pease, S. C. Witczak, M. R. Shaneyfelt, J. R. Schwank, A. H. Edwards, C. E. Hembree, and T. R. Mattsson, Mechanisms for radiation dose-rate sensitivity of bipolar transistors, IEEE Trans. Nucl. Sci. 50, 1901 (2003).
- I. Vurgaftman, J. R. Meyer, and L. R. Ram-Mohan, Band parameters for III–V compound semiconductors & their alloys, J. Appl. Phys. 89, 5815 (2001).
- See Supplemental Material at http://link.aps.org/supplemental/10.1103/scn4-2wmv for details of charge-carrier reactions, diffusion-driven reactions, transition-state reactions, and charge equilibration.
- F. El-Mellouhi and N. Mousseau, Charge-dependent migration pathways for the Ga vacancy in GaAs, Phys. Rev. B 74, 205207 (2006).
- F. El-Mellouhi and N. Mousseau, Ab initio characterization of arsenic vacancy diffusion pathways in GaAs with SIEST-A-RT, Appl. Phys. A 86, 309 (2007).
- M. Malouin, F. El-Mellouhi, and N. Mousseau, Gallium self-interstitial relaxation in GaAs: An ab initio characterization, Phys. Rev. B 76, 045211 (2007).
- J. T. Schick and C. G. Morgan, Gallium interstitial contributions to diffusion in gallium arsenide, AIP Adv. 1, 032161 (2011).
- Y. Koshka, Metastable and nonmetastable recombination-induced defect reactions involving a hydrogen complex with a silicon vacancy in SiC, Phys. Rev. B 69, 035205 (2004).
- W. R. Wampler and S. M. Myers, Model for transport & reaction of defects & carriers within displacement cascades in gallium arsenide, J. Appl. Phys. 117, 045707 (2015).
- D. K. Schroder, Semiconductor Material & Device Characterization (John Wiley & Sons, Ltd, New York, 2005), Chap. 5.
- C. Claeys and E. Simoen, Radiation Effects in Advanced Semiconductor Materials and Devices (Springer, Berlin, Heidelberg, 2002), Chap. 2.
- S. Misrachi, A. R. Peaker, and B. Hamilton, A high sensitivity bridge for the measurement of deep states in semiconductors, J. Phys. E 13, 1055 (1980).
- W. Shockley, The theory of p-n junctions in semiconductors & p-n junction transistors, Bell Syst. Tech. J. 28, 435 (1949).
- W. V. Roosbroeck, Theory of the flow of electrons and holes in germanium and other semiconductors, Bell Syst. Tech. J. 29, 560 (1950).
- J. Frenkel, Über die Wärmebewegung in festen und flüssigen Körpern, Phys. Rev. B 35, 652 (1926).
- N. Neuberger, Handbook of Electronic Materials (Plenum, New York, 1971), Vol. 5.
- V. L. Bonch-Bruevich and E. G. Landsberg, Recombination Mechanisms, Phys. Status Solidi (b) 29, 9 (1968).
- J. L. Benton and L. C. Kimerling, Capacitance transient spectroscopy of trace contamination in silicon, J. Electrochem. Soc. 129, 2098 (1982).
- K. Kono, J. G. Sandland, K. Wada, and L. C. Kimerling, in X-Ray and Gamma-Ray Instrumentation for Astronomy XI, edited by K. A. Flanagan and O. H. W. Siegmund (SPIE, Bellingham, WA, 2000), Vol. 4140, pp. 267–273.
- P. Pichler, Intrinsic Point Defects, Impurities, and Their Diffusion in Silicon (Springer, New York, 2004).
- S. M. Myers, P. J. Cooper, and W. R. Wampler, Model of defect reactions and the influence of clustering in pulse-neutron-irradiated Si, J. Appl. Phys. 104, 044507 (2008).
