Search for Millicharged Particles in Proton-Proton Collisions at s=13.6  TeV

S. Alcott1, Z. Bhatti2, J. Brooke3, C. Campagnari1, M. Carrigan4, M. Citron5, R. De Los Santos4, A. De Roeck6, C. Dorofeev7 et al.

T. Du8, M. Gastal6, J. Goldstein3, F. Golf9, N. Gonzalez5,10,*, A. Haas2, J. Heymann8, C. S. Hill4, D. Imani1, M. Joyce4, K. Larina1, R. Loos6, S. Lowette11, H. Mei12, D. W. Miller8, B. Peng4, S. N. Santpur1, I. Reed9, E. Schaffer1, R. Schmitz1, J. Steenis5, D. Stuart1, J. S. Tafoya Vargas5, D. Vannerom11, T. Wybouw11, Z. Xiao4,†, H. Zaraket13, G. Zecchinelli9, and C. Zheng4

  • *Present address: Stanford University, Palo Alto, California 94305, USA.
  • †Present address: University of Michigan, Ann Arbor, Michigan 48109, USA.
PDF

Phys. Rev. Lett. 135, 121802 – Published 15 September, 2025

DOI: https://doi.org/10.1103/rtp1-679h

Abstract

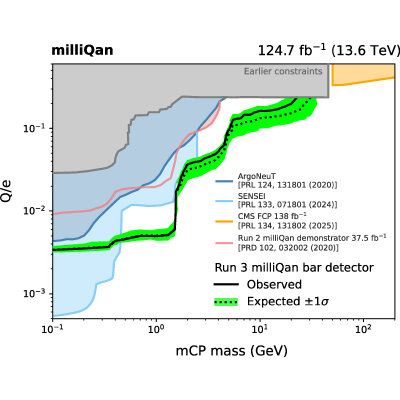

We report on a search for elementary particles with charges much smaller than the electron charge using a data sample of proton-proton collisions provided by the CERN Large Hadron Collider in 2023–24, corresponding to an integrated luminosity of 124.7  fb−1 at a center-of-mass energy of 13.6 TeV. The analysis presented uses the completed Run 3 milliQan bar detector to set the most stringent constraints to date for particles with charges ≤0.24  e and masses ≥0.45  GeV.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (64)

  1. N. Arkani-Hamed, D. P. Finkbeiner, T. R. Slatyer, and N. Weiner, Phys. Rev. D 79, 015014 (2009).
  2. M. Pospelov and A. Ritz, Phys. Lett. B 671, 391 (2009).
  3. Y. Farzan and M. Rajaee, J. Cosmol. Astropart. Phys. 04 (2019) 040.
  4. R. Foot and A. Kobakhidze, Phys. Lett. B 650, 46 (2007).
  5. Q. Wallemacq and J.-R. Cudell, J. Cosmol. Astropart. Phys. 02 (2015) 011.
  6. H. Gies, J. Jaeckel, and A. Ringwald, Phys. Rev. Lett. 97, 140402 (2006).
  7. X. Gan and Y.-D. Tsai, J. High Energy Phys. 07 (2025) 094.
  8. M. Battaglieri et al., U.S. Cosmic Visions: New Ideas in Dark Matter, Report No. FERMILAB-CONF-17-282-AE-PPD-T, 2017, https://www.osti.gov/biblio/1409838; arXiv:1707.04591.
  9. J. Beacham, C. Burrage, D. Curtin, A. De Roeck, J. Evans, J. L. Feng, C. Gatto, S. Gninenko, A. Hartin, I. Irastorza et al., J. Phys. G 47, 010501 (2020).
  10. European Strategy for Particle Physics Preparatory Group, in Physics Briefing Book (CERN, Geneva, 2019).
  11. S. Davidson and M. E. Peskin, Phys. Rev. D 49, 2114 (1994).
  12. A. A. Prinz et al., Phys. Rev. Lett. 81, 1175 (1998).
  13. R. Essig et al., Snowmass 2013: Snowmass on the Mississippi, Report No. FERMILAB-CONF-13-653, 2013, https://www.osti.gov/biblio/1306469; arXiv:1311.0029.
  14. S. Chatrchyan et al. (CMS Collaboration), Phys. Rev. D 87, 092008 (2013); 106, 099903(E) (2022).
  15. S. Davidson, S. Hannestad, and G. Raffelt, J. High Energy Phys. 05 (2000) 003.
  16. A. Badertscher, P. Crivelli, W. Fetscher, U. Gendotti, S. N. Gninenko, V. Postoev, A. Rubbia, V. Samoylenko, and D. Sillou, Phys. Rev. D 75, 032004 (2007).
  17. G. Magill, R. Plestid, M. Pospelov, and Y.-D. Tsai, Phys. Rev. Lett. 122, 071801 (2019).
  18. A. Haas, C. S. Hill, E. Izaguirre, and I. Yavin, Phys. Lett. B 746, 117 (2015).
  19. A. Ball et al., arXiv:1607.04669.
  20. A. Ball et al., Phys. Rev. D 102, 032002 (2020).
  21. A. Hayrapetyan et al. (CMS Collaboration), Phys. Rev. Lett. 134, 131802 (2025).
  22. A. A. Aguilar-Arevalo et al. (MiniBooNE DM Collaboration), Phys. Rev. D 98, 112004 (2018).
  23. L. B. Auerbach et al. (LSND Collaboration), Phys. Rev. D 63, 112001 (2001).
  24. R. Harnik, Z. Liu, and O. Palamara, J. High Energy Phys. 07 (2019) 170.
  25. R. Acciarri et al. (ArgoNeuT Collaboration), Phys. Rev. Lett. 124, 131801 (2020).
  26. L. Barak et al. (SENSEI Collaboration), Phys. Rev. Lett. 133, 071801 (2024).
  27. S. Davidson, B. Campbell, and D. C. Bailey, Phys. Rev. D 43, 2314 (1991).
  28. R. Mohapatra and I. Rothstein, Phys. Lett. B 247, 593 (1990).
  29. R. Agnese et al. (CDMS Collaboration), Phys. Rev. Lett. 114, 111302 (2015).
  30. T. Emken, R. Essig, C. Kouvaris, and M. Sholapurkar, J. Cosmol. Astropart. Phys. 09 (2019) 070.
  31. L. Singh, J. W. Chen, H. C. Chi, C. P. Liu, M. K. Pandey, H. T. Wong, C. P. Wu, M. Agartioglu, M. Deniz, H. B. Li, S. T. Lin, V. Sharma, M. K. Singh, V. Singh, and Q. Yue (TEXONO Collaboration), Phys. Rev. D 99, 032009 (2019).
  32. S. I. Alvis (Majorana Collaboration), Phys. Rev. Lett. 120, 211804 (2018).
  33. P. C. Kim, E. R. Lee, I. T. Lee, M. L. Perl, V. Halyo, and D. Loomba, Phys. Rev. Lett. 99, 161804 (2007).
  34. D. C. Moore, A. D. Rider, and G. Gratta, Phys. Rev. Lett. 113, 251801 (2014).
  35. C. Brust, D. E. Kaplan, and M. T. Walters, J. High Energy Phys. 12 (2013) 058.
  36. H. Vogel and J. Redondo, J. Cosmol. Astropart. Phys. 02 (2014) 029.
  37. R. Plestid, V. Takhistov, Y.-D. Tsai, T. Bringmann, A. Kusenko, and M. Pospelov, Phys. Rev. D 102, 115032 (2020).
  38. M. Kachelriess and J. Tjemsland, Astropart. Phys. 132, 102622 (2021).
  39. C. A. Argüelles Delgado, K. J. Kelly, and V. Muñoz Albornoz, J. High Energy Phys. 11 (2021) 099.
  40. R. Harnik, R. Plestid, M. Pospelov, and H. Ramani, Phys. Rev. D 103, 075029 (2021).
  41. A. Fung, S. Heeba, Q. Liu, V. Muralidharan, K. Schutz, and A. C. Vincent, Phys. Rev. D 109, 083011 (2024).
  42. E. Izaguirre and I. Yavin, Phys. Rev. D 92, 035014 (2015).
  43. A. Ball et al. (milliQan Collaboration), Phys. Rev. D 104, 032002 (2021).
  44. S. Chatrchyan (CMS Collaboration), J. Instrum. 3, S08004 (2008).
  45. Eljen Technology, https://eljentechnology.com/ (Accessed: August 26, 2005).
  46. Hamamatsu Photonics K. K., https://www.hamamatsu.com/ (Accessed: August 26, 2005).
  47. CAEN S.p.A, https://www.caen.it/products/v1743/ (Accessed: August 26, 2005).
  48. T. Sjöstrand, S. Mrenna, and P. Skands, Comput. Phys. Commun. 178, 852 (2008).
  49. J. Alwall, R. Frederix, S. Frixione, V. Hirschi, F. Maltoni, O. Mattelaer, H. S. Shao, T. Stelzer, P. Torrielli, and M. Zaro, J. High Energy Phys. 07 (2014) 079.
  50. M. Cacciari, M. Greco, and P. Nason, J. High Energy Phys. 05 (1998) 007.
  51. Y.-Q. Ma, K. Wang, and K.-T. Chao, Phys. Rev. D 84, 114001 (2011).
  52. Y.-Q. Ma, K. Wang, and K.-T. Chao, Phys. Rev. Lett. 106, 042002 (2011).
  53. Y.-Q. Ma and R. Venugopalan, Phys. Rev. Lett. 113, 192301 (2014).
  54. S. Chatrchyan (CMS Collaboration), Phys. Lett. B 780, 251 (2018).
  55. G. Aad (ATLAS Collaboration), Phys. Lett. B 705, 9 (2011).
  56. G. Aad (ATLAS Collaboration), Phys. Rev. D 87, 052004 (2013).
  57. R. Aaij (LHCb Collaboration), J. High Energy Phys. 07 (2018) 134; 05 (2019) 76.
  58. S. Agostinelli et al. (GEANT4 Collaboration), Nucl. Instrum. Methods Phys. Res., Sect. A 506, 250 (2003).
  59. V. Khachatryan et al. (CMS Collaboration), Phys. Lett. B 771, 435 (2017).
  60. G. Aad et al. (ATLAS and CMS Collaborations), Procedure for the LHC Higgs boson search combination in Summer 2011, Technical Report No. CMS-NOTE-2011-005, ATL-PHYS-PUB-2011-11, CERN, 2011.
  61. T. Junk, Nucl. Instrum. Methods Phys. Res., Sect. A 434, 435 (1999).
  62. A. L. Read, J. Phys. G 28, 2693 (2002).
  63. G. Cowan, K. Cranmer, E. Gross, and O. Vitells, Eur. Phys. J. C 71, 1554 (2011); 73, 2501(E) (2013).
  64. CMS data availability statement, 10.7483/OPENDATA.CMS.1BNU.8V1W.
