Search for $K_{L} \to π^{0} π^{0} γ γ$ and $K_{L} \to π^{0} π^{0} X$ where $X \to γ γ$ at the KOTO Experiment

J. Redeker ¹, C. Lin², Y. W. Wah ¹, J. K. Ahn³, M. Gonzalez^4,*, K. Hanai⁴, Y. B. Hsiung ⁵, T. Kato⁴, E. J. Kim ⁶ et al.

T. K. Komatsubara ^7,8, K. Kotera⁴, S. K. Lee⁶, G. Y. Lim^7,8, T. Matsumura ⁹, H. Nanjo ⁴, T. Nomura ^7,8, T. Nunes⁴, K. Ono⁴, K. Shiomi ^7,8, R. Shiraishi ⁷, Y. Tajima¹⁰, Y. C. Tung ¹¹, H. Watanabe^7,8, T. Wu⁵, T. Yamanaka ⁴, and H. Y. Yoshida¹⁰

¹Enrico Fermi Institute, University of Chicago, Chicago, Illinois 60637, USA
²Department of Physics, National Changhua University of Education, Changhua 50007, Taiwan
³Department of Physics, Korea University, Seoul 02841, Republic of Korea
⁴Department of Physics, Osaka University, Toyonaka, Osaka 560-0043, Japan
⁵Department of Physics, National Taiwan University, Taipei 10617, Taiwan, Republic of China
⁶Division of Science Education, Jeonbuk National University, Jeonju 54896, Republic of Korea
⁷Institute of Particle and Nuclear Studies, High Energy Accelerator Research Organization (KEK), Tsukuba, Ibaraki 305-0801, Japan
⁸J-PARC Center, Tokai, Ibaraki 319-1195, Japan
⁹Department of Applied Physics, National Defense Academy, Kanagawa 239-8686, Japan
¹⁰Department of Physics, Yamagata University, Yamagata 990-8560, Japan
¹¹Department of Physics, National Kaohsiung Normal University, Kaohsiung 824, Taiwan

^*Present address: CERN, European Organization for Nuclear Research, CH-1211 Geneva, Switzerland.

PDF

Phys. Rev. Lett. 137, 051804 – Published 29 July, 2026

DOI: https://doi.org/10.1103/pt2h-99by

Abstract

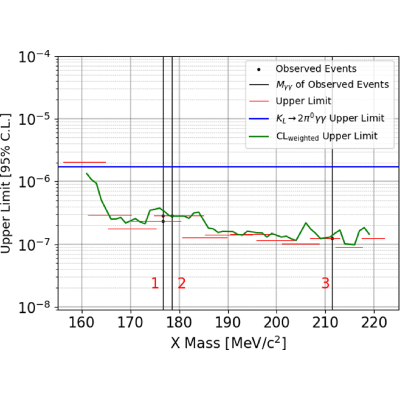

We performed searches for $K_{L} \to π^{0} π^{0} X$ where $X$ may be an axionlike particle that promptly decays to two photons, and the first search for $K_{L} \to π^{0} π^{0} γ γ$ at the KOTO experiment using data taken in 2021. The search is performed for $X$ mass in the range of $160 - 220 MeV / c^{2}$ . Three events were observed in the signal region, with two events near an $X$ mass of $177 MeV / c^{2}$ . This result led to a range of upper limits on the branching ratio, $BR (K_{L} \to π^{0} π^{0} X)$ $< (1 - 20) \times 10^{- 7}$ at the 95% confidence level (CL). No events were observed for the analysis of $K_{L} \to π^{0} π^{0} γ γ$ , setting an upper limit on the branching ratio, $BR (K_{L} \to π^{0} π^{0} γ γ)$ $< 1.69 \times 10^{- 6}$ at the 95% CL.

Physics Subject Headings (PhySH)

Article Text

References (25)

D. Aloni, Y. Soreq, and M. Williams, Phys. Rev. Lett. 123, 031803 (2019).
J. Kumar, Phys. Rev. D 98, 116009 (2018).
M. Bauer, M. Neubert, S. Renner, M. Schnubel, and A. Thamm, Phys. Rev. Lett. 127, 081803 (2021).
M. Bauer, M. Neubert, S. Renner, M. Schnubel, and A. Thamm, J. High Energy Phys. 02 (2022) 056.
R. Balkin, S. Gori, and C. Scherb, J. High Energy Phys. 02 (2026) 011.
R. Balkin, S. Gori, D. J. Robinson, and C. Scherb, Phys. Rev. D 113, 075034 (2026).
Y. C. Tung, Y. B. Hsiung, M. L. Wu, K. F. Chen et al. (E391a Collaboration), Phys. Rev. Lett. 102, 051802 (2009).
R. Funck and J. Kambor, Nucl. Phys. B396, 53 (1993).
Alavi-Harati et al. (KTeV Collaboration), Phys. Rev. Lett. 89, 211801 (2002).
E. Abouzaid et al. (KTeV Collaboration), Phys. Rev. Lett. 107, 201803 (2011).
A. J. Buras and E. Venturini, Acta Phys. Pol. B 53, 6-A1 (2022).
J. Ahn et al. (KOTO Collaboration), Phys. Rev. Lett. 134, 081802 (2025).
T. Shimogawa, Nucl. Instrum. Methods Phys. Res., Sect. A 623, 585 (2010).
K. Sato, Ph.D. thesis, Osaka University, 2015.
K. Shiomi et al., Nucl. Instrum. Methods Phys. Res., Sect. A 664, 264 (2012).
K. Sato et al., Nucl. Instrum. Methods Phys. Res., Sect. A 982, 164527 (2020).
R. Murayama, M. Togawa et al., Nucl. Instrum. Methods Phys. Res., Sect. A 953, 163255 (2020).
Y. Tajima et al., Nucl. Instrum. Methods Phys. Res., Sect. A 592, 261 (2008).
D. Naito et al., Prog. Theor. Exp. Phys. 2016, 023C01 (2016).
Y. Maeda et al., Prog. Theor. Exp. Phys. 2015, 063H01 (2015).
C. Lin, Y. B. Hsiung, Y. W. Wah, Y. C. Tung, Y. T. Luo, and M. Bogdan, J. Phys. Conf. Ser. 1526, 012034 (2020).
Y.-C. Tung et al., Nucl. Instrum. Methods Phys. Res., Sect. A 1059, 169010 (2024).
G. Cowan, K. Cranmer, E. Gross, and O. Vitells, Eur. Phys. J. C 71, 1554 (2011).
S. Agostinelli et al., Nucl. Instrum. Methods Phys. Res., Sect. A 506, 250 (2003).
A. L. Read, J. Phys. G 28, 2693 (2002).
