Low-Temperature Wear of Silica Induced by Diamond Single Asperities

Jennifer Konrad1, Yiming Song1, Dirk Dietzel1,2,*, and André Schirmeisen1,2,†

  • *Contact author: dirk.dietzel@ap.physik.uni-giessen.de
  • †Contact author: andre.schirmeisen@ap.physik.uni-giessen.de
PDF

Phys. Rev. Lett. 136, 086202 – Published 27 February, 2026

DOI: https://doi.org/10.1103/kz5g-bw3b

Abstract

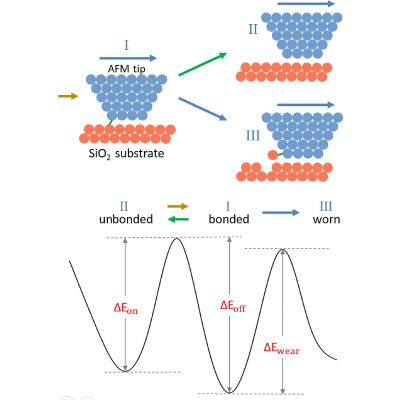

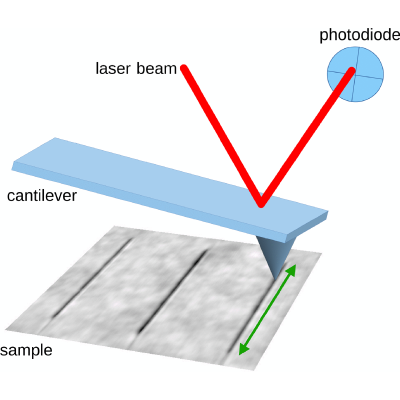

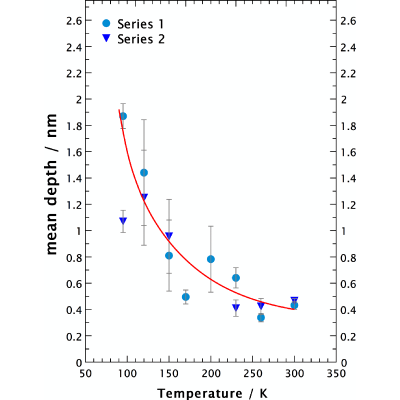

Atomic force microscopy is used to analyze the temperature dependence of nanoscale wear occurring during reciprocal line scanning of a SiO2 surface using diamond atomic force microscopy tips. Unexpectedly, our experiments show a wear rate that decreases with temperature. Thereby, the results cannot readily be reconciled with the common model of atomic scale wear, which assumes an abrasive process of thermally activated and shear-assisted atom-by-atom removal. Instead, shear-assisted tribochemical processes are taken into account. This is done based on a multibond model for single-asperity tribochemical wear as well as recent analysis of contact aging driven by bond formation for silica and diamond systems. We consider how thermally activated bond formation at different temperatures is met by temperature-dependent probabilities for bond rupture accompanied by wear. This allows us to rationalize the experimental results and link the temperature dependence of wear to the way an increasing number of interfacial bonds are ruptured at lower temperatures. Ultimately, our experiments thereby expand the emerging multibond model of single-asperity nanofriction and tribochemical wear to the temperature domain.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (43)

  1. J. F. Archard, Contact and rubbing of flat surfaces, J. Appl. Phys. 24, 981 (1953).
  2. H. Hölscher, A. Schirmeisen, and U. D. Schwarz, Principles of atomic friction: from sticking atoms to superlubric sliding, Phil. Trans. R. Soc. A 366, 1383 (2007).
  3. Fundamentals of Friction and Wear on the Nanoscale (Springer International Publishing, New York, 2015).
  4. C. M. Mate and R. W. Carpick, Tribology on the Small Scale: A Modern Textbook on Friction, Lubrication, and Wear (Oxford University Press, Oxford, 2019).
  5. A. G. Khurshudov, K. Kato, and H. Koide, Nano-wear of the diamond AFM probing tip under scratching of silicon, studied by AFM, Tribol. Lett. 2, 345 (1996).
  6. B. Gotsmann and M. A. Lantz, Atomistic wear in a single asperity sliding contact, Phys. Rev. Lett. 101, 125501 (2008).
  7. P. Sheehan, The wear kinetics of NaCl under dry nitrogen and at low humidities, Chem. Phys. Lett. 410, 151 (2005).
  8. Y. Shao, T. D. B. Jacobs, Y. Jiang, K. T. Turner, R. W. Carpick, and M. L. Falk, Multibond model of single-asperity tribochemical wear at the nanoscale, ACS Appl. Mater. Interfaces 9, 35333 (2017).
  9. B. Bhushan and K. J. Kwak, Velocity dependence of nanoscale wear in atomic force microscopy, Appl. Phys. Lett. 91, 163113 (2007).
  10. J. Wen, T. Ma, W. Zhang, G. Psofogiannakis, A. C. van Duin, L. Chen, L. Qian, Y. Hu, and X. Lu, Atomic insight into tribochemical wear mechanism of silicon at the Si/SiO2 interface in aqueous environment: Molecular dynamics simulations using ReaxFF reactive force field, Appl. Surf. Sci. 390, 216 (2016).
  11. W. Wang, D. Dietzel, and A. Schirmeisen, Control of nanoscale ripple formation on ionic crystals by atomic force microscopy, Tribol. Lett. 71, 28 (2023).
  12. A. E. Filippov, V. L. Popov, and M. Urbakh, Mechanism of wear and ripple formation induced by the mechanical action of an atomic force microscope tip, Phys. Rev. Lett. 106, 025502 (2011).
  13. A. Socoliuc, E. Gnecco, R. Bennewitz, and E. Meyer, Ripple formation induced in localized abrasion, Phys. Rev. B 68, 115416 (2003).
  14. M. Wang, F. Duan, and X. Mu, Effect of surface silanol groups on friction and wear between amorphous silica surfaces, Langmuir 35, 5463 (2019).
  15. P. Pedraz, R. Wannemacher, and E. Gnecco, Controlled suppression of wear on the nanoscale by ultrasonic vibrations, ACS Nano 9, 8859 (2015).
  16. T. D. B. Jacobs and R. W. Carpick, Nanoscale wear as a stress-assisted chemical reaction, Nat. Nanotechnol. 8, 108 (2013).
  17. J. Liu, Y. Jiang, D. S. Grierson, K. Sridharan, Y. Shao, T. D. B. Jacobs, M. L. Falk, R. W. Carpick, and K. T. Turner, Tribochemical wear of diamond-like carbon-coated atomic force microscope tips, ACS Appl. Mater. Interfaces 9, 35341 (2017).
  18. W. Maw, F. Stevens, S. C. Langford, and J. T. Dickinson, Single asperity tribochemical wear of silicon nitride studied by atomic force microscopy, J. Appl. Phys. 92, 5103 (2002).
  19. A. Martini, S. J. Eder, and N. Dörr, Tribochemistry: A review of reactive molecular dynamics simulations, Lubricants 8, 44 (2020).
  20. Q. Li, T. E. Tullis, D. Goldsby, and R. W. Carpick, Frictional ageing from interfacial bonding and the origins of rate and state friction, Nature (London) 480, 233 (2011).
  21. Z. Li and I. Szlufarska, Multiphysics model of chemical aging in frictional contacts, Phys. Rev. Mater. 2, 063602 (2018).
  22. Y. Liu and I. Szlufarska, Chemical origins of frictional aging, Phys. Rev. Lett. 109, 186102 (2012).
  23. A. Li, Y. Liu, and I. Szlufarska, Effects of interfacial bonding on friction and wear at silica/silica interfaces, Tribol. Lett. 56, 481 (2014).
  24. M. Vorholzer, J. G. Vilhena, R. Perez, E. Gnecco, D. Dietzel, and A. Schirmeisen, Temperature activates contact aging in silica nanocontacts, Phys. Rev. X 9, 041045 (2019).
  25. L. Pastewka, S. Moser, P. Gumbsch, and M. Moseler, Anisotropic mechanical amorphization drives wear in diamond, Nat. Mater. 10, 34 (2010).
  26. A. Peguiron, G. Moras, M. Walter, H. Uetsuka, L. Pastewka, and M. Moseler, Activation and mechanochemical breaking of c–c bonds initiate wear of diamond (110) surfaces in contact with silica, Carbon 98, 474 (2016).
  27. H. T. T. Ta, N. V. Tran, and M. C. Righi, Nanotribological properties of oxidized diamond/silica interfaces: Insights into the atomistic mechanisms of wear and friction by ab initio molecular dynamics simulations, ACS Appl. Nano Mater. 6, 16674 (2023).
  28. H. T. T. Ta, N. V. Tran, and M. C. Righi, Atomistic wear mechanisms in diamond: Effects of surface orientation, stress, and interaction with adsorbed molecules, Langmuir 39, 14396 (2023).
  29. M. Cutini, G. Forghieri, M. Ferrario, and M. C. Righi, Adhesion, friction and tribochemical reactions at the diamond–silica interface, Carbon 203, 601 (2023).
  30. I. Barel, M. Urbakh, L. Jansen, and A. Schirmeisen, Temperature dependence of friction at the nanoscale: When the unexpected turns normal, Tribol. Lett. 39, 311 (2010).
  31. I. Barel, M. Urbakh, L. Jansen, and A. Schirmeisen, Multibond dynamics of nanoscale friction: The role of temperature, Phys. Rev. Lett. 104, 066104 (2010).
  32. I. Barel, M. Urbakh, L. Jansen, and A. Schirmeisen, Unexpected temperature and velocity dependencies of atomic-scale stick-slip friction, Phys. Rev. B 84, 115417 (2011).
  33. R. Capozza, I. Barel, and M. Urbakh, Probing and tuning frictional aging at the nanoscale, Sci. Rep. 3, 1896 (2013).
  34. Y. Sang, M. Dubé, and M. Grant, Thermal effects on atomic friction, Phys. Rev. Lett. 87, 174301 (2001).
  35. E. Gnecco, R. Bennewitz, T. Gyalog, C. Loppacher, M. Bammerlin, E. Meyer, and H.-J. Güntherodt, Velocity dependence of atomic friction, Phys. Rev. Lett. 84, 1172 (2000).
  36. K. Tian, N. N. Gosvami, D. L. Goldsby, and R. W. Carpick, Stick–slip instabilities for interfacial chemical bond-induced friction at the nanoscale, J. Phys. Chem. B 122, 991 (2017).
  37. K. Tian, N. N. Gosvami, D. L. Goldsby, Y. Liu, I. Szlufarska, and R. W. Carpick, Load and time dependence of interfacial chemical bond-induced friction at the nanoscale, Phys. Rev. Lett. 118, 076103 (2017).
  38. M. Vorholzer, D. Dietzel, E. Cihan, and A. Schirmeisen, Shear-assisted contact aging of single-asperity nanojunctions, Phys. Rev. B 105, 195401 (2022).
  39. H. Bhaskaran, B. Gotsmann, A. Sebastian, U. Drechsler, M. A. Lantz, M. Despont, P. Jaroenapibal, R. W. Carpick, Y. Chen, and K. Sridharan, Ultralow nanoscale wear through atom-by-atom attrition in silicon-containing diamond-like carbon, Nat. Nanotechnol. 5, 181 (2010).
  40. W. Wang, D. Dietzel, and A. Schirmeisen, Thermal activation of nanoscale wear, Phys. Rev. Lett. 126, 196101 (2021).
  41. R. J. Cannara, M. J. Brukman, K. Cimatu, A. V. Sumant, S. Baldelli, and R. W. Carpick, Nanoscale friction varied by isotopic shifting of surface vibrational frequencies, Science 318, 780 (2007).
  42. X. Jiang, G. Wu, J. Zhou, S. Wang, A. A. Tseng, and Z. Du, Nanopatterning on silicon surface using atomic force microscopy with diamond-like carbon (DLC)-coated Si probe, Nanoscale Res. Lett. 6, 518 (2011).
  43. Y. Wang, J. Xu, Y. Ootani, N. Ozawa, K. Adachi, and M. Kubo, Non-empirical law for nanoscale atom-by-atom wear, Adv. Sci. 8, 2002827 (2020).

Outline

Information

Phys. Rev. Lett. 136, 086202– Published 27 February, 2026
  • Received 17 May 2025
  • Revised 5 October 2025
  • Accepted 7 January 2026
