Axisymmetric Eigenmodes Excited by Alpha Particle Energy Gradients in JET D-T Plasmas

H. J. C. Oliver1, D. King1, Ž. Štancar1, S. E. Sharapov1, D. Banerjee2, T. Barberis3, R. Coelho4, I. Coffey1, M. Dreval5 et al. (JET Contributors*, EUROfusion Tokamak Exploitation Team†)

I. Coffey1, M. Dreval5, M. Fitzgerald1, L. Frassinetti6, C. Giroud1, N. Hawkes1, D. Keeling1, C. C. Kim7, E. Lerche8, F. Porcelli2, and G. Szepesi1 (JET Contributors*, EUROfusion Tokamak Exploitation Team†)

  • *See author list of C. F. Maggi et al., Overview of T and D–T results in JET with ITER-like wall, Nucl. Fusion 64, 112012 (2024).
  • †See author list of E. Joffrin et al., Overview of the EUROfusion tokamak exploitation programme in support of ITER and DEMO, Nucl. Fusion 64, 112019 (2024).
PDF

Phys. Rev. Lett. 136, 055101 – Published 4 February, 2026

DOI: https://doi.org/10.1103/j3cm-5mtm

Abstract

Axisymmetric Alfvén eigenmodes have been observed at the plasma edge in deuterium-tritium (D-T) tokamak plasmas externally heated only by neutral beam injection in JET. The modes were detected only in D-T plasmas, not in pure D plasmas, indicating excitation by fusion-born α particles. The presence of the axisymmetric mode suggests that the modes were driven by positive energy gradients in the α particle distribution rather than radial gradients. The modes are driven by counter-current passing α particles with large orbit widths, allowing core-born α particles to interact with modes at the plasma edge. This reveals an excitation mechanism arising from positive energy gradients produced by the minimum energy required to confine particles at the edge, relevant to all burning plasmas.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (41)

  1. H. H. Duong, W. W. Heidbrink, E. J. Strait, T. W. Petrie, R. Lee, R. A. Moyer, and J. G. Watkins, Loss of energetic beam ions during TAE instabilities, Nucl. Fusion 33, 749 (1993).
  2. A. Di Siena, T. Görler, E. Poli, A. Bañón Navarro, A. Biancalani, and F. Jenko, Electromagnetic turbulence suppression by energetic particle driven modes, Nucl. Fusion 59, 124001 (2019).
  3. M. A. Van Zeeland, L. Bardoczi, J. Gonzalez-Martin, W. W. Heidbrink, M. Podesta, M. Austin, C. S. Collins, X. D. Du, V. N. Duarte, M. Garcia-Munoz, S. Munaretto, K. E. Thome, Y. Todo, and X. Wang, Beam modulation and bump-on-tail effects on Alfvén eigenmode stability in DIII-D, Nucl. Fusion 61, 066028 (2021).
  4. R. Nazikian et al., Alpha-particle-driven toroidal Alfvén eigenmodes in the Tokamak Fusion Test Reactor, Phys. Rev. Lett. 78, 2976 (1997).
  5. R. Nazikian, G. J. Kramer, C. Z. Cheng, N. N. Gorelenkov, H. L. Berk, and S. E. Sharapov, New interpretation of alpha-particle-driven instabilities in deuterium-tritium experiments on the Tokamak Fusion Test Reactor, Phys. Rev. Lett. 91, 125003 (2003).
  6. M. Fitzgerald et al., Stability analysis of alpha driven toroidal Alfvén eigenmodes observed in JET deuterium-tritium internal transport barrier plasmas, Nucl. Fusion 63, 112006 (2023).
  7. G. Y. Fu, C. Z. Cheng, R. Budny, Z. Chang, D. S. Darrow, E. Fredrickson, E. Mazzucato, R. Nazikian, K. L. Wong, and S. Zweben, Analysis of alpha particle-driven toroidal Alfvén eigenmodes in Tokamak Fusion Test Reactor deuterium–tritium experiments, Phys. Plasmas 3, 4036 (1996).
  8. S. E. Sharapov et al., Experiments on excitation of Alfvén eigenmodes by alpha-particles with bump-on-tail distribution in JET DTE2 plasmas, Nucl. Fusion 63, 112007 (2023).
  9. H. J. C. Oliver, S. E. Sharapov, Ž. Štancar, M. Fitzgerald, E. Tholerus, B. N. Breizman, M. Dreval, J. Ferreira, A. Figueiredo, J. Garcia, N. Hawkes, D. L. Keeling, P. G. Puglia, P. Rodrigues, R. A. Tinguely, and JET Contributors, Toroidal Alfvén eigenmodes observed in low power JET deuterium–tritium plasmas, Nucl. Fusion 63, 112008 (2023).
  10. D. W. Ross, G. L. Chen, and S. M. Mahajan, Kinetic description of Alfvén wave heating, Phys. Fluids 25, 652 (1982).
  11. K. Appert, R. Gruber, .F Troyuon, and J. Vaclavik, Excitation of global eigenmodes of the Alfvén wave in tokamaks, Plasma Phys. 24, 1147 (1982).
  12. A. de Chambrier, A. D. Cheetham, A. Heym, F. Hofmann, B. Joye, R. Keller, A. Lietti, J. B. Lister, and A. Pochelon, Alfvén wave coupling experiments of the TCA tokamak, Plasma Phys. 24, 893 (1982).
  13. L. Villard and J. Vaclavik, Alfvén frequency modes and global Alfvén eigenmodes, Nucl. Fusion 37, 351 (1997).
  14. H. J. C. Oliver, S. E. Sharapov, B. N. Breizman, and L.-J. Zheng, Axisymmetric global Alfvén eigenmodes within the ellipticity-induced frequency gap in the joint european torus, Phys. Plasmas 24, 122505 (2017).
  15. V. G. Kiptily et al., Excitation of Alfvén eigenmodes by fusion-born alpha-particles in D−He3 plasmas on JET, Plasma Phys. Controlled Fusion 64, 064001 (2022).
  16. T. Barberis, C. C. Kim, F. Porcelli, D. Banerjee, N. Hawkes, Ye O. Kazakov, Y. Q. Liu, H. J. C. Oliver, S. E. Sharapov, A. Yolbarsop, NIMROD Team, and JET Contributors, Simulations of vertical displacement oscillatory modes and global Alfvén eigenmodes in JET geometry, Nucl. Fusion 64, 126064 (2024).
  17. J. Hobirk et al., The JET hybrid scenario in deuterium, tritium and deuterium-tritium, Nucl. Fusion 63, 112001 (2023).
  18. C. Angioni, Impurity transport in tokamak plasmas, theory, modelling and comparison with experiments, Plasma Phys. Controlled Fusion 63, 073001 (2021).
  19. H. J. C. Oliver, Zenodo repository, 2026, 10.5281/zenodo.18154650.
  20. Ž. Štancar et al., Overview of interpretive modelling of fusion performance in JET DTE2 discharges with TRANSP, Nucl. Fusion 63, 126058 (2023).
  21. A. B. Mikhailovskii, G. T. A. Huysmans, W. O. K. Kerner, and S. E. Sharapov, Optimization of computational MHD normal-mode analysis for tokamaks, Plasma Phys. Rep. 23, 844 (1997).
  22. T. Barberis, A. Yolbarsop, and F. Porcelli, Vertical displacement oscillatory modes in tokamak plasmas, J. Plasma Phys. 88, 905880511 (2022).
  23. T. Barberis, F. Porcelli, and A. Yolbarsop, Fast-ion-driven vertical modes in magnetically confined toroidal plasmas, Nucl. Fusion 62, 064002 (2022).
  24. C. R. Sovinec, A. H. Glasser, T. A. Gianakon, D. C. Barnes, R. A. Nebel, S. E. Kruger, D. D. Schnack, S. J. Plimpton, A. Tarditi, and M. S. Chu, Nonlinear magnetohydrodynamics simulation using high-order finite elements, J. Comput. Phys. 195, 355 (2004).
  25. K. G. McClements, L. C. Appel, M. J. Hole, and A. Thyagaraja, Excitation of axisymmetric Alfvénic modes in ohmic tokamak discharges, Nucl. Fusion 42, 1155 (2002).
  26. M. Fitzgerald, J. Buchanan, R. J. Akers, B. N. Breizman, and S. E. Sharapov, halo: A full-orbit model of nonlinear interaction of fast particles with eigenmodes, Comput. Phys. Commun. 252, 106773 (2020).
  27. R. J. Akers, E. Verwichte, T. J. Martin, S. D. Pinches, and R. Lake, GPGPU Monte Carlo calculation of gyro-phase resolved fast ion and n-state resolved neutral deuterium distributions, Proceedings of the 39th EPS Conference and 16th International Congress on Plasma Physics (Stockholm, Sweden, 2012), pp. P5.088:3217–3226.
  28. S. H. Ward, R. Akers, A. S. Jacobsen, P. Ollus, S. D. Pinches, E. Tholerus, R. G. L. Vann, and M. A. Van Zeeland, Verification and validation of the high-performance Lorentz-orbit code for use in stellarators and tokamaks (locust), Nucl. Fusion 61, 086029 (2021).
  29. R. B. White, Theory of Toroidally Confined Plasmas, 3rd ed. (Imperial College Press, London, 2014).

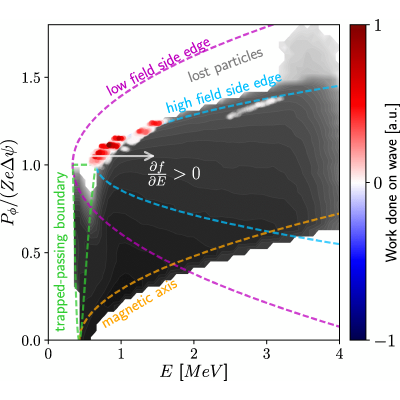

  30. See Supplemental Material at http://link.aps.org/supplemental/10.1103/j3cm-5mtm for an animated version of Figure 5.
  31. J. W. Connor, R. O. Dendy, R. J. Hastie, D. Borba, G. Huysmans, W. Kener, and S. Sharapov, Non-ideal effects on toroidal Alfvén eigenmode stability, in Proceedings of 21st EPS Conference (EPS, Geneva, 1994), Vol. 18B, p. 616.
  32. P. Rodrigues, A. Figueiredo, J. Ferreira, R. Coelho, F. Nabais, D. Borba, N. F. Loureiro, H. J. C. Oliver, and S. E. Sharapov, Systematic linear-stability assessment of Alfvén eigenmodes in the presence of fusion α-particles for ITER-like equilibria, Nucl. Fusion 55, 083003 (2015).
  33. A. C. A. Figueiredo, P. Rodrigues, D. Borba, R. Coelho, L. Fazendeiro, J. Ferreira, N. F. Loureiro, F. Nabais, S. D. Pinches, A. R. Polevoi, and S. E. Sharapov, Comprehensive evaluation of the linear stability of Alfvén eigenmodes driven by alpha particles in an ITER baseline scenario, Nucl. Fusion 56, 076007 (2016).
  34. R. R. Mett and S. M. Mahajan, Kinetic theory of toroidicity-induced Alfvén eigenmodes, Phys. Fluids B 4, 2885 (1992).
  35. N. N. Gorelenkov and S. E. Sharapov, On the collisional damping of TAE-modes on trapped electrons in tokamaks, Phys. Scr. 45, 163 (1992).
  36. A. Hasegawa and L. Chen, Kinetic processes in plasma heating by resonant mode conversion of Alfvén wave, Phys. Fluids (1958–1988) 19, 1924 (1976).
  37. Y. Omura, H. Matsumoto, T. Miyake, and H. Kojima, Electron beam instabilities as generation mechanism of electrostatic solitary waves in the magnetotail, J. Geophys. Res. 101, 2685 (1996).
  38. P. C. Filbert and P. J. Kellogg, Electrostatic noise at the plasma frequency beyond the Earth’s bow shock, J. Geophys. Res. 84, 1369 (1979).
  39. D. V. Dylov and J. W. Fleischer, Observation of all-optical bump-on-tail instability, Phys. Rev. Lett. 100, 103903 (2008).
  40. M. C. Herrmann and N. J. Fisch, Cooling energetic α particles in a tokamak with waves, Phys. Rev. Lett. 79, 1495 (1997).
  41. J. Riemann, S. Vaz Mendes, K. Rahbarnia, R. Kleiber, C. Slaby, A. Könies, M. Borchardt, A. Mishchenko, H. Thomsen, C. Büschel, A. von Stechow, J.-P. Bähner, S. K. Hansen, E. Edlund, and Wendelstein 7-X Team, Excitation of Alfvénic modes via electromagnetic turbulence in Wendelstein 7-X, Phys. Rev. Lett. 134, 025103 (2025).
