Bulk-Mediated Reflection of Chirality-Protected Surface Spin Waves

Vitaliy I. Vasyuchka1,*, Florin Ciubotaru2,*, Andrii V. Chumak3, Burkard Hillebrands1, and Alexander A. Serga1,†

  • *These authors contributed equally to this work.
  • †Contact author: serha@rptu.de
PDF

Phys. Rev. Lett. 137, 176701 – Published 21 October, 2026

DOI: https://doi.org/10.1103/hgvh-s6h5

Abstract

Surface spin waves of the Damon-Eshbach type exhibit intrinsically nonreciprocal transport properties with a chiral dynamical field structure that localizes counterpropagating waves at opposite film surfaces. Such chirality has been predicted to suppress direct backscattering in thin films within frequency ranges free of bulk modes. However, how chirality influences reflection in thicker three-dimensional magnetic media, where a dense spectrum of bulk excitations overlaps with surface waves, remains unclear. Here we demonstrate that, in micrometer-thick yttrium iron garnet films, reflection of the chiral Damon-Eshbach wave from the boundary of the magnetic medium is accompanied by excitation of spatially localized thickness-quantized bulk modes, whereas reciprocal backward-volume waves reflect nearly elastically. Brillouin light scattering spectroscopy, infrared thermography, and micromagnetic simulations reveal standing bulk excitations at the reflecting boundary and quantify the associated magnon energy accumulation and dissipation. These results identify bulk-mode excitations as the physical pathway enabling reversal of chirally localized surface waves in thick films, thereby defining the limits of chirality-based backscattering immunity and providing a general framework for wave transport in nonreciprocal magnetic media.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (28)

  1. T. Yu, Z. Luo, and G. E. W. Bauer, Chirality as generalized spin-orbit interaction in spintronics, Phys. Rep. 1009, 1 (2023).
  2. C. Trevillian and V. Tyberkevych, Formation of chirality in propagating spin waves, npj Spintron. 2, 23 (2024).
  3. R. Shindou, R. Matsumoto, S. Murakami, and J. I. Ohe, Topological chiral magnonic edge mode in a magnonic crystal, Phys. Rev. B 87, 174427 (2013).
  4. R. W. Damon and J. R. Eshbach, Magnetostatic modes of a ferromagnet slab, J. Phys. Chem. Solids 19, 308 (1961).
  5. P. Pirro, V. I. Vasyuchka, A. A. Serga, and B. Hillebrands, Advances in coherent magnonics, Nat. Rev. Mater. 6, 1114 (2021).
  6. K. Yamamoto, G. C. Thiang, P. Pirro, K.-W. Kim, K. Everschor-Sitte, and E. Saitoh, Topological characterization of classical waves: The topological origin of magnetostatic surface spin waves, Phys. Rev. Lett. 122, 217201 (2019).
  7. M. Mohseni, R. Verba, T. Brächer, Q. Wang, D. A. Bozhko, B. Hillebrands, and P. Pirro, Backscattering immunity of dipole-exchange magnetostatic surface spin waves, Phys. Rev. Lett. 122, 197201 (2019).

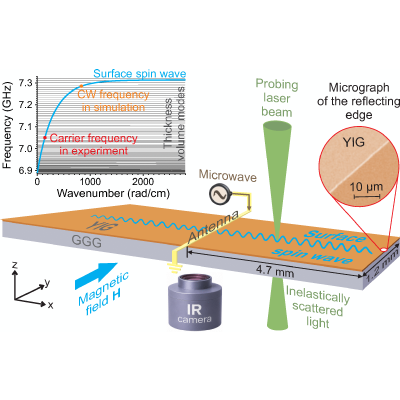

  8. The spectrum shown in the inset of Fig. 1 was calculated within the Kalinikos-Slavin formalism [9], including dipole-exchange interaction, mode hybridization, and unpinned boundary conditions. The shown spectrum corresponds to spin waves propagating perpendicular to the static magnetization. The thickness-quantized bulk modes form a two-dimensional spectrum spanning all in-plane wave-vector orientations. Since their dispersion depends on the propagation direction, the corresponding mode frequencies fill the spectral intervals between the branches shown in the inset, resulting in an even higher effective density of bulk states.

  9. B. A. Kalinikos and A. N. Slavin, Theory of dipole-exchange spin wave spectrum for ferromagnetic films with mixed exchange boundary conditions, J. Phys. C 19, 7013 (1986).
  10. T. Schneider, A. A. Serga, T. Neumann, B. Hillebrands, and M. P. Kostylev, Phase reciprocity of spin-wave excitation by a microstrip antenna, Phys. Rev. B 77, 214411 (2008).
  11. M. Kostylev, Non-reciprocity of dipole-exchange spin waves in thin ferromagnetic films, J. Appl. Phys. 113, 053907 (2013).
  12. R. O. Serha, D. A. Bozhko, M. Agrawal, R. V. Verba, M. Kostylev, V. I. Vasyuchka, B. Hillebrands, and A. A. Serga, Low-damping spin-wave transmission in YIG/Pt-interfaced structures, Adv. Mater. Interfaces 9, 2201323 (2022).
  13. O. Büttner, M. Bauer, S. O. Demokritov, B. Hillebrands, Y. S. Kivshar, V. Grimalsky, Y. Rapoport, and A. N. Slavin, Linear and nonlinear diffraction of dipolar spin waves in yttrium iron garnet films observed by space- and time-resolved Brillouin light scattering, Phys. Rev. B 61, 11576 (2000).
  14. R. E. Dunagin, A. A. Serga, and D. A. Bozhko, Brillouin light scattering spectroscopy of magnon–phonon thermal spectra of an in-plane magnetized YIG film in two-dimensional wavevector space, J. Appl. Phys. 137, 083901 (2025).

  15. The carrier frequencies should be compared with the uniform-precession frequencies corresponding to the respective magnetic-field geometries used in the experiment. The spectrum shown in Fig. 1 is calculated for the transversely magnetized waveguide (MSSW geometry). In the BVMSW geometry, the uniform-precession frequency is higher because the demagnetizing field associated with the finite waveguide width is absent, and the effective magnetization is increased by the cubic and uniaxial anisotropy fields. Consequently, the BVMSW carrier frequency of 6.89 GHz is also approximately 150 MHz below the corresponding uniform-precession frequency.

  16. O. R. Sulymenko, O. V. Prokopenko, V. S. Tyberkevych, A. N. Slavin, and A. A. Serga, Bullets and droplets: Two-dimensional spin-wave solitons in modern magnonics (Review article), Low Temp. Phys. 44, 602 (2018).

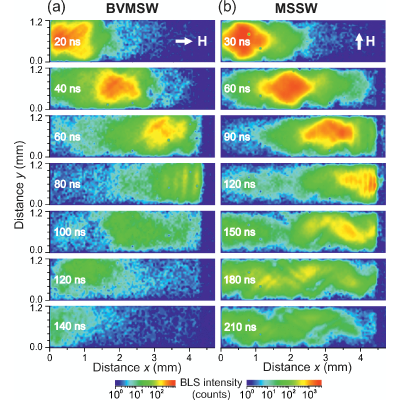

  17. The apparent reflection point of the BVMSW packet in Fig. 2 is located slightly before the geometrical edge of the waveguide. This behavior is consistent with the reduction of the internal magnetic field near the waveguide termination caused by demagnetizing effects, which locally shifts the BVMSW spectrum and creates an effective reflection region before the physical edge.

  18. S. O. Demokritov, A. A. Serga, A. André, V. E. Demidov, M. P. Kostylev, B. Hillebrands, and A. N. Slavin, Tunneling of dipolar spin waves through a region of inhomogeneous magnetic field, Phys. Rev. Lett. 93, 047201 (2004).
  19. P. Clausen, K. Vogt, H. Schultheiss, S. Schäfer, B. Obry, G. Wolf, P. Pirro, B. Leven, and B. Hillebrands, Mode conversion by symmetry breaking of propagating spin waves, Appl. Phys. Lett. 99, 162505 (2011).
  20. L. Zheng, L. Jin, T. Wen, Y. Liao, X. Tang, H. Zhang, and Z. Zhong, Spin wave propagation in uniform waveguide: Effects, modulation and its application, J. Phys. D 55, 263002 (2022).
  21. M. J. Donahue and D. G. Porter, OOMMF user’s guide, version 1.0, Technical Report No. NISTIR 6376, National Institute of Standards and Technology (NIST), Gaithersburg, MD, 1999, available at https://math.nist.gov/oommf/.
  22. T. An, V. I. Vasyuchka, K. Uchida, A. V. Chumak, K. Yamaguchi, K. Harii, J. Ohe, M. B. Jungfleisch, Y. Kajiwara, H. Adachi, B. Hillebrands, S. Maekawa, and E. Saitoh, Unidirectional spin-wave heat conveyer, Nat. Mater. 12, 549 (2013).
  23. A. V. Chumak, A. A. Serga, S. Wolff, B. Hillebrands, and M. P. Kostylev, Scattering of surface and volume spin waves in a magnonic crystal, Appl. Phys. Lett. 94, 172511 (2009).
  24. D. Wagle, D. Stoeffler, L. Temdie, M. T. Kaffash, V. Castel, H. Majjad, R. Bernard, Y. Henry, M. Bailleul, M. B. Jungfleisch, and V. Vlaminck, Shaping nonreciprocal caustic spin-wave beams, Phys. Rev. B 113, L060405 (2026).
  25. J. Holanda, D. S. Maior, A. Azevedo, and S. M. Rezende, Detecting the phonon spin in magnon–phonon conversion experiments, Nat. Phys. 14, 500 (2018).
  26. J. D. Costa, B. Figeys, X. Sun, N. Van Hoovels, H. A. C. Tilmans, F. Ciubotaru, and C. Adelmann, Compact tunable YIG-based RF resonators, Appl. Phys. Lett. 118, 162406 (2021).
  27. A. G. Whitney, J. M. Lewis, J. Dickovick, V. Kalappattil, L. D. Carr, and M. Wu, Propagation of spin waves in doubly periodic magnonic crystals, Phys. Rev. Appl. 23, 064012 (2025).
  28. K. O. Levchenko, K. Davídková, J. Mikkelsen, and A. V. Chumak, Review on spin-wave RF applications, IEEE Trans. Magn. 62, 0900140 (2026).

Outline

Information

Phys. Rev. Lett. 137, 176701– Published 21 October, 2026
  • Received 6 March 2026
  • Revised 22 June 2026
  • Accepted 21 September 2026
