High-Efficiency Plasma-Based Compressor for Ultrafast Soft X-Ray Free-Electron Lasers

Mingchang Wang1,2,*, Li Zeng3,*, Bingbing Zhang3, Qinghao Zhu3, Xiaozhe Shen3, Xiaofan Wang3,†, Qinming Li3,‡, and Weiqing Zhang1,§

  • *These authors contributed equally to this work.
  • †Contact author: wangxf@mail.iasf.ac.cn
  • ‡Contact author: liqinming@mail.iasf.ac.cn
  • §Contact author: weiqingzhang@dicp.ac.cn
PDF

Phys. Rev. Lett. 135, 155001 – Published 7 October, 2025

DOI: https://doi.org/10.1103/d7r7-46ld

Abstract

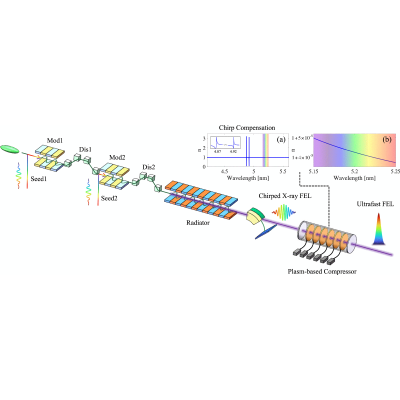

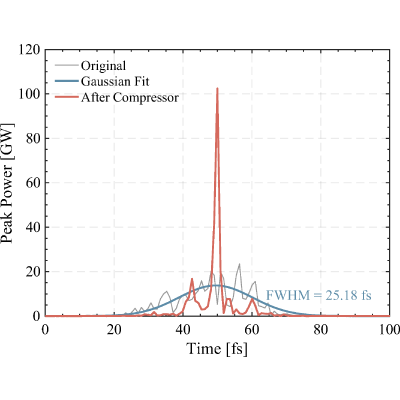

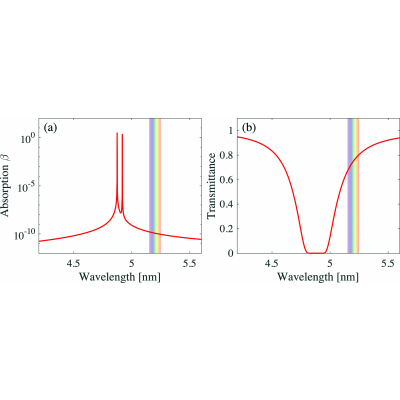

The generation of intense, femtosecond-scale x-ray pulses is crucial for probing matter under extreme temporal and field conditions. Current chirped-pulse amplification (CPA) techniques in free-electron lasers (FELs), however, face efficiency limitations in the soft x-ray regime due to the inherent constraints of conventional optical compressors. To address this challenge, we propose a high-efficiency plasma-based compressor utilizing highly ionized noble gas plasma. Exploiting strong refractive index dispersion near ionic resonances, this scheme achieves over 70% transmission efficiency around 5.2 nm and is extendable to other highly charged ions for operation across the soft x-ray to vacuum ultraviolet range. Simulations demonstrate that a 25 fs FEL pulse can be compressed to 1.4 fs with peak power boosted to over 100 GW, while maintaining high-energy throughput. This transformative approach bridges the soft x-ray CPA gap and opens a scalable path toward compact, high-brightness attosecond FEL sources.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (42)

  1. P. Emma, R. Akre, J. Arthur, R. Bionta, C. Bostedt, J. Bozek, A. Brachmann, P. Bucksbaum, R. Coffee, F.-J. Decker et al., Nat. Photonics 4, 641 (2010).
  2. J. Duris, S. Li, T. Driver, E. G. Champenois, J. P. MacArthur, A. A. Lutman, Z. Zhang, P. Rosenberger, J. W. Aldrich, R. Coffee et al., Nat. Photonics 14, 30 (2020).
  3. T. Driver, M. Mountney, J. Wang, L. Ortmann, A. Al-Haddad, N. Berrah, C. Bostedt, E. G. Champenois, L. F. DiMauro, J. Duris et al., Nature (London) 632, 762 (2024).
  4. S. Li, T. Driver, P. Rosenberger, E. G. Champenois, J. Duris, A. Al-Haddad, V. Averbukh, J. C. Barnard, N. Berrah, C. Bostedt et al., Science 375, 285 (2022).
  5. T. Barillot, O. Alexander, B. Cooper, T. Driver, D. Garratt, S. Li, A. Al Haddad, A. Sanchez-Gonzalez, M. Agåker, C. Arrell et al., Phys. Rev. X 11, 031048 (2021).
  6. R. Boll, J. M. Schäfer, B. Richard, K. Fehre, G. Kastirke, Z. Jurek, M. S. Schöffler, M. M. Abdullah, N. Anders, T. M. Baumann et al., Nat. Phys. 18, 423 (2022).
  7. F. Richter, U. Saalmann, E. Allaria, M. Wollenhaupt, B. Ardini, A. Brynes, C. Callegari, G. Cerullo, M. Danailov, A. Demidovich et al., Nature (London) 636, 337 (2024).
  8. Y. Ding, C. Behrens, R. Coffee, F.-J. Decker, P. Emma, C. Field, W. Helml, Z. Huang, P. Krejcik, J. Krzywinski et al., Appl. Phys. Lett. 107, 191104 (2015).
  9. S. Huang, Y. Ding, Y. Feng, E. Hemsing, Z. Huang, J. Krzywinski, A. A. Lutman, A. Marinelli, T. J. Maxwell, and D. Zhu, Phys. Rev. Lett. 119, 154801 (2017).
  10. A. A. Zholents, Phys. Rev. ST Accel. Beams 8, 040701 (2005).
  11. E. Prat and S. Reiche, Phys. Rev. Lett. 114, 244801 (2015).
  12. M. W. Guetg, A. A. Lutman, Y. Ding, T. J. Maxwell, F.-J. Decker, U. Bergmann, and Z. Huang, Phys. Rev. Lett. 120, 014801 (2018).
  13. P. K. Maroju, C. Grazioli, M. Di Fraia, M. Moioli, D. Ertel, H. Ahmadi, O. Plekan, P. Finetti, E. Allaria, L. Giannessi et al., Nature (London) 578, 386 (2020).
  14. N. S. Mirian, M. Di Fraia, S. Spampinati, F. Sottocorona, E. Allaria, L. Badano, M. B. Danailov, A. Demidovich, G. De Ninno, S. Di Mitri et al., Nat. Photonics 15, 523 (2021).
  15. D. Gauthier, E. Allaria, M. Coreno, I. Cudin, H. Dacasa, M. B. Danailov, A. Demidovich, S. Di Mitri, B. Diviacco, E. Ferrari et al., Nat. Commun. 7, 13688 (2016).
  16. H. Li, J. MacArthur, S. Littleton, M. Dunne, Z. Huang, and D. Zhu, Phys. Rev. Lett. 129, 213901 (2022).
  17. T. Tanaka, Phys. Rev. Lett. 114, 044801 (2015).
  18. M. Pascolini, S. Bonora, A. Giglia, N. Mahne, S. Nannarone, and L. Poletto, Appl. Opt. 45, 3253 (2006).
  19. F. Frassetto and L. Poletto, Appl. Opt. 54, 7985 (2015).
  20. Y. V. Shvyd’ko, M. Lerche, U. Kuetgens, H. D. Rüter, A. Alatas, and J. Zhao, Phys. Rev. Lett. 97, 235502 (2006).
  21. C. Bourassin-Bouchet, S. de Rossi, and F. Delmotte, in Optical Technologies for Extreme-Ultraviolet and Soft X-Ray Coherent Sources (Springer, New York, 2015), pp. 151–173.
  22. G. Stupakov, Phys. Rev. Lett. 102, 074801 (2009).
  23. D. Xiang and G. Stupakov, Phys. Rev. ST Accel. Beams 12, 030702 (2009).
  24. P. Rebernik Ribič, A. Abrami, L. Badano, M. Bossi, H.-H. Braun, N. Bruchon, F. Capotondi, D. Castronovo, M. Cautero, P. Cinquegrana et al., Nat. Photonics 13, 555 (2019).
  25. R. Bleach, P. Burkhalter, D. Nagel, and R. Schneider, J. Appl. Phys. 54, 1273 (1983).
  26. U. Shumlak, R. P. Golingo, B. A. Nelson, and D. J. Den Hartog, Phys. Rev. Lett. 87, 205005 (2001).
  27. S. A. Pikuz, D. B. Sinars, T. A. Shelkovenko, K. M. Chandler, D. A. Hammer, G. V. Ivanenkov, W. Stepniewski, and I. Y. Skobelev, Phys. Rev. Lett. 89, 035003 (2002).
  28. C. W. Chung, S. S. Kim, and H.-Y. Chang, Phys. Rev. Lett. 88, 095002 (2002).
  29. S. H. Glenzer, B. MacGowan, P. Michel, N. Meezan, L. Suter, S. Dixit, J. Kline, G. Kyrala, D. Bradley, D. Callahan et al., Science 327, 1228 (2010).
  30. R. Betti and O. Hurricane, Nat. Phys. 12, 435 (2016).
  31. S. A. Irimiciuc, P.-E. Nica, M. Agop, and C. Focsa, Appl. Surf. Sci. 506, 144926 (2020).
  32. L. Drescher, O. Kornilov, T. Witting, G. Reitsma, N. Monserud, A. Rouzée, J. Mikosch, M. J. Vrakking, and B. Schütte, Nature (London) 564, 91 (2018).
  33. A. Kramida, Y. Ralchenko, J. Reader, and N. A. Team, NIST 10.18434/T4W30F (2024).
  34. See Supplemental Material at http://link.aps.org/supplemental/10.1103/d7r7-46ld which includes Refs. [33,35–37], for details about the theoretical model of chirped-pulse compression in dispersive media, the evaluation of the refractive index contribution from plasma electrons, other ionization states and excited states of ions, and the identification of resonance candidates across the soft x-ray to VUV spectrum to demonstrate the generality and applicability of the proposed approach.
  35. D. Klir, A. V. Shishlov, V. A. Kokshenev, R. K. Cherdizov, J. Cikhardt, F. I. Fursov, J. Kravarik, P. Kubes, N. E. Kurmaev, J. Malir et al., Phys. Plasmas 28, 062708 (2021).
  36. V. Tangri, A. J. Harvey-Thompson, J. L. Giuliani, J. W. Thornhill, A. L. Velikovich, J. P. Apruzese, N. D. Ouart, A. Dasgupta, B. Jones, and C. A. Jennings, Phys. Plasmas 23, 101201 (2016).
  37. J. B. Hasted, Proc. R. Soc. A 205, 421 (1951).
  38. S. Reiche, Nucl. Instrum. Methods Phys. Res., Sect. A 429, 243 (1999).
  39. P. Finetti, H. Höppner, E. Allaria, C. Callegari, F. Capotondi, P. Cinquegrana, M. Coreno, R. Cucini, M. B. Danailov, A. Demidovich, G. De Ninno, M. Di Fraia et al., Phys. Rev. X 7, 021043 (2017).
  40. N. S. Mirian, E. Allaria, N. Bruchon, P. Cinquegrana, M. B. Danailov, G. De Ninno, S. Di Mitri, E. Ferrari, L. Giannessi, E. Hemsing, G. Penco, E. Roussel, S. Spampinati, C. Spezzani, M. Trovó, M. Veronese, and P. Rebernik Ribič, Phys. Rev. Accel. Beams 23, 060701 (2020).
  41. https://cstr.cn/31127.02.DCLS.
  42. 10.5281/zenodo.17141202.
