Ab Initio Bulk Free Energy Surface of Proper Ferroelectrics

Pinchen Xie1,2, Yixiao Chen2, Xinyu Xu3, Zhi Yao1, Weinan E2,*, and Roberto Car4,2,†

  • *Present address: AI for Science Institute, Beijing, China and Center for Machine Learning Research and School of Mathematical Sciences, Peking University, Beijing, China.
  • †Contact author: rcar@princeton.edu
PDF

Phys. Rev. Lett. 136, 056801 – Published 4 February, 2026

DOI: https://doi.org/10.1103/bpz5-2pyw

Abstract

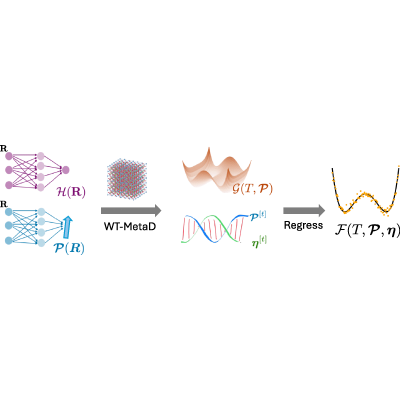

We report a systematic and accurate approach for deriving the bulk free energy surface (FES), a function of temperature, polarization, and strain, from the first-principles density functional theory (DFT) of proper ferroelectrics. The core of our approach is the metadynamics algorithm that extracts the polarization dependence of the FES from all-atom molecular dynamics simulations without an a priori ansatz. The rest of the FES is derived from the metadynamics trajectories that span the relevant phase space. We demonstrate our approach in the case of lead titanate. The errors across the phase transition, due to DFT numerics, all-atom molecular dynamics, and free energy evaluation by enhanced sampling, can be systematically controlled and are of the order of 1  meV/atom. The accuracy of the resulting ab initio FES is only limited by the adopted functional approximation of DFT.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (52)

  1. P. Chandra and P. B. Littlewood, A landau primer for ferroelectrics, in Physics of Ferroelectrics: A Modern Perspective (Springer, Berlin, Heidelberg, 2007), pp. 69–116.
  2. L.-Q. Chen, Phase-field models for microstructure evolution, Annu. Rev. Mater. Res. 32, 113 (2002).
  3. F. Xue, T. Yang, and L.-Q. Chen, Theory and phase-field simulations of electrical control of spin cycloids in a multiferroic, Phys. Rev. B 103, 064202 (2021).
  4. A. Yadav, C. Nelson, S. Hsu, Z. Hong, J. Clarkson, C. Schlepütz, A. Damodaran, P. Shafer, E. Arenholz, L. Dedon et al., Observation of polar vortices in oxide superlattices, Nature (London) 530, 198 (2016).
  5. P. Kumar, M. Hoffmann, A. Nonaka, S. Salahuddin, and Z. Yao, 3D ferroelectric phase field simulations of polycrystalline multi-phase hafnia and zirconia based ultra-thin films, Adv. Electron. Mater. 10, 2400085 (2024).
  6. P. Kumar, A. Nonaka, R. Jambunathan, G. Pahwa, S. Salahuddin, and Z. Yao, Ferrox: A GPU-accelerated, 3D phase-field simulation framework for modeling ferroelectric devices, Comput. Phys. Commun. 290, 108757 (2023).
  7. A. K. Saha and S. K. Gupta, Multi-domain negative capacitance effects in metal-ferroelectric-insulator-semiconductor/metal stacks: A phase-field simulation based study, Sci. Rep. 10, 10207 (2020).
  8. A. K. Yadav, K. X. Nguyen, Z. Hong, P. García-Fernández, P. Aguado-Puente, C. T. Nelson, S. Das, B. Prasad, D. Kwon, S. Cheema et al., Spatially resolved steady-state negative capacitance, Nature (London) 565, 468 (2019).
  9. A. F. Devonshire, Xcvi. theory of barium titanate: Part I, Philos. Mag. 40, 1040 (1949).
  10. A. F. Devonshire, Cix. theory of barium titanate—Part II, Philos. Mag. 42, 1065 (1951).
  11. A. F. Devonshire, Theory of ferroelectrics, Adv. Phys. 3, 85 (1954).
  12. D. Vanderbilt, Berry Phases in Electronic Structure Theory: Electric Polarization, Orbital Magnetization and Topological Insulators (Cambridge University Press, Cambridge, England, 2018).
  13. R. Resta and D. Vanderbilt, Theory of polarization: A modern approach, in Physics of Ferroelectrics: A Modern Perspective (Springer, Berlin, Heidelberg, 2007), pp. 31–68.

  14. The redundancy is eliminated when a reference structure is chosen for the zero of polarization.

  15. The periodicity of the polarization is associated with the polarization quantum [12, 13]. In practice, the change of polarization typically does not exceed the quantum of polarization. Thus, polarization can often be treated as a single-value function, as we do in this Letter.

  16. L. Zhang, J. Han, H. Wang, R. Car, and Weinan E., Deep potential molecular dynamics: A scalable model with the accuracy of quantum mechanics, Phys. Rev. Lett. 120, 143001 (2018).
  17. L. Zhang, M. Chen, X. Wu, H. Wang, Weinan E, and R. Car, Deep neural network for the dielectric response of insulators, Phys. Rev. B 102, 041121(R) (2020).
  18. A. Barducci, M. Bonomi, and M. Parrinello, Metadynamics, Comput. Mol. Sci. 1, 826 (2011).
  19. O. Valsson and M. Parrinello, Variational approach to enhanced sampling and free energy calculations, Phys. Rev. Lett. 113, 090601 (2014).
  20. M. Invernizzi, P. M. Piaggi, and M. Parrinello, Unified approach to enhanced sampling, Phys. Rev. X 10, 041034 (2020).
  21. A. Barducci, G. Bussi, and M. Parrinello, Well-tempered metadynamics: A smoothly converging and tunable free-energy method, Phys. Rev. Lett. 100, 020603 (2008).
  22. J. Íñiguez, S. Ivantchev, J. M. Perez-Mato, and A. García, Devonshire-landau free energy of BaTiO3 from first principles, Phys. Rev. B 63, 144103 (2001).
  23. G. Geneste, Landau free energy of ferroelectric crystals by thermodynamic integration, Phys. Rev. B 79, 064101 (2009).
  24. A. Kumar and U. V. Waghmare, First-principles free energies and Ginzburg-Landau theory of domains and ferroelectric phase transitions in BaTiO3, Phys. Rev. B 82, 054117 (2010).
  25. L. Zhang, J. Han, H. Wang, W. Saidi, R. Car et al., in NIPS’18: Proceedings of the 32nd International Conference on Neural Information Processing Systems (2018) pp. 4441–4451.
  26. J. Sun, A. Ruzsinszky, and J. P. Perdew, Strongly constrained and appropriately normed semilocal density functional, Phys. Rev. Lett. 115, 036402 (2015).
  27. L. Zhang, D.-Y. Lin, H. Wang, R. Car, and Weinan E, Active learning of uniformly accurate interatomic potentials for materials simulation, Phys. Rev. Mater. 3, 023804 (2019).
  28. Y. Zhang, H. Wang, W. Chen, J. Zeng, L. Zhang, H. Wang, and Weinan E, Dp-gen: A concurrent learning platform for the generation of reliable deep learning based potential energy models, Comput. Phys. Commun. 253, 107206 (2020).
  29. P. Xie, Y. Chen, Weinan E, and R. Car, Thermal disorder and phonon softening in the ferroelectric phase transition of lead titanate, Phys. Rev. B 111, 094113 (2025).

  30. A direct molecular dynamics simulation of the ferroelectric domain switching (driven by nucleation and growth) in PbTiO3 with our Deep Potential model can be found in Sec. 3.1 of [31].

  31. P. Xie, Ab Initio multi-scale modeling of crystals: Methods and applications in ferroelectrics, Ph.D. thesis, Princeton University 2024.
  32. J. Cahn and F. Larché, A simple model for coherent equilibrium, Acta Metall. 32, 1915 (1984).
  33. R. B Schwarz and A. G. Khachaturyan, Thermodynamics of open two-phase systems with coherent interfaces, Phys. Rev. Lett. 74, 2523 (1995).
  34. Y. M. Jin, Y. U. Wang, and A. G. Khachaturyan, Macroscopic energy barrier and rate-independent hysteresis in martensitic transformations, Acta Mater. 173, 292 (2019).

  35. The restriction can be applied as restraining potentials (UPPER_WALLS and LOWER_WALLS) in plumed. Relevant scripts are provided in Supplemental Material [36].

  36. See Supplemental Material at http://link.aps.org/supplemental/10.1103/bpz5-2pyw for details on the construction of the optimal Landau-Devonshire model; and details on the construction of the optimal electrostriction theory; Supplemental Code and Data, https://github.com/salinelake/ab_initio_PbTiO3, accessed: 2025-05-10.
  37. M. J. Haun, E. Furman, S. Jang, H. McKinstry, and L. Cross, Thermodynamic theory of PbTiO3, J. Appl. Phys. 62, 3331 (1987).
  38. L.-Q. Chen, Appendix A–Landau free-energy coefficients, in Physics of Ferroelectrics: A Modern Perspective (Springer, New York, 2007), pp. 363–372.
  39. Y.-J. Wang, J. Li, Y.-L. Zhu, and X.-L. Ma, Phase-field modeling and electronic structural analysis of flexoelectric effect at 180° domain walls in ferroelectric PbTiO3, J. Appl. Phys. 122, 224101 (2017).
  40. R. K. Behera, C.-W. Lee, D. Lee, A. N. Morozovska, S. B. Sinnott, A. Asthagiri, V. Gopalan, and S. R. Phillpot, Structure and energetics of 180 domain walls in PbTiO3 by density functional theory, J. Phys. Condens. Matter 23, 175902 (2011).
  41. O. Eriksson, A. Bergman, L. Bergqvist, and J. Hellsvik, Atomistic Spin Dynamics: Foundations and Applications (Oxford University Press, New York, 2017).
  42. M. Invernizzi, O. Valsson, and M. Parrinello, Coarse graining from variationally enhanced sampling applied to the Ginzburg–Landau model, Proc. Natl. Acad. Sci. U.S.A. 114, 3370 (2017).
  43. openferro, https://github.com/salinelake/OpenFerro, accessed: 2025-05-10.
  44. G. A. Rossetti and N. Maffei, Specific heat study and landau analysis of the phase transition in PbTiO3 single crystals, J. Condens. Matter Phys. 17, 3953 (2005).

  45. A heuristic calculation with Eq. (20c) of Ref. [34] yields a width of thermal hysteresis in the same order of magnitude as the experimental value.

  46. H. Wang, L. Zhang, J. Han, and W. E, deepmd-kit: A deep learning package for many-body potential energy representation and molecular dynamics, Comput. Phys. Commun. 228, 178 (2018).
  47. J. Zeng, D. Zhang, D. Lu, P. Mo, Z. Li, Y. Chen, M. Rynik, L. Huang, Z. Li, S. Shi et al., deepmd-kit v2: A software package for deep potential models, J. Chem. Phys. 159, 054801 (2023).
  48. A. P. Thompson, H. M. Aktulga, R. Berger, D. S. Bolintineanu, W. M. Brown, P. S. Crozier, P. J. In’t Veld, A. Kohlmeyer, S. G. Moore, T. D. Nguyen et al., lammps-a flexible simulation tool for particle-based materials modeling at the atomic, meso, and continuum scales, Comput. Phys. Commun. 271, 108171 (2022).
  49. M. Bonomi, Promoting transparency and reproducibility in enhanced molecular simulations, Nat. Methods 16, 670 (2019).
  50. G. A. Tribello, M. Bonomi, D. Branduardi, C. Camilloni, and G. Bussi, plumed 2: New feathers for an old bird, Comput. Phys. Commun. 185, 604 (2014).
  51. deepmd Plumed Module, https://github.com/y1xiaoc/deepmd-plumed, accessed: 2021-07-10.
  52. G. J. Martyna, D. J. Tobias, and M. L. Klein, Constant pressure molecular dynamics algorithms, J. Chem. Phys. 101, 4177 (1994).
