Strings, Branes and Twistons: Topological Analysis of Phase Defects in Excitable Media Such as the Heart

Louise Arno1,*, Desmond Kabus1,2,*, and Hans Dierckx1,2,†

  • *These authors contributed equally to this work.
  • †Contact author: h.j.f.dierckx@lumc.nl
PDF

Phys. Rev. Lett. 135, 128402 – Published 18 September, 2025

DOI: https://doi.org/10.1103/5pgp-1wj6

Abstract

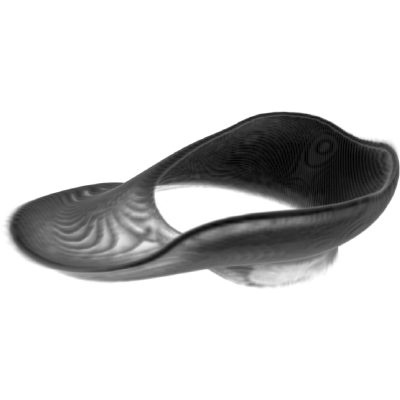

Several excitable systems, such as the heart, self-organize into complex spatiotemporal patterns that involve wave collisions and rotating vortices. The dynamics between these structures are incompletely understood. Here we establish a comprehensive topological framework in three spatial dimensions. Conduction blocks are identified as phase defect surfaces, on which three types of closed curves move and carry a topological vector charge. Our framework not only sheds new light on twistons and hybrid reentry but also predicts new states: a Möbius scroll wave and conduction block surfaces that can split, branch, or contain multiple filaments. We hypothesize that the latter play a role in cardiac arrhythmias.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (38)

  1. Cardiac Electrophysiology. From Cell to Bedside, 2nd edition, edited by D. Zipes and J. Jalife (Saunders, Philadelphia, 1995).
  2. K. M. Sanders, Spontaneous electrical activity and rhythmicity in gastrointestinal smooth muscles, in Smooth Muscle Spontaneous Activity: Physiological and Pathological Modulation, edited by H. Hashitani and R. J. Lang (Springer, Singapore, 2019), pp. 3–46.
  3. J. V. Noble, Geographic and temporal development of plagues, Nature (London) 250, 726 (1974).
  4. M. Nash, A. Mourad, R. Clayton, P. Sutton, C. Bradley, M. Hayward, D. Paterson, and P. Taggart, Evidence for multiple mechanisms in human ventricular fibrillation, Circulation 114, 536 (2006).
  5. J. W. Waks, Mechanisms of atrial fibrillation—reentry, rotors and reality, Arrhythm Electrophysiol. Rev. 3, 90 (2014).
  6. V. Zykov, Simulation of Wave Processes in Excitable Media (Manchester University Press, Manchester, 1987).
  7. R. Gray, J. Jalife, A. Panfilov, W. Baxter, C. Cabo, and A. Pertsov, Non-stationary vortex-like reentrant activity as a mechanism of polymorphic ventricular tachycardia in the isolated rabbit heart, Circulation 91, 2454 (1995).
  8. R. Clayton, E. Zhuchkova, and A. Panfilov, Phase singularities and filaments: Simplifying complexity in computational models of ventricular fibrillation, Prog. Biophys. Molec. Biol. 90, 378 (2005).
  9. A. Winfree, Scroll-shaped waves of chemical activity in three dimensions, Science 181, 937 (1973).
  10. M. Yamazaki, S. Mironov, C. Taravant, J. Brec, L. Vaquero, K. Bandaru, U. Avula, H. Honjo, I. Kodama, O. Berenfeld, and J. Kalifa, Heterogeneous atrial wall thickness and stretch promote scroll waves anchoring during atrial fibrillation, Cardiovasc. Res. 94, 48 (2012).
  11. P. Podziemski, S. Zeemering, P. Kuklik, A. van Hunnik, B. Maesen, J. Maessen, H. J. Crijns, S. Verheule, and U. Schotten, Rotors detected by phase analysis of filtered, epicardial atrial fibrillation electrograms colocalize with regions of conduction block, Cir. Arrhythmia Electrophysiol., 10.1161/CIRCEP.117.005858 (2018).
  12. N. Tomii, M. Yamazaki, T. Ashihara, K. Nakazawa, N. Shibata, H. Honjo, and I. Sakuma, Spatial phase discontinuity at the center of moving cardiac spiral waves, Comp. Biol. Med. 130 (2021).
  13. L. Arno, J. Quan, N. Nguyen, M. Vanmarcke, E. G. Tolkacheva, and H. Dierckx, A phase defect framework for the analysis of cardiac arrhythmia patterns, Front. Physiol., 10.3389/fphys.2021.690453 (2021).
  14. S. M. Narayan, D. E. Krummen, K. Shivkumar, P. Clopton, W.-J. Rappel, and J. M. Miller, Treatment of atrial fibrillation by the ablation of localized sources, J. Am. College Cardiol. 60, 628 (2012).
  15. J. Seitz, C. Bars, G. Théodore, S. Beurtheret, N. Lellouche, M. Bremondy, A. Ferracci, J. Faure, G. Penaranda, M. Yamazaki, U. M. R. Avula, L. Curel, S. Siame, O. Berenfeld, A. Pisapia, and J. Kalifa, AF ablation guided by spatiotemporal electrogram dispersion without pulmonary vein isolation, J. Am. College Cardiol. 69, 303 (2017).
  16. M. Janse, Vulnerability to ventricular fibrillation, Chaos 8, 149 (1998).
  17. J. Jalife, Ventricular fibrillation: Mechanisms of initiation and maintenance, Annu. Rev. Physiol. 62, 25 (2000).
  18. G. Moe and J. Abildskov, Atrial fibrillation as a self-sustained arrhythmia independent of focal discharge, Am. Heart J. 58, 59 (1959).
  19. F. Fenton and A. Karma, Vortex dynamics in three-dimensional continuous myocardium with fiber rotation: Filament instability and fibrillation, Chaos 8, 20 (1998).
  20. L. Arno, D. Kabus, and H. Dierckx, Analysis of cardiac arrhythmia sources using Feynman-like diagrams, Sci. Rep. 14, 28962 (2024).
  21. D. Kabus, L. Arno, L. Leenknegt, A. Panfilov, D. Pijnappels, and H. Dierckx, Numerical methods for the detection of phase defect structures in excitable media, PLoS One 17, e0271351 (2021).
  22. A. Bueno-Orovio, E. Cherry, and F. Fenton, Minimal model for human ventricular action potentials in tissue, J. Theor. Biol. 253, 544 (2008).
  23. R. Hren and G. Stroink, Application of surface harmonic expansions for modeling human torso, IEEE Trans. Biomed. Eng. 42, 521 (1995).
  24. See Supplemental Material at http://link.aps.org/supplemental/10.1103/5pgp-1wj6 for a movie of the simulation results.
  25. R. Clayton, O. Bernus, E. Cherry, H. Dierckx, F. Fenton, L. Mirabella, A. Panfilov, F. Sachse, G. Seemann, and H. Zhang, Models of cardiac tissue electrophysiology: Progress, challenges and open questions, Prog. Biophys. Molec. Biol. 104, 22 (2011).
  26. A. Winfree and S. Strogatz, Organizing centers for three-dimensional chemical waves, Nature (London) 311, 611 (1984).
  27. J. Keener and J. Tyson, The dynamics of scroll waves in excitable media, SIAM Rev. 34, 1 (1992).
  28. A. M. Pertsov, M. Wellner, M. Vinson, and J. Jalife, Topological constraint on scroll wave pinning, Phys. Rev. Lett. 84, 2738 (2000).
  29. D. Gurevich and R. O. Grigoriev, Robust approach for rotor mapping in cardiac tissue, Chaos 5, 093107 (2019).
  30. M. Duytschaever et al., Atrial topology for a unified understanding of typical and atypical flutter, Circ. Arrhythm Electrophysiol. 17, e013102 (2024).
  31. S. Verheule, J. Eckstein, D. Linz, B. Maesen, E. Bidar, A. Gharaviri, and U. Schotten, Role of endo-epicardial dissociation of electrical activity and transmural conduction in the development of persistent atrial fibrillation, Prog. Biophys. Molec. Biol. 115, 173 (2014).
  32. P. C. Bressloff, Waves in Neural Media: From Single 389 Neurons to Neural Fields (Springer, New York, 2014).
  33. C. Luo and Y. Rudy, A dynamic model of the cardiac ventricular action potential; II: Afterdepolarizations, triggered activity and potentiation, Circ. Res. 74, 1097 (1994).
  34. C. Antzelevitch and A. Burashnikov, Overview of basic mechanisms of cardiac arrhythmia, Card. Electrophysiol. Clin. 3, 23 (2011).
  35. A. Gobeyn, D. Kabus, E. G. Tolkacheva, and H. Dierckx, ZEUS: Numerical methods to detect quasi-particles describing excitable media (to be published).
  36. B. Zwiebach, A First Course in String Theory (Cambridge University Press, Cambridge, England, 2004).
  37. D. Kabus, M. Cloet, C. Zemlin, O. Bernus, and H. Dierckx, The ithildin library for efficient numerical solution of anisotropic reaction-diffusion problems in excitable media, PLoS One 19, 1 (2024).
  38. L. Arno, D. Kabus, and H. Dierckx, Dataset for “Strings, branes and twistons: Topological analysis of phase defects in excitable media such as the heart” (2025), 10.5281/zenodo.16089825
