Cold Self-Lubrication of Sliding Ice

Achraf Atila, Sergey V. Sukhomlinov, and Martin H. Müser*

  • Department of Material Science and Engineering, Saarland University, Saarbrücken, 66123, Germany

  • *Contact author: martin.mueser@mx.uni-saarland.de
PDF

Phys. Rev. Lett. 135, 066204 – Published 7 August, 2025

DOI: https://doi.org/10.1103/1plj-7p4z

Abstract

The low kinetic friction between ice and numerous counterbodies is commonly attributed to an interfacial water layer, which is believed to originate from preexisting surface water or from melt water induced by high contact pressures or frictional heat. However, even the currently leading theory of frictional melting appears to defy direct experimental verification. Here we present molecular simulations of ice interfaces that reveal that ice surfaces liquefy without melting thermodynamically but predominantly by cold, displacement-driven amorphization. Despite effective self-lubrication, very small ice friction is found to require water to slip past a hydrophobic counterface—or an excess amount of water, produced by, e.g., extreme sliding velocities.

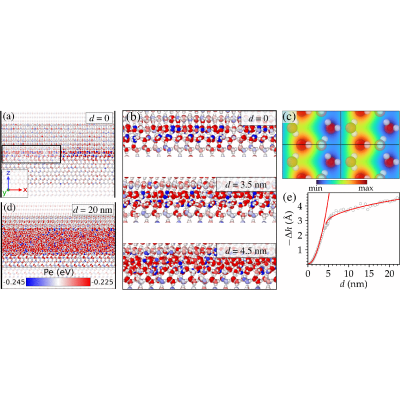

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (46)

  1. R. Rosenberg, Why is ice slippery?, Phys. Today 58, No. 12, 50 (2005).
  2. J. G. Dash, A. W. Rempel, and J. S. Wettlaufer, The physics of premelted ice and its geophysical consequences, Rev. Mod. Phys. 78, 695 (2006).
  3. Ł. Baran, P. Llombart, W. Rżysko, and L. G. MacDowell, Ice friction at the nanoscale, Proc. Natl. Acad. Sci. U.S.A. 119, e2209545119 (2022).
  4. J. Thompson, I. On recent theories and experiments regarding ice at or near its melting-point, Proc. R. Soc. London 10, 151 (1860).
  5. Faraday, XXIV. On regelation, and on the conservation of force, London, Edinburgh, Dublin Philos. Mag. J. Sci. 17, 162 (1859).
  6. B. Slater and A. Michaelides, Surface premelting of water ice, Nat. Rev. Chem. 3, 172 (2019).
  7. F. P. Bowden and T. P. Hughes, The mechanism of sliding on ice and snow, Proc. R. Soc. A 172, 280 (1939).
  8. J. H. Lever, S. Taylor, A. J. Song, Z. R. Courville, R. Lieblappen, and J. C. Weale, The mechanics of snow friction as revealed by micro-scale interface observations, J. Glaciol. 64, 27 (2017).
  9. B. Weber, Y. Nagata, S. Ketzetzi, F. Tang, W. J. Smit, H. J. Bakker, E. H. G. Backus, M. Bonn, and D. Bonn, Molecular insight into the slipperiness of ice, J. Phys. Chem. Lett. 9, 2838 (2018).
  10. L Bäurle, D Szabó, M Fauve, H Rhyner, and N D Spencer, Sliding friction of polyethylene on ice: Tribometer measurements, Tribol. Lett. 24, 77 (2006).
  11. G. Moras, A. Klemenz, T. Reichenbach, A. Gola, H. Uetsuka, M. Moseler, and L. Pastewka, Shear melting of silicon and diamond and the disappearance of the polyamorphic transition under shear, Phys. Rev. Mater. 2, 083601 (2018).
  12. A. P. Thompson, H. M. Aktulga, R. Berger, D. S. Bolintineanu, W. M. Brown, P. S. Crozier, P. J. in ’t Veld, A. Kohlmeyer, S. G. Moore, T. D. Nguyen, R. Shan, M. J. Stevens, J. Tranchida, C. Trott, and S. J. Plimpton, LAMMPS: A flexible simulation tool for particle-based materials modeling at the atomic, meso, and continuum scales, Comput. Phys. Commun. 271, 108171 (2022).
  13. J. L. F. Abascal, E. Sanz, R. García Fernández, and C. Vega, A potential model for the study of ices and amorphous water: TIP4P/Ice, J. Chem. Phys. 122, 234511 (2005).
  14. C. Vega and J. L. F. Abascal, Relation between the melting temperature and the temperature of maximum density for the most common models of water, J. Chem. Phys. 123, 2056539 (2005).
  15. E. G. Noya, C. Menduiña, J. L. Aragones, and C. Vega, Equation of state, thermal expansion coefficient, and isothermal compressibility for ices ih, II, III, v, and VI, as obtained from computer simulation, J. Phys. Chem. C 111, 15877 (2007).
  16. M. M. Conde, C. Vega, and A. Patrykiejew, The thickness of a liquid layer on the free surface of ice as obtained from computer simulation, J. Chem. Phys. 129, 014702 (2008).
  17. Ł. Baran, W. Rżysko, and L. G. MacDowell, Self-diffusion and shear viscosity for the TIP4p/ice water model, J. Chem. Phys. 158, 0134932 (2023).
  18. A. Rosu-Finsen, M. B. Davies, A. Amon, H. Wu, A. Sella, A. Michaelides, and C. G. Salzmann, Medium-density amorphous ice, Science 379, 474 (2023).
  19. I. Iriarte-Carretero, M. A. Gonzalez, and F. Bresme, Thermal conductivity of ice polymorphs: A computational study, Phys. Chem. Chem. Phys. 20, 11028 (2018).
  20. See Supplemental Material at http://link.aps.org/supplemental/10.1103/1plj-7p4z for detailed methods, in which the claims made in the main part of the manuscript are substantiated, and the overall conclusions are strengthened through additional numerical and theoretical analysis.
  21. A. Stukowski, Visualization and analysis of atomistic simulation data with OVITO–the open visualization tool, Model. Simul. Mater. Sci. Eng. 18, 015012 (2009).
  22. H. J. C. Berendsen, J. R. Grigera, and T. P. Straatsma, The missing term in effective pair potentials, J. Phys. Chem. 91, 6269 (1987).
  23. M. Hirano and K. Shinjo, Atomistic locking and friction, Phys. Rev. B 41, 11837 (1990).
  24. M. H Müser, Structural lubricity: Role of dimension and symmetry, Europhys. Lett. 66, 97 (2004).
  25. D. Dietzel, M. Feldmann, U. D. Schwarz, H. Fuchs, and A. Schirmeisen, Scaling laws of structural lubricity, Phys. Rev. Lett. 111, 235502 (2013).
  26. V. Molinero and E. B. Moore, Water modeled as an intermediate element between carbon and silicon, J. Phys. Chem. B 113, 4008 (2008).
  27. G. He, M. H. Müser, and M. O. Robbins, Adsorbed layers and the origin of static friction, Science 284, 1650 (1999).
  28. S. V. Sukhomlinov and M. H. Müser, A mixed radial, angular, three-body distribution function as a tool for local structure characterization: Application to single-component structures, J. Chem. Phys. 152, 0007964 (2020).
  29. L. Pastewka, S. Moser, P. Gumbsch, and M. Moseler, Anisotropic mechanical amorphization drives wear in diamond, Nat. Mater. 10, 34 (2010).
  30. A. H. Nguyen and V. Molinero, Identification of clathrate hydrates, hexagonal ice, cubic ice, and liquid water in simulations: The chill+algorithm, J. Phys. Chem. B 119, 9369 (2014).
  31. C. Müller, M. H. Müser, G. Carbone, and N. Menga, Significance of elastic coupling for stresses and leakage in frictional contacts, Phys. Rev. Lett. 131, 156201 (2023).
  32. P. Gallo, K. Amann-Winkel, C. A. Angell, M. A. Anisimov, F. Caupin, C. Chakravarty, E. Lascaris, T. Loerting, A. Z. Panagiotopoulos, J. Russo, J. A. Sellberg, H. E. Stanley, H. Tanaka, C. Vega, L. Xu, and L. G. M. Pettersson, Water: A tale of two liquids, Chem. Rev. 116, 7463 (2016).
  33. Y. Xu, N. G. Petrik, R. S. Smith, B. D. Kay, and G. A Kimmel, Growth rate of crystalline ice and the diffusivity of supercooled water from 126 to 262 K, Proc. Natl. Acad. Sci. U.S.A. 113, 14921 (2016).
  34. P. Montero de Hijes, J. R. Espinosa, C. Vega, and E. Sanz, Ice growth rate: Temperature dependence and effect of heat dissipation, J. Chem. Phys. 151, 044509 (2019).
  35. B. N. J. Persson, Ice friction: Role of non-uniform frictional heating and ice premelting, J. Chem. Phys. 143, 224701 (2015).
  36. O. Lahayne, B. Pichler, R. Reihsner, J. Eberhardsteiner, J. Suh, D. Kim, S. Nam, H. Paek, B. Lorenz, and B. N. J. Persson, Rubber friction on ice: Experiments and modeling, Tribol. Lett. 62, 17 (2016).
  37. T. Tada, S. Kawasaki, R. Shimizu, and B. N. J. Persson, Rubber-ice friction, Friction 11, 1534 (2023).
  38. B. N. J. Persson and E. C. Tyrode, Ice breakloose friction, J. Chem. Phys. 158, 0155545 (2023).
  39. R. W. Liefferink, F.-C. Hsia, B. Weber, and D. Bonn, Friction on ice: How temperature, pressure, and speed control the slipperiness of ice, Phys. Rev. X 11, 011025 (2021).
  40. H.-J. Butt, A. Döppenschmidt, G. Hüttl, E. Müller, and O. I. Vinogradova, Analysis of plastic deformation in atomic force microscopy: Application to ice, J. Chem. Phys. 113, 1194 (2000).
  41. H. Bluhm, D. F. Ogletree, C. S. Fadley, Z. Hussain, and M. Salmeron, The premelting of ice studied with photoelectron spectroscopy, J. Phys. Condens. Matter 14, L227 (2002).
  42. M. Scherge, R. Böttcher, A. Spagni, and D. Marchetto, High-speed measurements of steel–ice friction: Experiment vs. calculation, Lubricants 6, 26 (2018).
  43. W. C. Hong, K. Fukuda, and S. Liza, Influences of atmospheric humidity on sliding speed characteristics of dry sliding phenomena, Tribol. Online 18, 339 (2023).
  44. L. Canale, J. Comtet, A. Niguès, C. Cohen, C. Clanet, A. Siria, and L. Bocquet, Nanorheology of interfacial water during ice gliding, Phys. Rev. X 9, 041025 (2019).
  45. T. Reichenbach, G. Moras, L. Pastewka, and M. Moseler, Solid-phase silicon homoepitaxy via shear-induced amorphization and recrystallization, Phys. Rev. Lett. 127, 126101 (2021).
  46. H. Bhaskaran, B. Gotsmann, A. Sebastian, U. Drechsler, M. A. Lantz, M. Despont, P. Jaroenapibal, R. W. Carpick, Y. Chen, and K. Sridharan, Ultralow nanoscale wear through atom-by-atom attrition in silicon-containing diamond-like carbon, Nat. Nanotechnol. 5, 181 (2010).
