Fault-tolerance analysis for an injector of continuous-wave free-electron lasers

Zhen Zhang*, Yuantao Ding, and Feng Zhou

  • *Contact author: zzhang@slac.stanford.edu
PDF

Phys. Rev. Accel. Beams 28, 090701 – Published 26 September, 2025

DOI: https://doi.org/10.1103/zz4w-tvxt

Abstract

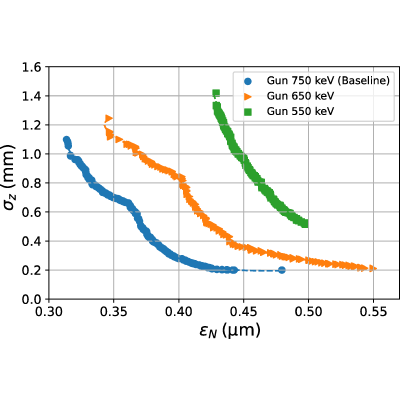

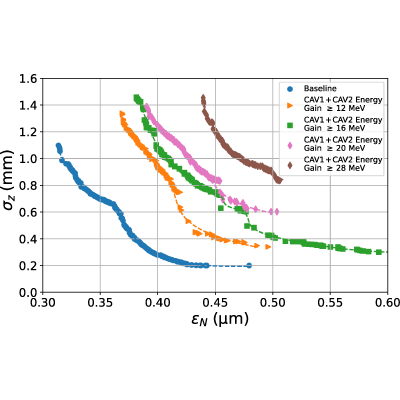

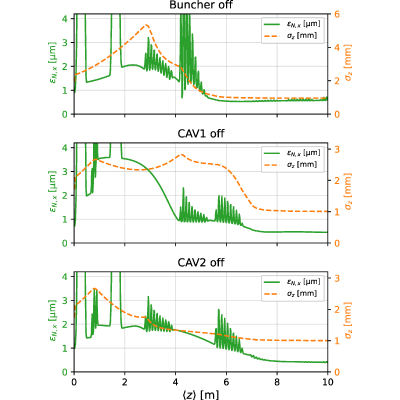

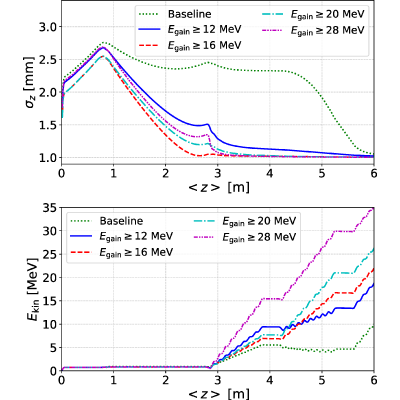

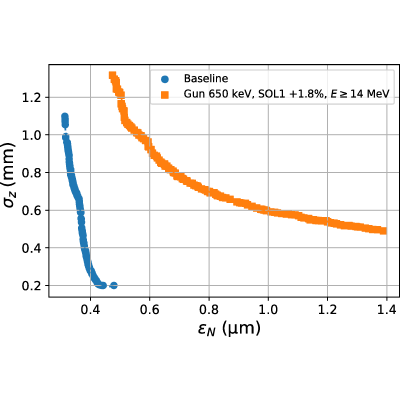

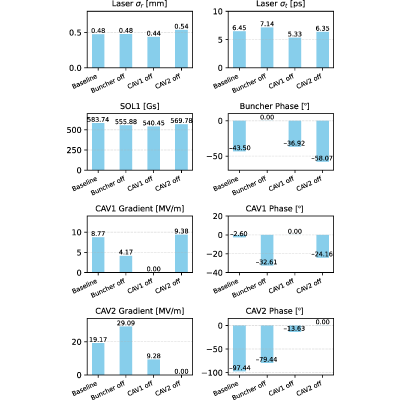

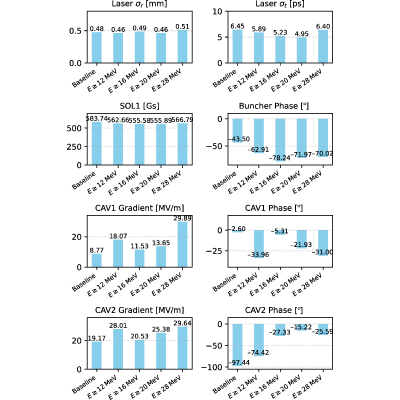

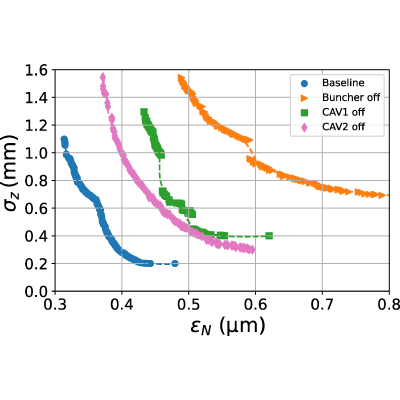

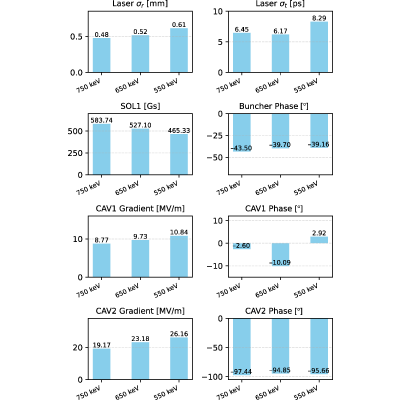

High-repetition-rate free-electron laser (FEL) facilities such as LCLS-II rely on continuous-wave (cw) injectors to deliver high-quality electron beams to multiple undulator lines simultaneously. Ensuring injector reliability under nonideal conditions is critical for sustained user operations. In this work, we investigate the fault tolerance of a representative cw photoinjector by analyzing its performance under various degraded scenarios, including reduced gun energy, radio-frequency (rf) cavity failures, solenoid field constraints, and early-stage energy gain requirements. Using multiobjective optimization with a genetic algorithm framework (Xopt), we assess achievable beam quality—focusing on transverse emittance and bunch length—across a range of fault conditions. Our results reveal that while certain failures (e.g., buncher off) significantly impact emittance, coordinated adjustments to laser parameters, rf phases, and cavity gradients can still partially recover performance. The injector demonstrates resilience to a variety of perturbations, confirming its robustness for high-demand cw FEL operations.

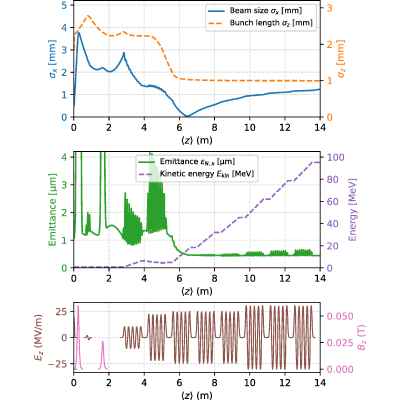

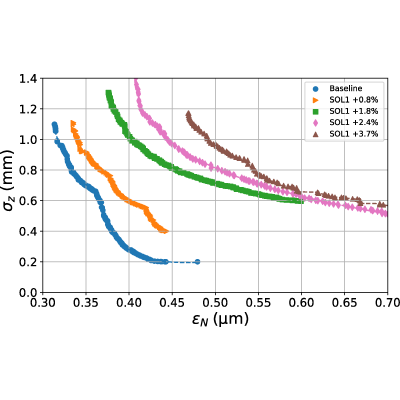

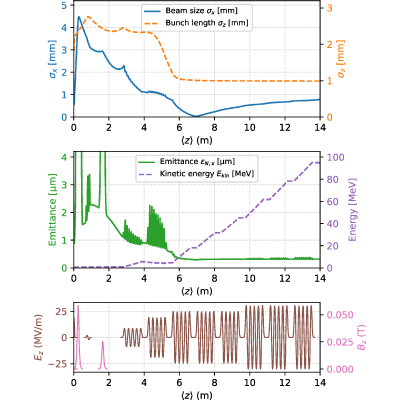

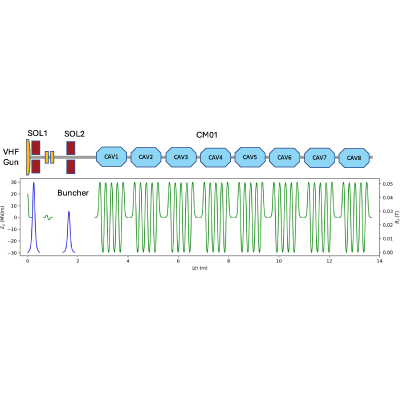

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (28)

  1. T. Raubenheimer et al., LCLS-II final design report, Technical Report No. LCLSII-1.1-DR-0251-R0, SLAC National Accelerator Laboratory, 2015.
  2. Z. Zhu, Z. Zhao, D. Wang, Z. Liu, R. Li, L. Yin, and Z. H. Yang, SCLF: An 8-GeV CW SCRF linac-based x-ray FEL facility in Shanghai, in Proceedings of the FEL2017, Santa Fe, NM (JACoW, Geneva, Switzerland, 2017), pp. 20–25.
  3. D. Kostin and J. Sekutowicz, Progress towards continuous wave operation of the SRF linac at DESY, in Superconductivity and Particle Accelerators 2018 (SPIE, Washington, 2019), Vol. 11054, pp. 34–42, 10.1117/12.2524952.
  4. F. Zhou, D. H. Dowell, P. Emma, J. Schmerge, C. Mitchell, and F. Sannibale, LCLS-II injector physics design and beam tuning, in Proceedings of the IPAC-2017 (JACoW, Geneva, Switzerland, 2017).
  5. Z. Jiang, H. Qian, M. Zhang, Q. Gu, D. Gu, Z. Wang, X. Li, X. Wu, Z. Liu, X. Li et al., Design and status of SHINE injector, in Proceedings of the 15th International Particle Accelerator Conference (IPAC-2024) (JACoW, Geneva, Switzerland, 2024), pp. 164–166.
  6. D. Bazyl, Y. Chen, M. Dohlus, and T. Limberg, CW operation of the European XFEL: SC-gun injector optimization, S2E calculations and SASE performance, arXiv:2111.01756.
  7. F. Sannibale, D. Filippetto, C. F. Papadopoulos, J. Staples, R. Wells, B. Bailey, K. Baptiste, J. Corlett, C. Cork, S. De Santis et al., Advanced photoinjector experiment photogun commissioning results, Phys. Rev. ST Accel. Beams 15, 103501 (2012).
  8. E. Vogel, J. Sekutowicz, S. Barbanotti, I. Hartl, K. Jensch, D. Klinke, D. Kostin, W.-D. Moeller, M. Schmoekel, S. Sievers et al., SRF gun development at DESY, in Proceedings of the 29th Linear Accelerator Conference (LINAC-2018) (JACoW, Geneva, Switzerland, 2018), pp. 105–108.
  9. C. Gulliford, A. Bartnik, I. Bazarov, L. Cultrera, J. Dobbins, B. Dunham, F. Gonzalez, S. Karkare, H. Lee, H. Li et al., Demonstration of low emittance in the Cornell energy recovery linac injector prototype, Phys. Rev. ST Accel. Beams 16, 073401 (2013).
  10. Y. Q. Liu, M. Chen, S. Huang, L. Lin, K. X. Liu, S. W. Quan, F. Wang, S. Zhao et al., Engineering design of low-emittance DC-SRF photocathode injector, in Proceedings of the 39th Free Electron Laser Conference (FEL2019) (JACoW, Geneva, Switzerland, 2019).
  11. L. Serafini, M. Ferrario, C. Pellegrini, M. Cornacchia, S. Chattopadhyay, and I. Lindau, Velocity bunching in photo-injectors, AIP Conf. Proc. 581, 87 (2001).
  12. B. E. Carlsten, New photoelectric injector design for the Los Alamos National Laboratory XUV FEL accelerator, Nucl. Instrum. Methods Phys. Res., Sect. A 285, 313 (1989).
  13. L. Serafini and J. B. Rosenzweig, Envelope analysis of intense relativistic quasilaminar beams in rf photoinjectors: A theory of emittance compensation, Phys. Rev. E 55, 7565 (1997).
  14. T. Peterson, T. Arkan, C. Ginsburg, Y. He, J. Kaluzny, M. McGee, and Y. Orlov, LCLS-II 1.3 GHz cryomodule design—modified TESLA-style cryomodule for cw operation, in Proceedings of the SRF’15 (JACoW, Geneva, Switzerland, 2015), pp. 1417–1421.
  15. F. Zhou, C. Adolphsen, D. Dowell, and R. Xiang, Overview of cw electron guns and LCLS-II RF gun performance, Front. Phys. 11, 1150809 (2023).
  16. D. H. Dowell and J. F. Schmerge, Quantum efficiency and thermal emittance of metal photocathodes, Phys. Rev. ST Accel. Beams 12, 074201 (2009).
  17. K. Floettmann, ASTRA-A space charge tracking algorithm, DESY Technical Report, 1997, http://www.desy.de/~mpyflo.
  18. R. Roussel, A. Edelen, A. Bartnik, and C. Mayes, Xopt: A simplified framework for optimization of accelerator problems using advanced algorithms, in Proceedings of the IPAC-2023 (JACoW, Geneva, Switzerland, 2023), Vol. 14, pp. 4796–4799.
  19. K. Deb, A. Pratap, S. Agarwal, and T. A. M. T. Meyarivan, A fast and elitist multiobjective genetic algorithm: NSGA-II, IEEE Trans. Evol. Comput. 6, 182 (2002).
  20. I. V. Bazarov and C. K. Sinclair, Multivariate optimization of a high brightness dc gun photoinjector, Phys. Rev. ST Accel. Beams 8, 034202 (2005).
  21. R. Hajima and R. Nagai, Multiparameter optimization of an ERL injector, Nucl. Instrum. Methods Phys. Res., Sect. A 557, 103 (2006).
  22. A. Hofler, B. Terzić, M. Kramer, A. Zvezdin, V. Morozov, Y. Roblin, F. Lin, and C. Jarvis, Innovative applications of genetic algorithms to problems in accelerator physics, Phys. Rev. ST Accel. Beams 16, 010101 (2013).
  23. C. F. Papadopoulos, D. Filippettopresenter, F. Sannibale, P. Emma, T. Raubenheimer, J. F. Schmerge, L. Wang, and F. Zhou, RF injector beam dynamics optimization for LCLS-II, in Proceedings of the 5th International Particle Accelerator Conference (IPAC’14), Dresden, Germany (JACoW, Geneva, Switzerland, 2014), pp. 1974–1976, https://proceedings.jacow.org/IPAC2014/doi/JACoW-IPAC2014-WEPRO015.html.
  24. H. Chen, L.-M. Zheng, B. Gao, Z.-Z. Li, Y.-C. Du, R.-K. Li, W.-H. Huang, C.-X. Tang, D. Gu, Z. Qi et al., Beam dynamics optimization of very-high-frequency gun photoinjector, Nucl. Sci. Tech. 33, 116 (2022).
  25. Z. Zhu, D. Gu, J. Yan, Z. Wang, H. Yang, M. Zhang, H. Deng, and Q. Gu, Inhibition of current-spike formation based on longitudinal phase space manipulation for high-repetition-rate x-ray FEL, Nucl. Instrum. Methods Phys. Res., Sect. A 1026, 166172 (2022).
  26. N. Neveu, T. H. Chang, P. Franz, S. Hudson, and J. Larson, Comparison of multiobjective optimization methods for the LCLS-II photoinjector, Comput. Phys. Commun. 283, 108566 (2023).
  27. X.-H. Wang, G. Shu, H.-J. Qian, X.-D. Li, Z.-P. Liu, Z.-G. Jiang, H. Meng, C.-C. Xing, Q. Zhou, and H.-X. Deng, Experimental demonstration of dark current mitigation by an over-inserted plug in a normal conducting very-high-frequency gun, Phys. Rev. Accel. Beams 28, 043401 (2025).
  28. Z. Zhang, Data for “Fault tolerance analysis for an injector of continuous-wave free-electron lasers”, Zenodo, 2025, 10.5281/zenodo.17057251.
