Novel bimodal radiofrequency cavity enabling independent operation and effective higher-order mode damping for high-brightness particle beams

Junyu Zhu* and Xiao Li†

Jiebing Yu, Zhijun Lu, Xuerui Hao, Bin Wu, Chunlin Zhang, Wei Long, Yang Liu, Shengyi Chen, Shenghua Liu et al.

Jian Wu and Xiang Li

  • *Contact author: zhujy@ihep.ac.cn
  • †Contact author: lixiao@ihep.ac.cn
PDF

Phys. Rev. Accel. Beams 28, 082001 – Published 4 August, 2025

DOI: https://doi.org/10.1103/zc4l-k84r

Abstract

Developing multifrequency acceleration systems is crucial for optimizing beam dynamics in high-brightness particle beams, particularly for minimizing energy spread, manipulating bunch length, and facilitating beam bunching. This paper introduces a novel bimodal radio frequency (rf) cavity design that integrates both fundamental and harmonic modes within a single structure, offering enhanced spatial efficiency and improved operational flexibility for multifrequency rf systems. Unlike traditional designs, our cavity enables independent and simultaneous operation of each mode, along with effective suppression of higher-order modes (HOMs), which is critical for high-current beam stability. This breakthrough addresses significant challenges in bimodal cavity technology, such as intermode tuning coupling, rf-driving coupling, and effective HOM damping, providing essential solutions for high-current beam applications. Our work opens new research avenues in advanced rf cavity design, with significant implications for the future of high-brightness beam technologies, including advanced accelerator designs and improved beam quality.

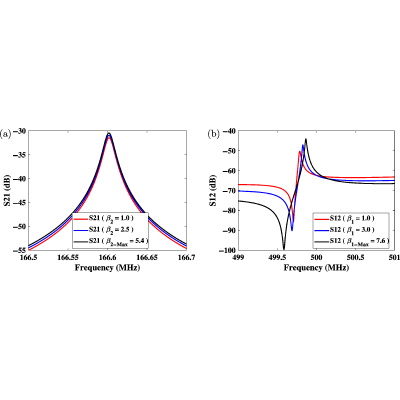

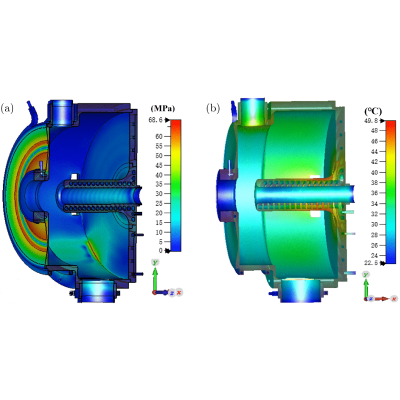

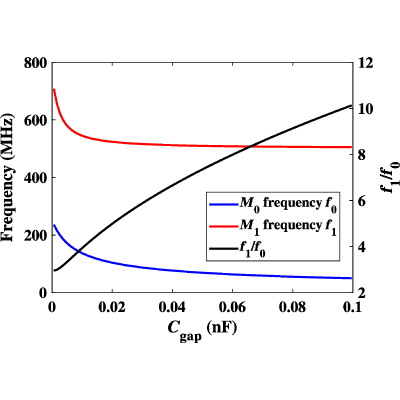

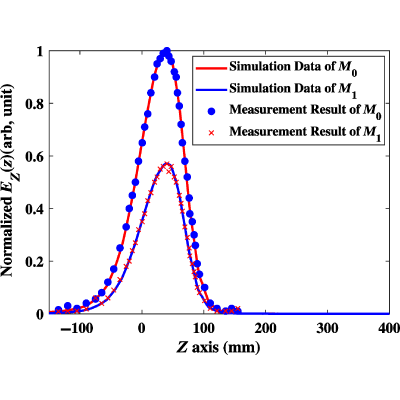

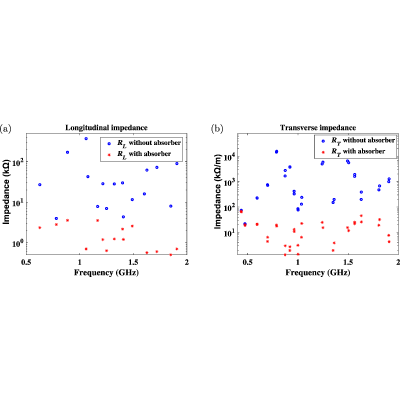

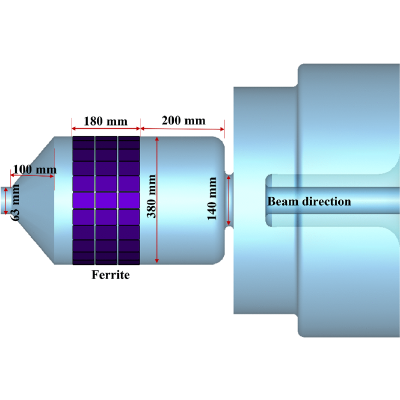

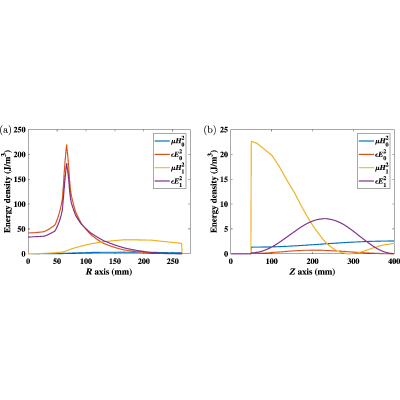

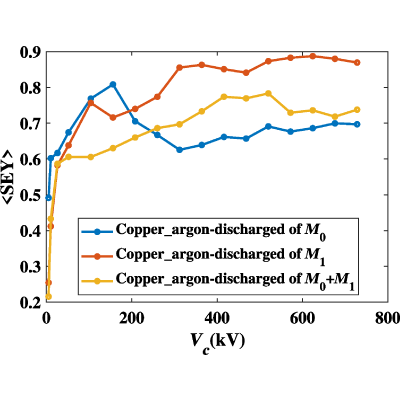

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (34)

  1. W. Chou, Accelerator Physics, Technology and Applications (2004), 10.1142/5499.
  2. M. Durante and H. Paganetti, Nuclear physics in particle therapy: A review, Rep. Prog. Phys. 83, 056702 (2016).
  3. S. Jiang and G. Xu, On-axis injection scheme based on a triple-frequency rf system for diffraction-limited storage rings, Phys. Rev. Accel. Beams 21, 110701 (2018).
  4. M. H. Nasr and S. G. Tantawi, The design and construction of a novel dual-mode dual-frequency linac design, in Proceedings of the 9th International Particle Accelerator Conference (IPAC18), Vancouver, Canada (JACoW, Geneva, Switzerland, 2018), pp. 4391–4394.
  5. Z. Wu, L. Sun, F. Qiu, and L. Shi, A new multi-harmonic buncher for the LEAF project, Nucl. Instrum. Methods Phys. Res., Sect. A 1047, 167856 (2023).
  6. J. Wu, B. Wu, and X. Li, Development of dual-harmonic rf system for CSNS-II, J. Instrum. 19, T01008 (2024).
  7. P. Zhang et al., Radio-frequency system of the high energy photon source, Radiat. Detect. Technol. Methods 7, 159 (2023).
  8. I. Agapov, R. Bacher, M. Bieler et al., Status of the PETRA IV project, in Proceedings of the 10th International Particle Accelerator Conference (IPAC’19), Melbourne, Australia (JACoW, Geneva, Switzerland, 2019), pp. 1475–1478.
  9. B. Sims, D. Sims, J.  Lewellen, and S.Baryshev, Multi-mode cavity design and characterization, in Proceedings of the 15th International Particle Accelerator Conference (IPAC’24), Nashville (JACoW, Geneva, Switzerland, 2024), pp. 18–20.
  10. H. Feng, W. Huang, C. Tang, and D. Li, Design of a novel bimodal cavity, Rev. Sci. Instrum. 91, 064703 (2020).
  11. S. Kuzikov, S. Y. Kazakov, Y. Jiang, and J. Hirshfield, Asymmetric bimodal accelerator cavity for raising rf breakdown thresholds, Phys. Rev. Lett. 104, 214801 (2010).
  12. Y. Jiang and J. Hirshfield, Multi-harmonic accelerating cavities for rf breakdown studies, in Proceedings of the 4th International Particle Accelerator Conference (IPAC’13), Pasadena, CA, USA (JACoW, Geneva, Switzerland, 2013), pp. 1040–1042.
  13. L. R. Carver, R. M. Jones, Y. Jiang, and J. L. Hirshfield, Longitudinal stability in multiharmonic standing wave linacs, Phys. Rev. Accel. Beams 19, 094001 (2016).
  14. C.E.  Hess, H. A.  Schwettma, and T. I.Smith, Harmonically resonant cavities for high brightness beams, IEEE Trans. Nucl. Sci. 32, 2924 (1985).
  15. L. Wang, Y. Jiang, W. Fang, Z. Zhao, S. V. Shchelkunov, and J. L. Hirshfield, Simulation study of first and second harmonic photocathode bimodal gun, Phys. Rev. Accel. Beams 24, 020401 (2021).
  16. D. H. Dowell, M. Ferrario, T.  Kimura, J. Lewellen, C. Limborg, P. Raimondi, J. F. Schmerge, L. Serafini, T. Smith, and L.  Young, A two-frequency rf photocathode gun, Nucl. Instrum. Methods Phys. Res., Sect. A 528, 316 (2004).
  17. D. H. Su, J. H. Tan, W. C. Fang, and C. Wang, Bimodal design of 500 MHz and 1.5 GHz normal conducting rf cavity for advanced synchrotron radiation facilities, J. Phys. Conf. Ser. 2687, 082002 (2024).
  18. D. Pozar, Microwave Engineering (John Wiley & Sons, New York, 2011).
  19. A. A. Andersson et al., The 100 MHz rf system for the MAX IV storage rings, in Proceedings of the 2nd International Particle Accelerator Conference (IPAC’11), San Sebastián, Spain (JACoW, Geneva, Switzerland, 2011), pp. 193–195.
  20. E. Weihreter and F. Marhauser, HOM damped cavities for high brilliance synchrotron light sources, in Brilliant Light in Life and Material Sciences (Springer, Dordrecht, 2007), pp. 413–427.
  21. H. O. C. Duarte, K. Åhnberg, M. Al-Najdawi, P. Tavares, D. Olsson, and Ã. Andersson, HOM dampers design for the MAX IV 100 MHz rf cavities, in Proceedings of the 14th International Particle Accelerator Conference, Venice, Italy (JACoW Publishing, Geneva, Switzerland, 2023), pp. 2958–2961.
  22. J. Zhu, X. Li, J. B. Yu et al., A low-frequency normal conducting cavity with higher-order mode damping for fourth-generation synchrotron radiation sources, Rev. Sci. Instrum. 94, 123304 (2023).
  23. J. Zhu, X. Li, J. Yu, and Z. Lu, Design of a 166.6 MHz HOM-damped copper cavity for the southern advanced photon source, in Proceedings of the FLS2023, Luzern, Switzerland (JACoW Publishing, Geneva, Switzerland, 2023), pp. 207–210.
  24. F. Marhauser, Next generation HOM-damping, Supercond. Sci. Technol. 30, 063002 (2017).
  25. X. Zhang, P. Zhang, Q. Ma, L. Guo, H. Zheng, F. Meng, Z. Mi, T. Huang, and J. Dai, Compact design of the 166.6 MHz superconducting cavity and its beamline elements for HEPS, Nucl. Instrum. Methods Phys. Res., Sect. A 1059, 168972 (2024).
  26. cst studio suite®, version 2021 (2021), https://www.3ds.com/zh/products-services/simulia/products/cst-studio-suite.
  27. V. Baglin, J. Bojko, O. Groebner, B. Henrist, H. Hilleret, C. Scheuerlein, and M. Taborelli, The secondary electron yield of technical materials and its variation with surface treatments, in Proceedings of the EPAC 2000 (EPS, Vienna, 2000), pp. 217–221.
  28. G. Burt and A. C. Dexter, Prediction of multipactor in the iris region of rf deflecting mode cavities, Phys. Rev. Accel. Beams 14, 122002 (2011).
  29. H. Hahn, R. Calaga, P. Jain, E. C. Johnson, and W. Xu, HOM identification by bead pulling in the Brookhaven ERL cavity, Nucl. Instrum. Methods Phys. Res., Sect. A 734, 72 (2014).
  30. D. A. Hill, Electromagnetic Fields in Cavities: Deterministic and Statistical Theories (John Wiley & Sons, Hoboken, NJ, 2009), Vol. 35.
  31. X. Hao, Z. Li, K.  Ye, P. Wang, G. Wei, J. Li, and J. Wang, 500 MHz higher order mode damped cavity designed for 4th generation synchrotron radiation sources, Nucl. Instrum. Methods Phys. Res., Sect. A 1040, 167273 (2022).
  32. S. A. Ahmadiannamin et al., Design of 100 MHz rf cavity for the storage ring of the Iranian Light Source Facility (ILSF), Nucl. Instrum. Methods Phys. Res., Sect. A 981, 164529 (2020).
  33. S. Zhang, S. Wang, C. Meng, and J. Li, The physics design of HEPS linac bunching system, Radiat. Detect. Technol. Methods 4, 433 (2020).
  34. L. Zheng, H. Chen, B. Gao, Z. Dong, Z. Li, Y. Jia, Q. Tian, Q. Xia, Y. Zhu et al., Design, fabrication, and beam commissioning of a 216.667 MHz continuous-wave photocathode very-high-frequency electron gun, Phys. Rev. Accel. Beams 26, 103402 (2023).
