Beam-based impedance measurement of HL-LHC low-impedance collimators

A. Kurtulus1,2, D. Amorim2, N. Biancacci2, X. Buffat2, L. Giacomel2, J. Leuthold1, N. Mounet2, S. Redaelli2, and J. Smajic1

  • 1Institute of Electromagnetic Fields (IEF), ETH Zurich, Zurich, Switzerland
  • 2CERN, Geneva, Switzerland

PDF

Phys. Rev. Accel. Beams 28, 103001 – Published 27 October, 2025

DOI: https://doi.org/10.1103/z197-398z

Abstract

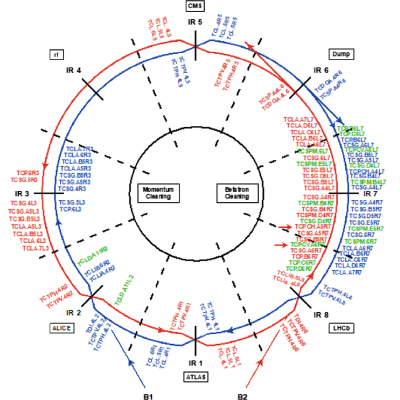

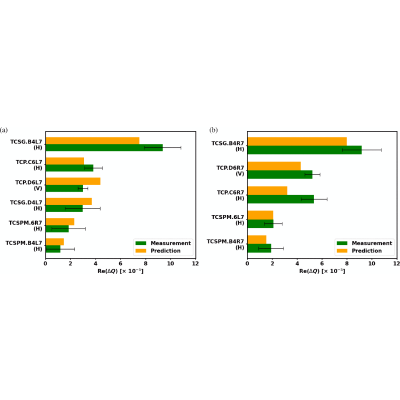

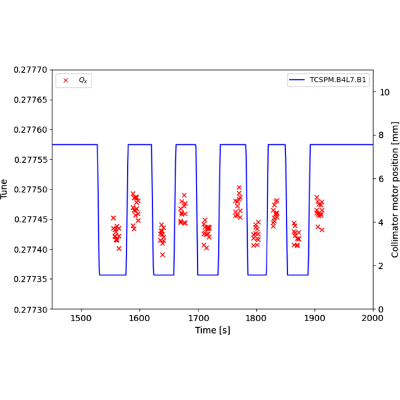

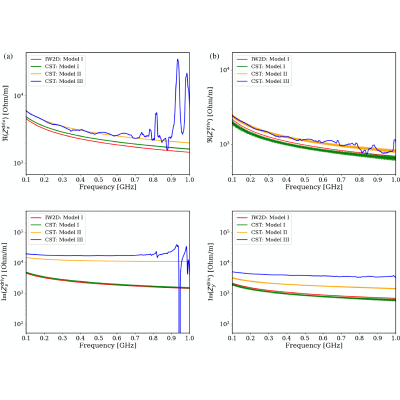

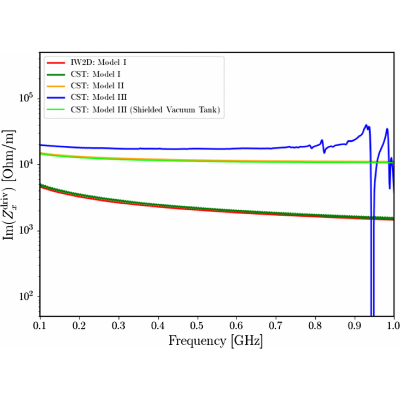

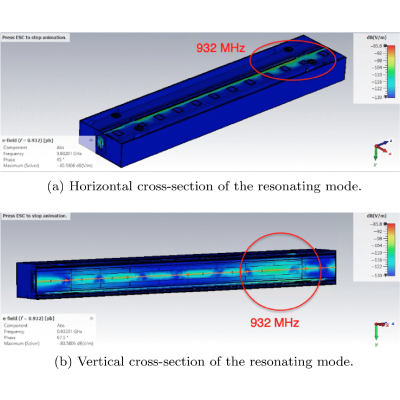

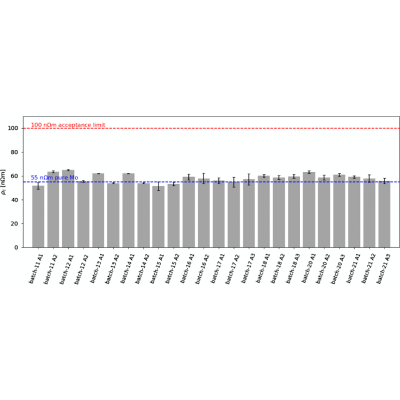

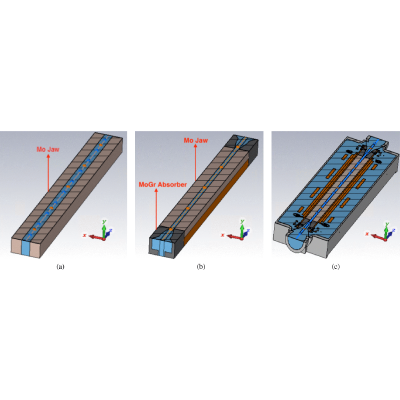

The objective of the High Luminosity Large Hadron Collider (HL-LHC) upgrade is to attain an instantaneous luminosity that is 5 times greater than the design value of the LHC. This requires nearly 2 times higher beam intensity compared to the operational LHC value during Run 2 (2015–2018). Higher bunch intensity makes the beam more prone to coherent instabilities. To keep beam stability under control and preserve beam quality, it is therefore necessary to reduce the machine beam coupling impedance. The collimation system of the LHC is presently responsible for a significant portion of the total machine impedance budget. In this context, during the LHC long-shutdown 2 (LS2), the LHC machine has been upgraded with newly engineered low-impedance collimators whose absorbing jaws are made of molybdenum-graphite (MoGr) compared to the previously used carbon fiber composite (CFC). Secondary collimators are also coated with molybdenum (Mo) to further boost conductivity. In order to validate the benefits of the impedance reduction targeted at the collimators and to identify possible nonconformities, we performed a series of tune shift measurements on the newly installed primary and secondary collimators with LHC beams and quantified the agreement with predictions. As expected, the results show a significant reduction in the collimators’ impedance contribution. Additionally, the remaining discrepancy between measurements and predictions is investigated with 3D numerical simulations by using the Wakefield Solver of Computer Simulation Technology.
