Design and low-power measurement of the broadband kicker cavity used to compensate the transient beam-loading effect in synchrotron light sources

D. Naito*, N. Yamamoto, T. Takahashi, T. Yamaguchi, and S. Sakanaka

  • *Contact author: daichi.naito@kek.jp
PDF

Phys. Rev. Accel. Beams 28, 112002 – Published 24 November, 2025

DOI: https://doi.org/10.1103/x9nj-whtd

Abstract

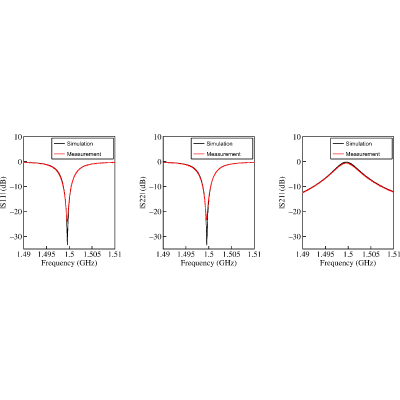

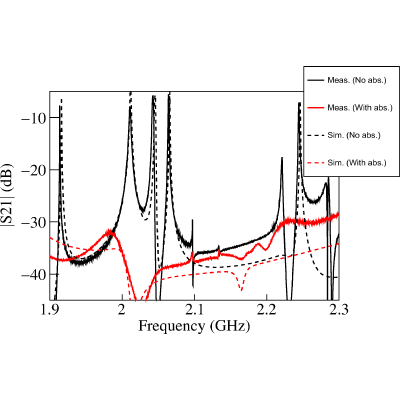

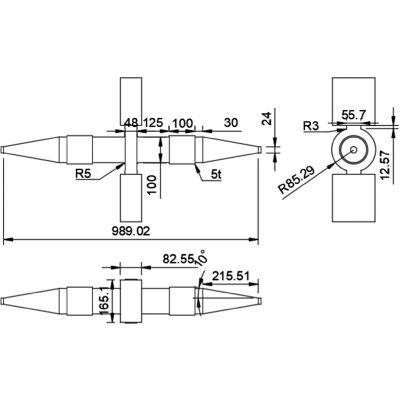

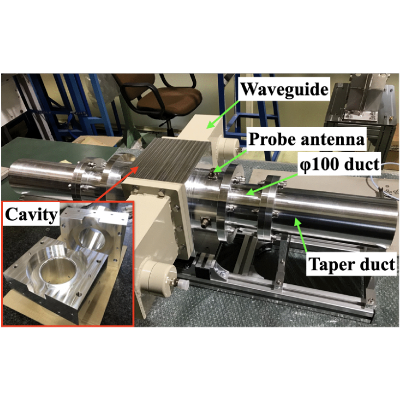

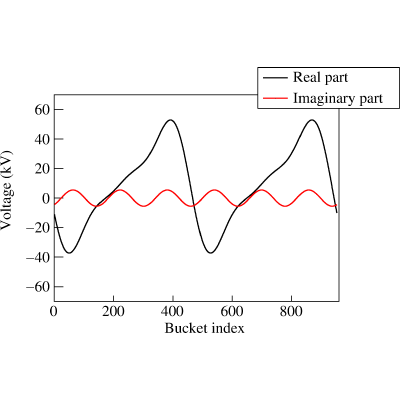

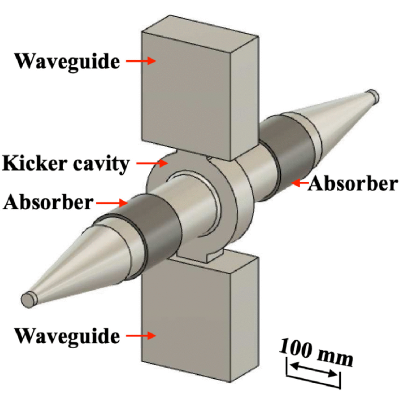

The issue of concern in ultralow-emittance synchrotron light sources is the growth of emittance and the shortening of the Touschek lifetime as a result of intrabeam scattering (IBS). One of the most reliable methods for mitigating these IBS effects is to lengthen the bunches using fundamental and harmonic cavities. In such double rf systems, the effect of bunch lengthening is limited by the fluctuation of the fundamental and harmonic rf voltages. In particular, the voltage fluctuations caused by gaps in the bunch filling pattern critically influence the bunch lengthening. To mitigate such a transient beam-loading (TBL) effect, a compensation method using a broadband cavity has been proposed. In this paper, we present a conceptual design of a broadband “kicker” cavity that can be used to compensate for the TBL effect. We then report the manufacture of a low-power model cavity and the results of our evaluation of its performance to confirm the design of the kicker cavity. The measured external-Q value of the cavity was sufficiently low to achieve the requisite broad bandwidth and was in agreement with simulation results. We also confirmed that the rf absorbers sufficiently damp the harmful higher-order modes.

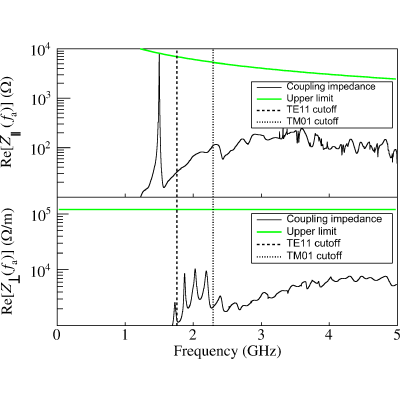

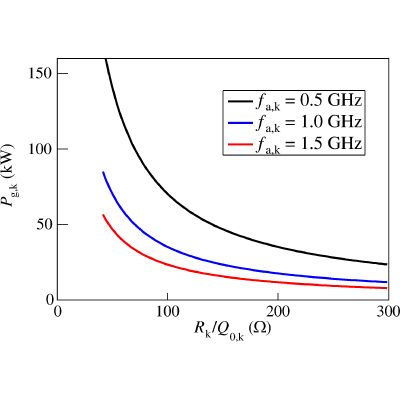

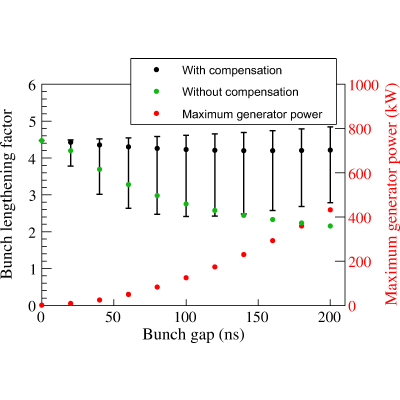

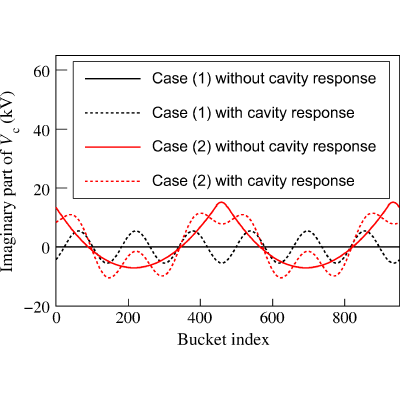

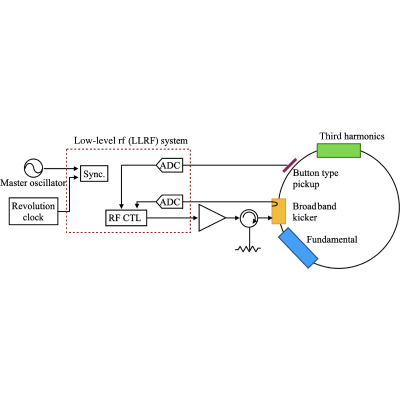

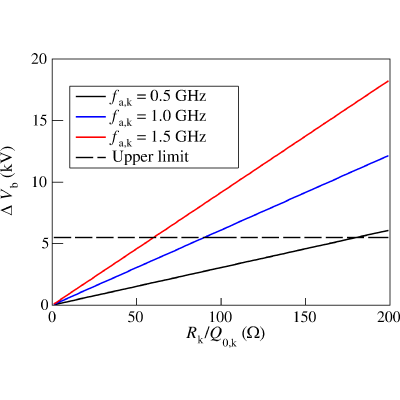

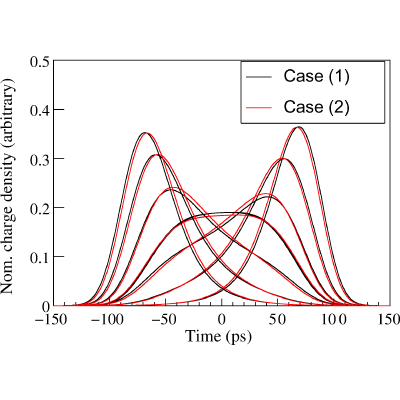

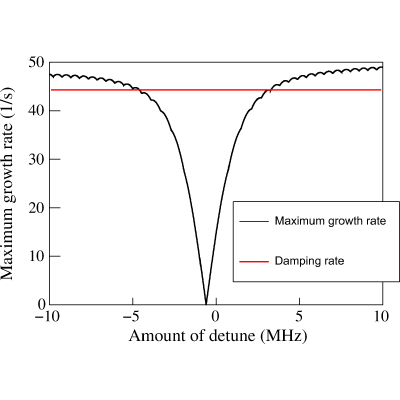

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (28)

  1. L. Liu and H. Westfahl, Jr., Towards diffraction limited storage ring based light sources, in Proceedings of 8th International Particle Accelerator Conference, IPAC’17, Copenhagen, Denmark (JACoW, Geneva, Switzerland, 2017), pp. 1203–1208, 10.18429/JACoW-IPAC2017-TUXA1.
  2. M. Borland, R. Hettel, S. C. Leemann, and D. S. Robin, Accelerator physics challenges in the design of multi bend achromat based storage rings, in Proceedings of 2nd North American Particle Accelerator Conference, NAPAC’16, Chicago, IL, USA, 2016 (JACoW, Geneva, Switzerland, 2016), pp. 278–283, 10.18429/JACoW-NAPAC2016-TUB2IO01.
  3. M. Yabashi and H. Tanaka, The next ten years of x-ray science, Nat. Photonics 11, 12 (2017).
  4. S. C. Leemann, Interplay of Touschek scattering, intrabeam scattering, and rf cavities in ultralow-emittance storage rings, Phys. Rev. ST Accel. Beams 17, 050705 (2014).
  5. A. Hofmann and S. Myers, Beam dynamics in a double rf system, in Proceedings of 11th International Conference on High Energy Accelerators (CERN, Geneva, Switzerland, 1980), pp. 610–614, https://cds.cern.ch/record/879237.
  6. J. M. Byrd, S. De Santis, M. Georgsson, G. Stover, J. D. Fox, and D. Teytelman, Commissioning of a higher harmonic rf system for the advanced light source, Nucl. Instrum. Methods Phys. Res., Sect. A 455, 271 (2000).
  7. J. M. Byrd, S. De Santis, J. Jacob, and V. Serriere, Transient beam loading effects in harmonic rf systems for light sources, Phys. Rev. ST Accel. Beams 5, 092001 (2002).
  8. M. Aiba, M. Böge, F. Marcellini, Á.Saá Hernández, and A. Streun, Longitudinal injection scheme using short pulse kicker for small aperture electron storage rings, Phys. Rev. ST Accel. Beams 18, 020701 (2015).
  9. G. Penco and M. Svandrlik, Experimental studies on transient beam loading effects in the presence of a superconducting third harmonic cavity, Phys. Rev. ST Accel. Beams 9, 044401 (2006).
  10. T. Yamaguchi, N. Yamamoto, D. Naito, T. Takahashi, and S. Sakanaka, Design and low-power measurement of 1.5 GHz TM020-type harmonic cavity for KEK future synchrotron light source, Nucl. Instrum. Methods Phys. Res., Sect. A 1053, 168362 (2023).
  11. K. Harada, M. Adachi, N. Funamori, T. Honda, Y. Kobayashi, N. Nakamura, K. Oide, H. R. Sakai, S. Sakanaka, and K. Tsuchiya, The HMBA lattice optimization for the new 3 GeV light source, in Proceedings of the 7th International Particle Accelerator Conference, IPAC’16, Busan, Korea (JACoW, Geneva, Switzerland, 2016), pp. 3251–3253, 10.18429/JACoW-IPAC2016-THPMB012.
  12. T. Honda, Concept of a new generation synchrotron radiation facility KEK light source, in Proceedings of 8th International Particle Accelerator Conference, IPAC’17, Copenhagen, Denmark (JACoW, Geneva, Switzerland, 2017), pp. 2687–2690, 10.18429/JACoW-IPAC2017-WEPAB047.
  13. N. Yamamoto, T. Takahashi, and S. Sakanaka, Reduction and compensation of the transient beam loading effect in a double rf system of synchrotron light sources, Phys. Rev. Accel. Beams 21, 012001 (2018).
  14. D. Naito, S. Sakanaka, T. Takahashi, T. Yamaguchi, and N. Yamamoto, Design consideration of a longitudinal kicker cavity for compensating transient beam loading effect in synchrotron light sources, in Proceedings of 12th International Particle Accelerator Conference, IPAC’21, Campinas, SP, Brazil (JACoW, Geneva, Switzerland, 2021), pp. 1027–1030, 10.18429/JACoW-IPAC2021-MOPAB331.
  15. D. Naito, N. Yamamoto, T. Yamaguchi, T. Takahashi, and S. Sakanaka, Low-power model tests of the wide-band cavity to compensate the transient beam loading in the next generation light sources, in Proceedings of 14th International Particle Accelerator Conference, IPAC’23, Venice, Italy (JACoW, Geneva, Switzerland, 2023), pp. 2936–2939, 10.18429/JACoW-IPAC2023-WEPA119.
  16. N. Yamamoto, T. Takahashi, and S. Sakanaka, Beam loading compensation for optimal bunch lengthening with harmonic cavities, in Proceedings of the ICFA Mini-Workshop, MCBI 2019, Zermatt, Switzerland (2019), pp. 96–100, 10.23732/CYRCP-2020-009.96.
  17. P. B. Wilson and J. E. Griffin, High energy electron linacs; application to storage ring rf systems and linear colliders, AIP Conf. Proc. 87, 450 (1982).
  18. T. Weiland, ‘Single mode cavities’ a possibility for fighting collective beam instabilities, Report No. DESY–83-073, 1983, https://inis.iaea.org/records/rra4a-t5655.
  19. Dassault systemes S.E., https://www.3ds.com.
  20. CoorsTek GK, https://www.coorstek.co.jp/jpn/products/semicon/cerasic.html.
  21. K. Akai, RF system for electron storage rings, in Proceedings of the Asian Accelerator School (2002), pp. 118–149, 10.1142/9789812778413_0009.
  22. R. Rimmer, G. Lamambertson, J. Hodgson K. Ko, C. Ng, R. Pendleton, E. Reuter, H. Schwarz, K. Skarpaas, F. Adams, B. Burton, M. DeJong, M. Lipsett, C. Belser, M. Franks, and T. McCarville, High-power rf cavity R&D for the pep-II B factory, in Proceedings of 4th European Particle Accelerator Conference, in Proceedings of 4th European Particle Accelerator Conference, EPAC 94, London, United Kingdom (1994), pp. 2101–2103, https://accelconf.web.cern.ch/e94/PDF/EPAC1994_2101.PDF.
  23. A. J. Hatch, Suppression of multipacting in particle accelerators, Nucl. Instrum. Methods 41, 261 (1966).
  24. M. Venturini, Harmonic cavities and the transverse mode-coupling instability driven by a resistive wall, Phys. Rev. Accel. Beams 21, 024402 (2018).
  25. T. Takahashi, Y. Honda, T. Miura, T. Miyajima, H. Sakai, S. Sakanaka, K. Shinoe, T. Uchiyama, K. Umemori, and M. Yamamoto, Development of a 1.3 GHz buncher cavity for the compact, in Proceedings of 5th International Particle Accelerator Conference, IPAC’14, Dresden, Germany (JACoW, Geneva, Switzerland, 2014), pp. 3866–3868, 10.18429/JACOW-IPAC2014-THPRI045.
  26. D. Naito, N. Yamamoto, T. Takahashi, A. Motomura, and S. Sakanaka, Comissioning of the digital LLRF system at the KEK Photon Factory 2.5 GeV ring, in Proceedings of 15th International Particle Accelerator Conference, IPAC’24, Nashville, TN (JACoW, Geneva, Switzerland, 2024), pp. 3442–3445, 10.18429/JACoW-IPAC2024-THPG71.
  27. D. Naito, N. Yamamoto, T. Takahashi, M. Motomura, and S. Sakanaka, LLRF upgrade status at the KEK Photon Factory 2.5 GeV ring, in Proceedings of LLRF23, Gyeongju, Korea (2023), arXiv:2310.13970.
  28. D. Naito, N. Yamamoto, A. Motomura, T. Takahashi, and S. Sakanaka, Experimental demonstration of transient-beam-loading compensation using new digital LLRF system at the photon factory storage ring, in Proceedings of the 16th International Particle Accelerator Conference, Taipei, Taiwan (JACoW, Geneva, Switzerland, 2025), pp. 1722–1725, 10.18429/JACoW-IPAC2025-WEFN1.
