RF design and optimization of the high-energy linac for the FCC-ee injector complex
Phys. Rev. Accel. Beams 28, 101601 – Published 31 October, 2025
DOI: https://doi.org/10.1103/x2rz-2qxj
Abstract

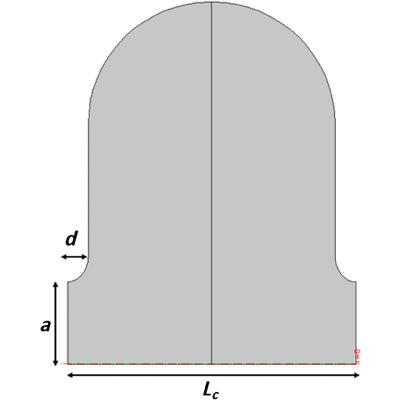

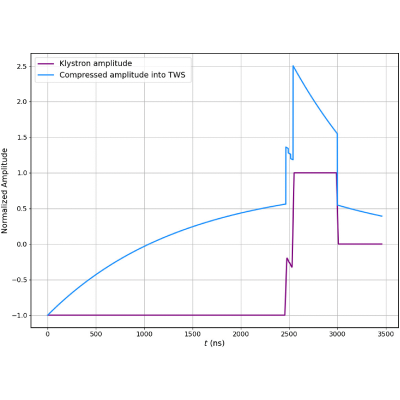

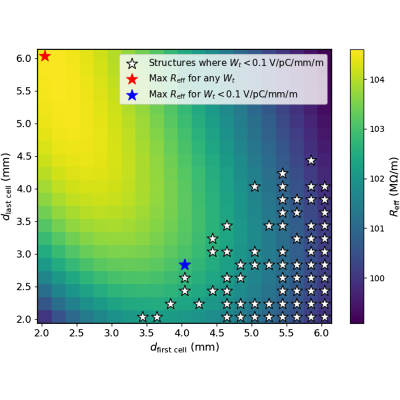

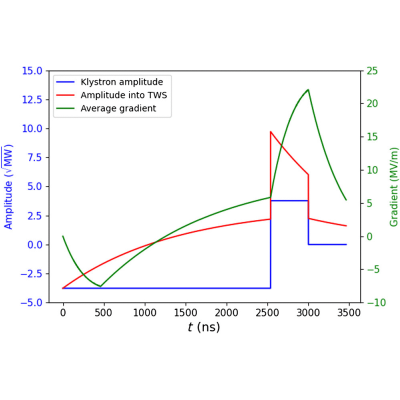

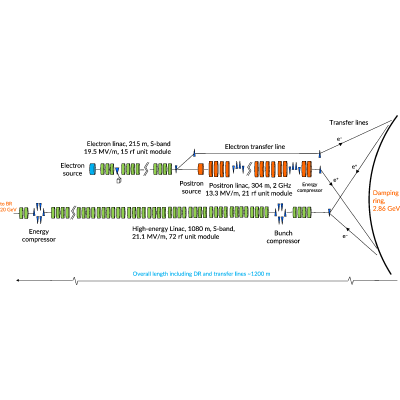

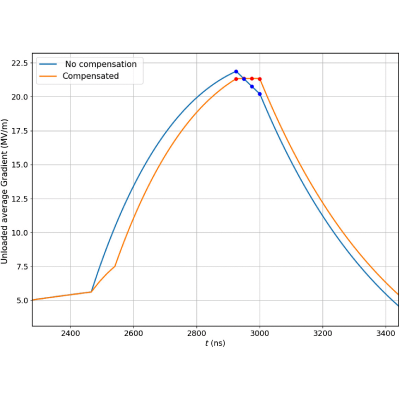

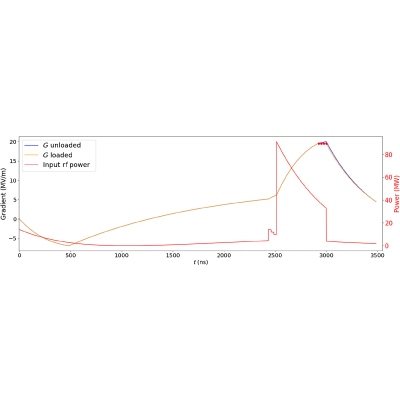

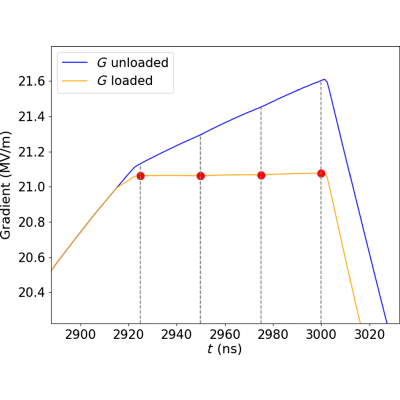

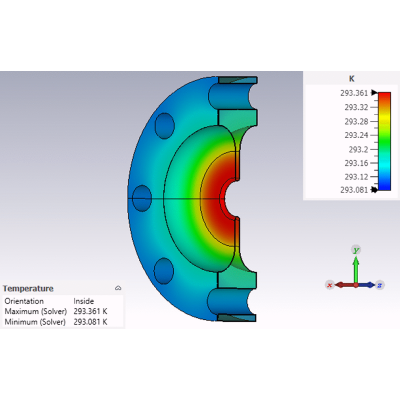

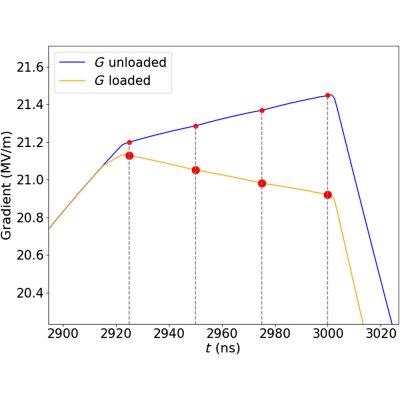

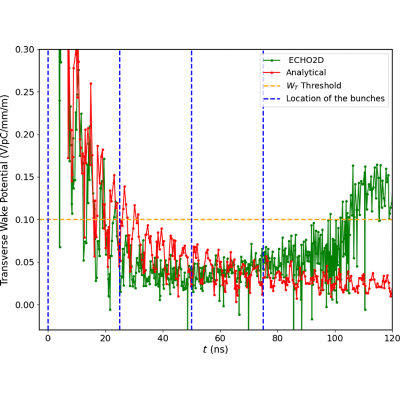

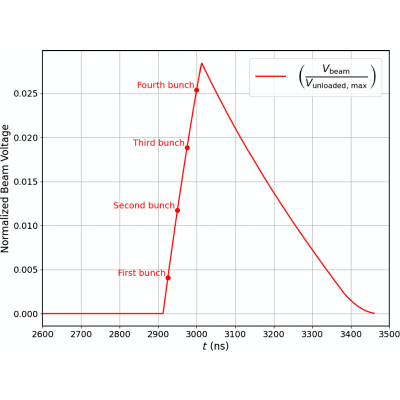

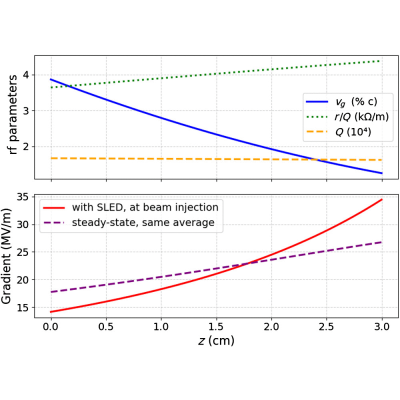

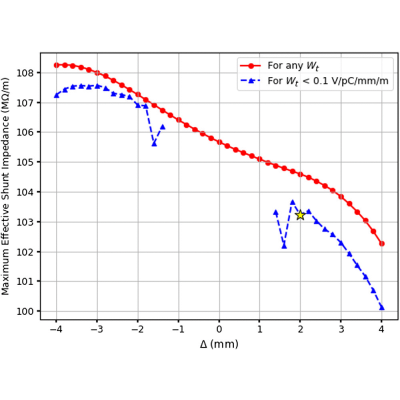

The high-energy linac of the Future Circular Collider electron-positron (FCC-ee) injector complex requires high-performance rf accelerating structures to efficiently accelerate beams up to 20 GeV while ensuring operational stability. This study presents an analytical approach to the rf design of traveling-wave structures, incorporating a pulse compression system to enhance power efficiency and meet the demanding FCC-ee specifications. By utilizing lookup tables and analytical models, we systematically explored a broad parameter space to determine the fundamental mode at 2.8 GHz and analyze higher-order mode (HOM) characteristics. The structure’s geometry, particularly the iris parameters, was optimized to maximize effective shunt impedance, minimize peak surface fields, and implement HOM detuning for wakefield suppression. Furthermore, a comparative analysis against existing high-gradient S-band linacs was performed, demonstrating the competitive performance and advantages of the proposed design in terms of gradient, efficiency, and wakefield control. Additionally, we investigated the bunch-to-bunch energy spread minimization including the impact of transient beam loading, with a focus on top-up operation, where bunch charges vary dynamically among four bunches. To accommodate these variations, we introduce the concept of the “golden” rf pulse, an optimized input rf waveform that averages the solutions for fully loaded and unloaded conditions. While this method does not eliminate energy deviations entirely, it provides a practical compromise, reducing energy spread across all possible charge distributions. Finally, comprehensive thermal and mechanical simulations were performed to evaluate the structural integrity and operational performance of the HE-linac under 100 Hz repetition frequency, ensuring long-term reliability.
Physics Subject Headings (PhySH)
Article Text
References (15)
- P. Craievich, Injector complex: Status and outlook, FCC Week 2024, San Francisco, https://indico.cern.ch/event/1298458/contributions/5977869/ (2024).
- U. Ellenberger et al., Status of the manufacturing process for the SwissFEL C-band accelerating structures, in Proceedings of the 35th International Free-Electron Laser Conference (FEL2013) (JACoW, Geneva, Switzerland, 2013), pp. 245–249, https://accelconf.web.cern.ch/fel2013/papers/tupso17.pdf.
- H. W. Pommerenke et al., RF design of traveling-wave accelerating structures for the FCC-ee pre-injector complex, in Proceedings of the LINAC-2022, International Linear Accelerator Conference No. 31 (JACoW, Geneva, Switzerland, 2022), pp. 707–710, 10.18429/JACoW-LINAC2022-THPOJO08.
- J.-Y. Raguin and M. Bopp, The Swiss FEL C-band accelerating structure: RF design and thermal analysis, in Proceedings of the Linear Accelerator Conference (LINAC’12), Tel Aviv, Israel (JACoW, Geneva, Switzerland, 2012), pp. 501–593, https://jacow.org/LINAC2012/papers/TUPB012.pdf.
- cst studio suite (2024), https://www.3ds.com/products-services/simulia/products/cst-studio-suite/.
- A. Lunin, V. Yakovlev, and A. Grudiev, Analytical solutions for transient and steady state beam loading in arbitrary traveling wave accelerating structures, Phys. Rev. ST Accel. Beams 14, 052001 (2011).
- Z. D. Farkas, H. A. Hogg, G. A. Loew, and P. B. Wilson, SLED: A method of doubling SLAC’s energy, in Proceedings of the 9th International Conference on High Energy Accelerators, Stanford, CA (SLAC, 1974), p. 576, https://inspirehep.net/files/a694615a0d2dd92523a8c97a8fa5accf.
- S. Bettoni et al., High bunch charge linacs design for FCC-ee project, in Proceedings of the 15th International Particle Accelerator Conference, Nashville, TN (JACoW, Geneva, Switzerland, 2024).
- P. Craievich et al., Consolidation and extension of the high-gradient linac rf technology at PSI, in Proceedings of the 29th International Linear Accelerator Conference (JACoW, Geneva, Switzerland, 2018), 10.18429/JACoW-LINAC2018-THPO115.
- I. Zagorodnov, K. L. Bane, and G. Stupakov, Calculation of wakefields in 2D rectangular structures, Phys. Rev. ST Accel. Beams 18, 104401 (2015).
- G. Loew and R. Neal, Accelerating structures, in Linear Accelerators, Part B, edited by P. M. Lapostolle and A. L. Septier (North-Holland Publishing Company, Amsterdam, Netherlands, 1970).
- H. Heo et al., Development of an S-band accelerating structure with quasi-symmetric single-feed racetrack couplers, J. Korean Phys. Soc. 66, 905 (2015).
- N. Shafqat, C. Serpico, and T. Lucas, Design and high-power test of a short prototype of high gradient S-band accelerating structure for the Fermi free electron laser linac upgrade, Nucl. Instrum. Methods Phys. Res., Sect. A 979, 164473 (2020).
- A. Petry, Thermal and modal simulations for the CLIC module, Technical Report No. CERN-ACC-2021-0002, CLIC-Note-1170, CERN, Geneva, 2021, https://cds.cern.ch/record/2753602.
- ANSYS Inc., Ansys Mechanical: Thermo-mechanical solver, https://www.ansys.com/products/structures/ansys-mechanical (2024).
