Novel scheme of beam loading compensation for a traveling wave acceleration structure with microwave pulse compression

Boyuan Feng, Hao Zha, Jiaru Shi*, and Huaibi Chen

  • Department of Engineering Physics, Tsinghua University, Beijing 100084, China and Key Laboratory of Particle and Radiation Imaging, Ministry of Education, Tsinghua University, Beijing 100084, China

  • *Contact author: shij@tsinghua.edu.cn
PDF

Phys. Rev. Accel. Beams 29, 083801 – Published 6 August, 2026

DOI: https://doi.org/10.1103/srsc-8j14

Abstract

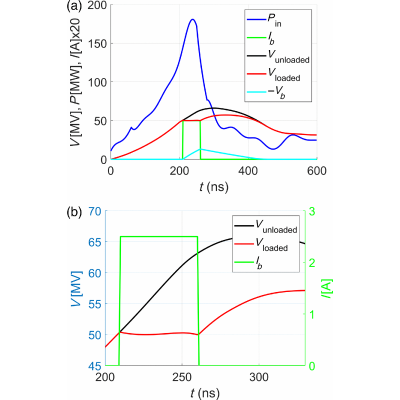

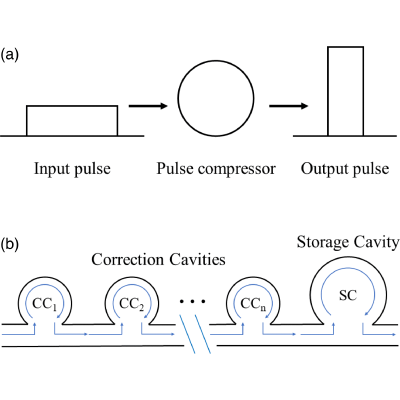

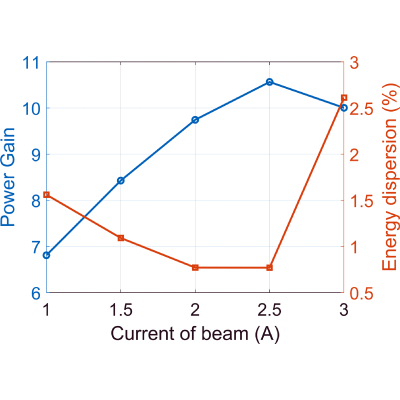

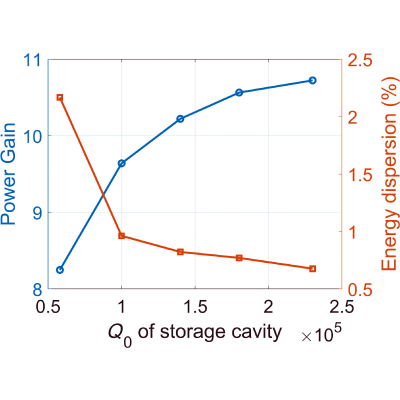

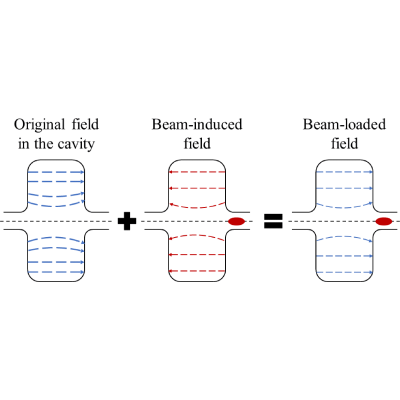

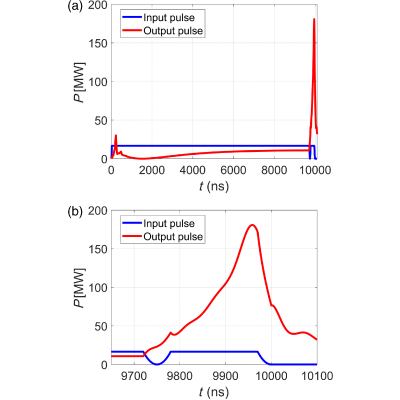

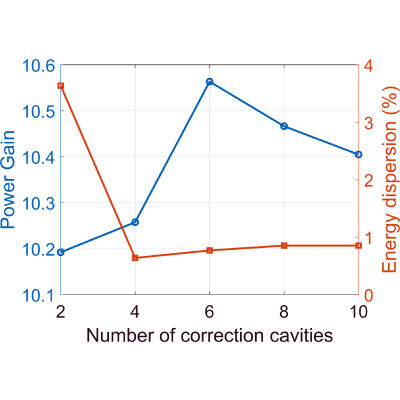

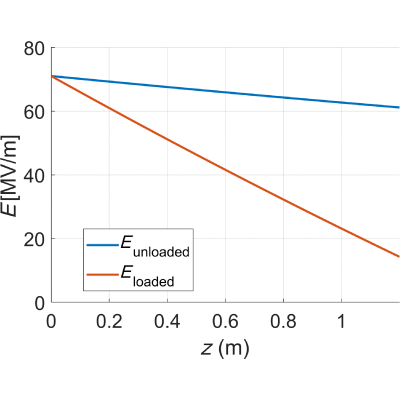

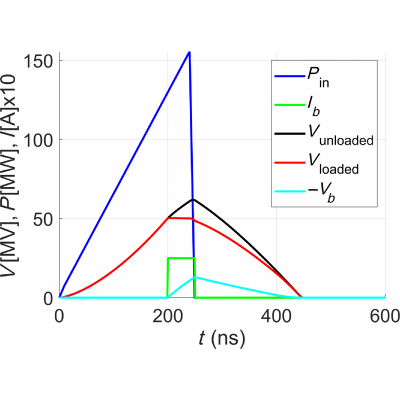

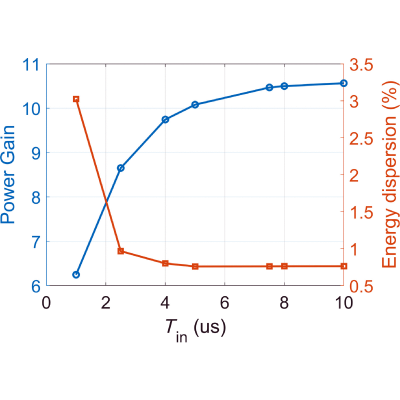

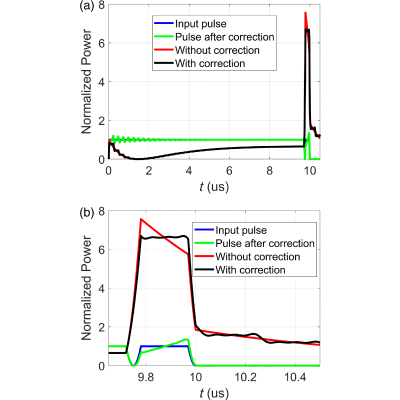

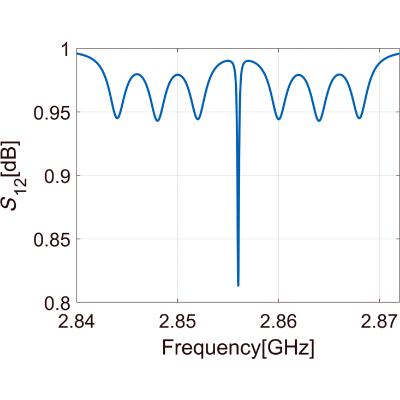

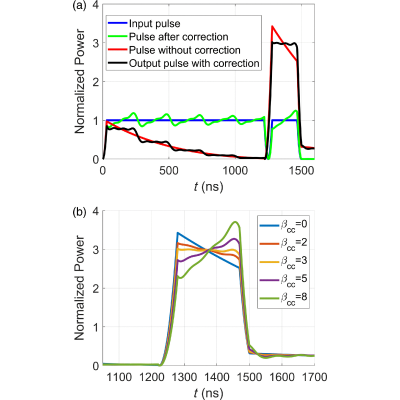

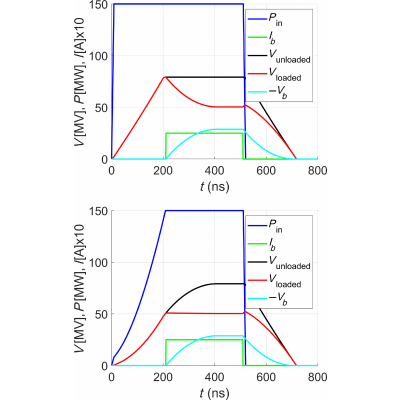

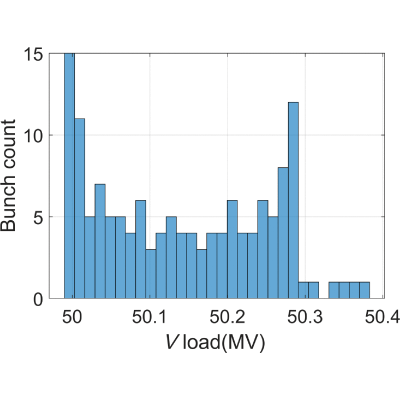

In order to reduce the increase in bunch energy dispersion caused by the beam loading effect, beam loading compensation in the acceleration structure is required. In this paper, a novel scheme is proposed to use microwave pulse compression to compensate for the beam loading effect in the traveling wave structure. The compression system consists of an energy storage cavity and a correction chain of six cavities working in S band. Through parameter optimization, the optimal coupling factors of the energy storage cavity and the correction cavity are obtained to generate microwave pulses with increasing amplitude. Through this scheme, the S-band traveling wave acceleration structure achieves an acceleration voltage of 50.14 MV with a power input of 16.6 MW and a beam current of 2.5 A. The relative energy dispersion is 0.77%, and the effective system power gain reaches 10.56, significantly surpassing that of conventional microwave pulse compression systems.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (22)

  1. K. Johnsen, Heavy beam loading in linear electron accelerators, Proceed. Phys. Soc. Sect. B 64, 1062 (1951).
  2. R. B. Neal, Design of linear electron accelerators with beam loading, J. Appl. Phys. 29, 1019 (1958).
  3. A. Lunin, V. Yakovlev, and A. Grudiev, Analytical solutions for transient and steady state beam loading in arbitrary traveling wave accelerating structures, Phys. Rev. ST Accel. Beams 14, 052001 (2011).
  4. O. Kononenko and A. Grudiev, Transient beam-loading model and compensation in compact linear collider main linac, Phys. Rev. ST Accel. Beams 14, 111001 (2011).
  5. H. Zha and A. Grudiev, Design and optimization of compact linear collider main linac accelerating structure, Phys. Rev. Accel. Beams 19, 111003 (2016).
  6. Z. Farkas, H. Hogg, G. Loew, and P. B. Wilson, Sled: A method of doubling Slac’s energy, in Proceedings of the 9th International Conference on High Energy Accelerators (SLAC, 1974), p. 576.
  7. P. Wilson, Z. Farkas, and R. D. Ruth, SLED II: A new method of RF pulse compression, Tech. Rep. (Stanford Linear Accelerator Center, Menlo Park, CA (USA), 1990).
  8. P. Wang, J. Shi, H. Zha, D. Cao, M. Peng, Z. Liu, C. Cheng, and H. Chen, Development of an s-band spherical pulse compressor, Nucl. Instruments. Methods Phys. Res. Sect. A 901, 84 (2018).
  9. Y. Jiang, H. Zha, J. Shi, M. Peng, X. Lin, and H. Chen, A compact x-band microwave pulse compressor using a corrugated cylindrical cavity, IEEE Trans. Microwave Theory Tech. 69, 1586 (2021).
  10. X. Wu and A. Grudiev, Novel open cavity design for rotating mode rf pulse compressors, Phys. Rev. Accel. Beams 24, 112001 (2021).
  11. S. Y. Kazakov, Pulse shape correction for rf pulse compression system, Spectrum 5, 9 (1992); https://proceedings.jacow.org/e92/PDF/EPAC1992_1247.PDF.
  12. P. Wang, H. Zha, I. Syratchev, J. Shi, and H. Chen, rf design of a pulse compressor with correction cavity chain for Klystron-based compact linear collider, Phys. Rev. Accel. Beams 20, 112001 (2017).
  13. Y. Jiang, H. Zha, P. Wang, J. Shi, H. Chen, W. L. Millar, and I. Syratchev, Demonstration of a cavity-based pulse compression system for pulse shape correction, Phys. Rev. Accel. Beams 22, 082001 (2019).
  14. Y. Jiang, J. Shi, P. Wang, H. Zha, X. Lin, F. Liu, C. Cheng, and H. Chen, Compact two-stage pulse compression system for producing Gigawatt microwave pulses, IEEE Trans. Microwave Theory Tech. 69, 4533 (2021).
  15. X. Lin, H. Zha, J. Shi, Y. Jiang, F. Hu, W. Gu, Q. Gao, and H. Chen, x-band two-stage rf pulse compression system with correction cavity chain, Phys. Rev. Accel. Beams 25, 120401 (2022).
  16. A. L. Vikharev, O. A. Ivanov, A. M. Gorbachev, M. A. Lobaev, V. A. Isaev, S. G. Tantawi, J. R. Lewandowski, and J. L. Hirshfield, x-band active-passive rf pulse compressor with plasma switches, Phys. Rev. ST Accel. Beams 14, 121302 (2011).
  17. X.-Y. Lei, Z.-Q. Zhang, D.-P. Gao, W.-X. Liu, D. Zhao, and H.-L. Gao, Theoretical design and analysis of high-gain over-moded microwave pulse compression system, Radiat. Detect. Technol. Methods 8, 1208 (2024).
  18. F. Merrill, F. Harmon, A. Hunt, F. Mariam, K. Morley, C. Morris, A. Saunders, and C. Schwartz, Electron radiography, Nucl. Instrum. Methods Phys. Res. Sect. B 261, 382 (2007). the Application of Accelerators in Research and Industry.
  19. C. L. Morris, N. S. P. King, K. Kwiatkowski, F. G. Mariam, F. E. Merrill, and A. Saunders, Charged particle radiography, Rep. Progress Phys. 76, 046301 (2013).
  20. Z. Zhou, Y. Du, S. Cao, Z. Zhang, W. Huang, H. Chen, R. Cheng, Z. Chi, M. Liu, X. Su, C. Tang, Q. Tian, W. Wang, Y. Wang, J. Xiao, L. Yan, Q. Zhao, Y. Zhu, Y. Zhou, Y. Zong, and W. Gai, Experiments on bright-field and dark-field high-energy electron imaging with thick target material, Phys. Rev. Accel. Beams 21, 074701 (2018).
  21. Z. Ran, Z. Li, Q. Zhao, X. Shen, Y. Zong, Z. Zhang, Y. Zhou, M. Liu, R. Xiao, J. Li, and S. Cao, Demonstration of high energy electron radiography with sub-micron spatial resolution, Nucl. Instrum. Methods Phys. Res. Sect. A 1015, 165769 (2021).
  22. J.-J. Lan, Q.-T. Zhao, Z.-H. Hu, Z.-H. Ran, W.-W. Xu, H.-Y. Li, J. Li, S.-C. Cao, R. Cheng, Y.-T. Zhao, Z.-M. Zhang, and Y.-N. Wang, High-energy electron radiography system with low chromatic aberrations based on active plasma lenses, Phys. Rev. Appl. 22, 034022 (2024).
