Threshold for loss of Landau damping in double-harmonic rf systems

Leandro Intelisano*, Heiko Damerau, and Ivan Karpov

  • CERN, CH 1211 Geneva 23, Switzerland

  • *Contact author: leandro.intelisano@cern.ch
PDF

Phys. Rev. Accel. Beams 28, 104402 – Published 21 October, 2025

DOI: https://doi.org/10.1103/sd1q-qgbx

Abstract

The loss of Landau damping (LLD) can lead to beam quality degradation in single- and multi-bunch beams in synchrotrons. In the longitudinal plane, the LLD threshold is increased by reducing the beam-coupling impedance, applying controlled emittance blowup, or employing higher-harmonic rf systems. This work focused on the significant threshold modifications when moving from the single- to the double-harmonic rf system case, depending on the relative phase, the rf voltages, and harmonic ratios. Moreover, the impact of the impedance cutoff frequency is discussed. Special attention is given to the configuration where both rf systems are in phase bunch shorting mode (BSM) or in counterphase bunch lengthening mode at the bunch position. Although in BSM, an approximate analytical expression can still be derived, numerical solutions of the linearized Vlasov equation are required in most cases. For the first time, we demonstrate that nonmonotonic amplitude dependence of the synchrotron frequency does not always lead to a vanishing LLD threshold. In BSM, this nonmonotonicity also results in counterintuitive beam evolution after a phase perturbation. The theoretical and semianalytical predictions are validated by an unambiguous beam measurement technique in the Proton Synchrotron and Super Proton Synchrotron at CERN and supported by macroparticle tracking simulations.

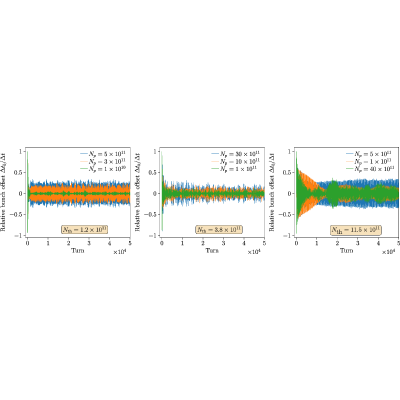

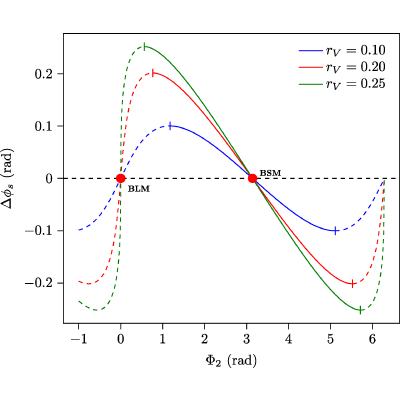

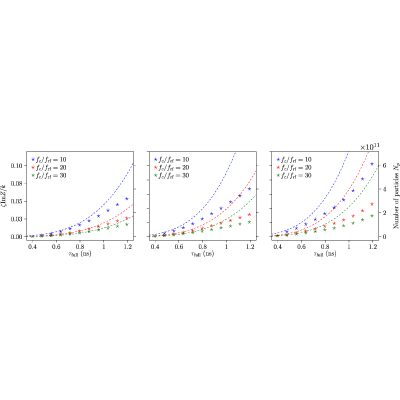

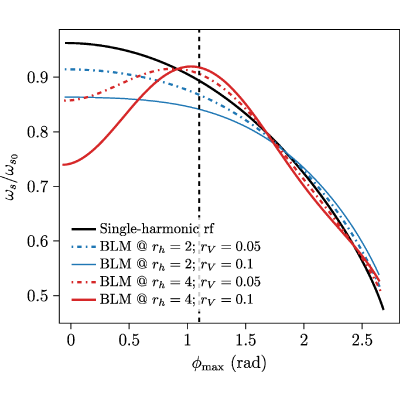

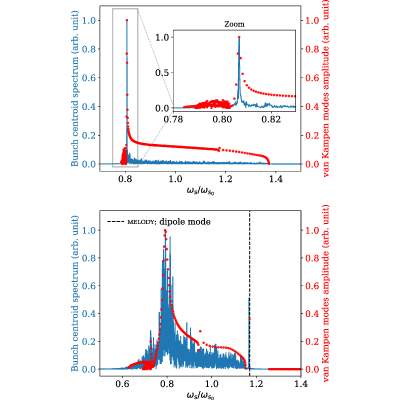

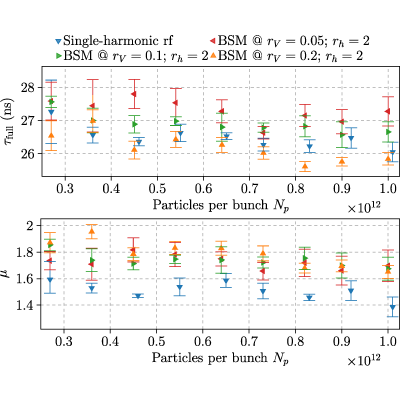

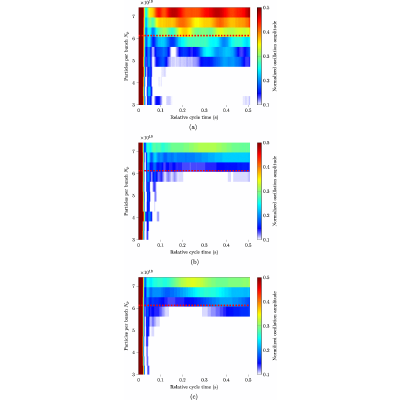

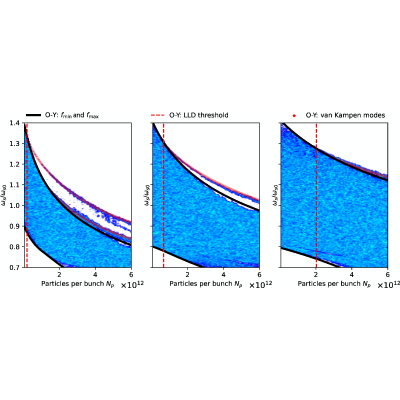

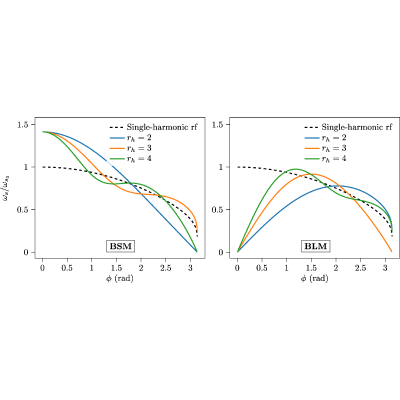

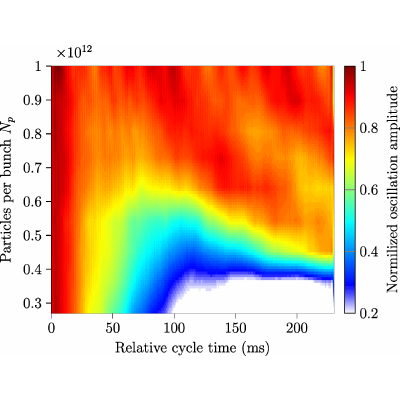

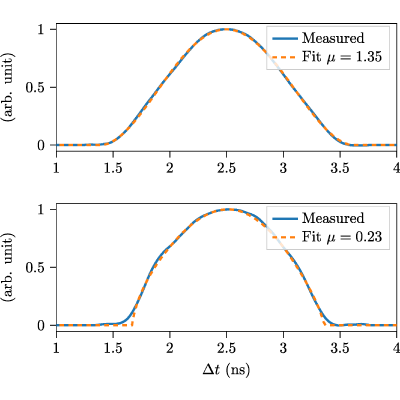

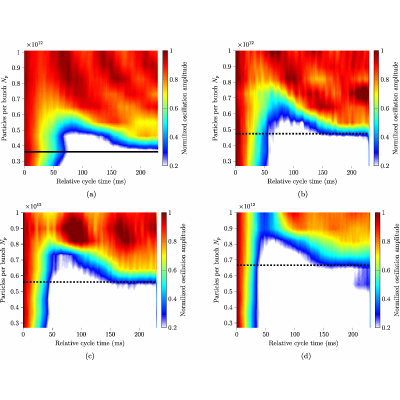

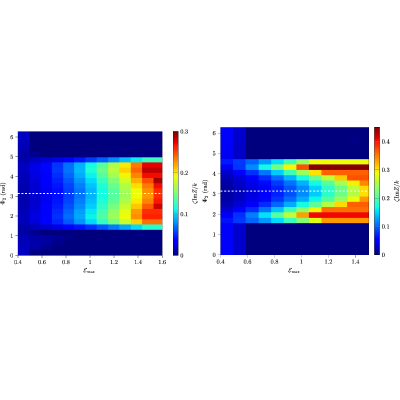

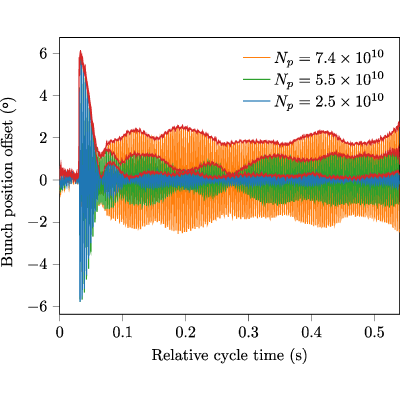

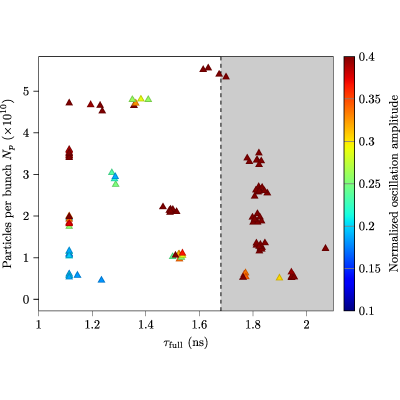

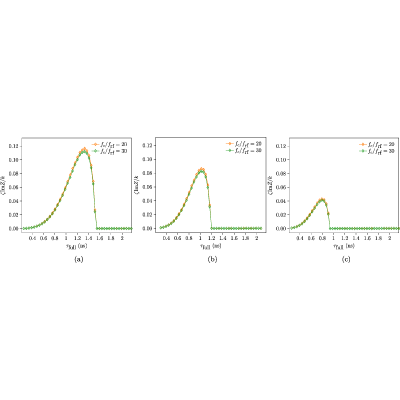

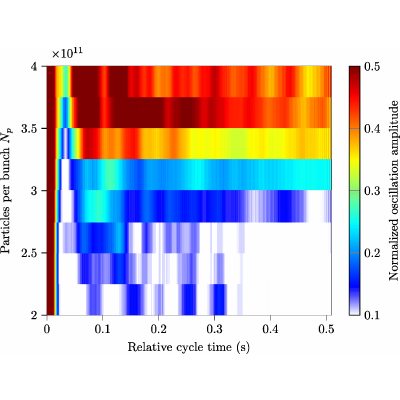

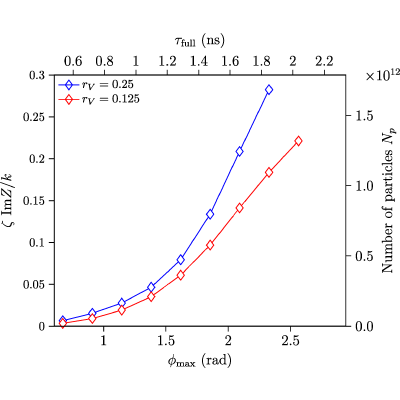

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (40)

  1. L. D. Landau, On the vibrations of the electronic plasma, J. Phys. (Moscow) 10, 25 (1946).
  2. I. Karpov and E. Shaposhnikova, Generalized threshold of longitudinal multibunch instability in synchrotrons, Phys. Rev. Accel. Beams 27, 074401 (2024).
  3. T. Argyropoulos, Longitudinal beam instabilities in a double rf system, Ph.D. thesis, Natl. Tech. University, Athens, 2015.
  4. T. Bohl, T. P. R. Linnecar, E. Shaposhnikova, and J. Tückmantel, Study of different operating modes of the 4th rf harmonic Landau damping system in the CERN SPS, CERN, Geneva, Technical Report No. CERN-SL-98-026-RF, 1998.
  5. E. Shaposhnikova, Cures for beam instabilities in the CERN SPS and their limitations, in Proceedings of the High-Intensity and High-Brightness Hadron Beams (HB’06) (2006), pp. 153–155, https://jacow.org/abdwhb06/papers/TUBX05.pdf.
  6. E. Shaposhnikova, T. Argyropoulos, and I. Karpov, Landau damping in the longitudinal plane, in CERN Yellow Reports: Conference Proceedings (2020), Vol. 9, pp. 54–54, 10.23732/CYRCP-2020-009.54.
  7. A. Burov, Van Kampen modes for bunch longitudinal motion, in Proceedings of 46th ICFA Advanced Beam Dynamics Workshop on High-Intensity and High Brightness Hadron Beams (2010), https://proceedings.jacow.org/HB2010/papers/tuo1c03.pdf?n=HB2010/papers/TUO1C03.pdf.
  8. O. Boine-Frankenheim and T. Shukla, Space charge effects in bunches for different rf wave forms, Phys. Rev. ST Accel. Beams 8, 034201 (2005).
  9. O. Boine-Frankenheim and O. Chorniy, Stability of coherent synchrotron oscillations with space charge, Phys. Rev. ST Accel. Beams 10, 104202 (2007).
  10. S. Krinsky and J. Wang, Longitudinal instabilities of bunched beams subject to a nonharmonic rf potential, Part. Accel. 17, 109 (1985).
  11. F. Sacherer, A longitudinal stability criterion for bunched beams, IEEE Trans. Nucl. Sci. 20, 825 (1973).
  12. A. N. Lebedev, Coherent synchrotron oscillations in the presence of a space charge, At. Energy 25, 851 (1968).
  13. V. Balbekov and S. Ivanov, The influence of chamber inductance on the threshold of longitudinal bunched beam instability, in Proceedings of 2nd European Particle Accelerator Conference, Nice, France (1990), pp. 1566–1568, https://proceedings.jacow.org/e90/PDF/EPAC1990_1566.PDF.
  14. A. Hofmann and F. Pedersen, Bunches with local elliptic energy distributions, IEEE Trans. Nucl. Sci. 26, 3526 (1979).
  15. Y. Chin, K. Yokoya, and K. Satoh, Instability of a bunched beam with synchrotron frequency spread, Part. Accel. 13, 45 (1982).
  16. N. G. van Kampen, On the theory of stationary waves in plasmas, Physica 21, 949 (1955).
  17. N. G. van Kampen, The dispersion equation for plasma waves, Physica 23, 641 (1957).
  18. K. Oide and K. Yokoya, Longitudinal single-bunch instability in electron storage rings, KEK, Tsukuba, Japan, Technical Report No. KEK-Preprint-90-10, 1990.
  19. I. Karpov, T. Argyropoulos, and E. Shaposhnikova, Thresholds for loss of Landau damping in longitudinal plane, Phys. Rev. Accel. Beams 24, 011002 (2021).
  20. I. Karpov, Matrix equations for longitudinal beam dynamics (melody) code, https://gitlab.cern.ch/ikarpov/melody.
  21. H. Timko et al., Beam longitudinal dynamics simulation studies, Phys. Rev. Accel. Beams 26, 114602 (2023).
  22. E. Shaposhnikova, Bunched beam transfer matrices in single and double rf systems, Technical Report No. CERN-SL-94-19-RF, CERN, Geneva, 1994.
  23. A. Burov, Dancing bunches as van Kampen modes, in Proceedings of the 24th Particle Accelerator Conference (IEEE, New York, 2011), pp. 94–96.
  24. S. Nese, Effective impedance for the threshold of loss of Landau damping, Technical Report No. CERN-STUDENTS-Note-2021-214, CERN, 2021.
  25. I. Karpov, T. Argyropoulos, S. Nese, and E. Shaposhnikova, New analytical criteria for loss of Landau damping in longitudinal plane, in Proceedings of the High-Intensity and High-Brightness Hadron Beams (HB’21) (JACoW, Geneva, Switzerland, 2022), pp. 100–105.
  26. P. Bramham, S. Hansen, A. Hofmann, and P. Peschardt, Active Landau cavity on the 4th harmonic of the rf frequency, Technical Report No. ISR-RF-TH-AH-cr, CERN, Geneva, 1977.
  27. V. Balbekov and S. Ivanov, Methods for suppressing the longitudinal instability of a bunched beam with the help of Landau damping, Sov. At. Energy 62, 117 (1987).
  28. O. S. Brüning et al., LHC design report, CERN Yellow Reports: Monographs No. CERN-2004-003-V-1, CERN, Geneva, 2004.
  29. H. J. Nussbaumer and H. J. Nussbaumer, The Fast Fourier Transform (Springer, Berlin, Heidelberg, 1982).
  30. O. M. Essenwanger, Elements of Statistical Analysis (Elsevier, The Netherlands, 1986).
  31. Y. I. Alexahin, On the Landau damping and decoherence of transverse dipole oscillations in colliding beams, Part. Accel. 59, 43 (1998).
  32. V. Kornilov and O. Boine-Frankenheim, Transverse decoherence and coherent spectra in long bunches with space charge, Phys. Rev. ST Accel. Beams 15, 114201 (2012).
  33. P. Baudrenghien, Low-level rf—part I: Longitudinal dynamics and beam-based loops in synchrotrons, in CERN Accelerator School: Course on RF for Accelerators, CERN Yellow Report CERN-2011-007, Ebeltoft, Denmark (2010), arXiv:1201.2597.
  34. A. Spierer et al., The CERN SPS low level rf: The beam-control, in Proceedings of the International Particle Accelerator Conference (IPAC), Bangkok, Thailand (JACoW, Geneva, Switzerland, 2022), pp. 895–898.
  35. S. L. Hahn, Hilbert Transforms in Signal Processing (Artech House, Norwood, MA, USA, 1996).
  36. Y. I. Alexahin, On the Landau damping and decoherence of transverse dipole oscillations in colliding beams, Part. Accel. 59, 43 (1996).
  37. CERN SPS longitudinal impedance model, https://gitlab.cern.ch/longitudinal-impedance/SPS.
  38. A. Lasheen et al., Beam measurement of the high frequency impedance sources with long bunches in the CERN super proton synchrotron, Phys. Rev. Accel. Beams 21, 034401 (2018).
  39. J. Campelo et al., An extended SPS longitudinal impedance model, in Proceedings of the 6th International Particle Accelerator Conference (IPAC’15), Richmond, VA, USA (JACoW, Geneva, Switzerland, 2015), pp. 360–362.
  40. J. Coupard et al., LHC injectors upgrade, technical design report, Technical Report No. CERN-ACC-2016-0041, CERN, Geneva, 2016.
