Application of autoresonance in rapid beam extraction of synchrotrons

X. Ding1,2, S. Ruan1,2, H. Ren1, G. Wang1, R. H. Zhu1,2, J. C. Yang1,2,*, H. Zhao1,2,†, and G. D. Shen1,2,‡

  • *Contact author: yangjch@impcas.ac.cn
  • †Contact author: hezhao@impcas.ac.cn
  • ‡Contact author: shenguodong@impcas.ac.cn
PDF

Phys. Rev. Accel. Beams 28, 100102 – Published 24 October, 2025

DOI: https://doi.org/10.1103/s85n-289k

Abstract

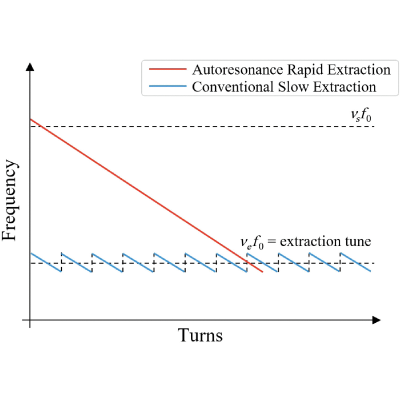

In recent years, ultrahigh dose rate (FLASH) radiotherapy has become a novel cancer treatment technique because of its similar tumor-killing efficacy as conventional particle therapy while significantly protecting normal tissues. However, due to the limitation of the number of particles, achieving FLASH condition in a compact heavy-ion synchrotron requires a short spill time of tens of milliseconds, which is challenging for the conventional rf-KO method. To tackle this challenge, we introduce autoresonance into the third-order resonant extraction for the first time, offering an alternative to the conventional approach of merely increasing the excitation amplitude. Resulting from a strong detuning effect, a frequency sweeping excitation with small amplitude can drive the entire beam into the autoresonant state, thus enabling rapid beam extraction within a single sweeping period. Compared with the conventional method, this innovative method requires only the addition of an octupole magnet. At the same time, conventional slow extraction rf-KO employs a repetitive multicycle frequency sweeping excitation, a specific particle resonates when the sweeping frequency aligns with its tune. In contrast to the autoresonance rf-KO, which engages the entire beam in resonance simultaneously. In this research, the autoresonance threshold of a particle in the presence of sextupole and octupole magnetic fields is analyzed, and the single particle simulation shows good agreement with the theoretical formula. Furthermore, the autoresonance-based rapid extraction process is simulated and studied, showing the possibility of millisecond scale beam extraction.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (25)

  1. W. Tinganelli, O. Sokol, M. Quartieri, A. Puspitasari, I. Dokic, A. Abdollahi, M. Durante, T. Haberer, J. Debus, D. Boscolo, B. Voss, S. Brons, C. Schuy, F. Horst, and U. Weber, Ultra-high dose rate (FLASH) carbon ion irradiation: Dosimetry and first cell experiments, Int. J. Radiat. Oncol. Biol. Phys. 112, 1012 (2022).
  2. PTCOG-patient statistics, 2024, https://www.ptcog.site/index.php/patient-statistics-2.
  3. J. C. L. Chow and H. E. Ruda, Mechanisms of action in FLASH radiotherapy: A comprehensive review of physicochemical and biological processes on cancerous and normal cells, Cells 13, 835 (2024).
  4. P. G. Maxim, P. Keall, and J. Cai, FLASH radiotherapy: Newsflash or flash in the pan?, Med. Phys. 46, 4287 (2019).
  5. S. Jolly, H. Owen, M. Schippers, and C. Welsch, Technical challenges for FLASH proton therapy, Phys. Med. 78, 71 (2020).
  6. N. W. Colangelo and E. I. Azzam, The importance and clinical implications of FLASH ultra-high dose-rate studies for proton and heavy ion radiotherapy, Radiat. Res. 193, 1 (2019).
  7. L. Badano, M. Crescenti, P. Holy, A. Maier, P. Knaus, P. Bryant, M. Benedikt, M. Pullia, and S. Rossi, Proton-ion medical machine study (PIMMS), 1, Technical Report No. CERN-PS-99-010-DI, CERN, European Organization for Nuclear Research, Supported by Med-AUSTRON, Onkologie-2000, and TERA Foundation, 1999.
  8. K. Noda, T. Furukawa, S. Shibuya, M. Muramatsu, T. Uesugi, M. Kanazawa, M. Torikoshi, E. Takada, and S. Yamada, Source of spill ripple in the rf-KO slow-extraction method with FM and AM, Nucl. Instrum. Methods Phys. Res., Sect. A 492, 241 (2002).
  9. S. Ruan, J. C. Yang, J. W. Xia, Y. J. Zheng, R. L. Wang, X. J. Yin, G. D. Shen, L. N. Sheng, C. Qian, G. Wang, W. P. Chai, J. Liu, F. C. Cai, Y. P. Yao, and L. X. Hou, The 300 MeV proton and heavy ion accelerator complex for SESRI project in china, Nucl. Instrum. Methods Phys. Res., Sect. A 1048, 167916 (2023).
  10. K. Noda, T. Furukawa, S. Shibuya, T. Uesugi, M. Muramatsu, M. Kanazawa, E. Takada, and S. Yamada, Advanced rf-KO slow-extraction method for the reduction of spill ripple, Nucl. Instrum. Methods Phys. Res., Sect. A 492, 253 (2002).
  11. B. Meerson and L. Friedland, Strong autoresonance excitation of Rydberg atoms: The Rydberg accelerator, Phys. Rev. A 41, 5233 (1990).
  12. W.-K. Liu, B. Wu, and J.-M. Yuan, Nonlinear dynamics of chirped pulse excitation and dissociation of diatomic molecules, Phys. Rev. Lett. 75, 1292 (1995).
  13. J. Fajans, E. Gilson, and L. Friedland, Autoresonant (nonstationary) excitation of the diocotron mode in non-neutral plasmas, Phys. Rev. Lett. 82, 4444 (1999).
  14. J. Fajans, E. Gilson, and L. Friedland, Autoresonant (nonstationary) excitation of a collective nonlinear mode, Phys. Plasmas 6, 4497 (1999).
  15. J. Fajans and L. Frièdland, Autoresonant (nonstationary) excitation of pendulums, plutinos, plasmas, and other nonlinear oscillators, Am. J. Phys. 69, 1096 (2001).
  16. L. Friedland, Control of Kirchhoff vortices by a resonant strain, Phys. Rev. E 59, 4106 (1999).
  17. G. Klughertz, L. Friedland, P.-A. Hervieux, and G. Manfredi, Autoresonant switching of the magnetization in single-domain nanoparticles: Two-level theory, Phys. Rev. B 91, 104433 (2015).
  18. A. Shagalov and L. Friedland, Narrow autoresonant magnetization structures in finite-length ferromagnetic nanoparticles, Phys. Rev. E 100, 032208 (2019).
  19. M. Song, L. Spentzouris, X. Huang, and J. Safranek, Autoresonant excitation of nonlinear beam motion in storage rings, Phys. Rev. Accel. Beams 25, 074001 (2022).
  20. S.-Y. Lee, Accelerator Physics (World Scientific, Singapore, 2018).
  21. Y. Z. Gao, S. Ruan, J. Shi, J. C. Yang, J. W. Xia, Y. Li, and Y. Zhou, Study on slow extraction dynamics of 300 MeV proton and heavy ion synchrotron, Nucl. Phys. Rev. 40, 207 (2023).
  22. J. Laskar, The chaotic motion of the solar system: A numerical estimate of the size of the chaotic zones, Icarus 88, 266 (1990).
  23. N. K. Panos Zisopoulos, A python module that implements the numerical analysis of fundamental frequencies (NAFF) algorithm, 2023, https://pypi.org/project/pynaff/.
  24. E. Cortés García, P. Niedermayer, R. Singh, R. Taylor, E. Feldmeier, M. Hun, E. Benedetto, and T. Haberer, Interpretation of the horizontal beam response near the third integer resonance, Phys. Rev. Accel. Beams 27, 124001 (2024).
  25. X. Ding, Application of autoresonance in rapid beam extraction of synchrotrons dataset, Zenodo, 10.5281/zenodo.14961642.
