In-vacuum thin eddy-current septum magnet for innovative off-axis beam injection in next-generation light source

Shiro Takano1,2,*, Kenji Fukami1,2, Takahiro Inagaki2,1, Taiki Iwashita3,4, Chikara Kondo1,2, Mitsuhiro Masaki1, Kanichiro Ogata5, Masaya Oishi1,2, Yoshiyuki Saito5 et al.

Masazumi Shoji1,2, Minori Tajima1, Kazuhiro Tamura1,2, Tsutomu Taniuchi1, Takahiro Watanabe1,2, Hiroshi Yamaguchi1, and Hitoshi Tanaka2

  • *Contact author: takano@spring8.or.jp
PDF

Phys. Rev. Accel. Beams 28, 092401 – Published 10 September, 2025

DOI: https://doi.org/10.1103/rvbw-ml5n

Abstract

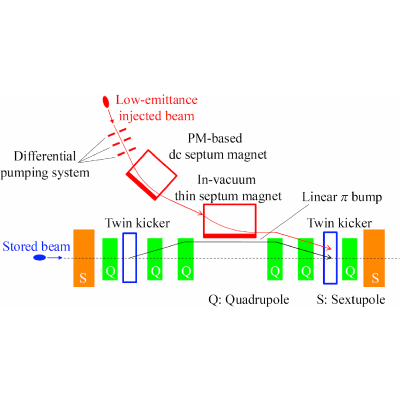

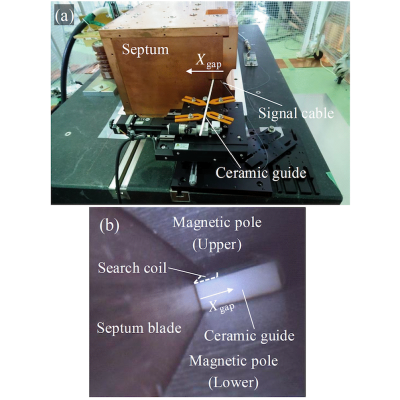

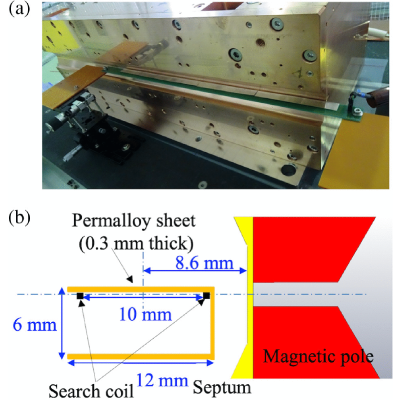

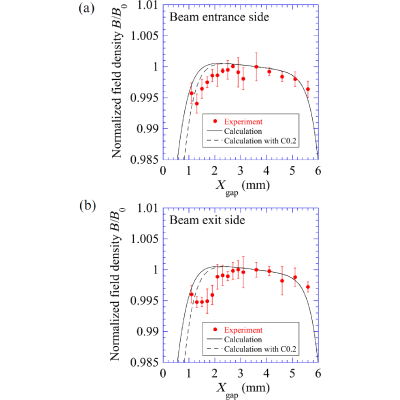

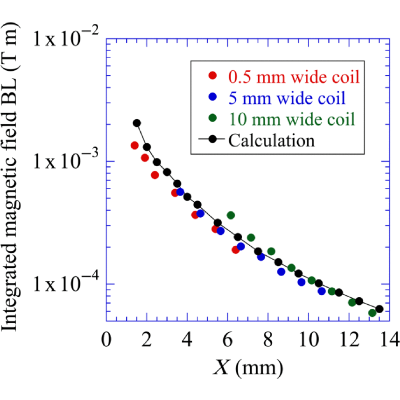

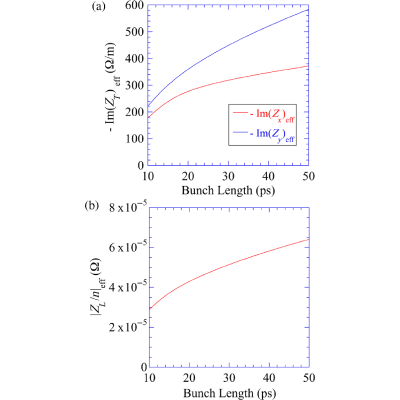

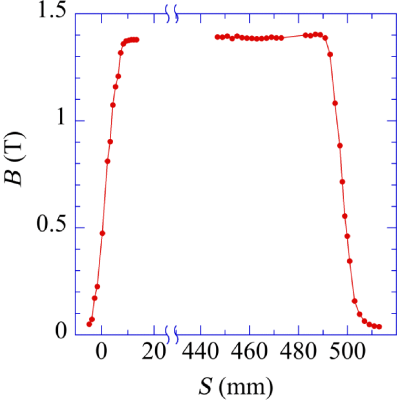

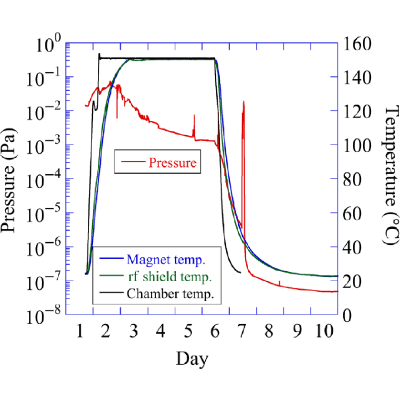

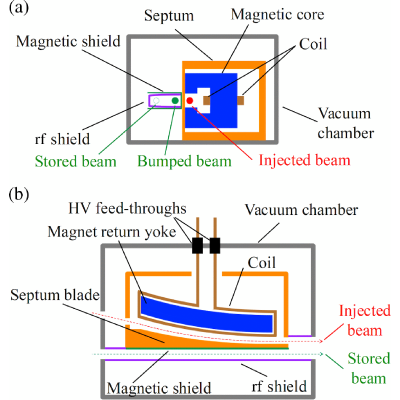

Beam injection is one of the most crucial issues for next-generation light sources such as diffraction-limited storage rings. We propose a novel transparent off-axis beam injection scheme for low-emittance storage rings of future light sources. The scheme aims to achieve efficient beam injection into a narrow dynamic aperture with small injection amplitude, while minimizing perturbation to the stored beam with transparent beam injection. An in-vacuum thin eddy-current septum magnet is one of the key components of the scheme to achieve the small injection amplitude. A prototype of the magnet with an accommodating ultrahigh vacuum (UHV) chamber was designed and fabricated. Magnet performance of the prototype demonstrated that an injection amplitude as small as 3 mm is feasible, fulfilling the tight constraint of injection amplitude in off-axis beam injection for next-generation light sources. The prototype achieved a UHV pressure of better than 1×10−7  Pa, ensuring the vacuum performance required for stable operation in storage rings.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (25)

  1. P. Raimondi, N. Carmignani, L. R. Carver, J. Chavanne, L. Farvacque, G. Le Bec, D. Martin, S. M. Liuzzo, T. Perron, and S. White, Commissioning of the hybrid multibend achromat lattice at the European Synchrotron Radiation Facility, Phys. Rev. Accel. Beams 24, 110701 (2021).
  2. T. E. Fornek, Advanced photon source upgrade project final design report, Argonne National Laboratory (ANL), Argonne, IL, Technical Report No. APSU-2.01-RPT-003, 2019, 10.2172/1543138.
  3. H. Tanaka et al., Green upgrading of SPring-8 to produce stable, ultrabrilliant hard x-ray beams, J. Synchrotron Radiat. 31, 1420 (2024).
  4. C. G. Schroer, I. Agapov, W. Brefeld, R. Brinkmann, Y-C. Chae, H-C. Chao, M. Eriksson, J. Keil, X. N. Gavaldà, R. Röhlsberger, O. H. Seeck, M. Sprung, M. Tischer, R. Wanzenberg, and E. Weckert, PETRA IV: The ultralow-emittance source project at DESY, J. Synchrotron Radiat. 25, 1277 (2018).
  5. P. Raimondi and S. M. Liuzzo, Toward a diffraction limited light source, Phys. Rev. Accel. Beams 26, 021601 (2023).
  6. T. Atkinson, M. Dirsat, O. Dressler, P. Kuske, and H. Rast, Development of a non-linear kicker system to facilitate a new injection scheme for the BESSY II storage ring, in Proceedings of the 2nd International Particle Accelerator Conference, IPAC2011, San Sebastián, Spain, 2011 (JACoW, Geneva, Switzerland, 2011), pp. 3394–3396, https://proceedings.jacow.org/IPAC2011/papers/thpo024.pdf.
  7. P. Alexandre, R. B. E. Fekih, A. Letrésor, S. Thoraud, J. S. Castro, F. Bouvet, J. Breunlin, Å. Andersson, and P. F. Tavares, Transparent top-up injection into a fourth-generation storage ring, Nucl. Instrum. Methods Phys. Res., Sect. A 986, 164739 (2021).
  8. L. Liu, M. B. Alves, F. C. Arroyo, G. O. Brunheira, G. R. Cruz, A. F. Giachero, A. C. S. Oliveira, F. S. de Oliveira, G. S. Ramirez, X. R. Resende, E. N. Rolim, F. H. de Sá, D. O. Tavares, and H. Westfahl, Jr., Status of SIRIUS operation with users, in Proceedings of the 14th International Particle Accelerator Conference, IPAC-2023, Venice, Italy, 2023 (JACoW, Geneva, Switzerland, 2023), pp. 2586–2589, https://proceedings.jacow.org/ipac2023/pdf/WEOGA2.pdf.
  9. R. Ollier, P. Alexandre, R. Ben El Fekih, A. Gamelin, N. Hubert, M. Labat, L. S. Nadolski, and M.-A. Tordeux, Toward transparent injection with a multipole injection kicker in a storage ring, Phys. Rev. Accel. Beams 26, 020101 (2023).
  10. V. Sajaev, M. Borland, J. Calvey, J. Dooling, L. Emery, K. Harkay, N. Kuklev, O. Mohsen, Y. Sun, N. Arnold, T. Berenc, A. Brill, H. Bui, J. Carwardine, W. Cheng, T. Fors, M. Kelly, R. Lindberg, G. Shen, M. Smith, F. Rafael, H. Shang, R. Soliday, U. Wienands, and B. Yang, Commissioning of the advanced photon source upgrade—The first swap-out injection-based synchrotron light source, in Proceedings of the 16th International Particle Accelerator Conference, IPAC-2025, Taipei, Taiwan, 2025 (JACoW, Geneva, Switzerland, 2025), pp. 915–918.
  11. Z. Duan, J. Chen, Y. Y. Guo, D. H. Ji, Y. Jiao, C. Meng, Y. Peng, and G. Xu, Simulation of injection efficiency for the high energy photon source, in Proceedings of the 10th International Particle Accelerator Conference, IPAC-2019, Melbourne, Australia, 2019 (JACoW, Geneva, Switzerland, 2019), pp. 1514–1517, https://proceedings.jacow.org/ipac2019/papers/tupgw048.pdf.
  12. P. Collier, Synchrotron phase space injection into LEP, in Proceedings of the 1995 Particle Accelerator Conference and International Conference on High-Energy Accelerators, Dallas, TX, 1995 (IEEE, New York, NY, 1996), pp. 551–553, https://ieeexplore.ieee.org/abstract/document/504716.
  13. M. Aiba, B. Goddard, K. Oide, Y. Papaphilippou, Á. Saá Hernández, D. Shwartz, S. White, and F. Zimmermann, Top-up injection schemes for future circular lepton collider, Nucl. Instrum. Methods Phys. Res., Sect. A 880, 98 (2018).
  14. S. Takano, K. Fukami, C. Kondo, M. Masaki, M. Oishi, M. Shoji, K. Tamura, T. Taniuchi, K. Yanagida, T. Watanabe, T. Hara, T. Inagaki, H. Tanaka, K. Hamato, J. Kataoka, K. Kusano, K. Ogata, Y. Saito, H. Akikawa, and K. Sato, Renovation of off-axis beam injection scheme for next-generation photon sources, in Proceedings of the 10th International Particle Accelerator Conference, IPAC-2019, Melbourne, Australia, 2019 (JACoW, Geneva, Switzerland, 2019), pp. 2318–2321, https://proceedings.jacow.org/ipac2019/papers/wepmp009.pdf.
  15. H. Tanaka et al., Stable top-up operation at SPring-8, J. Synchrotron Radiat. 13, 378 (2006).
  16. T. Hara et al., Low-emittance beam injection for a synchrotron radiation source using an x-ray free-electron laser linear accelerator, Phys. Rev. Accel. Beams 24, 110702 (2021).
  17. T. Taniuchi, T. Watanabe, S. Takano, T. Aoki, K. Fukami, S. Matsubara, K. Yanagida, K. Hamato, J. Kataoka, K. Ogata, Y. Saito, and K. Kusano, dc septum magnet based on permanent magnet for next-generation light sources, Phys. Rev. Accel. Beams 23, 012401 (2020).
  18. K. Fukami, T. Inagaki, T. Iwashita, H. Nakanishi, N. Nishimori, S. Takano, Y. Takemura, T. Taniuchi, T. Watanabe, H. Yamaguchi, and H. Tanaka, Iron lamination and interlaminar insulation for high-frequency pulsed magnets, Rev. Sci. Instrum. 93, 023301 (2022).
  19. T. Inagaki, H. Tanaka, H. Akikawa, K. Sato, K. Fukami, C. Kondo, and S. Takano, Development of a solid-state pulse generator driving kicker magnets for a novel injection system of a low emittance storage ring, in Proceedings of the 9th International Particle Accelerator Conference, IPAC-2018, Vancouver, BC, Canada (JACoW, Geneva, Switzerland, 2018), pp. 1804–1807, https://proceedings.jacow.org/ipac2018/papers/weygbf4.pdf.
  20. P. Lebasque, P. Gros, J. P. Lavieville, J. Da Silva Castro, A. Mary, and D. Muller, Eddy current septum magnets for booster injection and extraction, and storage ring injection at synchrotron SOLEIL, in Proceedings of 10th European Particle Accelerator Conference, Edinburgh, Scotland, 2006 (European Physical Society Accelerator Group, Mulhouse, France, 2006), pp. 3511–3513, https://proceedings.jacow.org/e06/PAPERS/THPLS101.pdf.
  21. L. Ouyang, M. Gu, B. Liu, and R. Cheng, Eddy current septum magnets for injection and extraction at SSRF, Chin. Phys. C 34, 389 (2010).
  22. R. Ganter, SLS 2.0 storage ring upgrade overview, in Proceedings of the 16th International Particle Accelerator Conference, IPAC-2025, Taipei, Taiwan (JACoW, Geneva, Switzerland, 2025), pp. 79–82.
  23. Dassault Systemes, cst studio suite, https://www.3ds.com/products/simulia/cst-studio-suite.
  24. N. Nishimori, Recent development and future direction of ring-type synchrotron light sources in Japan, in Proceedings of the 15th International Particle Accelerator Conference, IPAC-2024, Nashville, TN, 2024 (JACoW, Geneva, Switzerland, 2024), pp. 3939–3943, https://proceedings.jacow.org/ipac2024/pdf/FRYD2.pdf.
  25. S. Obara et al., Commissioning of a compact multi-bend achromat lattice NanoTerasu: A new 3 GeV synchrotron radiation facility, Phys. Rev. Accel. Beams 28, 020701 (2025).
