Methods for full coupling operation in a synchrotron light source
Phys. Rev. Accel. Beams 28, 082803 – Published 22 August, 2025
DOI: https://doi.org/10.1103/rhfy-8jsp
Abstract

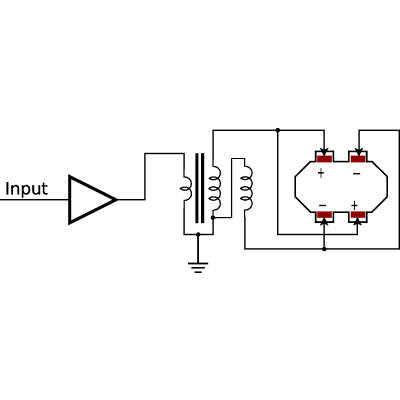

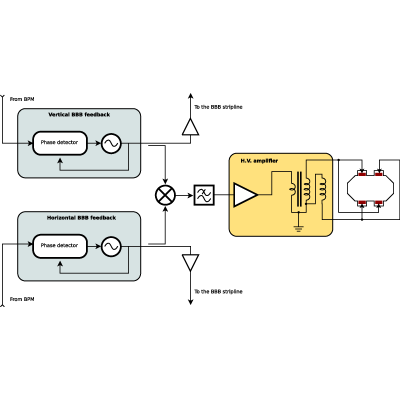

Several synchrotron light sources are currently designing a lattice upgrade to reach low (sub-nm) emittances, which inevitably entails a significant beam lifetime reduction. In view of the ALBA lattice upgrade, it was decided to evaluate different methods using the current ALBA storage ring to reach large betatron coupling as a way to increase the lifetime. In a first attempt, coupling was introduced by means of static skew quadrupolar magnets and by tuning the working point onto the resonance , but in a realistic scenario, some kind of tune feedback is required to counteract the unavoidable tune drifts and fluctuations that would drive the system out of resonance. Furthermore, the condition constrains the linear optics resulting in an important lack of flexibility. Therefore a second method is proposed, based on the excitation of the coupling resonance with an ac skew quadrupole driven at the frequency . In this case, we used the existing four-electrode tune excitation stripline recabled as a skew quadrupole. A fast tune tracking system was implemented to drive the skew quadrupole exactly on the resonance despite the tune fluctuations. This work goes over the collected results and experiences, aiming to put into light pitfalls and limits of the application of coupling to achieve round beams in a synchrotron light source.
Physics Subject Headings (PhySH)
Article Text
References (23)
- P. Raimondi, N. Carmignani, L. R. Carver, J. Chavanne, L. Farvacque, G. Le Bec, D. Martin, S. M. Liuzzo, T. Perron, and S. White, Commissioning of the hybrid multibend achromat lattice at the European Synchrotron Radiation Facility, Phys. Rev. Accel. Beams 24, 110701 (2021).
- S. Preston, T. Olsson, and B. Singh, Emittance feedback for the Diamond-II storage ring using resonant excitation, J. Phys. Conf. Ser. 2420, 012025 (2023).
- G. Guignard, The general theory of all sum and difference resonances in a three-dimensional magnetic field in a synchrotron, CERN Yellow Reports: Monographs No. CERN-76-06, CERN, Geneva, 1976.
- P. J. Bryant, A simple theory for weak betatron coupling, in CAS—CERN Accelerator School: 3rd General Accelerator Physics Course (CERN, Geneva, 1989), pp. 50–62.
- ALBA II White Paper, https://www.cells.es/en/science-at-alba/alba-ii-upgrade/alba-ii-whitepaper.pdf.
- Z. Martí, G. Benedetti, M. Carlà, U. Iriso, and L. Torino, Full coupling studies at ALBA, in Proceedings of the 13th International Particle Accelerator Conference IPAC-2022 (JACoW, Geneva, Switzerland, 2022), WEOZSP4.
- M. Carlà, G. Benedetti, L. Torino, U. Iriso, and Z. Martí, AC excitation studies for full coupling operation, in Proceedings of the 14th International Particle Accelerator Conference IPAC-2023 (JACoW, Geneva, Switzerland, 2023), MOPL002.
- P. Kuske, Calculation of beam sizes in coupled electron storage rings, in Proceedings of the 14th International Particle Accelerator Conference (IPAC-2023) (JACoW, Geneva, 2023), WEPA070.
- P. Kuske and R. Gorgen, Vertical emittance control at BESSY, in Proceedings of the 8th European Particle Accelerator Conference (EPAC 2002) (European Physical Society, Geneva, 2002), pp. 1151–1153.
- E. J. N. Wilson, Linear coupling, in CAS—CERN Accelerator School: General Accelerator Physics (CERN, Geneva, 1985), pp. 114–124.
- T. Nakamura, X-Y coupling generation with AC/pulsed skew quadrupole and its application, in Proceedings of the 10th Annual Meeting of Particle Accelerator Society of Japan, Nagoya, Aichi, Japan (pasj, Japan, 2013), http://www.pasj.jp/web_publish/pasj10/index.html.
- P. Kuske, Injection of round beams, in 8-th Low Emittance Rings Workshop, Frascati, Italy (2020), https://agenda.infn.it/event/20813/contributions/110209/.
- J. Safranek, Experimental determination of storage ring optics using orbit response measurements, Nucl. Instrum. Methods Phys. Res., Sect. A 388, 27 (1997).
- M. Pont, N. Ayala, G. Benedetti, M. Carlà, Z. Martí, and R. Núnez-Prieto, A pinger magnet system for the ALBA synchrotron light source, in Proceedings of the 6th International Particle Accelerator Conference (IPAC-2015) (JACoW, Geneva, Switzerland, 2015), WEPMN050.
- U. Iriso and A. Nosych, PSF characterization of the ALBA X-ray pinholes, in Proceedings of the 11th International Beam Instrumentation Conference (IBIC2022) (JACoW, Geneva, Switzerland, 2022), p. 421.
- M. Carlà. Transverse beam dynamics studies from turn-by-turn beam position monitor data in the ALBA storage ring, Ph.D. thesis, Universitat Autònoma de Barcelona, 2017.
- P. Zisopoulos, Y. Papaphilippou, and J. Laskar, Refined betatron tune measurements by mixing beam position data, Phys. Rev. Accel. Beams 22, 071002 (2019).
- A. Terebilo, Accelerator toolbox for matlab, Workshop on Performance Issues at Synchrotron Light Sources (SLAC, Stanford, 2001).
- U. Iriso, T. Günzel, and F. Perez, Design of the stripline and kickers for ALBA, in Proceedings of the DIPAC09, Basel, Switzerland (JACoW, Geneva, Switzerland, 2009).
- R. J. Steinhagen, Tune and chromaticity diagnostics, CAS—CERN Accelerator School: Beam Diagnostics (CERN, Geneva, 2009), p. 317.
- A. Olmos, M. Abbott, U. Iriso, J. Moldes, F. Pérez, G. Rehm, and I. Uzun, Integration of the Diamond transverse multibunch feedback system at ALBA, in Proceedings of the 4th International Beam Instrumentation Conference (JACoW, Geneva, Switzerland, 2016), TUPB046.
- Instrumentation Technologies, https://www.i-tech.si/.
- M. Abbott, G. Rehm, and I. Uzun, Architecture of transverse Multi-bunch feedback processor at Diamond, in Proceedings of the 15th International Conference on Accelerator and Large Experimental Physics Control Systems (JACoW, Geneva, Switzerland, 2015), MOPGF097.
